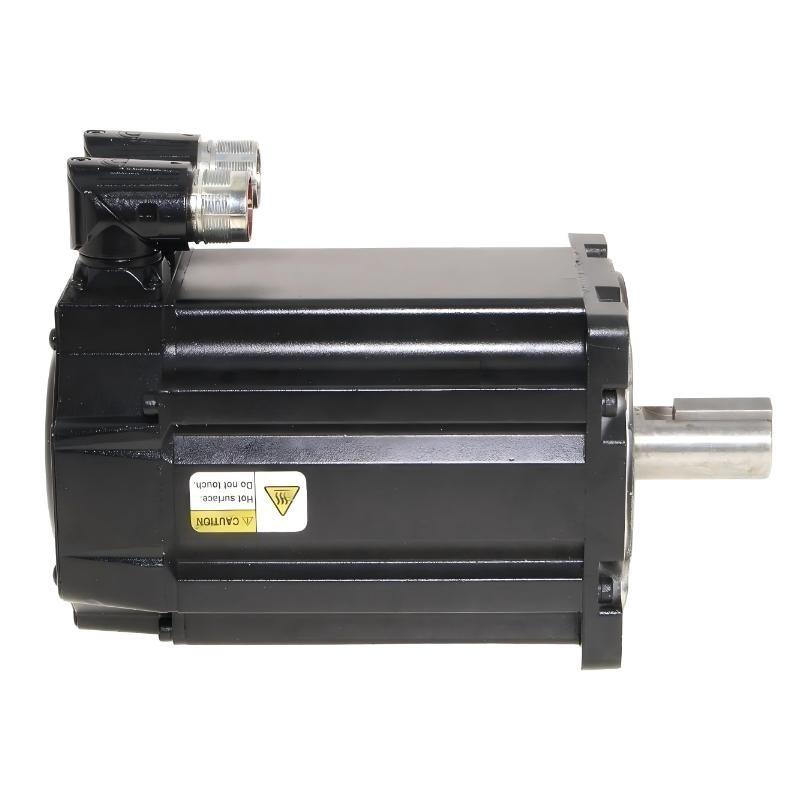

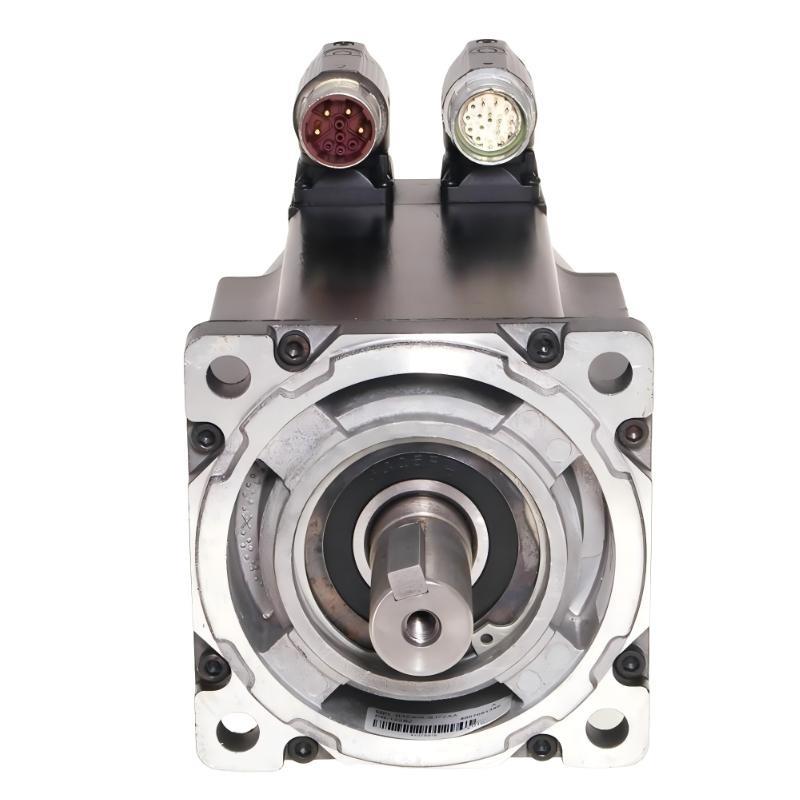

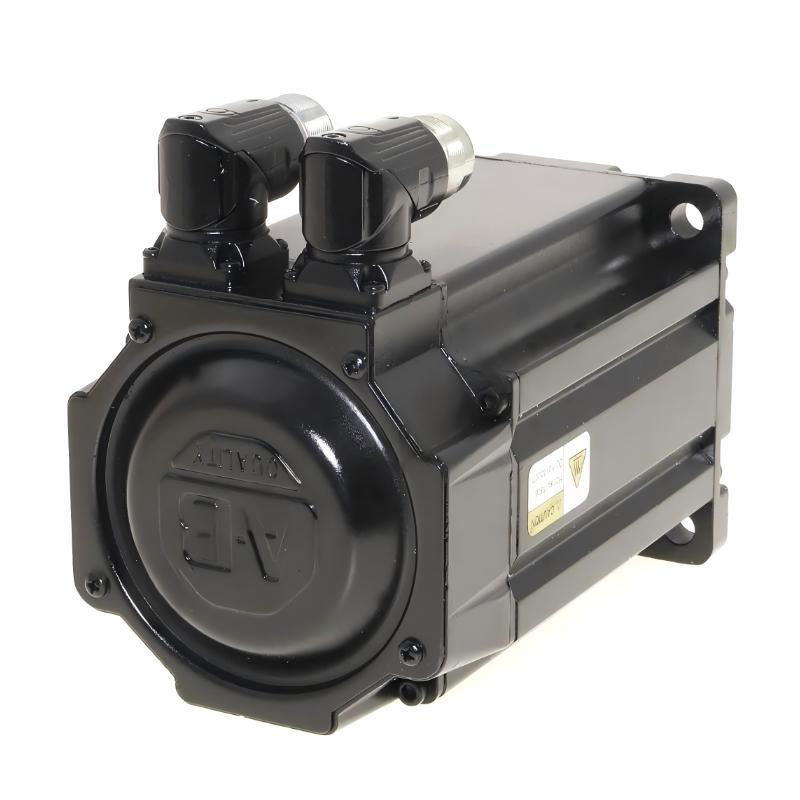

The Allen Bradley MPL-B4530K-SJ72AA Servo Motor is a high-performance low-inertia servo motor from the MPL-B series, designed for dynamic motion control applications that require fast response, precise positioning, and stable torque output. This model is well-suited for advanced automation systems where high efficiency and accuracy are critical.
With a 130 mm frame size and a 76.2 mm magnet stack length, the motor delivers a strong balance between torque performance and dynamic responsiveness. Operating at a rated speed / 4000 rpm under a 400 V voltage class, it is ideal for high-speed industrial applications.
Equipped with a Hiperface absolute single-turn encoder (1024 Sin/Cos), the motor ensures accurate position feedback and reliable motion control. The absence / a brake makes it suitable for applications where holding torque is not required or is managed externally. The SpeedTec DIN connector provides fast and secure installation, enhancing overall system efficiency.
产品规格
| Parameter | 描述 |
|---|---|
| Product 型号 | MPL-B4530K-SJ72AA |
| Series | MPL-B Servo Motor |
| Series Type | Low Inertia |
| Frame Size | 130 mm |
| Voltage Class | 400 V |
| Rated Speed | 4000 rpm |
| Encoder Type | Absolute Single-turn (Hiperface) |
| Encoder Resolution | 1024 Sin/Cos |
| Magnet Stack Length | 76.2 mm |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | Circular (SpeedTec DIN Connector) |
| Brake | No Brake |
| Cooling Method | Natural Cooling |
| Mounting Type | Flange Mount |
| 重量 | 7.3 kg |
Applications
● Robotics Systems
Fast acceleration and precise control improve performance in robotic motion applications.
● CNC Machine Tools
High-speed operation and accuracy support advanced machining processes.
● Packaging Equipment
Dynamic motion capability enhances production speed and efficiency.
● Material Handling Systems
Smooth and responsive movement improves system reliability and throughput.
● Automated Assembly Lines
Accurate positioning ensures consistent and repeatable operations.
Advantages
● Low Inertia Design
Improved responsiveness enables faster acceleration and deceleration.
● High-Speed Operation
4000 rpm rated speed supports high-performance industrial applications.
● Precision Feedback System
Hiperface encoder provides accurate and reliable position control.
● Flexible Application Use
No brake configuration allows customization based on application needs.
● Efficient Installation
SpeedTec DIN connector simplifies wiring and reduces setup time.
● Reliable Mechanical Performance
Keyed shaft design ensures stable torque transmission.
