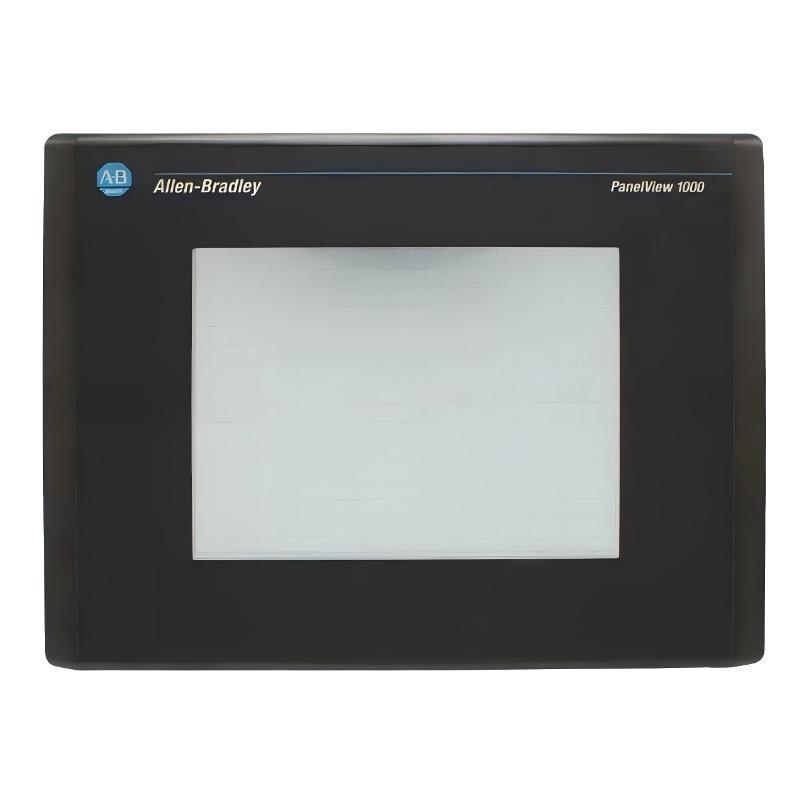

The Allen Bradley 2711-T10C8L1 PanelView 1000 Operator Interface is a reliable industrial human-machine interface designed for machine control, process visualization, and operator monitoring applications. Featuring a responsive touchscreen and a 10.4-inch color display, this operator terminal provides clear access to machine status, alarms, diagnostics, and production information in real time.
The PanelView 1000 series is widely used in industrial automation systems where dependable HMI performance and simple operator interaction are essential. Its 640 × 480 pixel color display delivers clear graphical visualization and improved readability, helping operators efficiently monitor industrial equipment and production processes.

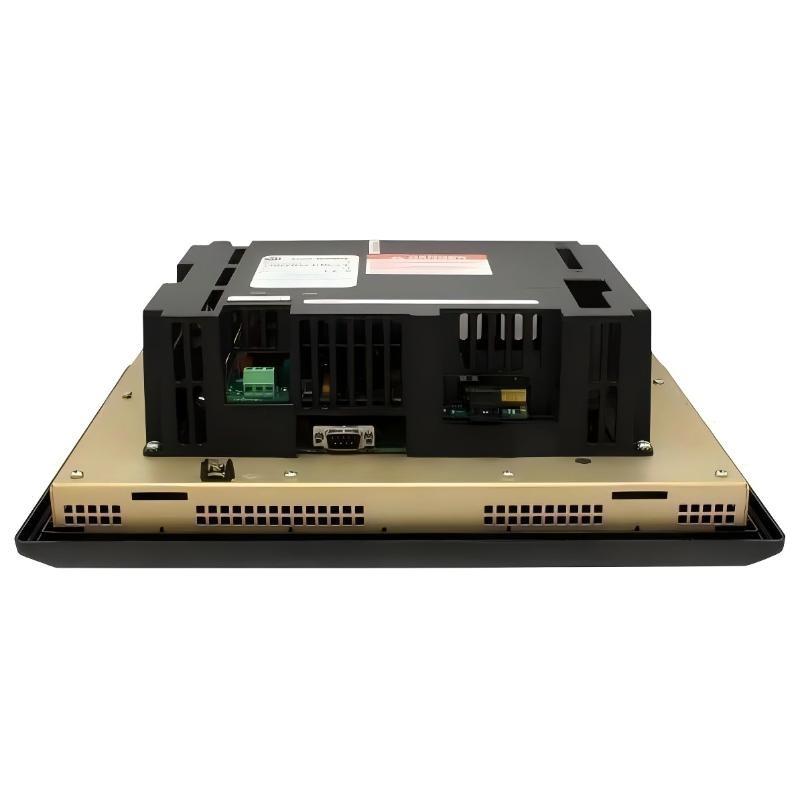

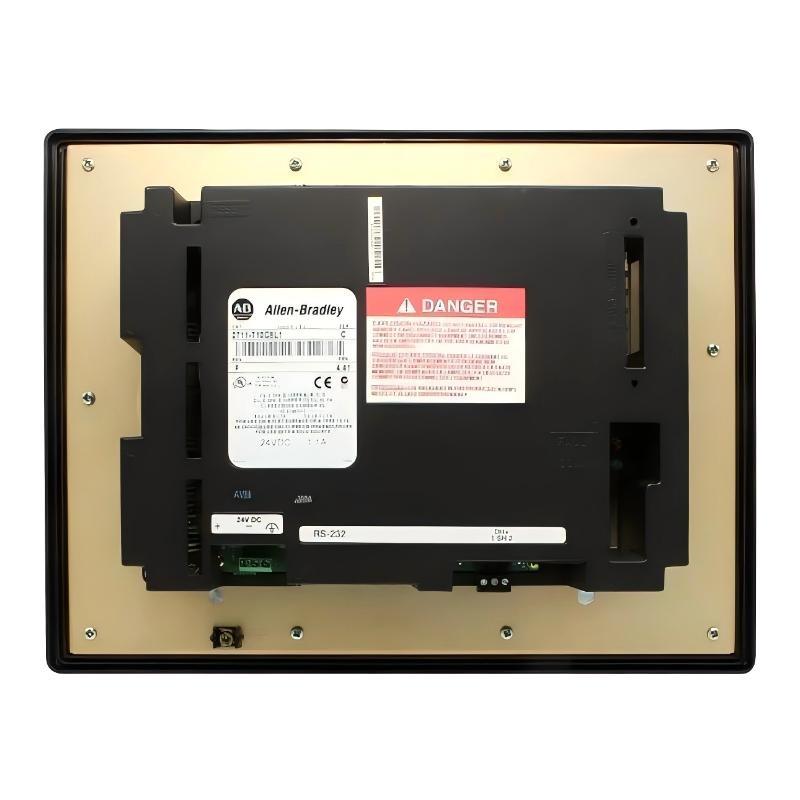

This model supports DH+ communication along with RS-232 serial connectivity, enabling integration with Allen Bradley PLC systems and industrial automation networks. Powered by a 24 VDC input supply, the terminal is suitable for a wide range / industrial environments including manufacturing systems, packaging machinery, conveyor applications, and OEM equipment. Its durable panel-mounted design ensures reliable long-term operation in demanding industrial conditions.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 2711-T10C8L1 |
| Series | PanelView 1000 |
| Display Size | 10.4 Inch |
| Display Type | Color Display |
| Resolution | 640 × 480 Pixels |
| Input Method | Touchscreen |
| Communication Network | DH+ |
| Serial Communication | RS-232 |
| Input Voltage | 24 VDC |
| Mounting Type | Panel Mount |
| Interface Type | Human Machine Interface (HMI) |
| Display Technology | Industrial Color LCD |
| Cooling Method | Passive Cooling |
| Application Type | Industrial Operator Interface |
| Dimensions | 370 × 112 × 282 mm |
| 重量 | 3.6 kg |
Applications
• Industrial Automation: Provides machine monitoring and operator control for automated production systems.
• Packaging Equipment: Suitable for packaging lines, filling systems, and labeling machinery requiring graphical visualization.
• Manufacturing Systems: 支持s industrial process control and machine status monitoring applications.
• Material Handling Equipment: Used in conveyor and transport system operation and supervision.
• Process Visualization: Displays alarms, diagnostics, operational status, and production data clearly and efficiently.
Advantages
• Large Color Touchscreen: The 10.4-inch display improves process visibility and operator interaction.
• Reliable Industrial Performance: Designed for continuous operation in demanding automation environments.
• DH+ Communication 支持: Enables integration with legacy Allen Bradley industrial networks and PLC systems.
• Clear Graphical Visualization: The 640 × 480 resolution provides effective monitoring / machine and process data.
• Stable Power Configuration: 24 VDC input allows easy integration into industrial control systems.
• Durable Panel-Mounted Design: Suitable for installation in industrial cabinets and operator stations.
