产品介绍

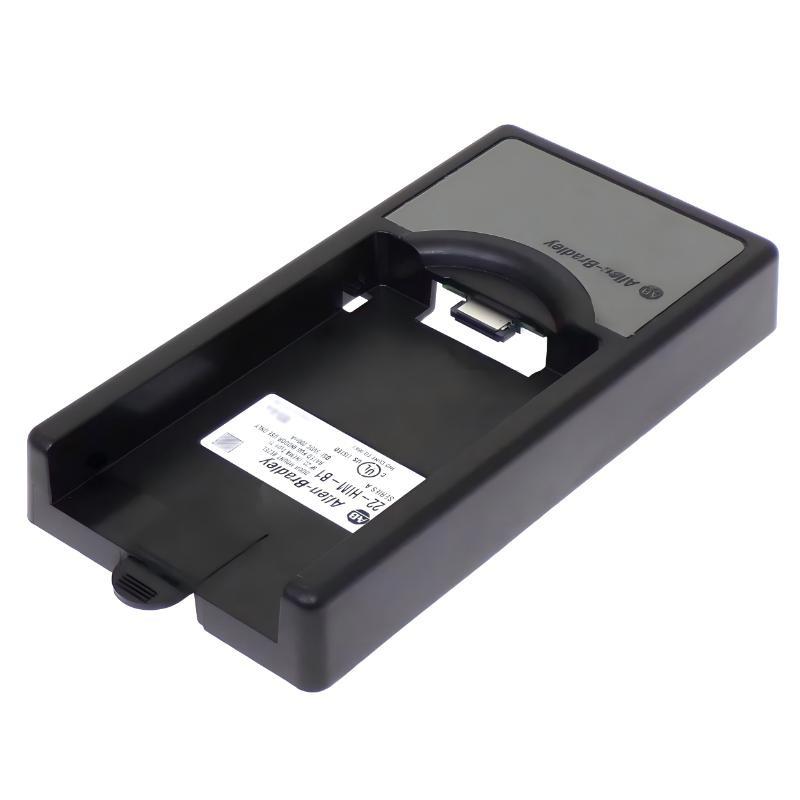

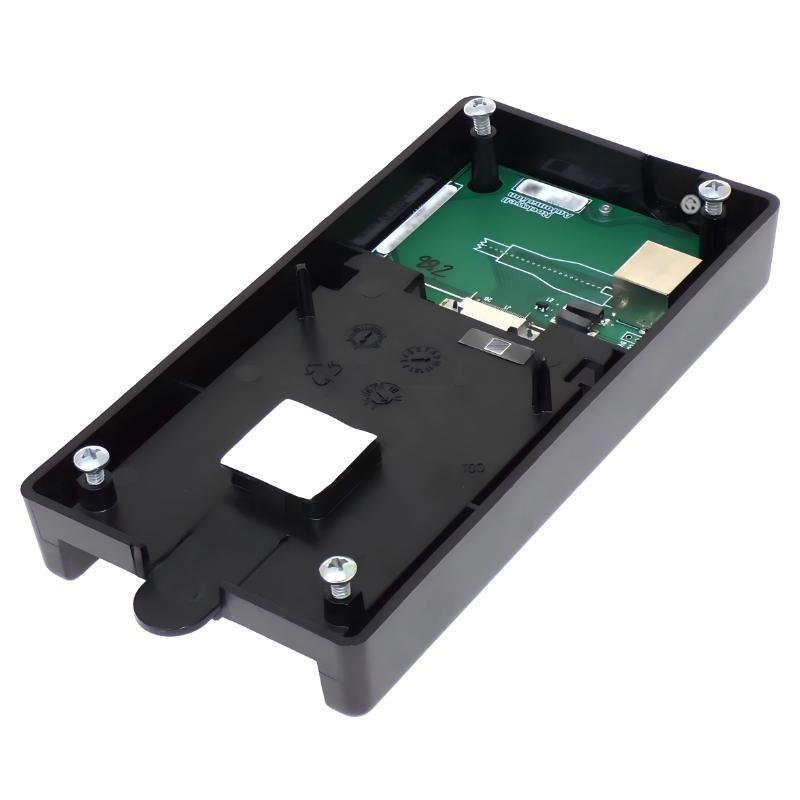

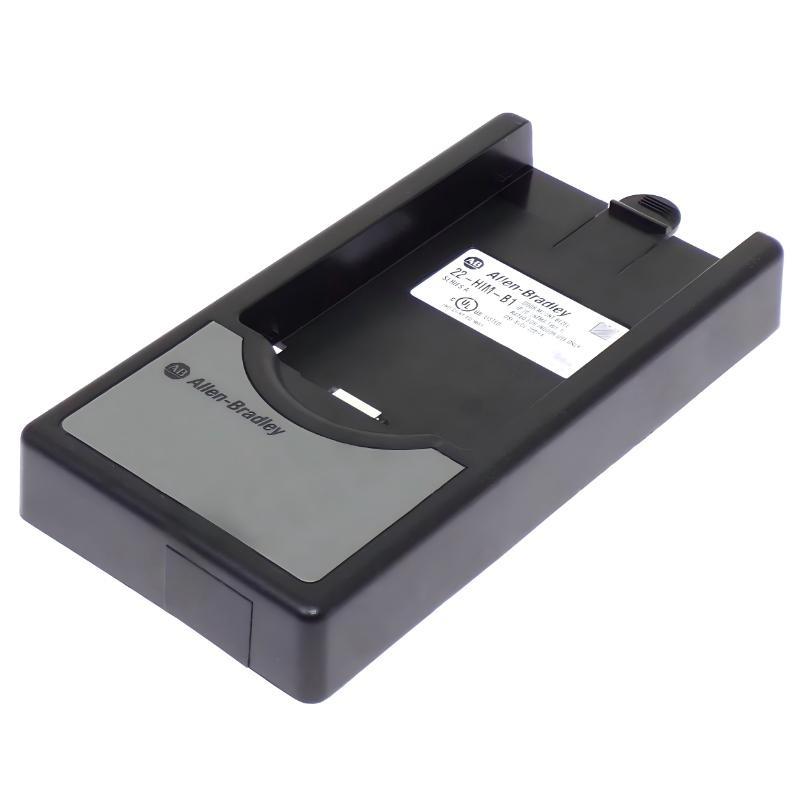

The Allen-Bradley 22-HIM-B1 PowerFlex Mounting Bezel Kit is a compact accessory designed to support the installation / a remote Human Interface Module (HIM) for PowerFlex drives. It is specifically intended for use with LCD HIM displays, enabling operators to mount and operate the interface outside the main control enclosure.
This bezel kit allows a clean and secure panel-mounted installation / the HIM 件, improving accessibility and usability in industrial environments. By relocating the interface to the panel door or external surface, it enhances operator convenience while maintaining system integrity inside the cabinet.
With an IP30 protection rating, the 件 is suitable for indoor industrial environments where basic protection against solid objects is required. Its lightweight and compact structure make it easy to integrate into existing control panels without significant modification.
产品规格
| Parameter | Value |
|---|---|
| 型号 | 22-HIM-B1 |
| Product Type | Mounting Bezel Kit |
| Compatible Device | LCD HIM Display |
| Application | Remote Handheld 单位 Mounting |
| Protection Rating | IP30 |
| Mounting Type | Panel Mount |
| Material | grade plastic / composite |
| Function | External HIM Installation 支持 |
| Dimensions | 191.1 × 25.2 × 93 mm |
| 重量 | 0.14 kg |
Applications
● Control Panel Door Installation
Allows external mounting / HIM displays, improving operator accessibility without opening the cabinet.
● Industrial Automation Systems
支持s remote monitoring and control, making system interaction more convenient.
● Drive Control Interfaces
Provides a secure mounting solution for PowerFlex HIM 件s in centralized control panels.
● Maintenance and Diagnostics Access
Enables quick access to drive parameters and diagnostics, reducing downtime during troubleshooting.
● OEM Equipment Integration
Ideal for machine builders requiring clean and pr/essional panel layouts.
● Retr/it Projects
Useful in upgrading existing systems to external interface operation without major redesign.
Advantages
● Improved Operator Accessibility
Allows the HIM interface to be mounted externally, reducing the need to open control cabinets.
● Clean and Pr/essional Installation
Provides a neat panel finish, improving overall system appearance and usability.
● Simple Installation Process
Designed for quick and straightforward mounting, minimizing installation time.
● Lightweight and Compact Design
The small size and low weight make it easy to integrate into various panel configurations.
● Enhanced Maintenance Efficiency
Facilitates faster diagnostics and parameter adjustments during operation.
● Reliable Mechanical 支持
Ensures secure and stable positioning / the HIM 件 during long-term use.
