产品介绍

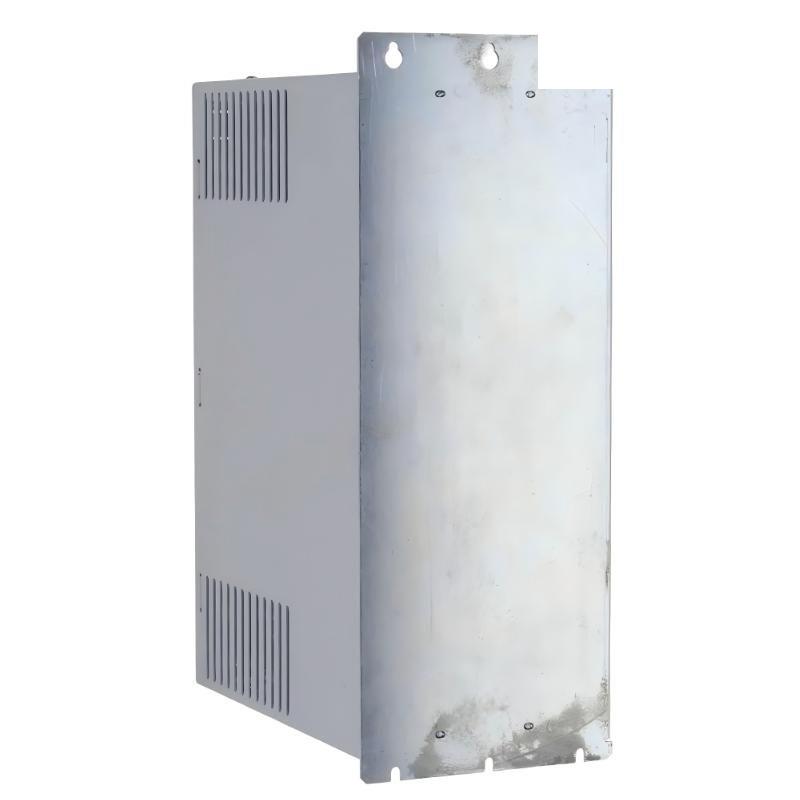

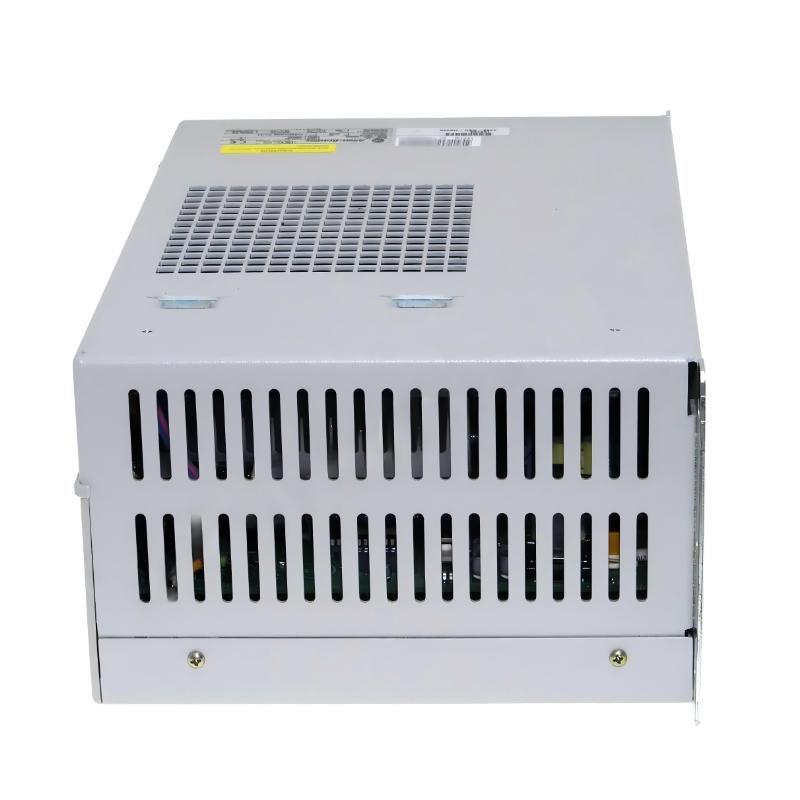

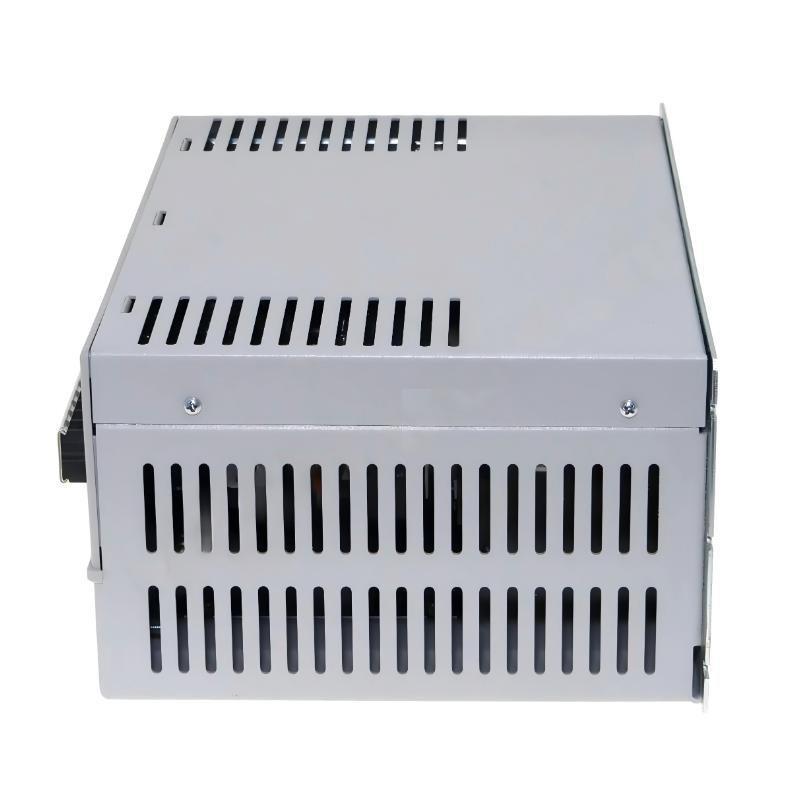

The Allen Bradley 2098-DSD-HV050 Ultra3000 Digital Servo Drive is a high-voltage, high-performance motion control solution designed for industrial automation systems requiring strong torque output and precise servo control. As part / the Ultra3000 series, this drive is engineered for demanding applications where stable high-power operation and accurate positioning are essential.
With a 5 kW power rating and a 11–22 AMPS operating range, the HV050 model is optimized for medium-to-heavy industrial loads. It supports a wide input voltage range / 230–480 VAC, making it suitable for global industrial power systems. The integrated 12/24 VDC control supply ensures stable logic and communication performance, while the digital servo architecture delivers fast response and high positioning accuracy. This drive is widely used in CNC machinery, robotics, packaging systems, and automated production lines requiring reliable high-voltage servo control.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 2098-DSD-HV050 |
| Series | Ultra3000 |
| Type | High Voltage Digital Servo Drive |
| Communication | SERCOS Interface |
| Input Voltage | 230–480 VAC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Power Rating | 5 kW |
| Current Range | 11–22 AMPS |
| Control Modes | Position, Velocity, Torque |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 360.7 × 138.7 × 242.2 mm |
| 重量 | 8.55 kg |
Applications
• Industrial CNC machinery, providing precise and stable motion control for machining and fabrication processes.
• Robotic automation systems, supporting synchronized multi-axis motion for assembly and material handling.
• Packaging production lines, ensuring consistent high-speed motion for filling, sealing, and labeling operations.
• Material handling systems, including conveyors and automated transfer equipment requiring strong servo torque.
• General industrial automation, where reliable high-voltage servo control is required for continuous production.
Advantages
• High-voltage capability (230–480 VAC) allows flexible deployment across different industrial power infrastructures.
• 5 kW output power delivers strong and stable torque performance for medium-to-heavy applications.
• Efficient SERCOS communication ensures precise real-time synchronization in multi-axis systems.
• Compact high-power design reduces cabinet space while maintaining strong performance output.
• Stable 12/24 VDC control supply improves control reliability and system consistency.
• Robust industrial protection functions ensure safe operation under demanding conditions.
