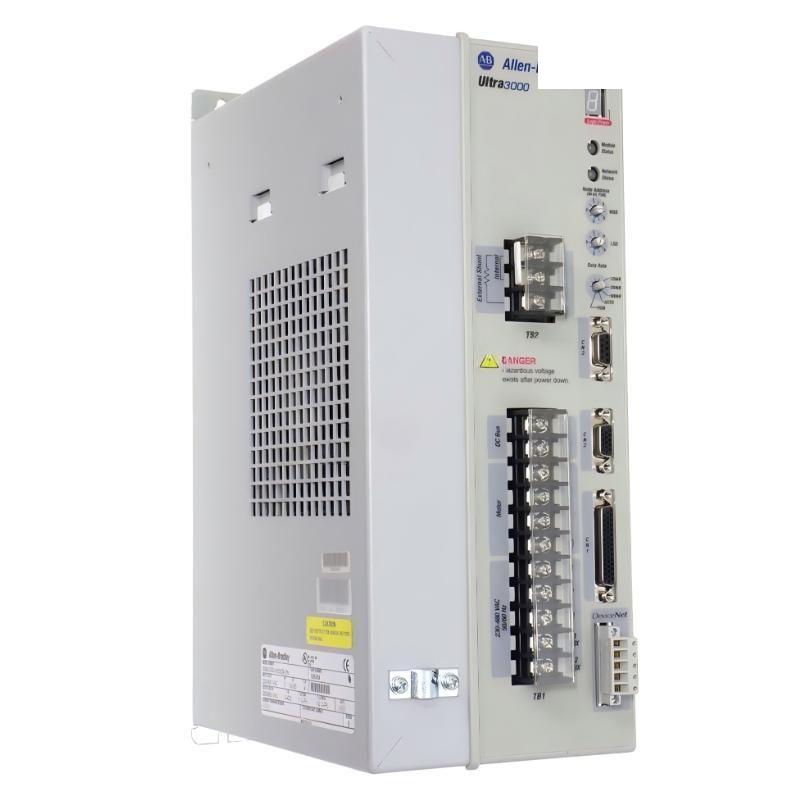

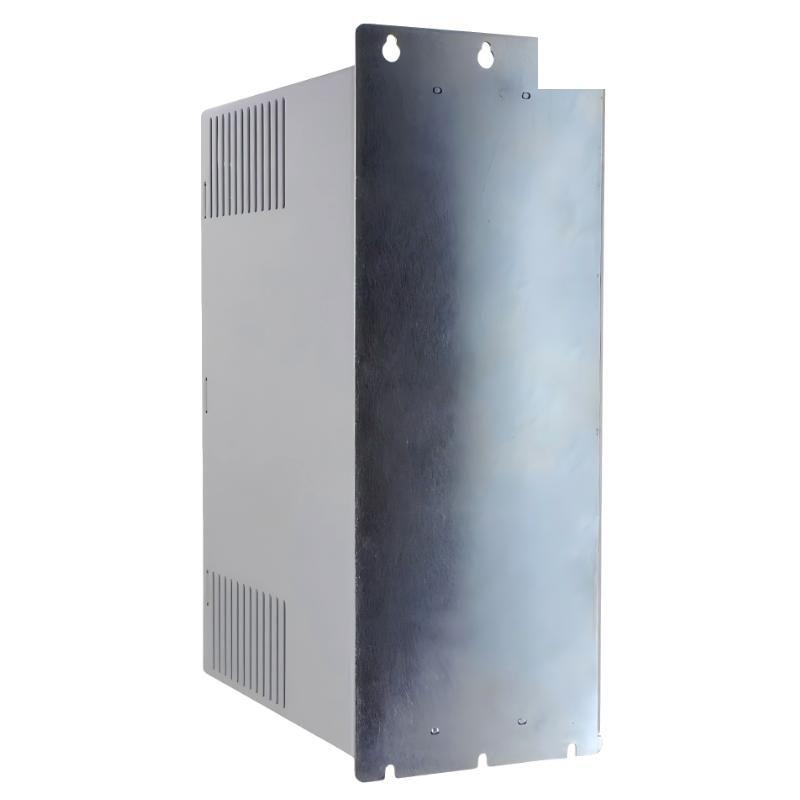

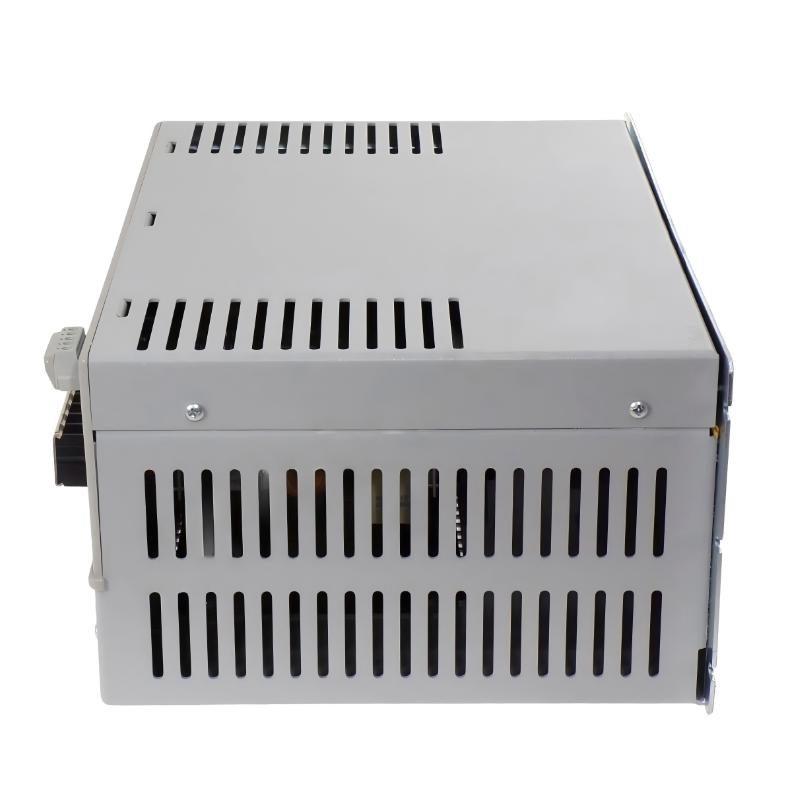

The Allen Bradley 2098-DSD-HV030X-DN Ultra3000i Digital Servo Drive is a high-performance motion control solution designed for industrial automation systems requiring precise positioning, reliable torque control, and flexible network integration. As part / the Ultra3000i series, this drive combines advanced digital servo technology with DeviceNet communication, enabling efficient integration into existing PLC-based architectures and distributed control systems.
With a 7A continuous output current and 14A peak output capability, the HV030X-DN is optimized for light-to-medium industrial servo applications where precision and responsiveness are more critical than raw power. It operates on a 230/460V AC input and supports stable 12/24 VDC control supply, ensuring reliable logic operation. Its compact high-efficiency design makes it suitable for packaging machinery, light CNC auxiliary axes, material handling systems, and automated assembly equipment requiring accurate motion control with network flexibility.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 2098-DSD-HV030X-DN |
| Series | Ultra3000i |
| Type | Digital Servo Drive |
| Communication | DeviceNet Interface |
| Input Voltage | 230/460V AC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Continuous Output Current | 7 A |
| Peak Output Current | 14 A |
| Control Modes | Position, Velocity, Torque, Indexing |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection, Fault Diagnostics |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 360.7 × 138.7 × 242.2 mm |
| 重量 | 8.55 kg |
Applications
• Packaging automation systems, providing precise motion control for filling, labeling, and sealing operations.
• Light CNC auxiliary axes, supporting accurate positioning in secondary machining or support functions.
• Material handling systems, including conveyors and pick-and-place 件s requiring coordinated motion.
• Industrial assembly lines, enabling repeatable and accurate part positioning and transfer.
• Networked automation systems, where DeviceNet integration is required for PLC-based control architectures.
Advantages
• DeviceNet communication interface allows easy integration into existing industrial PLC networks.
• High precision digital servo control ensures accurate positioning and smooth motion performance.
• Compact and efficient design reduces cabinet space while maintaining stable operation.
• Flexible 230/460V AC input supports a wide range / industrial power environments.
• Stable dual control supply (12/24 VDC) improves system reliability and control consistency.
• Strong protection features enhance safety and reduce downtime in industrial operations.
