Overview – A Field Engineer’s Perspective

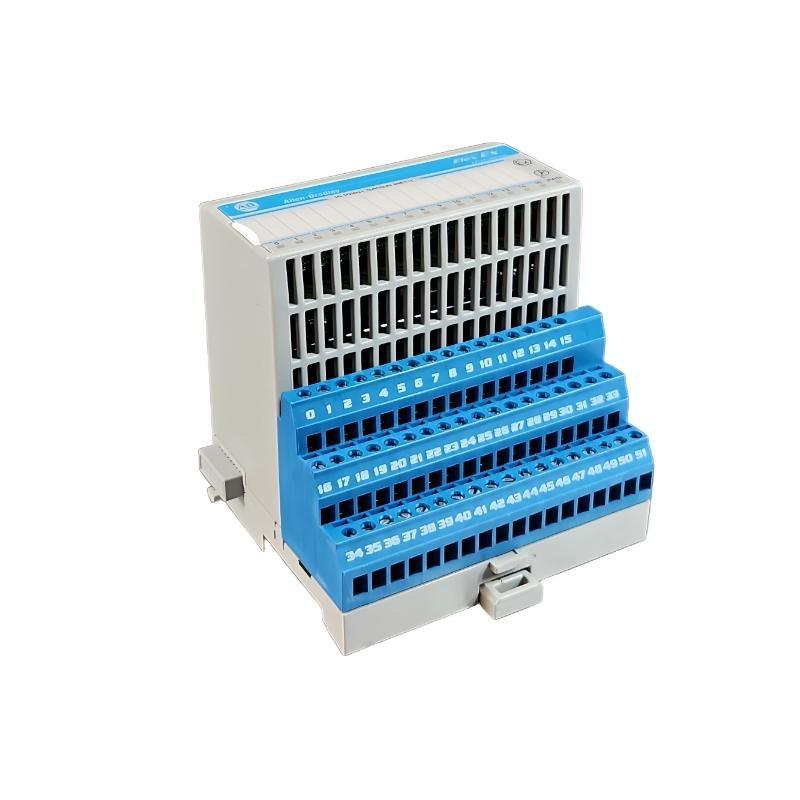

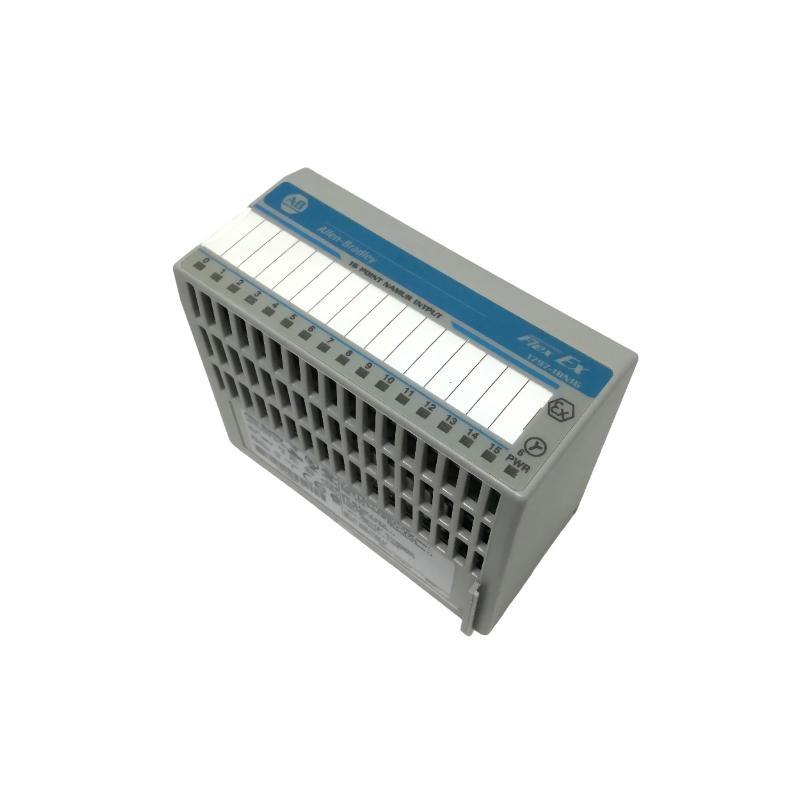

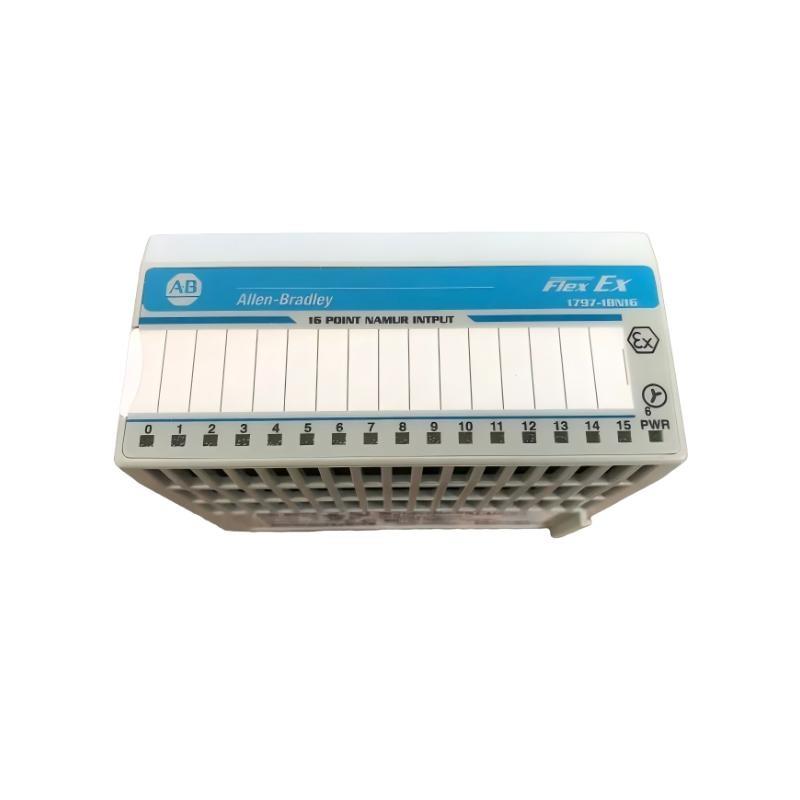

The Allen Bradley 1797-IBN16 FLEX Ex Input Module is a 16-channel intrinsically safe digital input module, designed specifically for hazardous area applications. This module is part / the FLEX Ex I/O platform, enabling distributed control in environments that demand explosion protection and robust field connectivity.
Engineers in oil & gas, petrochemical, and process industries rely on this module to safely collect digital signals from sensors, switches, and limit devices located in Zone 1 or Division 1 areas. With its intrinsically safe (IS) circuit design, it ensures reliable data acquisition while minimizing the risk / ignition, providing peace / mind and compliance with international safety standards such as ATEX, IECEx, and UL.
Technical Data Sheet
| Parameter | Specification | 描述 |
|---|---|---|
| Module Type | FLEX Ex Digital Input | Intrinsically Safe, 16-channel input module |
| Catalog Number | 1797-IBN16 | 16-channel IS input module |
| Input Signal Type | Sinking input | Accepts DC inputs from field sensors |
| Rated Input Voltage | 24 VDC nominal | Compatible with standard IS field devices |
| Input Current per Channel | 6 mA typical | Efficient and low power design |
| Number / Inputs | 16 channels | Individual channel isolation |
| Isolation Voltage | 50 V continuous | Channel-to-bus isolation for safety |
| Communication Interface | FLEX Ex adapter (1797-ACN15 or similar) | Connects to ControlNet via Ex barrier |
| Input Delay | 4 ms (ON/OFF typical) | For fast signal response |
| Diagnostic Indicators | 16 yellow LEDs | Channel status and diagnostics |
| Power Consumption | 3.5 W typical | Low power for IS compliance |
| Field Power Supply | 24 VDC ±10% | Supplied from safe area barrier |
| Mounting Type | DIN Rail | FLEX Ex backplane mounted |
| Environmental Rating | Class I, Div 1; Zone 1 | Explosion-pro/ design |
| Operating Temperature | -20 °C to +60 °C | Suitable for harsh field conditions |
| Storage Temperature | -40 °C to +85 °C | Long-term protection when inactive |
| Relative Humidity | 5–95% non-condensing | Withstands high-moisture settings |
| Dimensions (H × W × D) | 87 mm × 94 mm × 56 mm (3.43″ × 3.70″ × 2.20″) | Compact module housing |
| 重量 | 0.22 kg (0.49 lb) | Lightweight, field-friendly design |
Practical Applications
-
Oil and Gas Platforms – Monitoring pressure and level sensors in explosive zones.
-
Chemical Processing Plants – Safe signal acquisition from intrinsically safe transmitters.
-
Pharmaceutical Manufacturing – For hygienic and controlled hazardous environments.
-
Refineries – Integrates directly with DCS systems through ControlNet or EtherNet/IP.
-
Offshore Facilities – Durable against vibration, temperature, and humidity fluctuations.
-
Tanker and Pipeline Monitoring – Reliable detection and alarm signal collection.
Core Strengths & Functional Advantages
-
Intrinsically Safe Design – Certified for Zone 1/Div 1 use, ensuring explosion-pro/ operation.
-
Compact Modular Format – Space-saving installation on the FLEX Ex backplane.
-
Diagnostic LED Indicators – Quick visual troubleshooting on each channel.
-
Seamless Integration – Works with ControlNet or EtherNet/IP through Ex adapters.
-
High Reliability – Proven component quality under continuous industrial operation.
-
Flexible Mounting and Expansion – Compatible with all FLEX Ex accessories.
-
Low Power Operation – Reduces heat and energy demand in confined enclosures.
-
Global Certification – Meets ATEX, IECEx, UL, and CSA standards.
-
Rugged Environmental Tolerance – Designed to operate in extreme field conditions.
-
Reduced Maintenance – Plug-and-play installation minimizes wiring complexity.
