Overview – Precision Analog Control for FLEX I/O Systems

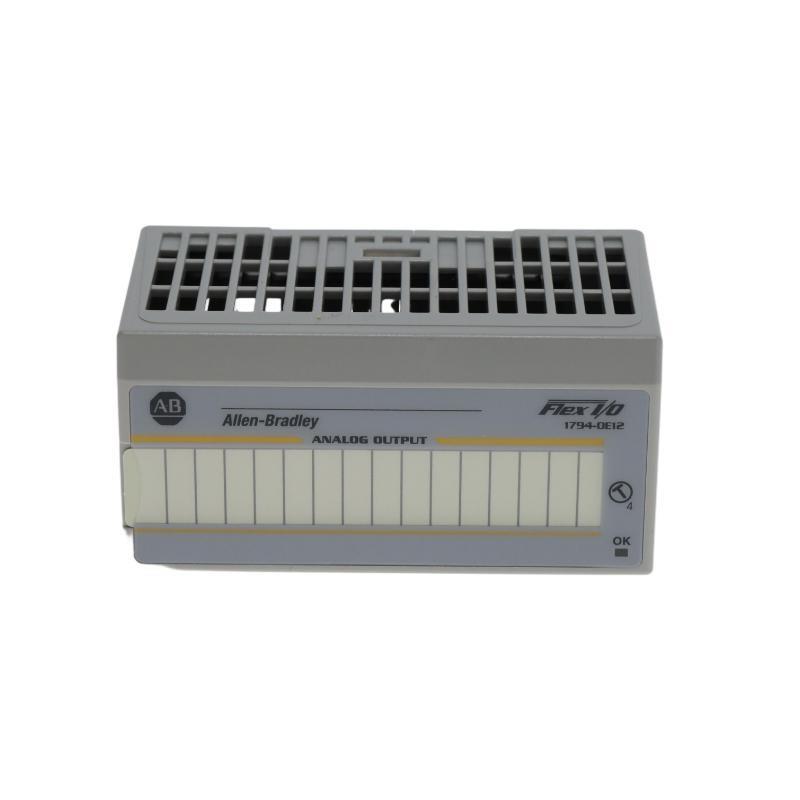

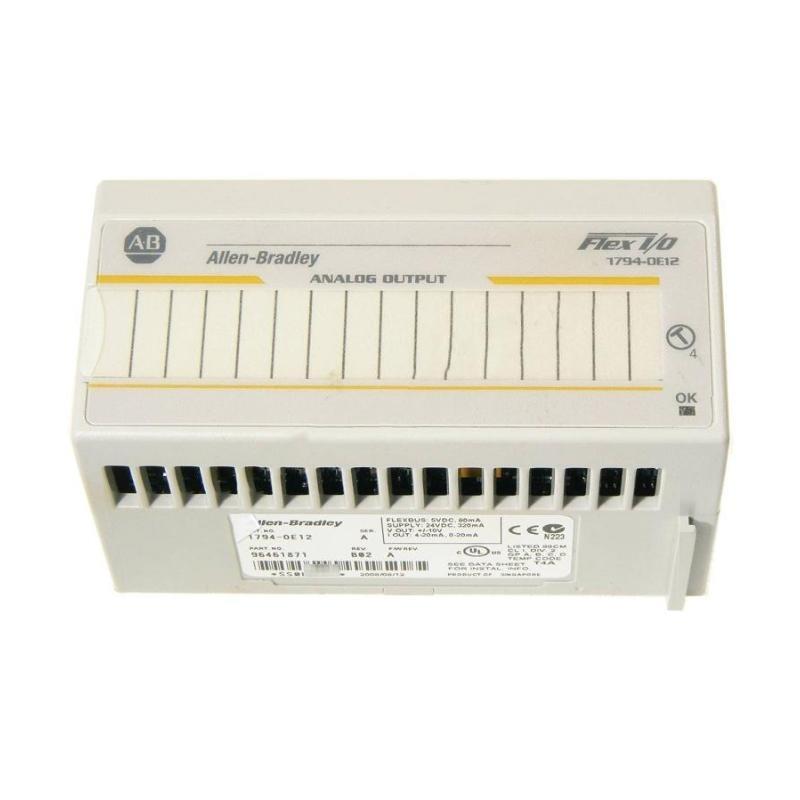

The Allen Bradley 1794-OE12 is a 12-channel Analog Output Module designed for the FLEX I/O platform, providing precise analog voltage or current signals to control a wide range / industrial devices. This module is ideal for applications that demand high-resolution analog output control such as variable-speed drives, actuators, proportional valves, and process instrumentation.
The 1794-OE12 integrates seamlessly into distributed control systems, allowing compact and flexible I/O configurations. With 12 individually configurable channels, it /fers exceptional flexibility for engineers managing complex analog signal processes in both standalone and networked architectures.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| 制造商 | Allen Bradley / Rockwell Automation |
| Product Series | FLEX I/O |
| Module Type | Analog Output Module |
| Catalog Number | 1794-OE12 |
| Channels | 12 single-ended analog outputs |
| Signal Types 支持ed | Voltage: 0–10V DC; Current: 4–20 mA |
| Resolution | 14 bits (voltage) / 13 bits (current) |
| Accuracy | ±0.05% / full scale |
| Update Rate | 2.5 ms per channel (typical) |
| Output Drive Capability | 0–10V @ 10 kΩ min; 4–20 mA @ 600 Ω max |
| Power Supply Voltage | 24V DC nominal (19.2–31.2V DC range) |
| Power Consumption | 1.2 W typical |
| Isolation Voltage | 750V AC (continuous, channel-to-system) |
| Output Overrange/Underrange | 支持ed (+5% / -5%) |
| Diagnostics | Channel status and fault detection |
| Connection Type | 1794-TB3, 1794-TB3S, or 1794-TBN terminal base |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (H × W × D) | 94 mm × 94 mm × 69 mm (3.7 in × 3.7 in × 2.7 in) |
| 重量 | 0.28 kg (0.62 lb) |
| Certifications | UL, CE, C-UL, ATEX, and Class I Div 2 approved |
Typical Use Cases in Automation
The 1794-OE12 is frequently used in process and factory automation environments that require multiple, accurate analog outputs to control diverse field devices. Its distributed architecture allows easy integration into modular systems. Common applications include:
-
Process Control Systems – generating analog reference signals for control loops.
-
Motion and Drive Control – controlling variable frequency drives (VFDs) and servo amplifiers.
-
Valve and Actuator Regulation – adjusting proportional valves for pressure or flow control.
-
Temperature Control Systems – interfacing with PID controllers and analog setpoint devices.
-
SCADA Integration – providing analog feedback to supervisory systems for monitoring.
Its modularity and flexibility make it suitable for industries such as chemical processing, water treatment, food & beverage, and power generation.
Advantages and Engineering Benefits
-
High Channel Density: 12 analog outputs in a compact FLEX I/O form factor.
-
Wide Signal Range: 支持s both voltage and current outputs with configurable ranges.
-
Exceptional Accuracy: ±0.05% ensures stable and precise analog performance.
-
Distributed I/O Architecture: Enables decentralized control, reducing cabinet wiring.
-
Fast Update Rates: Ideal for applications requiring real-time analog adjustments.
-
Rugged and Reliable: Designed for continuous industrial operation in harsh environments.
-
Flexible Mounting: Compatible with various terminal bases for design versatility.
-
Integrated Diagnostics: Simplifies fault detection and maintenance.
