Product Introduction

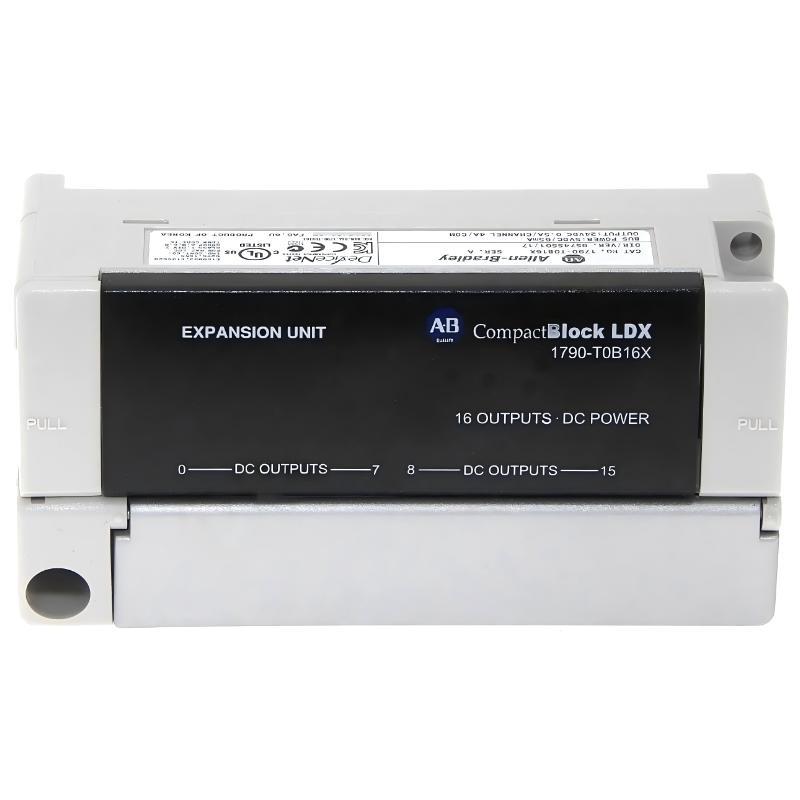

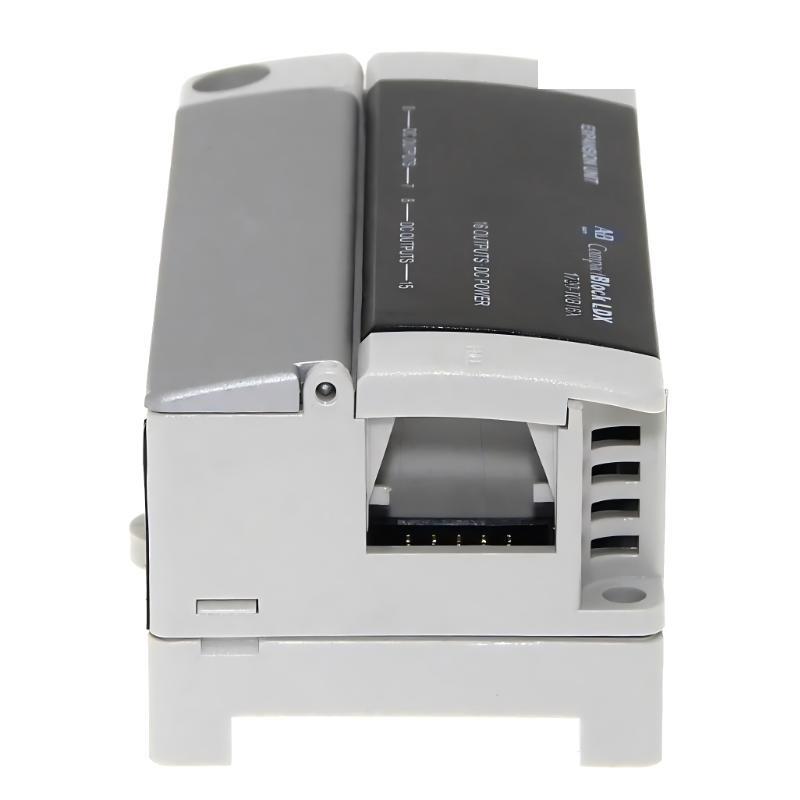

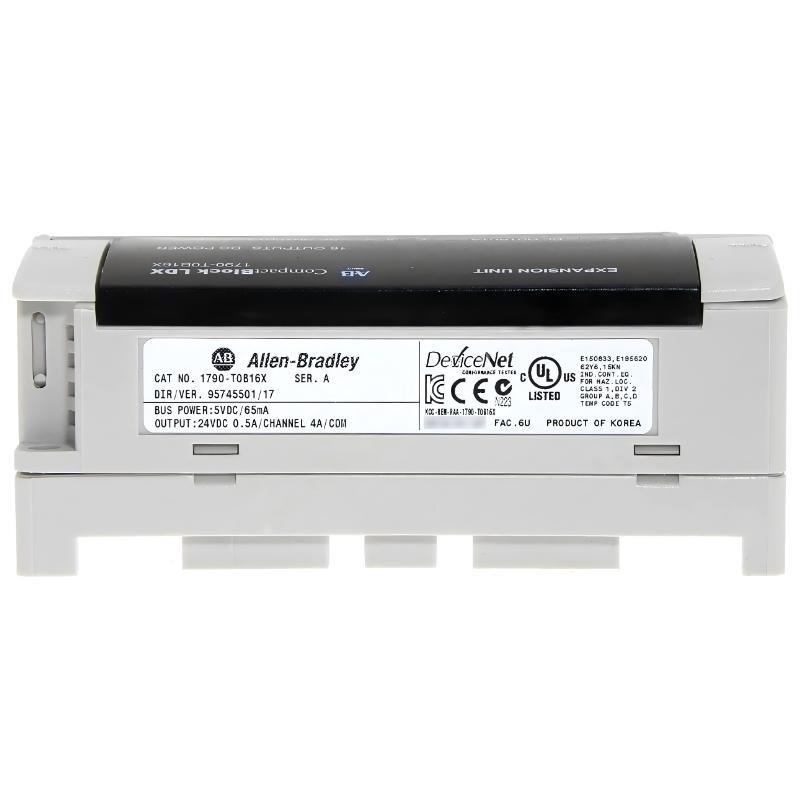

The Allen-Bradley 1790-T0B16X CompactBlock LDX I/O Expansion Block is a compact digital output expansion module designed to extend the output capacity / CompactBlock LDX systems. Developed by Rockwell Automation under the Allen-Bradley family, this module is widely used in distributed industrial control applications where additional output channels are required.
This expansion block provides 16 sourcing digital output channels operating at DC voltage levels, enabling reliable control / field devices such as relays, solenoids, and indicator lights. Designed as an open-style module with IP20 protection, it is suitable for installation inside control panels or protected enclosures.
With its compact size and seamless integration capability, the 1790-T0B16X allows users to scale their I/O systems efficiently without increasing system complexity.
Product Specifications
| Parameter | Specification |
|---|---|
| Product 型号 | Allen-Bradley 1790-T0B16X |
| Product Type | CompactBlock LDX I/O Expansion Block |
| Digital Outputs | 16 Channels |
| Output Type | Sourcing |
| Output Voltage | DC |
| Total Points | 16 Points |
| Module Style | Open Style |
| Mounting Method | Panel Mount |
| Enclosure Rating | IP20 |
| Application Environment | Industrial automation systems |
| Dimensions | 104 × 42 × 52 mm |
| 重量 | 0.1 kg |
Applications
• Expansion / Distributed I/O Systems
Adds additional output capacity to CompactBlock LDX base modules in decentralized architectures.
• Machine Automation Equipment
Controls actuators such as relays, solenoids, and indicator lamps in automated machinery.
• Packaging and Assembly Lines
Provides extended output control for multi-station production equipment.
• Material Handling Systems
Used for conveyor control, alarms, and signaling across multiple operational zones.
• OEM Equipment Integration
Ideal for equipment manufacturers requiring scalable output expansion in compact systems.
• Factory Automation Systems
支持s large-scale automation where multiple output signals are needed.
Advantages
• Flexible System Expansion
Allows easy addition / 16 output channels without redesigning the entire system.
• Reliable Sourcing Outputs
Provides stable current sourcing outputs for consistent operation / field devices.
• Compact Mechanical Design
Small footprint enables installation in space-limited control panels.
• Simplified Wiring Structure
Integrated terminal design reduces wiring effort and improves installation efficiency.
• Seamless Integration
Fully compatible with CompactBlock LDX base modules for smooth system expansion.
• Industrial Durability
Designed for stable operation in demanding industrial environments.
