Product Introduction

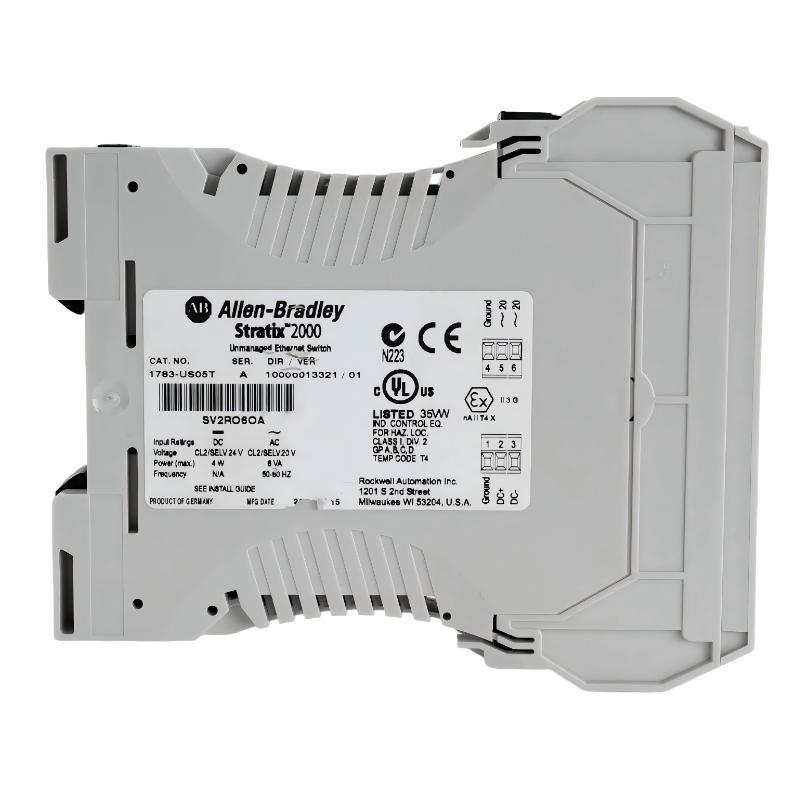

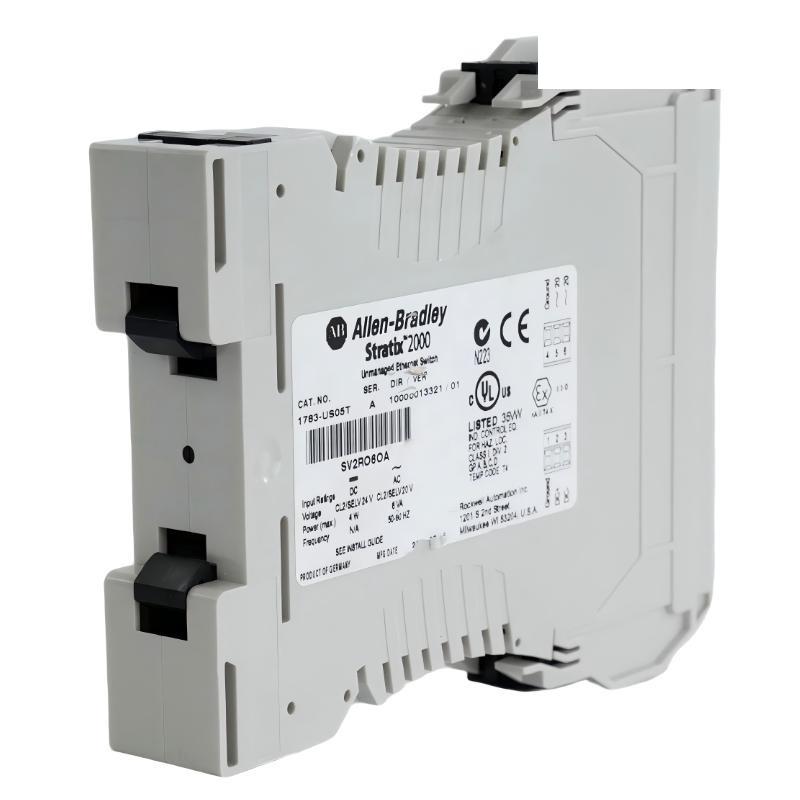

The Allen Bradley 1783-US05T Stratix 2000 Unmanaged EtherNet Switch is a compact industrial Ethernet switch designed for small automation networks and control panels. Manufactured by Rockwell Automation under the Allen-Bradley family, it belongs to the Stratix 2000 series, known for providing reliable, plug-and-play Ethernet connectivity in industrial environments.
This switch /fers five 10/100 Mbps copper ports with full/half duplex support and auto-negotiation, enabling flexible and efficient communication for multiple devices. Its small form factor and unmanaged design allow rapid installation without configuration, making it ideal for machine-level networks, compact control cabinets, and distributed automation equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Unmanaged Ethernet Switch |
| 制造商 | Rockwell Automation |
| 品牌 | Allen-Bradley |
| Series | Stratix 2000 |

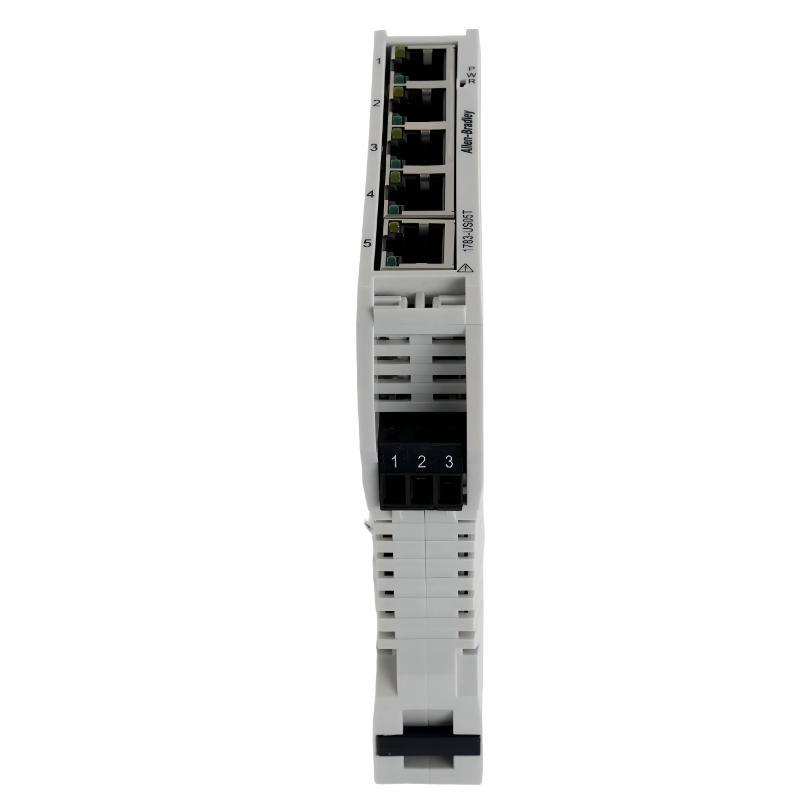

| Ports | 5 × 10/100 Mbps Copper RJ45 |
| Duplex Mode | Full / Half Duplex 支持ed, Auto-negotiation |
| Power Input (AC) | 20 V AC (10–24 V AC) |
| Power Input (DC) | 24 V DC (10–35 V DC) |
| Maximum Inrush Current | 2.2 Amps |
| Power Consumption | 4 W (6 VA), 400 mA at 10 V DC Max |
| Enclosure Rating | IP20 |
| Mounting Style | DIN Rail |
| Housing Type | Industrial Metal Enclosure |
| Dimensions | 127.8 × 22.5 × 108 mm |
| 重量 | 0.16 kg |
Applications
• Small automation networks connecting PLCs, operator interfaces, and sensors.
• Machine control panels requiring compact Ethernet switches for limited space.
• Factory floor devices needing reliable communication with auto-negotiation support.
• OEM machinery integration where multiple devices need stable plug-and-play connectivity.
• Distributed automation systems with multiple control nodes in tight spaces.
• Industrial monitoring and data acquisition requiring small form-factor switches for local device connectivity.
Advantages
• Compact and lightweight design, perfect for small cabinets and machine panels.
• Five copper Ethernet ports supporting full/half duplex and auto-negotiation.
• Flexible power input, compatible with 20 V AC and 24 V DC, covering a wide range / industrial sources.
• Low power consumption, reducing heat generation inside control panels.
• IP20 industrial enclosure, providing protection against solid objects and maintaining reliability.
• DIN rail mounting, allowing secure and easy installation alongside other automation components.
