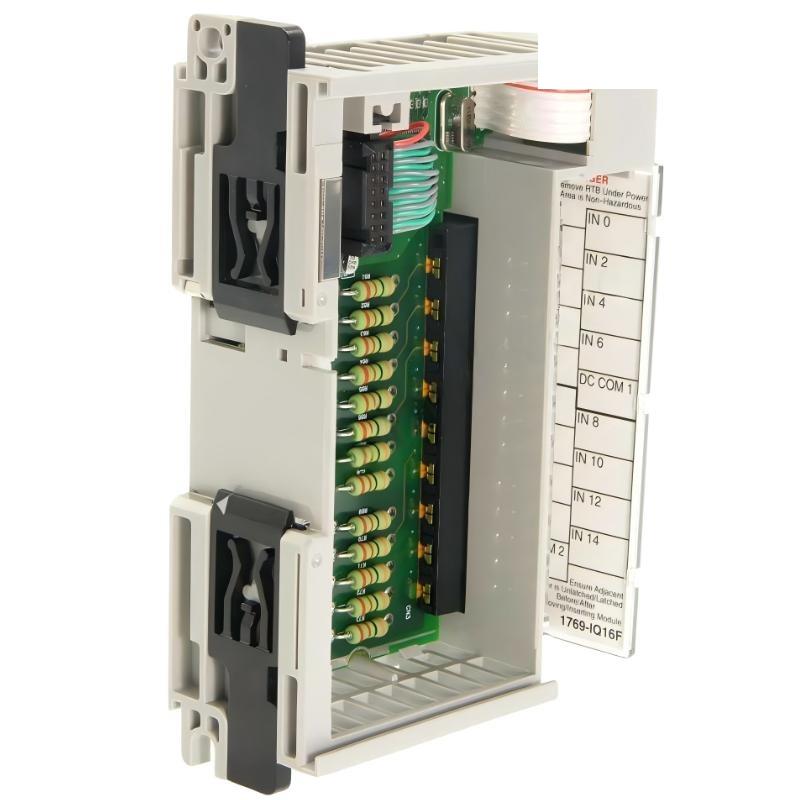

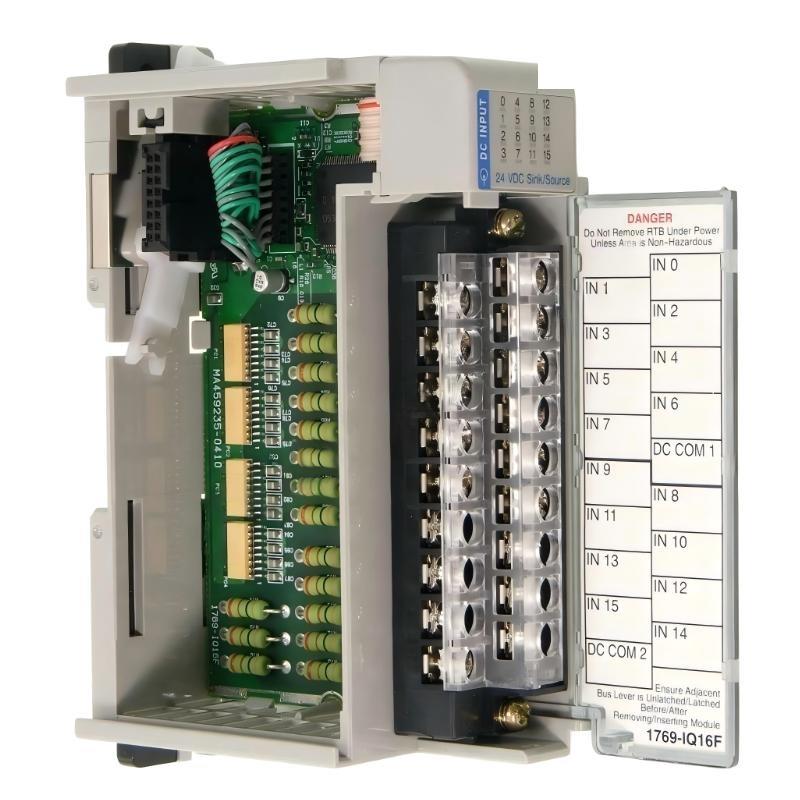

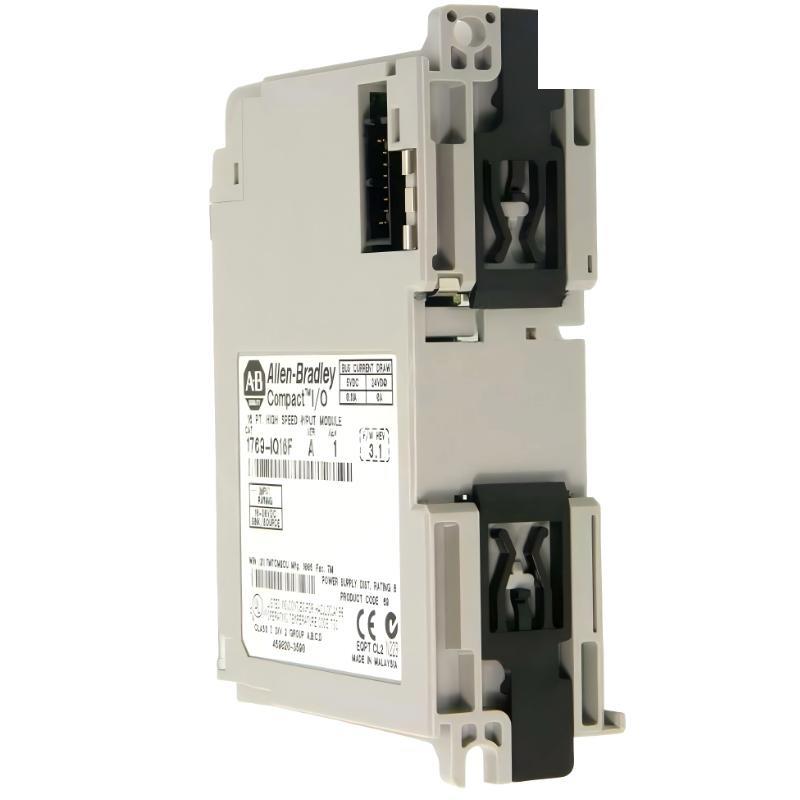

The Allen Bradley 1769-IQ16F CompactLogix High Speed Input Module is a high-performance digital input module designed for industrial automation systems that require fast and reliable signal detection. Developed by Allen Bradley, this module is engineered to capture high-speed input signals from field devices such as sensors, encoders, and switches.
The 1769-IQ16F module provides 16 digital input channels capable / handling fast signal transitions, making it ideal for applications where rapid detection and response are critical. It supports an input signal range / 0 to 30 VDC with a nominal input voltage / 24 VDC, ensuring compatibility with widely used industrial DC power systems.
Designed specifically for integration with CompactLogix controllers, the module converts incoming digital signals into data that the PLC can process for automation control and monitoring. Its compact form factor allows easy installation within control cabinets while maintaining reliable operation in demanding industrial environments.
This high-speed input module is commonly used in manufacturing automation, packaging systems, material handling equipment, and machine control applications where rapid signal processing and precise input monitoring are required.
产品规格
| Parameter | Value |
|---|---|
| Product 型号 | 1769-IQ16F |
| 制造商 | Allen Bradley |
| Product Type | CompactLogix High Speed Digital Input Module |
| Input Channels | 16 |
| Input Signal Range | 0–30 VDC |
| Nominal Input Voltage | 24 VDC |
| Signal Type | Digital DC input |
| System Compatibility | CompactLogix PLC systems |
| Mounting Method | DIN rail or CompactLogix backplane installation |
| Dimensions | 118 × 35 × 87 mm |
| 重量 | 0.27 kg |
Applications
• High-speed manufacturing systems requiring rapid signal detection from sensors.
• Packaging and bottling machinery where fast response to input signals is critical.
• Material handling and conveyor systems monitoring position and motion sensors.
• Automated assembly lines requiring high-speed digital input processing.
• Machine control systems detecting fast switching signals.
• Industrial robotics systems monitoring digital signals from safety or position sensors.
• Integration with CompactLogix PLC platforms for high-speed automation control.
Advantages
• High-speed input processing suitable for fast industrial signal detection.
• 16 digital input channels enabling monitoring / multiple field devices.
• Wide DC input signal range compatible with common industrial power systems.
• Reliable signal acquisition for accurate automation control.
• Compact modular design saving space in control cabinets.
• Strong electrical noise imm件y for stable operation in industrial environments.
• Seamless integration with CompactLogix PLC systems.
• 支持s high-performance automation applications requiring fast response times.
