产品介绍

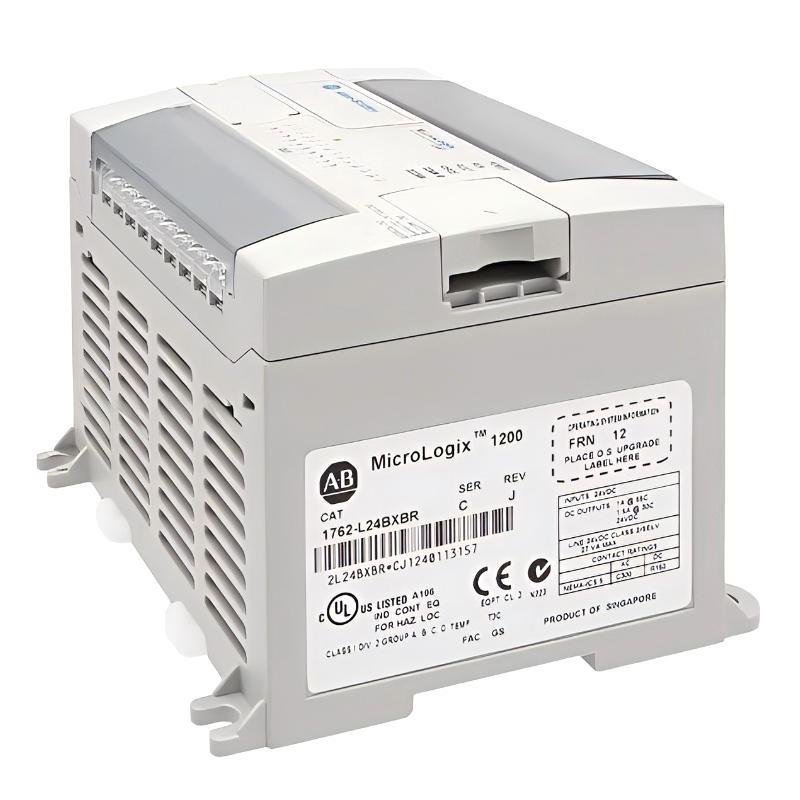

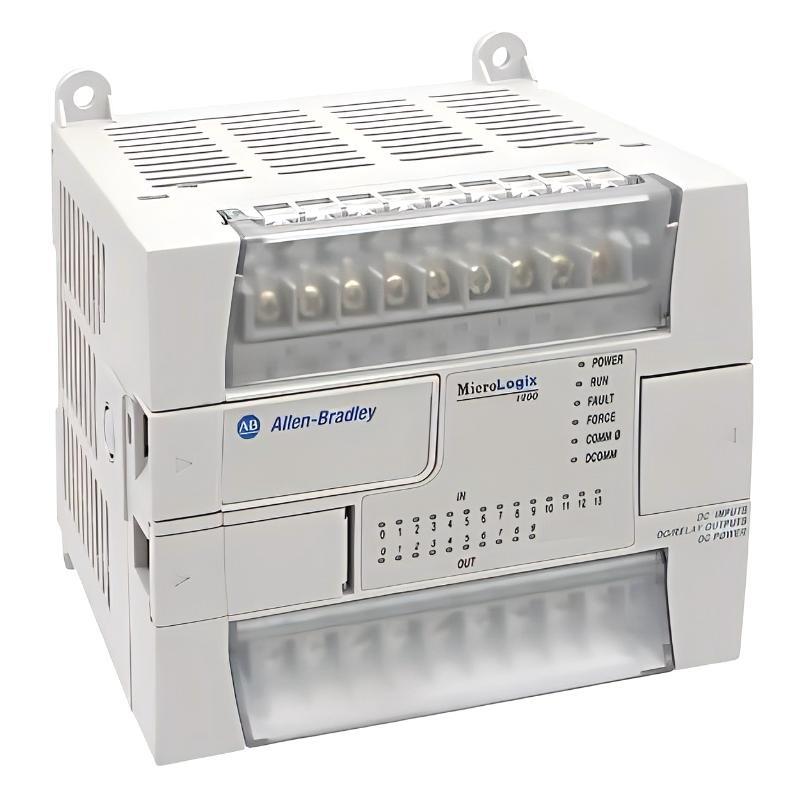

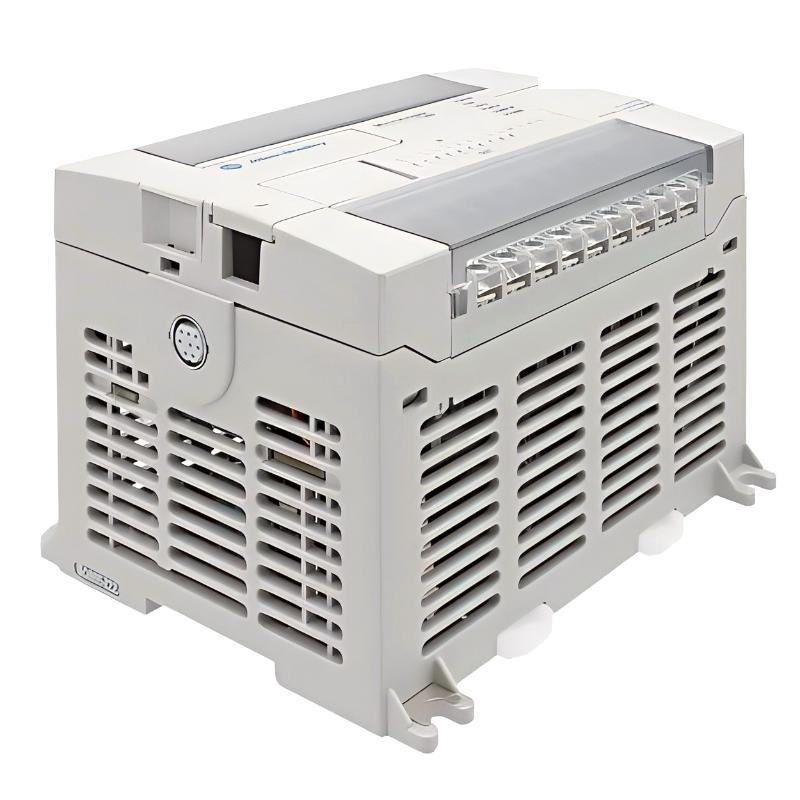

The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 programmable logic controller designed for applications requiring a combination / flexible input handling and mixed output control. It integrates both relay and transistor (FET) outputs, making it suitable for systems that need to control different types / loads with varying response requirements.
Powered by a 24 VDC supply, this controller is ideal for modern industrial environments where DC power distribution is standard. It provides a total / 24 I/O points, including 10 standard 24 VDC digital inputs and 4 fast 24 VDC digital inputs. These high-speed inputs are well-suited for processing pulse signals, encoder feedback, and other time-sensitive inputs.
On the output side, the 1762-L24BXBR combines 5 relay outputs with 5 FET outputs (including 1 fast FET output). This hybrid output structure allows the controller to handle both high-speed switching tasks and general-purpose load control. The fast FET output is particularly useful in applications requiring rapid switching, such as motion control or precise signal triggering.
The controller also includes a built-in programming/HMI port, enabling straightforward system configuration, monitoring, and integration with operator interfaces. With its compact design and modular expandability, the 1762-L24BXBR provides a reliable and efficient control solution for a wide range / industrial automation systems.
产品规格
| Parameter | 描述 |
|---|---|
| Product Name | 1762-L24BXBR Programmable Controller |
| 品牌 | Allen-Bradley |
| Series | MicroLogix 1200 |
| Controller Type | Programmable Logic Controller (PLC) |
| Total I/O Points | 24 Points |
| Power Supply | 24 VDC |
| Standard Digital Inputs | 10 x 24 VDC Inputs |
| Fast Digital Inputs | 4 x 24 VDC High-Speed Inputs |
| Relay Outputs | 5 Outputs |
| Standard FET Outputs | 4 x 24 VDC Outputs |
| Fast FET Output | 1 x High-Speed 24 VDC Output |
| Output Type | Relay + Transistor (FET) |
| Communication Port | Programming / HMI Port |
| Mounting | DIN Rail |
| Application Environment | Industrial automation systems |
| Dimensions | 110 × 87 × 90 mm |
| 重量 | 0.9 kg |
Applications
• Mixed Load Control Systems
Suitable for applications requiring both relay-based and transistor-based output control within a single controller.
• High-Speed Automation Processes
Fast inputs and outputs support pulse detection, encoder feedback, and rapid signal switching.
• Machine Control and Packaging Equipment
Used in machines requiring precise timing and flexible output control.
• Conveyor and Material Handling Systems
Handles both standard control signals and high-speed sensor inputs.
• OEM Equipment Integration
Ideal for compact automation systems where versatility and performance are required.
Advantages
• Hybrid Output Configuration
Combines relay and FET outputs, allowing control / both high-speed and general-purpose loads.
• High-Speed Signal Capability
Fast inputs and a dedicated fast FET output support time-critical applications.
• DC Power Operation
24 VDC power supply aligns with modern industrial control system standards.
• Compact and Integrated Design
All-in-one controller reduces system complexity and saves panel space.
• Flexible System Expansion
支持s additional I/O modules for scaling system capabilities.
• Efficient Communication Access
Built-in programming/HMI port simplifies configuration and monitoring.
