产品介绍

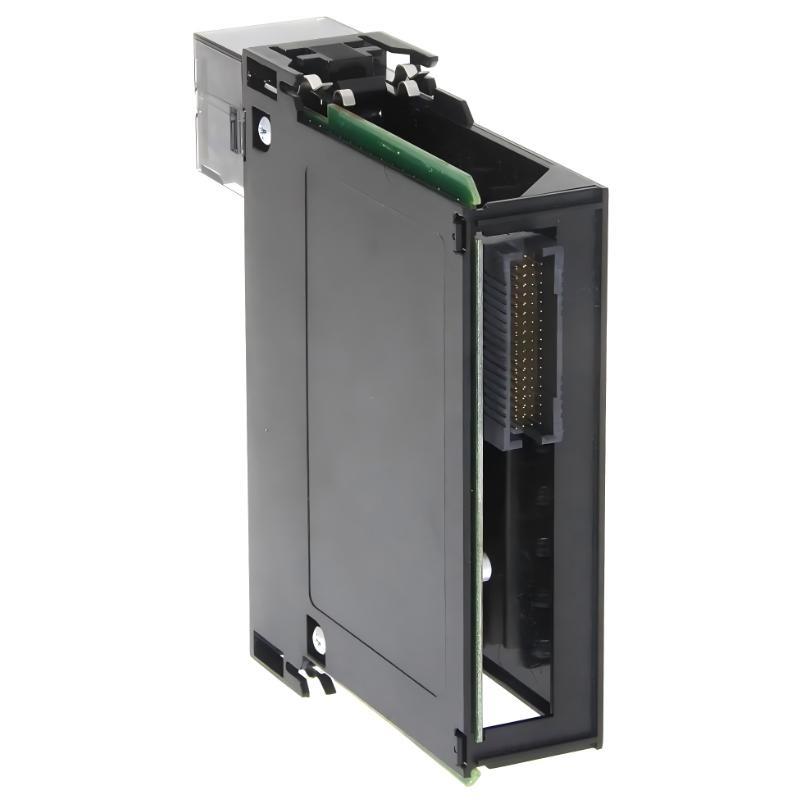

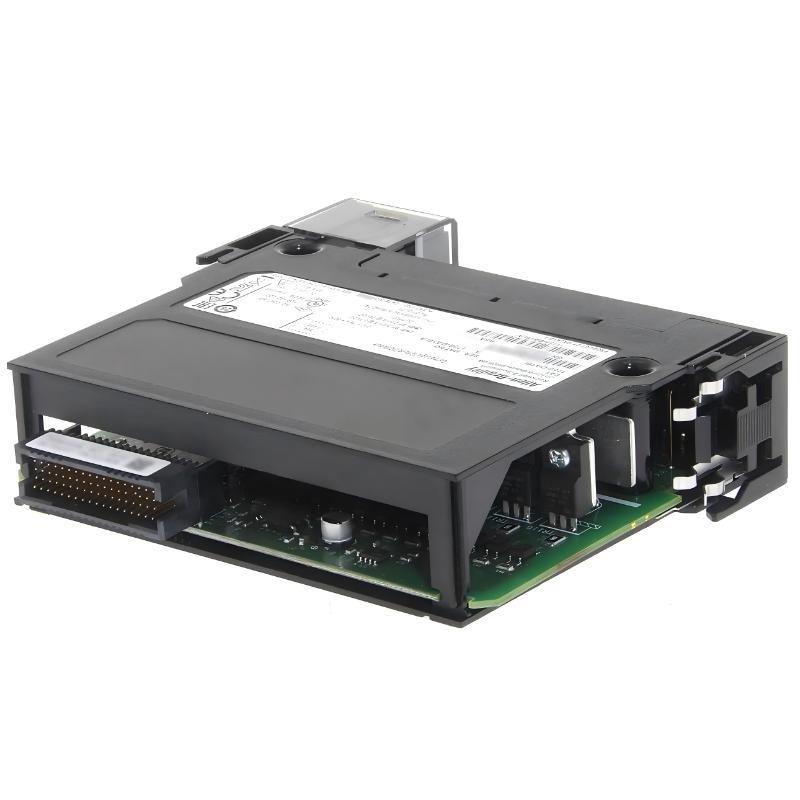

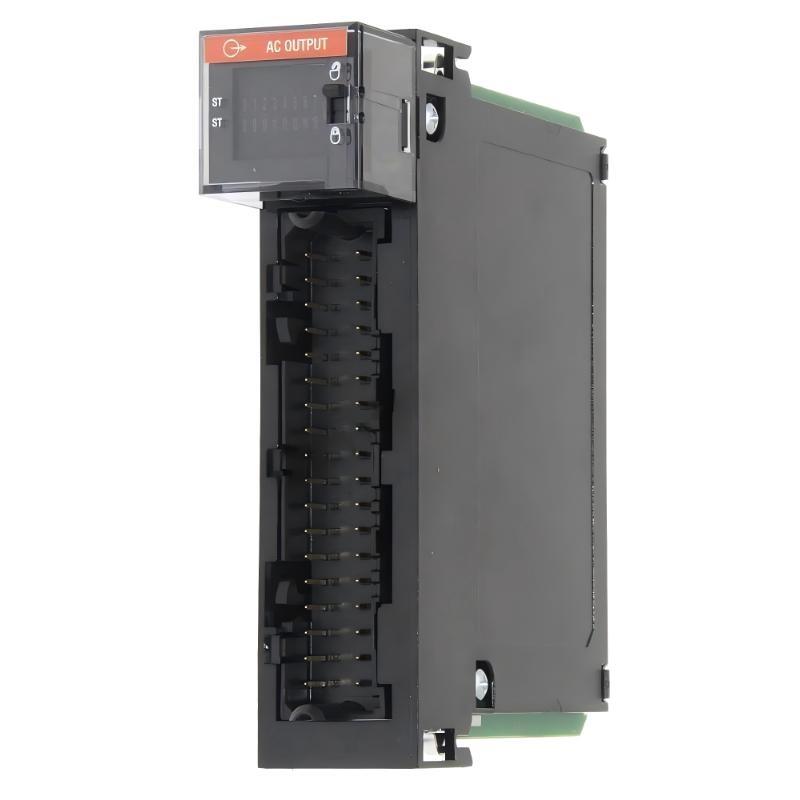

The Allen-Bradley 1756-OA16I is a ControlLogix AC digital output module designed for industrial control systems that require reliable and isolated switching / AC loads. As part / the ControlLogix I/O family, this module provides stable output performance, predictable response characteristics, and seamless integration within Rockwell Automation control architectures.
It is commonly selected for applications where electrical isolation, high-current AC switching, and consistent output behavior are critical to system operation and safety.
The 1756-OA16I supports standard 120 VAC and 240 VAC control voltages and is capable / handling higher output current per point compared to standard AC output modules. Its isolated output design helps protect the control system from field-side disturbances, making it well suited for complex industrial environments with mixed power and control wiring.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | ControlLogix AC Digital Output Module |
| Output Type | Isolated AC Digital Output |
| Number / Outputs | 16 points |
| Output Current per Point | 1 A |
| Rated Output Voltage | 120 / 240 VAC |
| Operating Frequency | 50 / 60 Hz |
| Isolation Method | Channel-to-backplane isolation |
| Output Configuration | Individually isolated outputs |
| Chassis Compatibility | ControlLogix chassis |
| Control Platform | ControlLogix automation system |
| Industrial Rating | Designed for industrial control environments |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.259 kg |
Applications
• Used for direct control / AC loads such as contactors, solenoid valves, pilot lights, and alarm devices
• Suitable for high-current AC output applications where standard output modules may not provide sufficient capacity
• Applied in process automation systems requiring electrically isolated outputs for improved system protection
• Commonly implemented in manufacturing lines, power distribution panels, and material handling systems
• Ideal for systems that require clear separation between control logic and field power circuits
Advantages
• Higher output current capability allows reliable operation / demanding AC loads without external relays
• Isolated output design reduces the risk / electrical interference and protects the ControlLogix backplane
• Standard voltage compatibility simplifies system design across global installations
• 16-point output density optimizes chassis space and reduces overall system complexity
• Consistent integration with ControlLogix s/tware tools ensures efficient configuration and diagnostics
• Designed for stable operation in electrically noisy industrial environments
