产品介绍

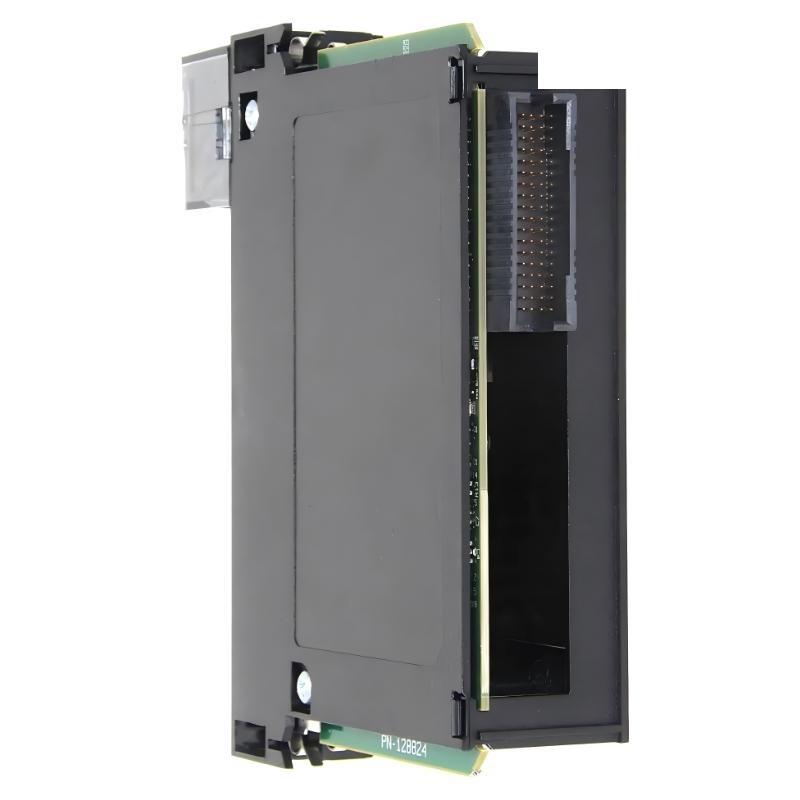

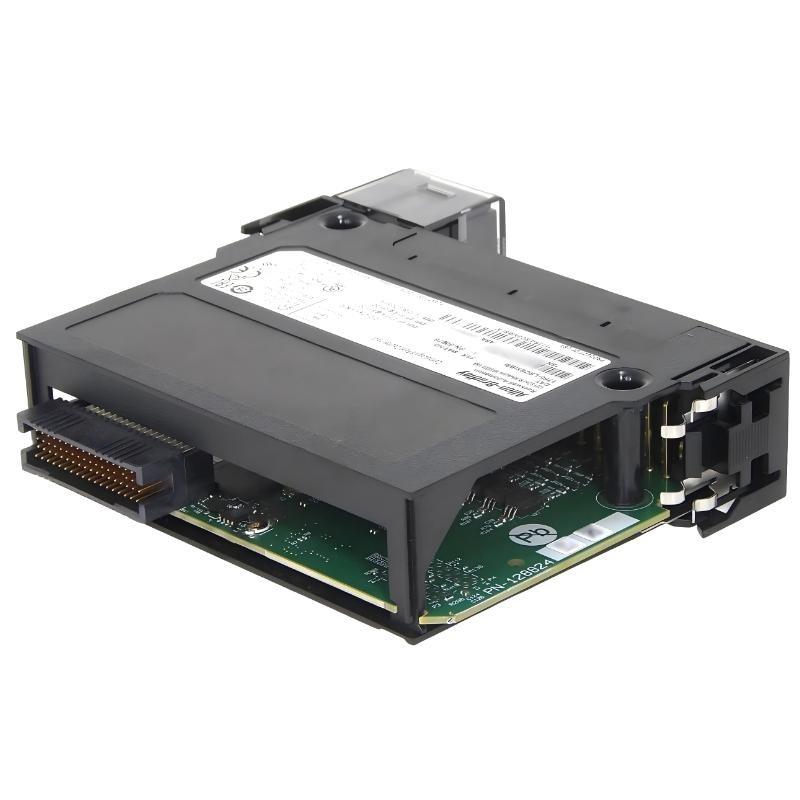

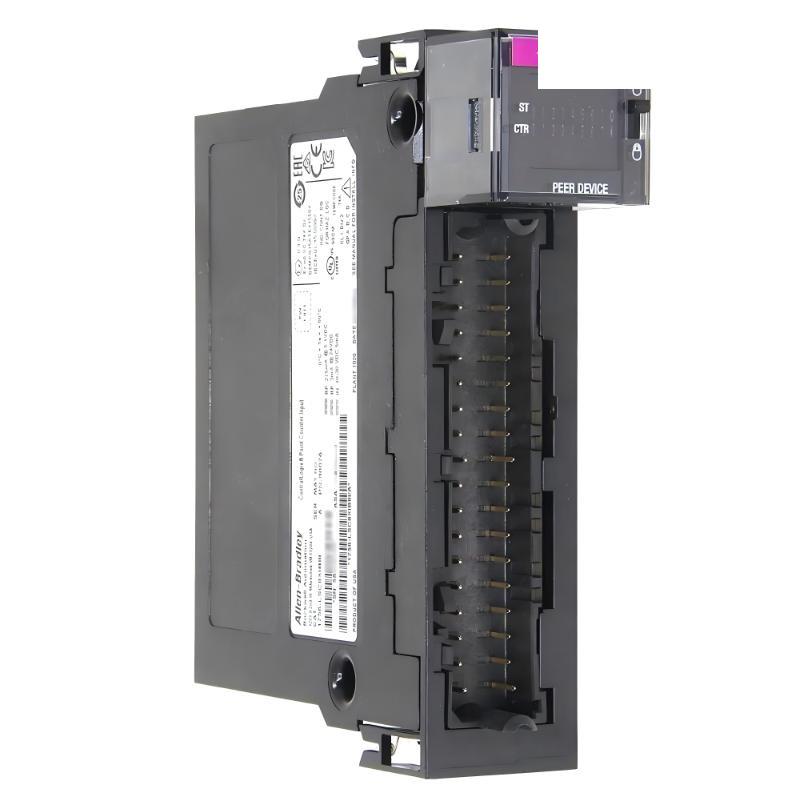

The Allen Bradley 1756-LSC8XIB8I ControlLogix Low-speed Counter Module is a dedicated counting and event detection module designed for integration within the ControlLogix automation platform. It is engineered to process low-frequency pulse signals with high reliability, making it suitable for industrial applications where accurate counting and signal isolation are essential.
Equipped with 8 individually isolated inputs, this module ensures channel-to-channel electrical separation, minimizing cross-talk and improving overall system stability. The 10–30 V DC input range allows compatibility with a wide variety / industrial sensors, including proximity switches, photoelectric sensors, and flow transmitters with pulse outputs.
The module also features a peer-to-peer input interface via a 36-pin connector, enabling direct communication between compatible modules. This reduces controller scan dependency and enhances responsiveness in distributed or coordinated automation systems.
Designed for installation in a standard 1756 ControlLogix chassis, the 1756-LSC8XIB8I /fers reliable performance in industrial control panels operating within standard temperature ranges.
产品规格
| Parameter | 描述 |
|---|---|
| Product Name | ControlLogix Low-speed Counter Module |
| 型号 | 1756-LSC8XIB8I |
| 制造商 | Allen Bradley |
| Series | ControlLogix |
| Number / Inputs | 8 Individually Isolated Inputs |
| Input Voltage Range | 10–30 V DC |
| Input Type | Low-speed Pulse / Discrete Input |
| Isolation | Channel-to-Channel Isolation |
| Peer-to-Peer Interface | 36-Pin Connector |
| Mounting | 1756 ControlLogix Chassis |
| Backplane Communication | ControlLogix Backplane |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| 重量 | 0.272 kg |
Applications
• Used for low-speed pulse counting from encoders, flow meters, and proximity sensors
• Applied in production counting, batching, and accumulation systems
• Suitable for conveyor tracking and packaging line monitoring
• Integrated into systems requiring event detection and discrete signal monitoring
• 支持s coordinated automation through peer-to-peer module communication
Advantages
• Provides 8 individually isolated input channels for improved noise imm件y
• Wide 10–30 V DC input compatibility with common industrial sensors
• Enables faster response through peer-to-peer input communication
• Reliable operation for low-frequency pulse applications
• Seamless integration within the ControlLogix architecture
• Stable performance in industrial automation environments
