产品介绍

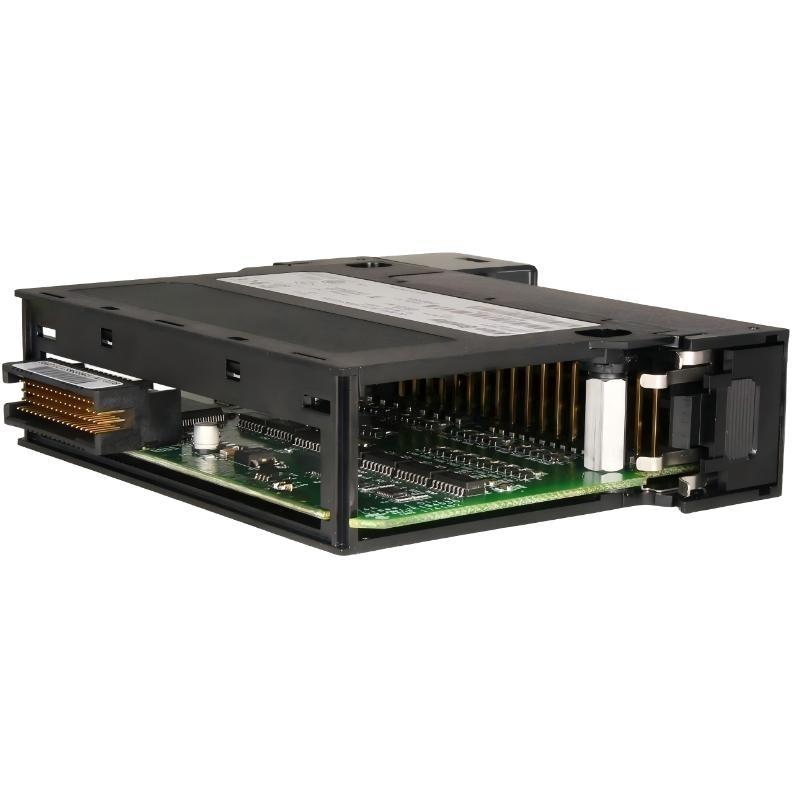

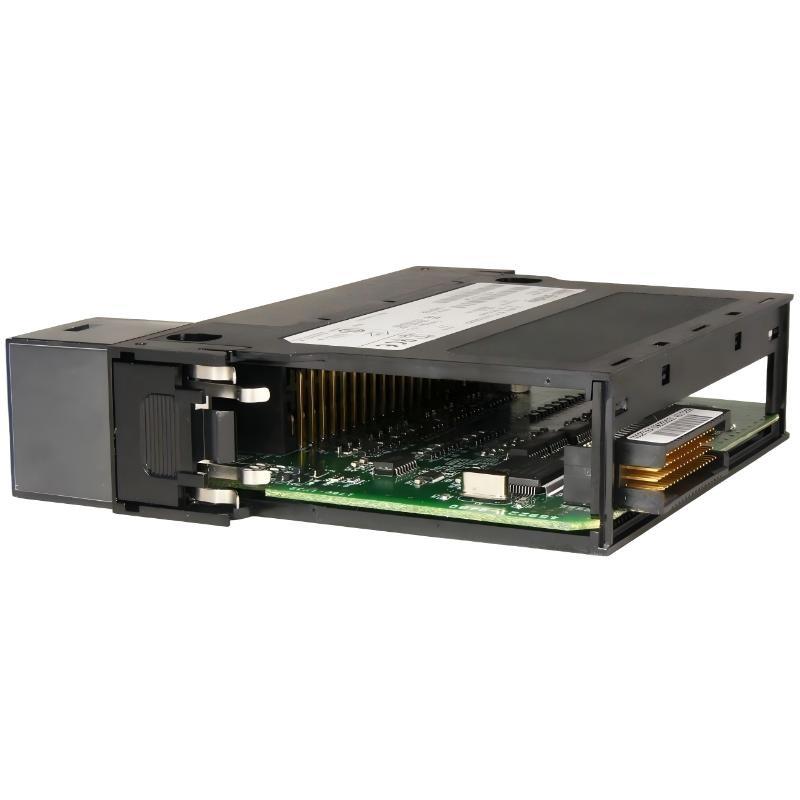

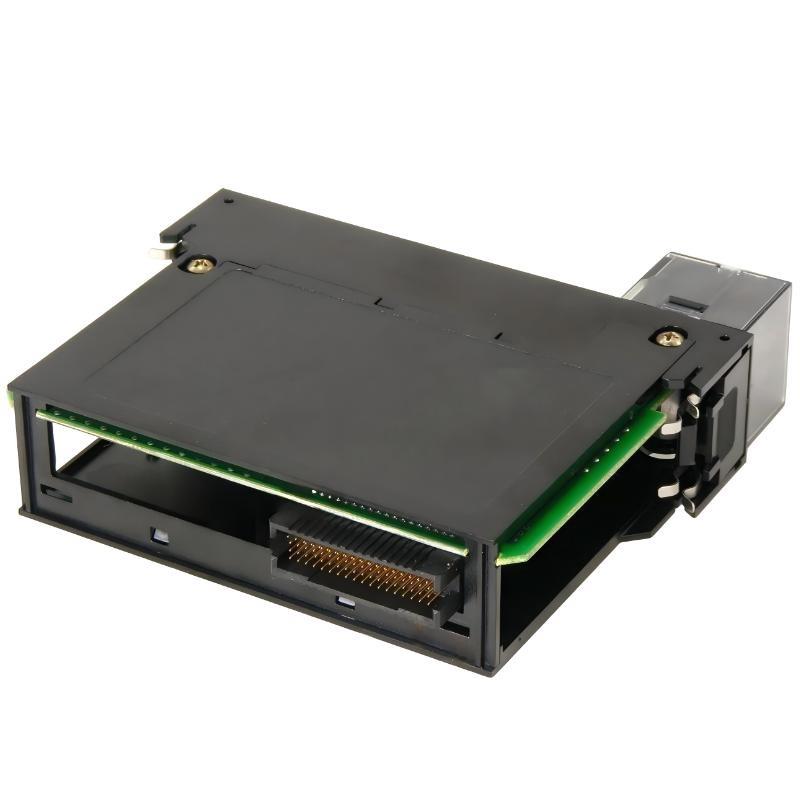

The Allen Bradley 1756-IV32 ControlLogix Sourcing Input Module is a high-density digital input module designed for the ControlLogix automation platform. This 32-point module is divided into two groups / 16 points, providing reliable and electrically isolated digital input acquisition for industrial control systems.
The IV32 module is optimized for sourcing input applications, where the module supplies the positive voltage to detect input states from external devices such as switches, sensors, and pushbuttons. Its compact design allows efficient use / ControlLogix chassis slots, while its electrical isolation ensures protection against signal interference, ground loops, and transient voltage spikes.
This module is widely used in manufacturing, process automation, and material handling systems, where fast, deterministic digital input monitoring is required for safety, control, and sequencing operations.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 1756-IV32 |
| 制造商 | Allen Bradley |
| Product Type | Sourcing Digital Input Module |
| System Compatibility | ControlLogix Platform |
| Number / Points | 32 digital input points (2 groups / 16) |
| Input Type | Sourcing digital inputs |
| Voltage Range | 10–30 VDC |
| Nominal Input Current | 3.5 mA per point |
| Backplane Current @ 5V | 120 mA |
| Electrical Isolation | Group-to-group and group-to-backplane isolation |
| Response Time | Fast digital input acquisition suitable for real-time control |
| Mounting Type | ControlLogix chassis backplane |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| 重量 | 0.45 kg |
Applications
● Monitoring industrial digital signals such as switches, limit sensors, and proximity devices.
● Integrated into ControlLogix systems for deterministic real-time control.
● 支持s safety, sequencing, and logic operations in automated production lines.
● Used in process industries to acquire status information from pumps, valves, and actuators.
● Suitable for applications requiring high-density digital inputs in a single module.
● Ideal for factory automation and material handling systems where fast input acquisition is critical.
Advantages
● Provides 32 high-density digital inputs in a compact module for efficient chassis usage.
● Sourcing input configuration ensures consistent voltage detection from external devices.
● Electrically isolated groups protect the system from interference and ground faults.
● Compatible with ControlLogix architecture for real-time and deterministic control.
● Fast response times allow rapid detection / state changes for critical control processes.
● Compact and lightweight design simplifies installation and maintenance in industrial cabinets.
