产品介绍

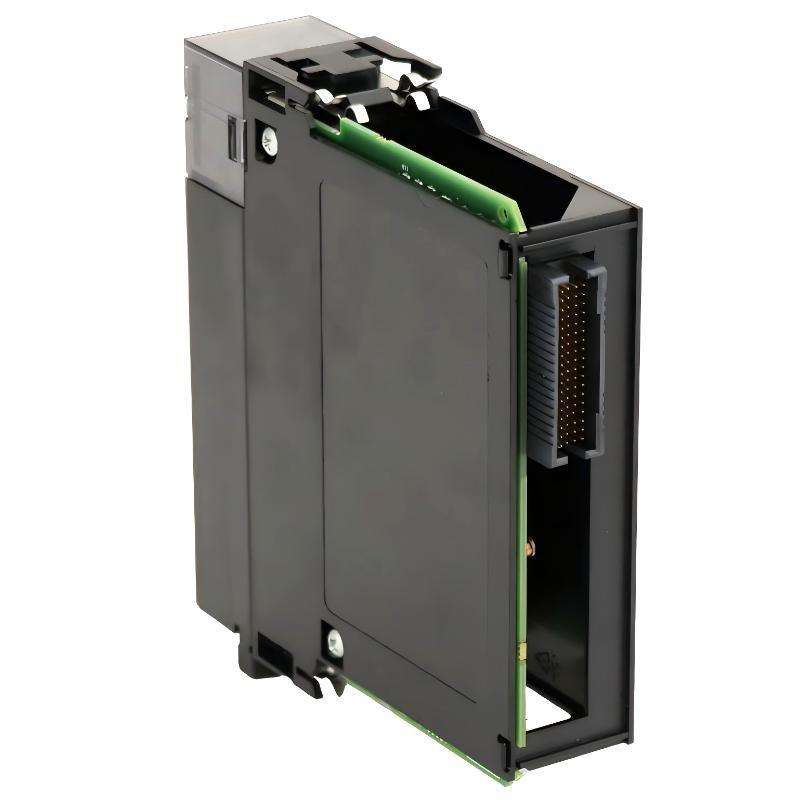

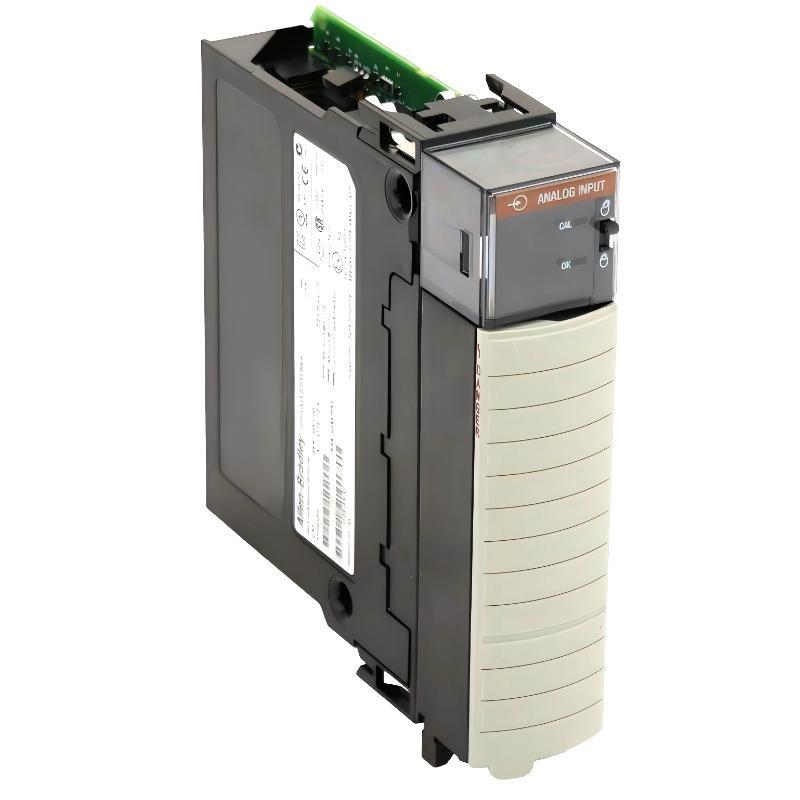

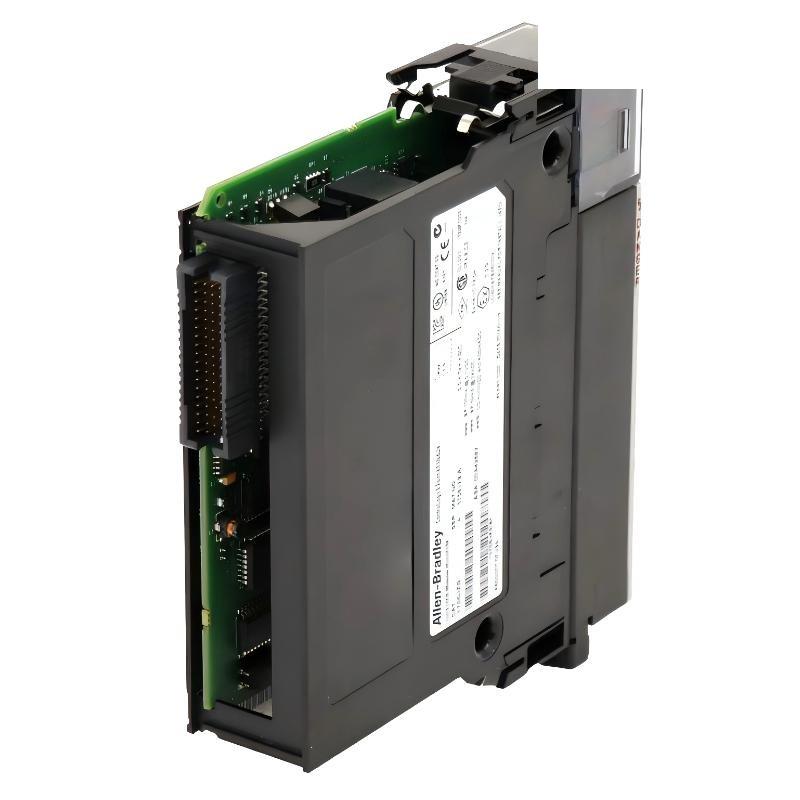

The Allen-Bradley 1756-IF8 ControlLogix Analog Input Module is a versatile analog input module designed for the ControlLogix system. It provides 8 single-ended input channels, 4 differential input channels, and 2 high-speed differential input channels, supporting both current and voltage measurements.
This module enables precise and reliable signal acquisition for industrial automation and process control applications. It is suitable for environments requiring flexible analog input configurations and high-speed data acquisition, providing accurate measurements for both standard and fast-changing process signals.
产品规格
| Parameter | Details |
|---|---|
| 型号 | 1756-IF8 |
| Series | ControlLogix |
| Type | Analog Input Module |
| Input Points | 8 single-ended, 4 differential, 2 high-speed differential |
| Input Mode | Current and Voltage |
| Connector Type | 20-pin |
| Isolation | Isolated channels |
| Supply Voltage | 24 VDC |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| 重量 | 0.2 kg |
Applications
• Industrial Process Control: Measures analog signals from sensors and transmitters for accurate monitoring / process variables.
• Automation Systems: Integrates with ControlLogix systems for centralized analog data acquisition and control.
• Mixed Signal Applications: 支持s both voltage and current inputs, making it suitable for versatile sensor types.
• High-Speed Measurement: Differential high-speed channels allow fast-changing signals to be captured accurately.
• Signal Isolation: Provides electrical isolation to maintain signal integrity and reduce noise.
Advantages
• Flexible Input Configurations: 支持s single-ended, differential, and high-speed differential channels for diverse applications.
• High Accuracy: Ensures precise measurement for both voltage and current signals.
• Isolated Channels: Reduces interference and ground loop issues, maintaining reliable operation.
• Fast Response: High-speed differential inputs allow rapid signal acquisition, critical for dynamic processes.
• Seamless Integration: Compatible with ControlLogix backplane systems for easy installation and operation.
• Industrial Reliability: Designed for robust performance in noisy industrial environments.
