产品介绍

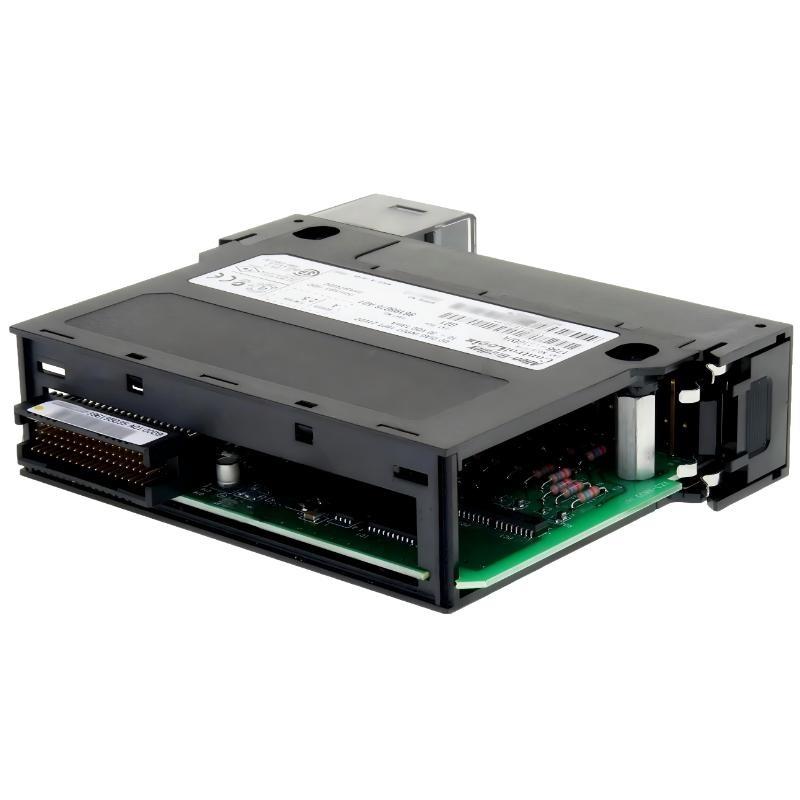

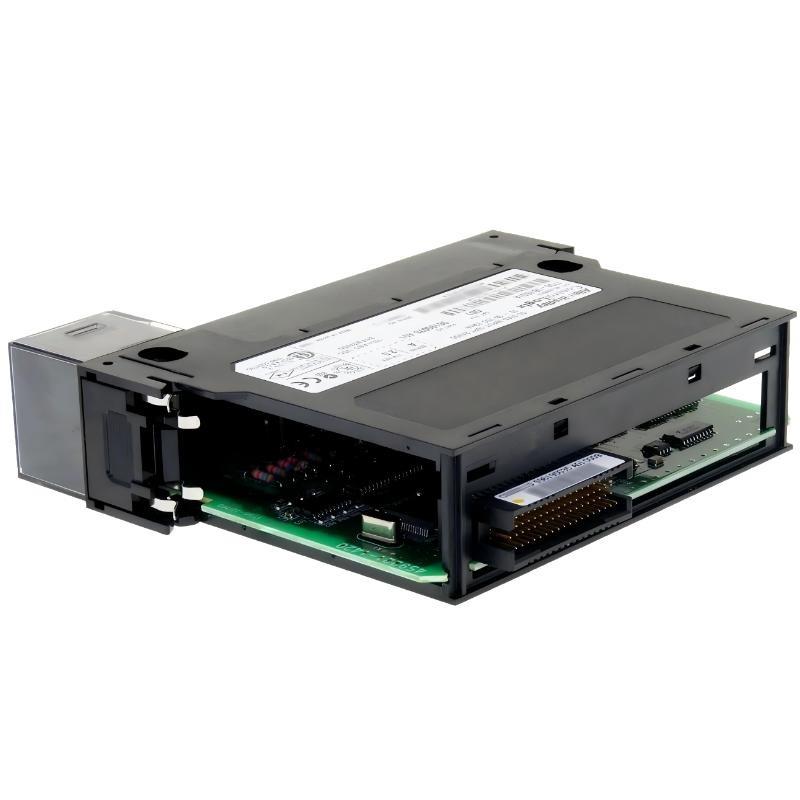

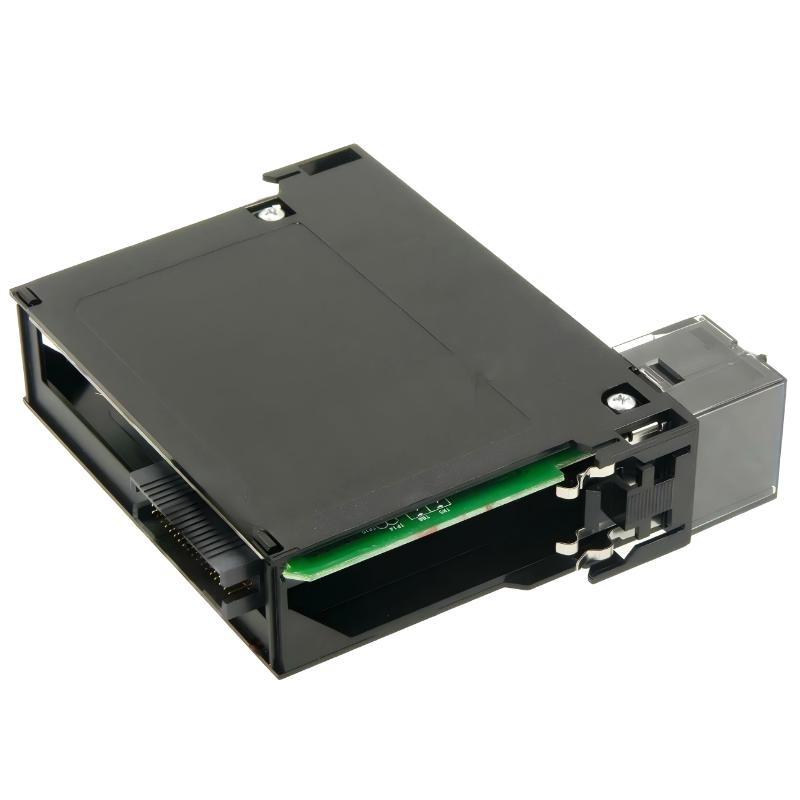

The Allen Bradley 1756-IB16D/A ControlLogix Diagnostic Input Module is a 16-point DC input module designed to acquire diagnostic signals from field devices within ControlLogix automation systems. Operating on a 24 VDC nominal range (10–30 VDC), the module enables precise detection / digital signals for monitoring and troubleshooting purposes.
Its robust design supports continuous operation in industrial environments with operating temperatures from 0 to 60 °C. The module is ideal for applications where accurate system diagnostics and input monitoring are required.
产品规格
| Parameter | Specification |
|---|---|
| Product Type | Diagnostic Digital DC Input Module |
| 制造商 | Allen Bradley |
| Series | ControlLogix |
| 型号 / 零件号 | 1756-IB16D/A |
| Number / Input Points | 16 |
| Input Voltage | 24 VDC (10–30 VDC range) |
| Mounting Type | Chassis mount |
| Operating Temperature Range | 0 to 60 °C |
| Control Platform | ControlLogix backplane |
| Industrial Application Level | Diagnostic input monitoring |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| 重量 | 0.23 kg |
Applications
• Diagnostic Signal Monitoring
Captures digital signals from sensors, switches, and diagnostic devices for system health verification.
• Machine-Level Monitoring
支持s monitoring / operational states, alarms, and system events at the machine level.
• Process Automation Systems
Integrates diagnostic inputs to improve control accuracy and process reliability.
• Distributed I/O Architectures
Works alongside other ControlLogix modules to form a comprehensive diagnostic network.
• Industrial Troubleshooting
Facilitates detection / abnormal conditions or faults for predictive maintenance.
• Automation System Verification
Provides reliable feedback to ensure correct operation / DC-powered devices.
Advantages
• Diagnostic Functionality
Designed to acquire and monitor diagnostic signals for enhanced system visibility.
• High Input Density
16 DC inputs in a compact chassis-mounted module.
• Wide Voltage Range 支持
Compatible with DC signals from 10 to 30 VDC.
• Seamless ControlLogix Integration
Communicates directly via the ControlLogix backplane for easy system integration.
• Industrial-Grade Reliability
支持s continuous operation within standard industrial temperature ranges.
• Enhanced System Troubleshooting
Enables fast detection / abnormal signals for improved maintenance and diagnostics.
