Introduction

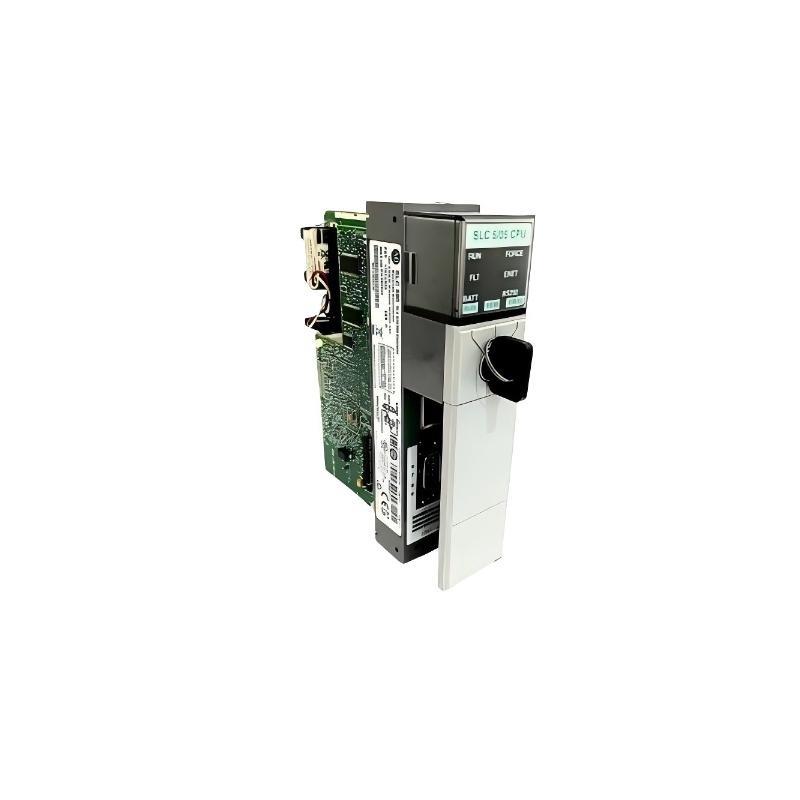

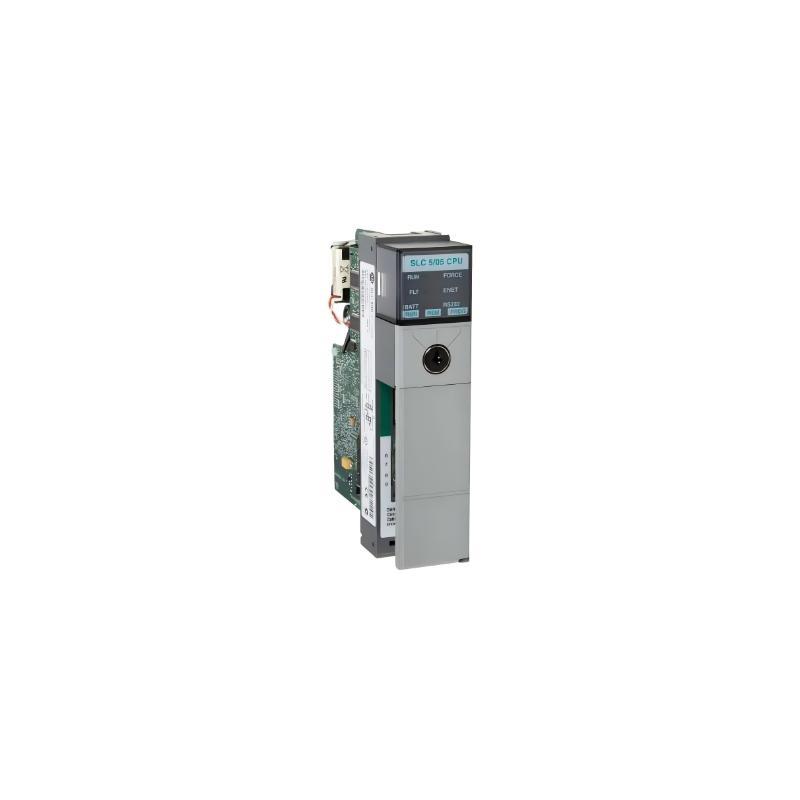

The Allen Bradley 1747-L553 is the flagship processor in the SLC 5/05 series, part / the widely trusted SLC 500 family. Engineered for performance, reliability, and flexibility, this processor combines strong logic execution with built-in Ethernet networking, large memory capacity, and versatile communication options. It is ideal for manufacturing systems that require a stable and scalable automation platform with reliable connectivity between the control floor and the enterprise network.
Technical Specifications
| Parameter | Specification | 描述 |
|---|---|---|
| Processor Type | SLC 5/05 | Advanced controller with integrated Ethernet and serial ports |
| User Memory | 64K words (≈64,000) | Largest memory capacity in the SLC 500 lineup |
| Communication Ports | Channel 0: RS-232 / DH-485 Channel 1: Ethernet 10/100 Mbps |
Dual-channel communication for flexible networking |
| Ethernet Connections | Up to 64 simultaneous connections | 支持s multiple HMIs, PLCs, and SCADA systems |
| Discrete I/O Capacity | 4,096 inputs / 4,096 outputs | Handles large-scale automation setups |
| Analog I/O Capacity | Up to 480 channels | 支持s analog modules for process control |
| Program Scan Time | 0.9 ms per 1K instructions | Fast logic execution for responsive control loops |
| I/O Scan Time | 0.225 ms typical | Ensures real-time data exchange with I/O modules |
| Battery Backup | Yes (replaceable lithium cell) | Maintains memory during power loss |
| Power Supply Voltage | 5 V DC (from chassis backplane) | Draws power from the main rack |
| Current Draw (5 V DC) | Approx. 1.0 A | Typical operational consumption |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial-rated temperature range |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | For non-operating storage conditions |
| Humidity | 5%–95% non-condensing | Suitable for standard factory environments |
| Dimensions (H × W × D) | 145 mm × 38 mm × 118 mm (5.7″ × 1.5″ × 4.6″) | Standard SLC 500 form factor |
| 重量 | 0.28 kg (0.62 lbs) | Lightweight module for easy rack installation |
Applications
The 1747-L553 processor is widely used across industries for mid- to large-scale control applications. Common scenarios include:
-
Manufacturing Lines – Integration / multiple machines into synchronized production control networks.
-
Process Automation – Real-time data management and control for batch processes, blending, and material handling.
-
Packaging Systems – Coordinating high-speed conveyors, sensors, and actuators for automated packaging.
-
Building Automation – Reliable control / HVAC, lighting, and energy systems with Ethernet connectivity.
-
Legacy Modernization – Upgrading existing SLC systems while maintaining backward compatibility with older modules.
Advantages
-
High Memory and Speed: With 64K words / memory and quick scan times, the 1747-L553 executes complex logic efficiently.
-
Built-in Ethernet Port: Direct Ethernet communication supports SCADA systems, HMIs, and peer-to-peer controller networks.
-
Versatile Communication: Dual-channel support for both modern and legacy network protocols ensures flexible integration.
-
Strong I/O Handling: Large capacity for both digital and analog signals suits diverse automation needs.
-
Reliable Operation: Backed by robust power management, environmental tolerance, and battery backup for data protection.
-
Seamless Integration: Compatible with existing SLC 500 chassis, modules, and accessories, minimizing migration effort.
-
Efficient Maintenance: LED status indicators, diagnostic support, and online programming simplify maintenance tasks.
