产品介绍

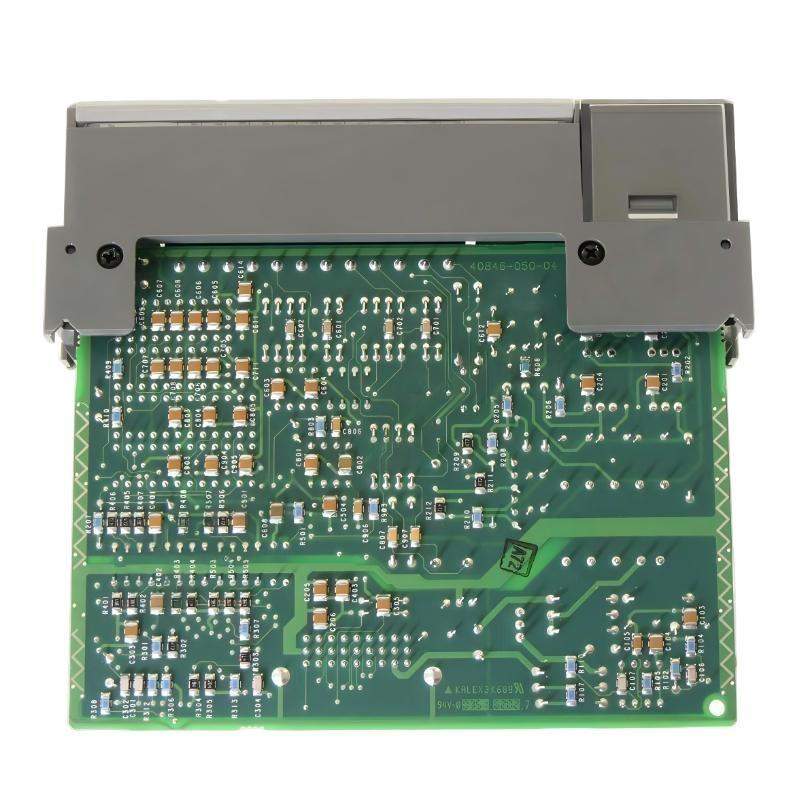

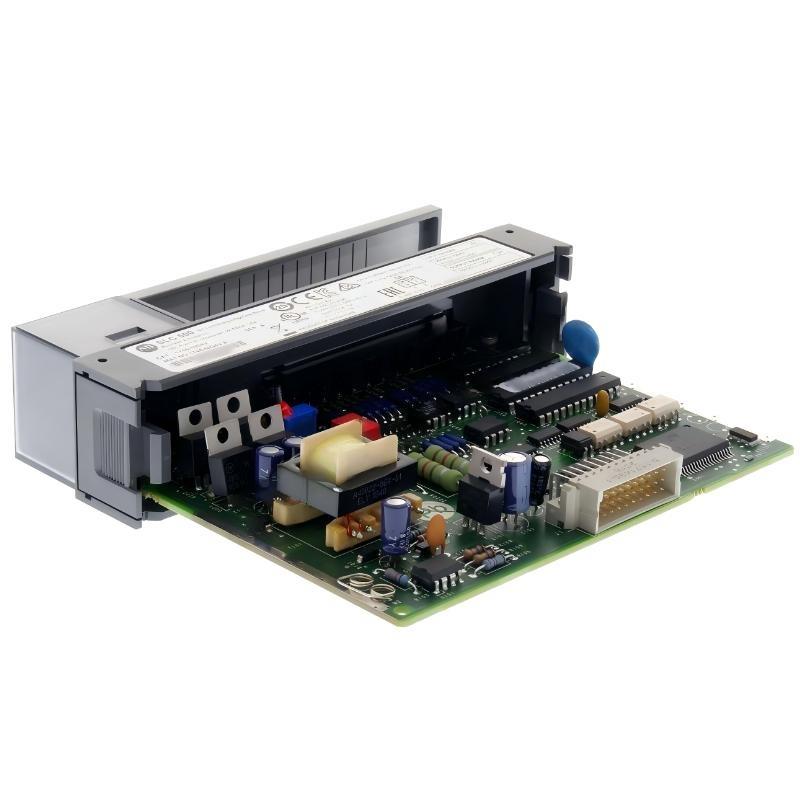

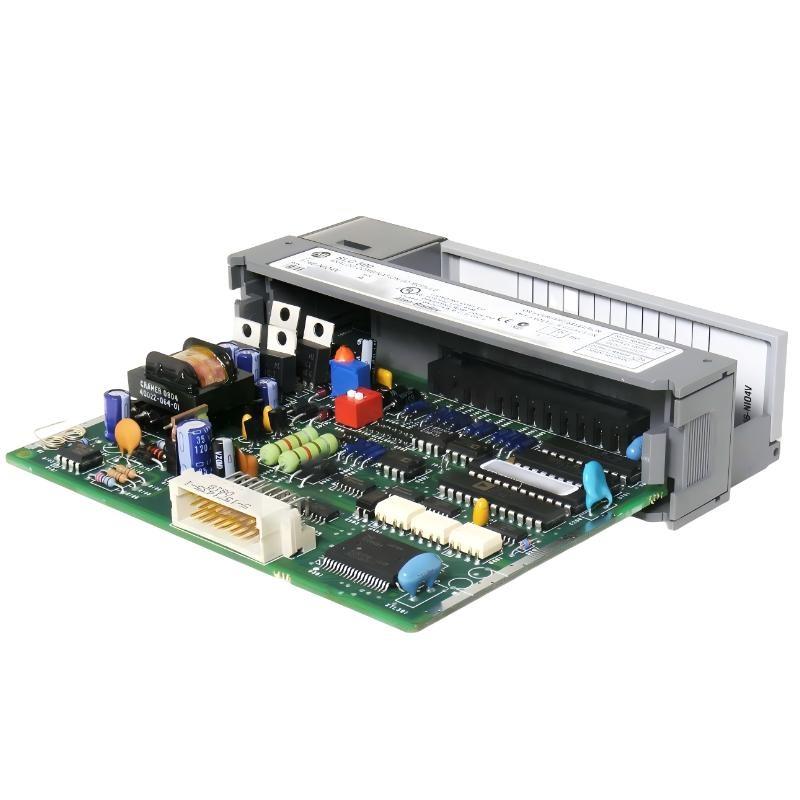

The Allen-Bradley 1746-NIO4V is a combination analog input/output module designed for the SLC 500 programmable controller platform. It provides high-resolution analog signal processing, allowing precise monitoring and control / industrial processes within a compact modular PLC system.
This module integrates two differential analog inputs and two analog outputs, supporting both voltage and current signal types. With an integrated 24 VDC supply, it simplifies field device integration and reduces external power requirements. The design focuses on accuracy, stability, and compatibility with industrial automation environments where reliable analog performance is essential.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | Combination Analog I/O Module |
| 型号 | 1746-NIO4V |
| 制造商 | Allen-Bradley |
| System Compatibility | SLC 500 PLC series |
| Number / Points | 4 points |
| Analog Inputs | 2 differential voltage / current inputs |
| Analog Outputs | 2 analog outputs |
| Resolution | High-resolution analog conversion |
| Input Signal Types | Differential voltage and current |
| Output Signal Type | Analog output signals |
| Integrated Supply | 24 VDC |
| Supply Current | 115 mA |
| Installation | Modular PLC chassis slot |
| Operating Environment | Industrial control systems |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.23 kg |
Applications
• High-precision process monitoring in industrial automation systems
• Analog control applications for valves, actuators, and regulated devices
• Differential signal measurement, improving accuracy in electrically noisy environments
• Integration within SLC 500 PLC systems for compact analog I/O expansion
• Closed-loop control systems requiring stable and high-resolution analog performance
Advantages
• High-resolution analog processing, enabling accurate measurement and control
• Differential input design, reducing noise and improving signal integrity
• Integrated 24 VDC supply, simplifying field wiring and device power requirements
• Compact modular form, fully compatible with SLC 500 chassis
• 支持s both input and output functions, reducing the need for separate modules
• Reliable industrial performance, suitable for continuous operation
