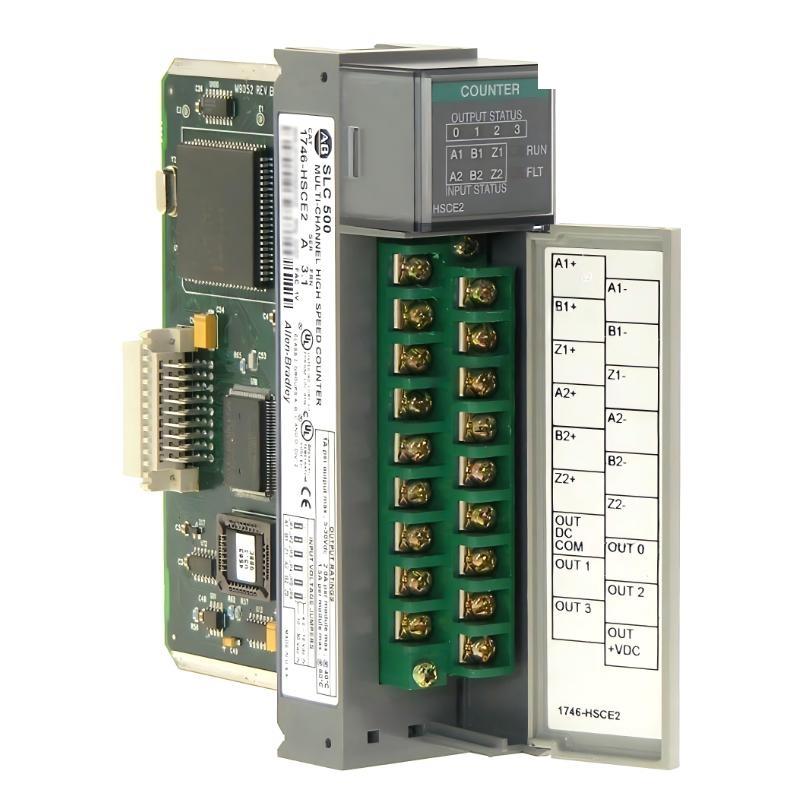

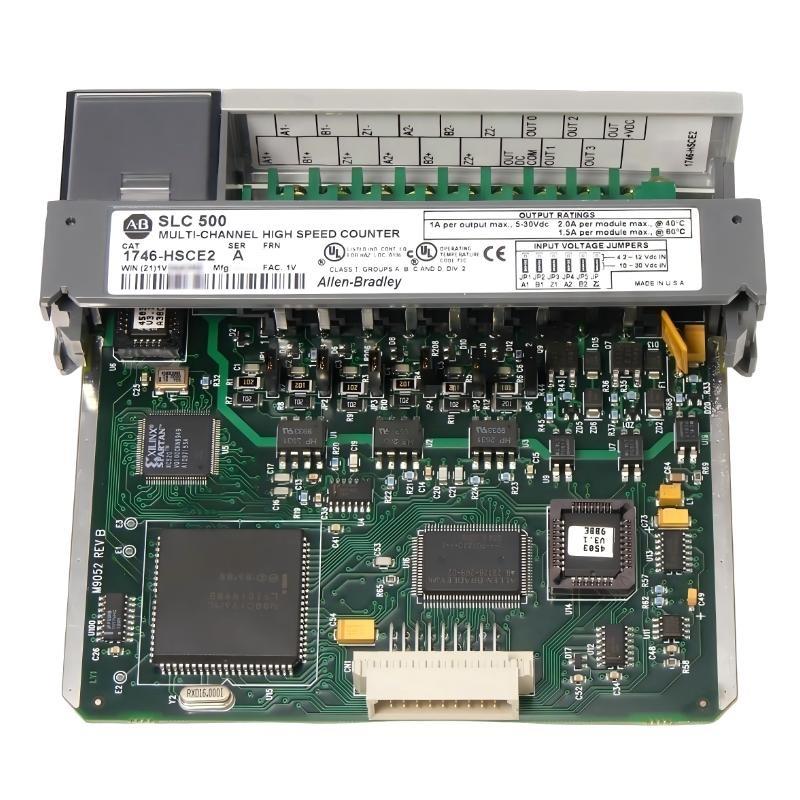

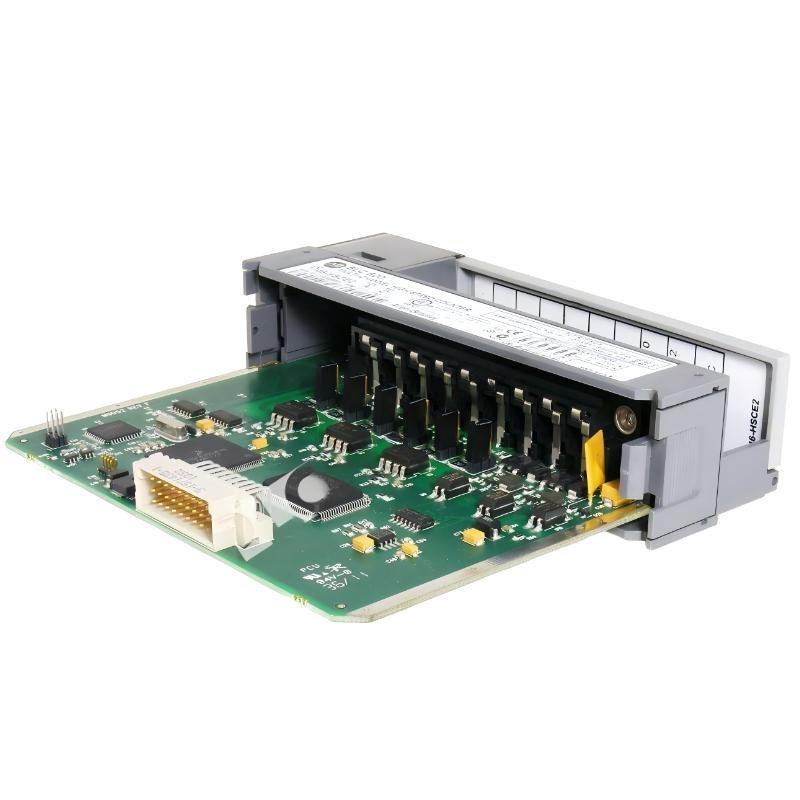

The Allen-Bradley 1746-HSCE2 Multi-Channel High Speed Counter Module is a high-performance counting and analog interface module designed for SLC 500 programmable controller systems. It combines high-speed multi-channel counting with fast analog input and analog voltage output capabilities, making it suitable for demanding industrial automation and motion-related applications.
This module supports four independent counter channels along with two fast analog inputs capable / handling both voltage and current signals. In addition, it provides two analog voltage outputs for precise control or signal generation. With a maximum processing speed / 1.5 MS, the 1746-HSCE2 delivers rapid and accurate signal handling for time-critical applications.
The open-style construction allows flexible wiring and installation, while the 1000V isolation between user-side and system electronics ensures enhanced safety and signal integrity. The 1746-HSCE2 is well suited for machine automation, robotics, process monitoring, and high-speed measurement tasks.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | Multi-Channel High Speed Counter Module |
| 制造商 | Allen-Bradley |
| Series | SLC 500 |
| 型号 Number | 1746-HSCE2 |
| Number / Counter Channels | 4 Channels |
| Fast Analog Inputs | 2 Inputs |
| Input Signal Type | Voltage / Current |
| Analog Voltage Outputs | 2 Outputs |
| User-Side Voltage Levels | 5V / 12V / 24V DC |
| Maximum Processing Speed | 1.5 MS |
| Isolation | 1000V User-Side Isolation |
| Construction Style | Open Style |
| Mounting Type | SLC 500 Backplane / Control Cabinet |
| Operating Environment | Industrial Automation Systems |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.222 kg |
Applications
• High-speed multi-channel counting, enabling accurate monitoring / fast pulse signals
• Motion and position feedback, supporting encoders and high-speed sensors
• Fast analog signal acquisition, processing voltage and current inputs in real time
• Analog output control, generating voltage signals for actuators or control loops
• Machine automation, integrating counting and analog functions in a single module
• Robotics and indexing systems, requiring fast response and reliable isolation
Advantages
• Four independent counter channels, allowing simultaneous multi-signal processing
• High processing speed up to 1.5 MS, ensuring fast and accurate data handling
• Dual fast analog inputs, supporting both voltage and current measurement
• Two analog voltage outputs, enabling precise control and signal generation
• 1000V electrical isolation, improving system safety and noise imm件y
• Open-style design, providing flexible wiring and easy integration
