产品介绍

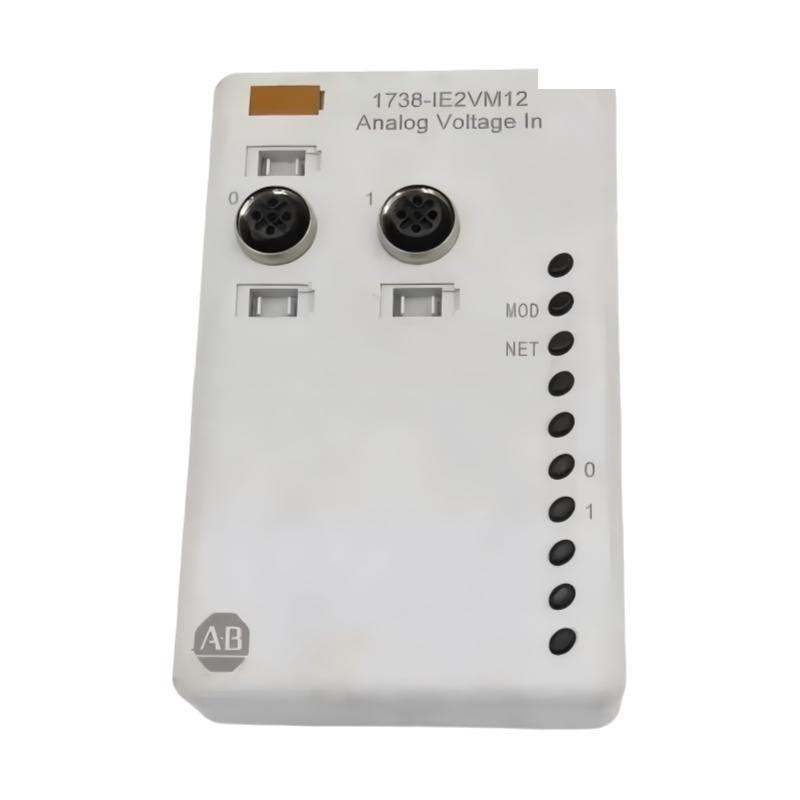

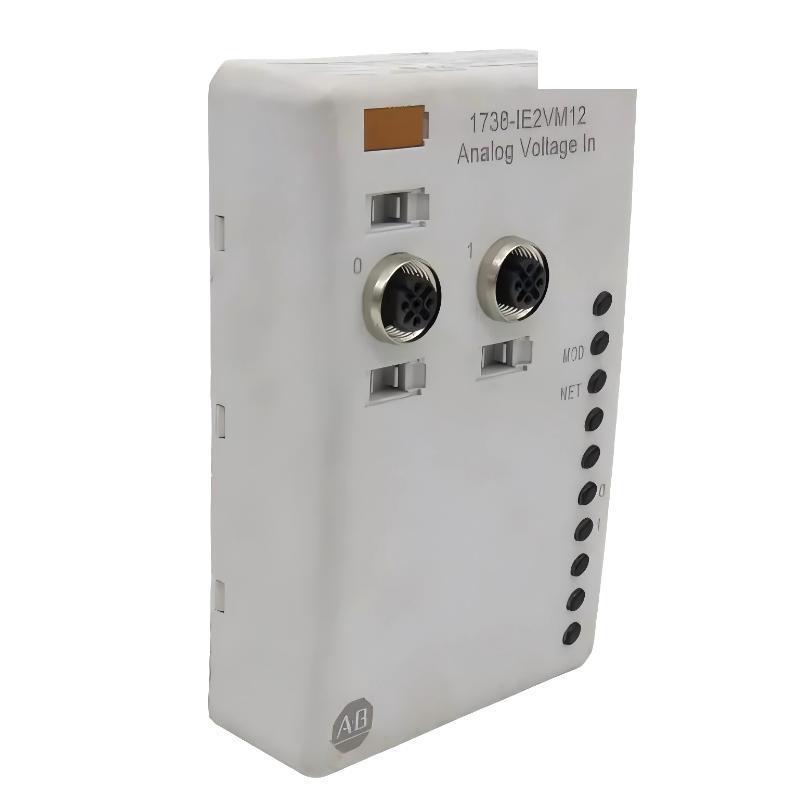

The Allen Bradley 1738-IE2VM12 ArmorPoint Analog Input Module is a compact and rugged analog input module designed for the ArmorPoint I/O platform from Rockwell Automation. It provides two single-ended analog input channels and is engineered for accurate signal acquisition in harsh industrial environments where traditional cabinet-based I/O solutions are not practical.
This module is built with a fully sealed enclosure and high ingress protection, allowing it to be mounted directly on machines or in exposed field locations. Its design significantly reduces wiring complexity and eliminates the need for additional protective enclosures, making it ideal for decentralized automation systems.
The 1738-IE2VM12 supports flexible configuration through a keyswitch mechanism, enabling quick setup and reliable operation. With stable performance and precise signal handling, it is well suited for applications requiring continuous monitoring / analog variables such as voltage signals from sensors and transmitters.
产品规格
| Parameter | Value |
|---|---|
| Module Type | ArmorPoint Analog Input Module |
| Number / Inputs | 2 Channels |
| Input Configuration | Single-ended |
| Input Signal Type | Analog Voltage |
| Keyswitch Position | 3 Positions |
| POINTBus Current | 75 mA |
| Power Consumption | 0.75 W |
| Connection Type | M12 Connectors |
| Protection Rating | IP69K |
| Design Type | Sealed, On-machine Mount |
| Isolation | Electrical isolation supported |
| Mounting Type | Direct Machine Mount / DIN Rail Compatible |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 120 x 42 x 72 mm |
| 重量 | 0.29 kg |
Applications
● Used in analog signal acquisition, such as voltage signals from sensors and transmitters
● Suitable for on-machine installations in harsh industrial environments with exposure to moisture and dust
● Applied in process monitoring systems, including temperature, pressure, and level measurement
● Ideal for packaging and material handling systems, requiring continuous analog data feedback
● Common in automotive and manufacturing lines, supporting distributed I/O architectures
● Used in outdoor or washdown environments, where sealed modules ensure long-term reliability
Advantages
● Fully sealed housing with IP69K protection, ensuring reliable operation in extreme environments
● Provides 2 high-accuracy analog inputs, suitable for precise signal measurement
● 支持s single-ended input configuration, simplifying wiring for many sensor types
● Equipped with keyswitch configuration, allowing quick and secure setup
● Enables on-machine mounting, reducing installation cost and cabinet requirements
● Compact design with low power consumption, improving system efficiency
