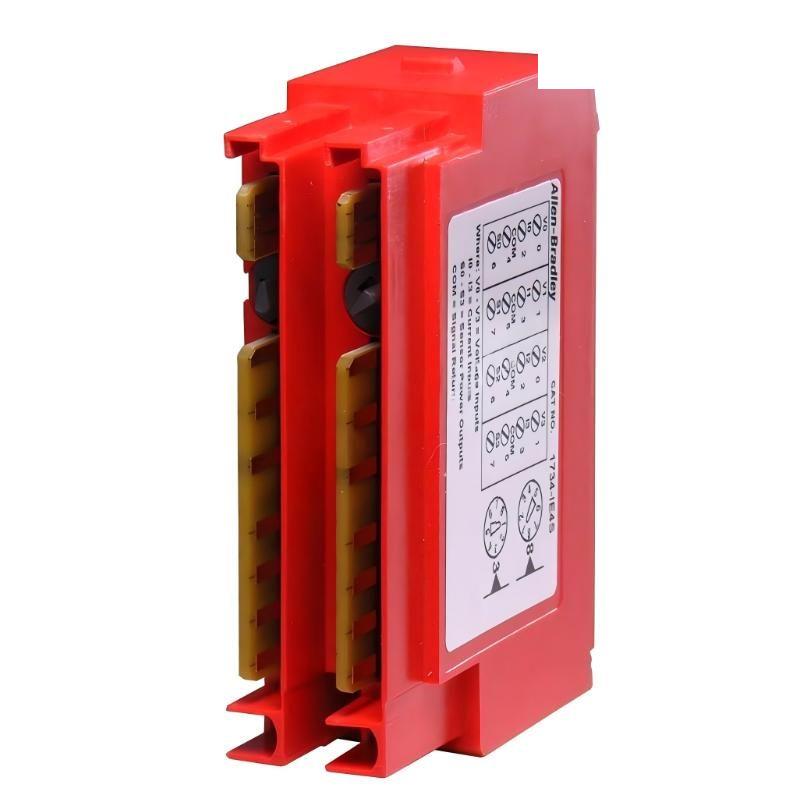

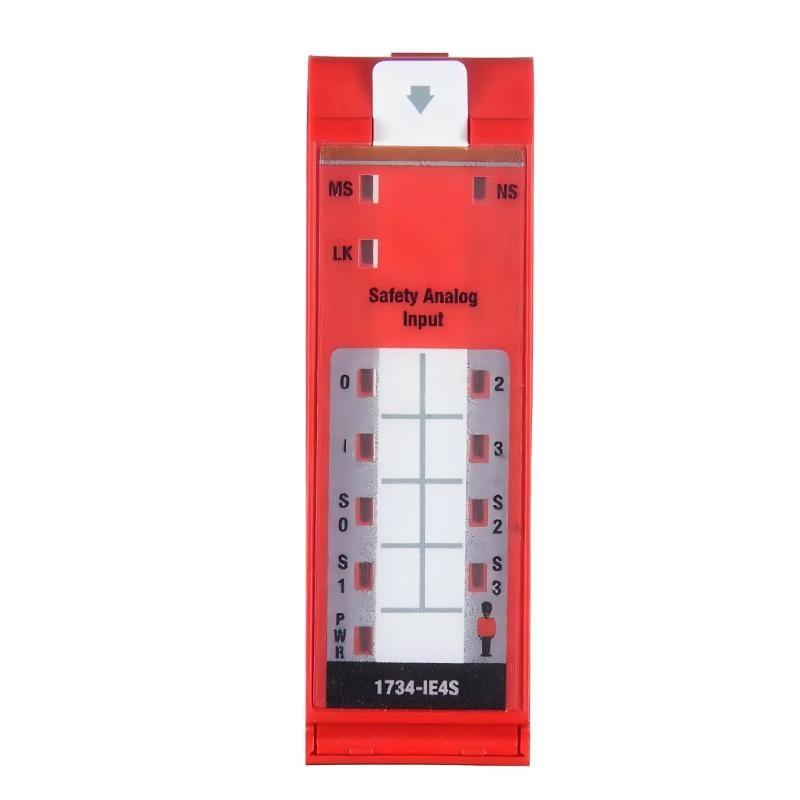

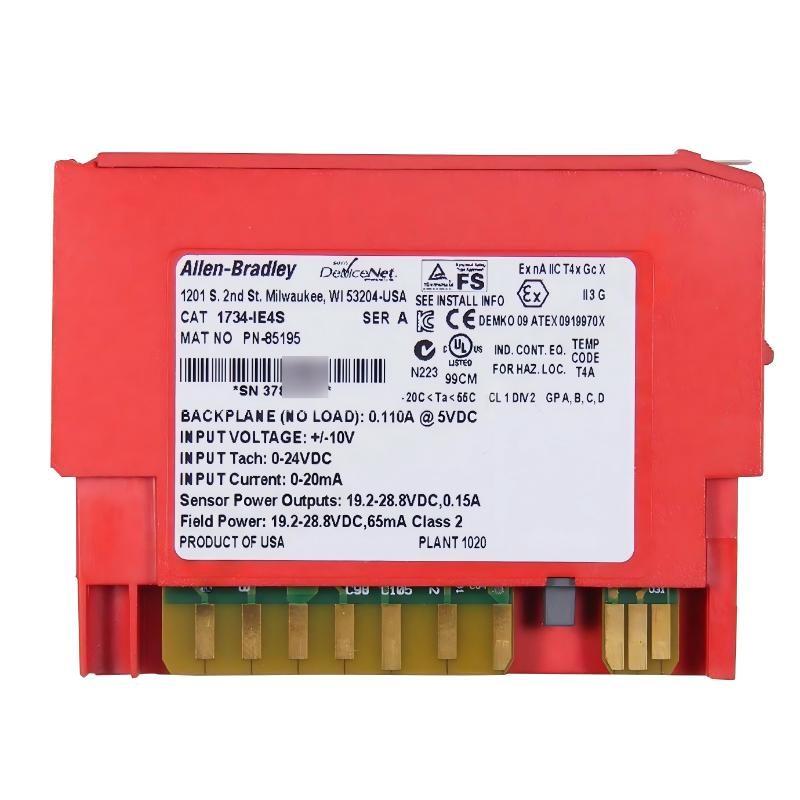

The Allen-Bradley 1734-IE4S POINT Guard I/O Safety Analog Input Module is a multifunctional safety-rated input module designed for precise signal acquisition in safety-critical industrial automation systems. As part / the POINT Guard I/O platform, it integrates standard analog measurement with safety functionality, making it suitable for applications requiring both accuracy and compliance with functional safety standards.
This module provides four input channels capable / handling multiple signal types, including current, voltage, and tachometer inputs. Its flexible configuration allows it to support a wide range / industrial sensors and devices, enabling seamless integration into complex safety systems.
With support for 4–20 mA and 0–20 mA current signals, multiple voltage ranges, and tachometer inputs up to 1000 Hz, the 1734-IE4S /fers versatility for monitoring speed, position, and process variables. The module is designed for distributed safety architectures, ensuring reliable signal acquisition while maintaining system integrity and safety compliance.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 1734-IE4S |
| Series | POINT Guard I/O |
| 品牌 | Allen-Bradley |
| Type | Safety Analog Input Module |
| Number / Channels | 4 |
| Isolation | Non-isolated |
| Current Input Range | 4–20 mA, 0–20 mA |
| Voltage Input Range | ±5 V, ±10 V, 0–5 V, 0–10 V |
| Tachometer Input Range | 0–24 V |
| Tachometer Frequency Range | 1 – 1000 Hz |
| Configuration Resolution | 1 V increments |
| Application | Safety signal acquisition |
| Mounting Type | POINT Guard I/O system |
| Operating Environment | Industrial safety systems |
| Dimensions | 77 × 24 × 55 mm |
| 重量 | 0.068 kg |
Applications
• Safety-critical process monitoring – acquires analog signals in systems requiring functional safety
• Speed and rotation monitoring – uses tachometer inputs for motor and equipment speed detection
• Machine safety systems – integrates analog measurement into safety control architectures
• Manufacturing automation – supports combined safety and process monitoring applications
• Distributed safety I/O systems – enables flexible and scalable safety network integration
Advantages
• Safety-rated analog input module ensures compliance with industrial safety requirements
• Multi-signal support (current, voltage, tachometer) provides high flexibility for various applications
• 4-channel compact design increases I/O density while saving panel space
• Wide input ranges allow connection to different types / industrial sensors
• Tachometer functionality up to 1000 Hz supports speed monitoring applications
• Seamless integration with POINT Guard I/O simplifies system design and expansion
