Introduction

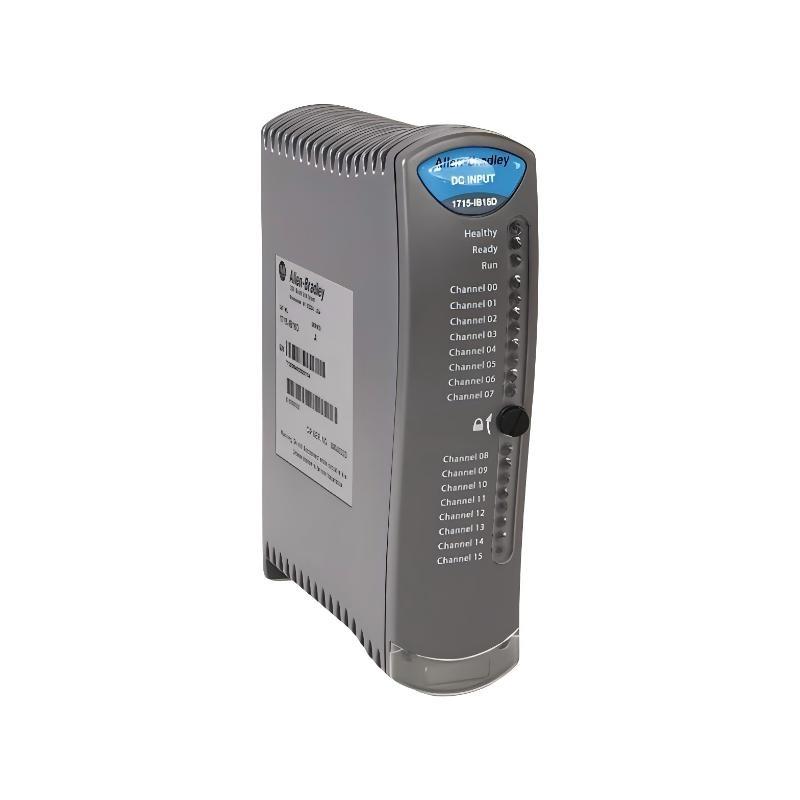

The Allen Bradley 1715-IB16D is a 16-point DC input module for the PLC-5 MicroLogix/Small PLC platform. From an engineer’s perspective, this module /fers precise, reliable input monitoring for discrete DC signals, making it ideal for control systems where signal integrity and rapid response are essential. Field experience shows that the 1715-IB16D is durable, simple to install, and easy to maintain, which is critical in industrial environments with frequent wiring or device changes.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 1715-IB16D |
| Module Type | DC Input Module |
| Input Channels | 16 discrete DC inputs |
| Input Voltage Range | 24 VDC nominal (20–30 VDC operating) |
| Input Current per Channel | 7 mA typical |
| Isolation | Channel-to-backplane isolation standard |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (H × W × D) | 140 mm × 35 mm × 145 mm |
| 重量 | ≈ 0.42 kg |
| Mounting | DIN-rail or 1715 rack slot |
Applications
-
Monitoring DC discrete field devices such as switches, sensors, or contactors
-
MicroLogix or small PLC-based automation systems in packaging, material handling, or process control
-
Expansion / existing PLC-5 or 1715 I/O systems where additional DC inputs are needed
-
Legacy installations requiring reliable and maintainable input modules
-
Systems with frequent maintenance cycles or field testing needs
Advantages
-
High reliability: Designed for continuous operation under industrial conditions
-
Fast response: Low input delay suitable for real-time control applications
-
Channel isolation: Reduces cross-talk and ensures accurate signal acquisition
-
Compact design: Minimal footprint allows high-density I/O in small control panels
-
Field-serviceable: LED indicators simplify troubleshooting and reduce downtime
-
Durable construction: Long lifecycle and consistent performance under vibration or temperature fluctuations
