产品介绍

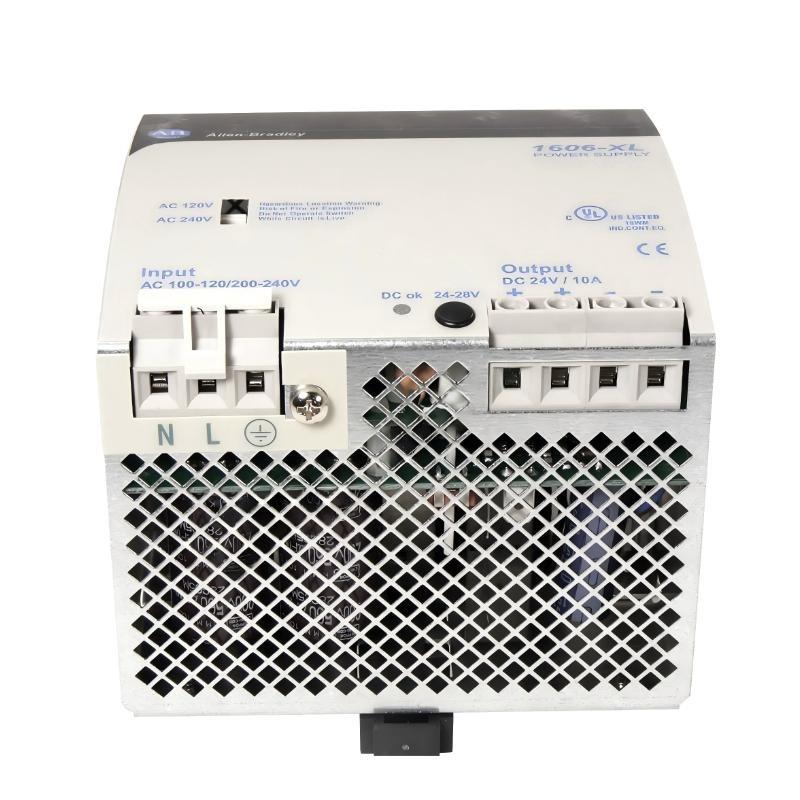

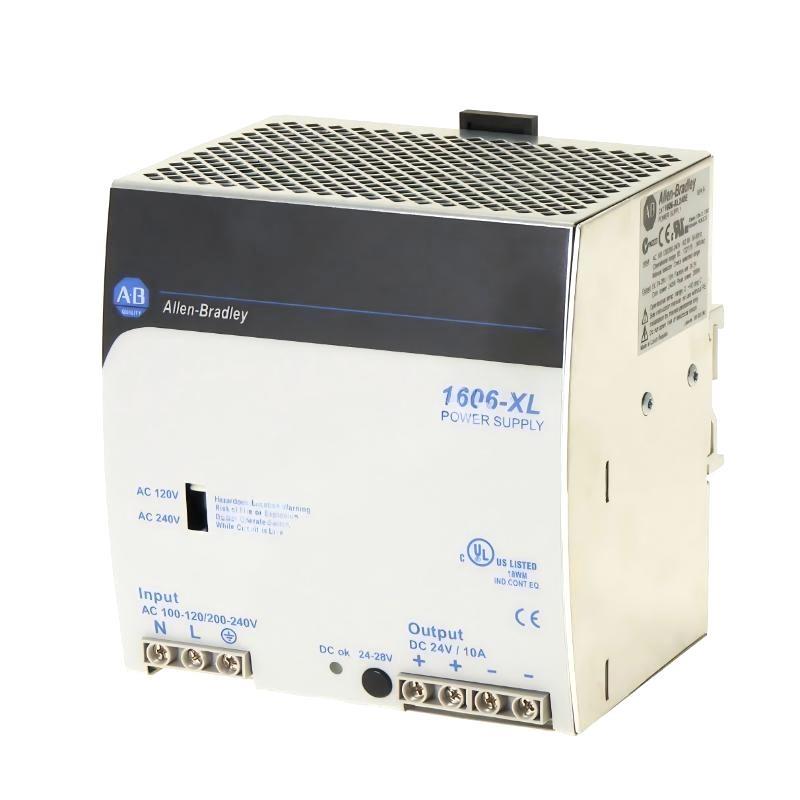

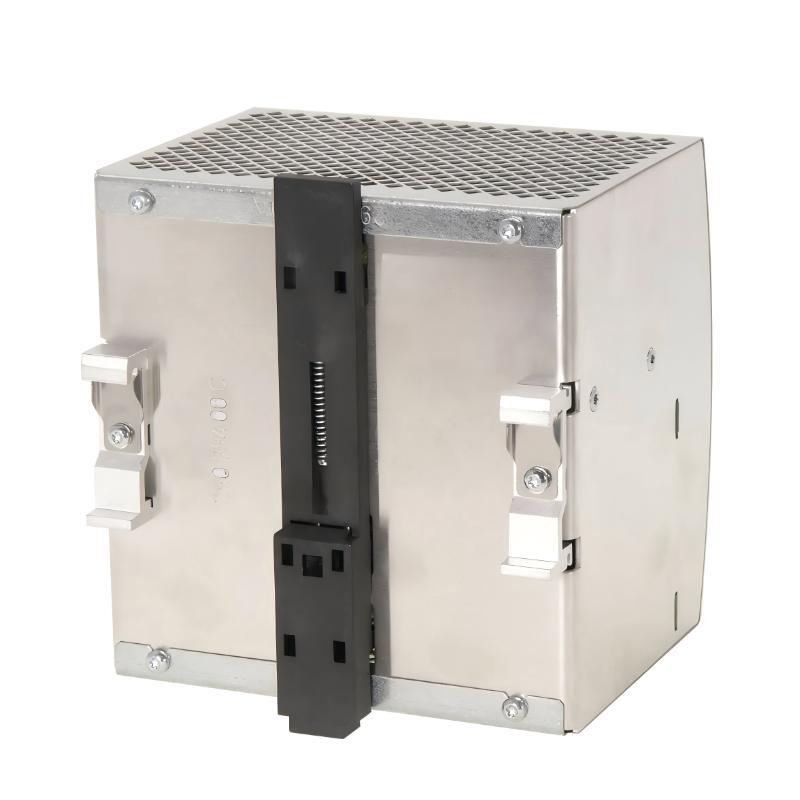

The Allen Bradley 1606-XL240EP Power Supply Module is a high-efficiency industrial power supply designed to deliver 24–28 V DC output at 240 W for automation and control systems. This module includes Power Factor Correction (PFC), which improves energy efficiency and reduces harmonic distortion on the AC supply.
Part / the 1606-XL series, the 1606-XL240EP combines wide input voltage tolerance, DIN-rail mountable compact design, and robust protection features, making it suitable for industrial control panels, machinery, and automation applications requiring reliable DC power.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 1606-XL240EP |
| Series | 1606-XL |
| Product Type | Power Supply Module with Power Factor Correction |
| Input Voltage | 100–240 V AC |
| Rated Output Power | 240 W |
| Output Voltage | 24–28 V DC |
| Output Current | 10 A |
| Voltage Type | DC |
| Efficiency | Typ. 89% |
| Power Factor Correction | Yes |
| Protection Features | Overload, short-circuit, overvoltage |
| Mounting Type | DIN-rail |
| Operating Temperature | 0–70 °C (derating above 60 °C) |
| Storage Temperature | -40–85 °C |
| Dimensions (H x W x D) | 120 x 124 x 102 mm |
| 重量 | 1.195 kg |
| Certifications | UL, CE, CSA |
Applications
-
Industrial Automation: Powers PLCs, sensors, and actuators reliably in control panels.
-
Control Panels: Suitable for installations requiring regulated 24–28 V DC output with improved power factor.
-
Machine Tools and Robotics: Provides stable power for precision industrial equipment.
-
Process Automation: Ensures continuous DC supply for chemical, food, and pharmaceutical control systems.
-
Building Automation: Supplies HVAC, monitoring, and security systems efficiently.
Advantages
-
Power Factor Correction (PFC): Reduces harmonic distortion and improves energy efficiency.
-
Compact DIN-Rail Design: 保存s panel space and simplifies installation.
-
Stable DC Output: Provides 24–28 V DC at 10 A for multiple industrial loads.
-
High Efficiency: Typ. 89%, minimizing energy loss and heat generation.
-
Integrated Protection: Protects connected devices from overload, short-circuit, and overvoltage.
-
Wide Operating Temperature: Operates up to 70 °C, with derating above 60 °C.
-
Industrial Certifications: UL, CE, CSA approved.
