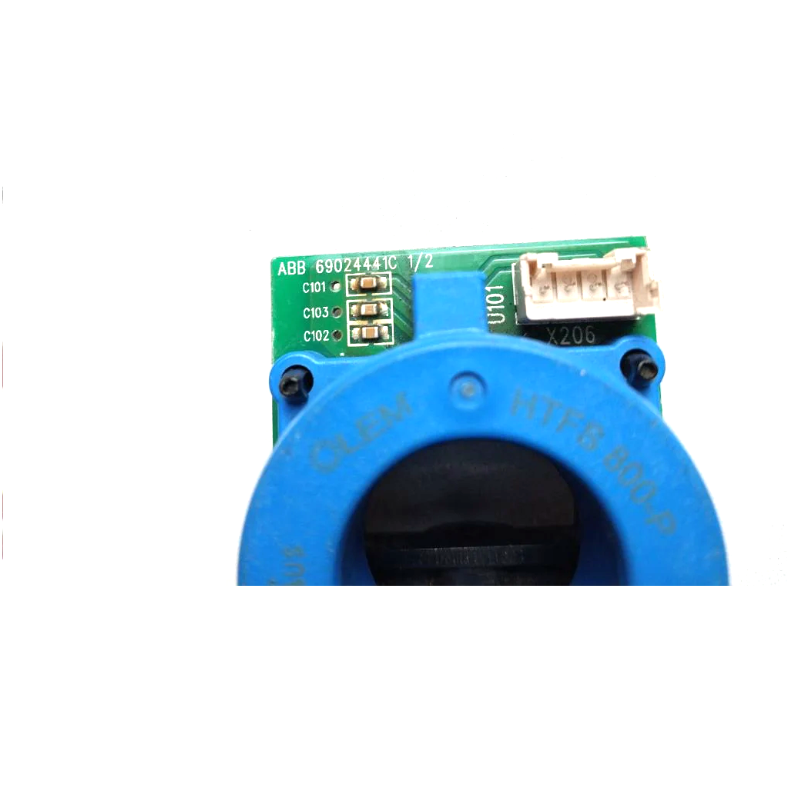

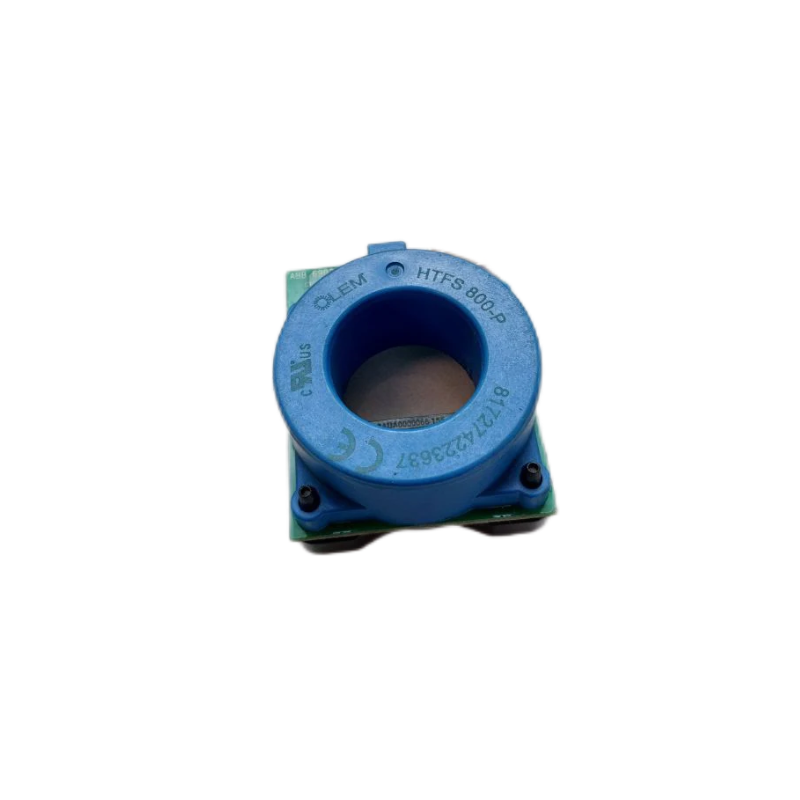

产品介绍: ABB ZCUR-791 (3AUA0000071032D)
The ABB ZCUR-791, catalog number 3AUA0000071032D, is a high-performance current measurement module designed for industrial automation applications. This component is primarily used in ABB’s AC500 and ACS800/880 series for motor control and system protection. It /fers precision current sensing functionality which enables efficient operation, diagnostics, and safety / electric drive systems. The ZCUR-791 plays a crucial role in monitoring current in real-time and providing feedback for control loops in motor drives, /fering fast response and robust integration.
The module is engineered to meet the demanding requirements / industrial environments, including temperature fluctuations, high vibration zones, and electromagnetic noise. With ABB’s stringent quality and compatibility standards, the ZCUR-791 is well-suited for both new installations and retr/it upgrades.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 Number | ZCUR-791 |
| ABB Catalog Code | 3AUA0000071032D |
| Function | Current Measurement Module |
| Application | Motor Drives (ACS800/880) |
| Voltage Range | 24 VDC (from control board supply) |
| Current Measurement | High-speed analog input for current sensors |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Communication Interface | Internal drive bus |
| Mounting Type | Plug-in module |
| Protection Rating | IP20 (when installed in cabinet) |
| Housing Material | Industrial-grade plastic |
| Dimensions | 120 × 75 × 45 mm |
| 重量 | 0.35 kg |
| Compliance | CE, UL, RoHS |
Product Applications
-
Industrial Drives: Used in ACS800/ACS880 series drives for current feedback in VFD systems.
-
Process Automation: Suitable for measuring motor load in continuous process control environments.
-
Pulp and Paper Plants: Ensures accurate motor control for machinery like paper rollers and pumps.
-
Chemical & Oil Industries: Critical for real-time current monitoring in hazardous environments.
-
Renewable Energy Systems: Monitors and controls generator or inverter outputs.
-
OEM Machinery: Integrated into proprietary systems for automation and protection feedback.
Product Advantages
-
High Accuracy: Ensures precise current monitoring essential for safe motor operations.
-
Compact Design: Slim module fits easily within ABB drive cabinets, aiding space optimization.
-
Durability: Robust design withstands harsh industrial conditions such as vibrations and temperature fluctuations.
-
Plug-and-Play Compatibility: Easy to integrate with ABB ACS800 and ACS880 drives without additional wiring complexity.
-
Diagnostic Capabilities: Provides real-time current data which is essential for fault diagnosis and preventive maintenance.
-
Extended Lifecycle 支持: Backed by ABB’s long-term support policy for industrial automation parts.
10 常见问题 (FAQs)
Q1: What is the main function / the ABB ZCUR-791 module?
A1: It measures the current in motor control systems and feeds this data back to the drive for monitoring and control.
Q2: Is the ZCUR-791 compatible with ACS880 drives?
A2: Yes, it is fully compatible with ACS800 and ACS880 drive series.
Q3: Can this module be used in outdoor installations?
A3: Not directly. It must be housed within a protected enclosure or panel, as its rating is IP20.
Q4: How is the ZCUR-791 mounted?
A4: It is a plug-in module and mounts directly into the drive’s internal slot.
Q5: What voltage does it operate at?
A5: It operates at 24 VDC, typically supplied from the drive’s control board.
Q6: Does it support redundant configuration?
A6: The module itself does not support redundancy, but it functions reliably within redundant system architectures.
Q7: What maintenance is required for this module?
A7: Routine inspection for dust and loose connections. No active maintenance is required.
Q8: Is firmware update required for ZCUR-791?
A8: No, the module functions independently / firmware updates. It has fixed hardware-based functionality.
Q9: What is the typical response time / the current sensing?
A9: It /fers high-speed feedback, typically in the range / microseconds to milliseconds depending on system configuration.
Q10: Where can I purchase or replace the ABB ZCUR-791?
A10: It can be sourced through ABB distributors, authorized dealers, or ABB’s /ficial spare parts platform.
6 Related or Same-Series 型号s
-
ABB ZINT-791 – Internal interface module for ACS drives
-
ABB ZMON-792 – Monitoring module for ABB drive systems
-
ABB ZBAP-701 – Brake control module
-
ABB ZCON-701 – Communication interface module
-
ABB ZSPC-701 – Speed control signal processor
-
ABB ZDIO-701 – Digital I/O extension module
6 Popular ABB 型号s (Same 品牌) with Specifications
| 型号 | Function | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ZINT-791 | Internal Interface Module | 24 VDC | 50 × 150 × 110 | 300 g |
| ZMON-792 | Monitoring Module | 24 VDC | 55 × 160 × 120 | 330 g |
| ZBAP-701 | Brake Control Module | 24 VDC | 60 × 140 × 115 | 310 g |
| ZSPC-701 | Speed Processor Module | 24 VDC | 50 × 150 × 110 | 320 g |
| ZDIO-701 | Digital I/O Module | 24 VDC | 55 × 145 × 115 | 305 g |
| ZCON-701 | Communication Interface | 24 VDC | 50 × 150 × 110 | 295 g |
