Product Overview

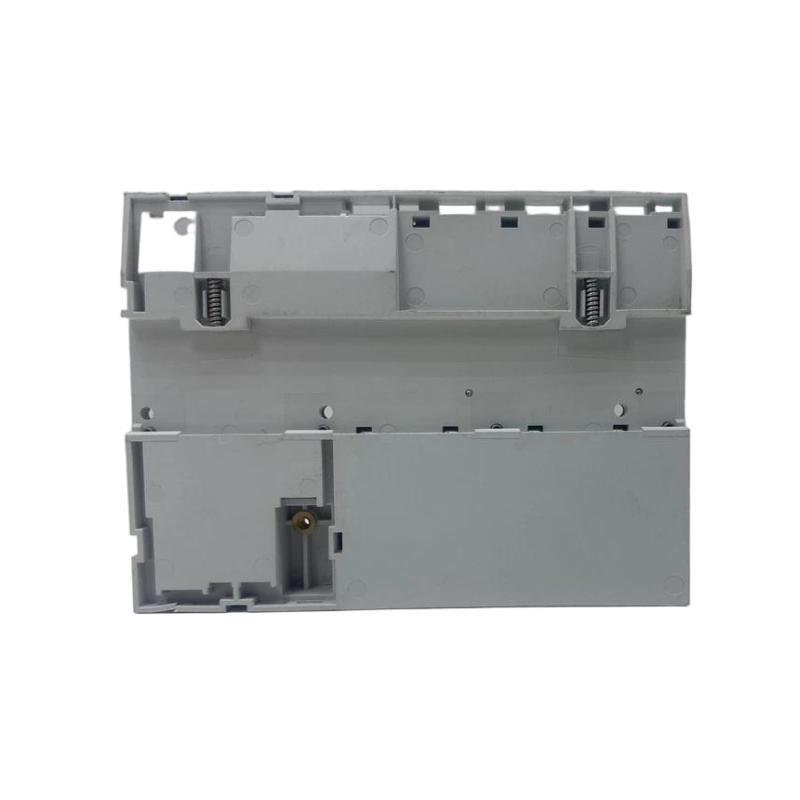

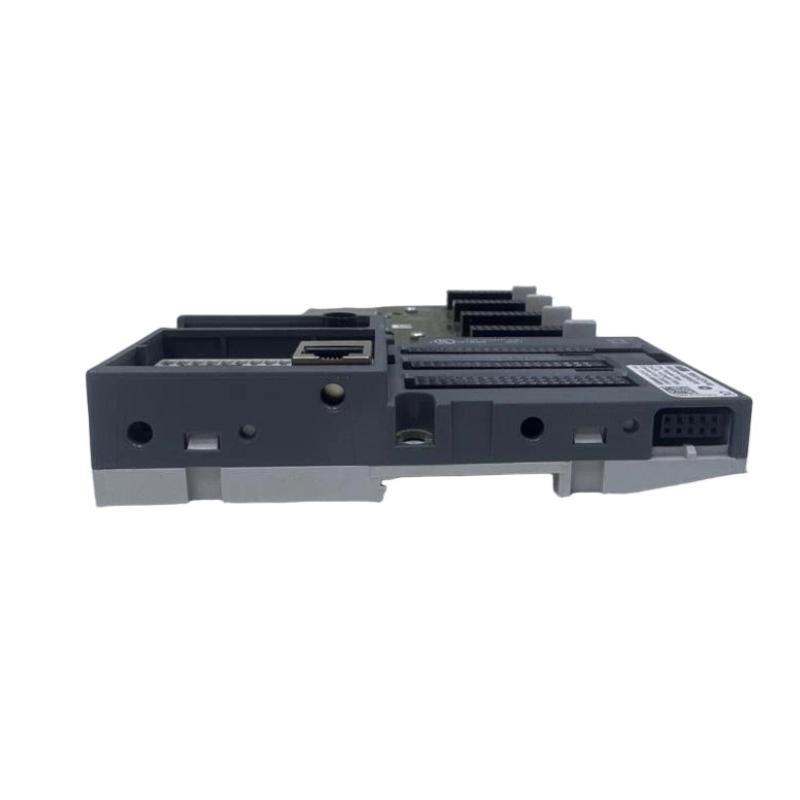

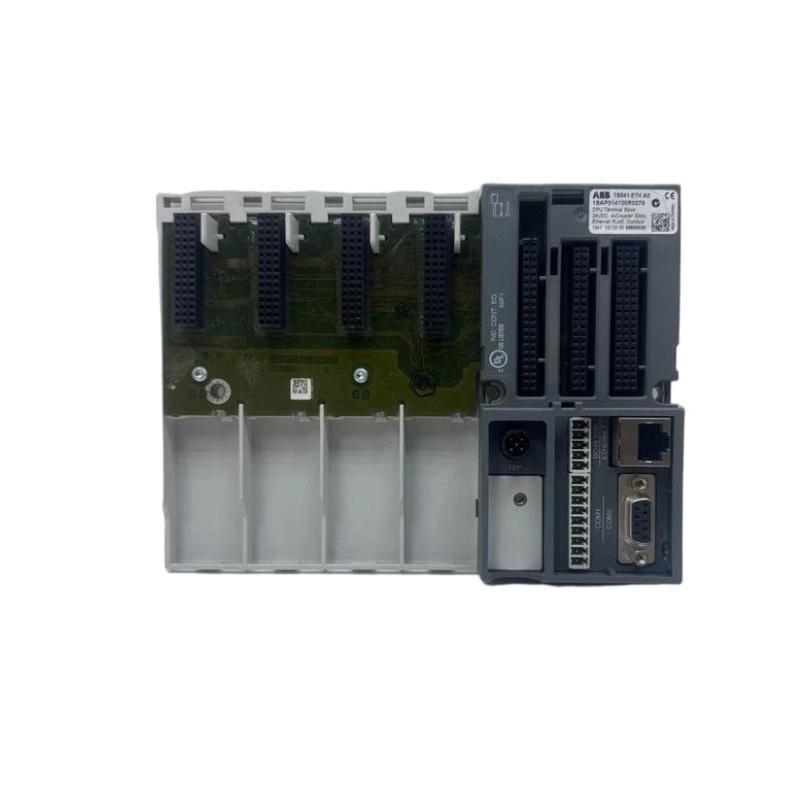

The ABB TB541-ETH (1SAP114100R0270) is a terminal base specifically designed for use with AC500 and AC500-eCo automation platforms. This model is engineered to serve as both a mechanical mounting base and electrical interface, supporting Ethernet-enabled communication modules and ensuring robust integration with distributed I/O systems.
It forms the backbone / modular system design, allowing hot-swappable module connectivity, clean cable routing, and consistent field wiring. The TB541-ETH provides a standardized, DIN rail-compatible form factor, helping reduce installation complexity and panel layout inconsistencies.
Key Features
-
支持s Ethernet-based communication modules
-
DIN rail mounting for rapid installation
-
Enables efficient power and signal distribution
-
Designed for AC500-eCo and AC500-XC series
-
Suitable for compact and modular I/O systems
-
Durable industrial-grade housing material
-
Plug-and-play functionality for fast module replacement
-
Improves wiring consistency and reduces setup time
-
Works in harsh industrial environments
-
Compatible with various digital/analog I/O modules
Technical Specifications
| Specification | Details |
|---|---|
| 型号 | TB541-ETH |
| 零件号 | 1SAP114100R0270 |
| Product Type | Terminal Base / Base Plate |
| Compatible Systems | AC500, AC500-eCo, AC500-XC |
| Communication 支持 | Ethernet (via mounted module) |
| Mounting Type | 35 mm DIN rail |
| Connector Type | Field wiring via spring or screw terminals (module dependent) |
| Power Distribution | Internal bus for 24 V DC I/O power |
| Color | Grey/Black |
| Protection Rating | IP20 (for cabinet environments) |
| Operating Temperature | -25°C to +60°C (-13°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Housing Material | High-durability industrial plastic |
| Dimensions | 28 x 135 x 179.5mm |
| 重量 | 0.24 kg |
| Standards Compliance | CE, RoHS, UL |
Industry Applications
-
Industrial machinery and automation
-
Packaging lines and conveyors
-
HVAC and building management systems
-
Water treatment plants and pumping stations
-
Food and beverage processing automation
-
Textile and paper machinery
-
Material handling systems
-
Renewable energy systems
Product Advantages
-
Mechanical and electrical integration in one compact base 件
-
Simplifies system expansion and modular upgrades
-
DIN-rail mounting minimizes installation time and panel space
-
Robust signal transmission via internal backplane bus
-
Standardized dimensions ease panel layout and design planning
-
Field wiring remains fixed during module replacement
-
IP20-rated safety for cabinet-based applications
-
Compatible with wide range / I/O and communication modules
-
No special tools required for mounting or connection
-
Engineered by ABB for seamless system performance
常见问题 (FAQ)
-
What modules can be installed on the TB541-ETH?
It supports ABB AC500 series modules including CPUs, Ethernet modules, and I/O 件s. -
Does the base plate include Ethernet ports?
No, Ethernet functionality is provided by the module installed on the base. -
Can the terminal base be used in outdoor environments?
Not directly—it’s IP20 rated and must be installed inside a control panel. -
How is it mounted?
It mounts on a standard 35 mm DIN rail. -
What voltage does it support for I/O power?
Typically 24 V DC, depending on the installed module. -
Is the part number 1SAP114100R0270 a variant / TB541-ETH?
Yes, it is a specific ordering code for the TB541-ETH terminal base. -
What is the physical size / the 件?
45 mm (W) x 100 mm (H) x 75 mm (D) -
Is the base hot-swappable?
Modules can be hot-swapped if the system design supports it; base wiring remains fixed. -
Can this base be reused if modules are replaced?
Yes, the terminal base can be reused when swapping modules. -
Does ABB /fer configuration s/tware for modules on TB541-ETH?
Yes, ABB’s Automation Builder s/tware is used for configuration.
Related ABB Terminal Bases and I/O Modules
| 型号 Number | 描述 |
|---|---|
| TB511 | Terminal base for AC500 modules |
| TB521-ETH | Ethernet-enabled base for I/O modules |
| TB544 | Base for extended I/O configurations |
| TU810V1 | Terminal 件 for S800 I/O systems |
| DO880-2 | Digital Output Module for AC500 |
| AI810-2 | Analog Input Module for AC500 systems |
Popular ABB Automation Components
| 型号 Number | 描述 |
|---|---|
| PM556-TP-ETH | Compact AC500-eCo CPU with Ethernet |
| CI541-DP | PROFIBUS DP Communication Interface |
| AO810-2 | Analog Output Module |
| PM860K01 | High-performance CPU for AC800M |
| CI867K01 | Industrial Interface Module |
| TB560 | Terminal base for relay output modules |
