产品介绍

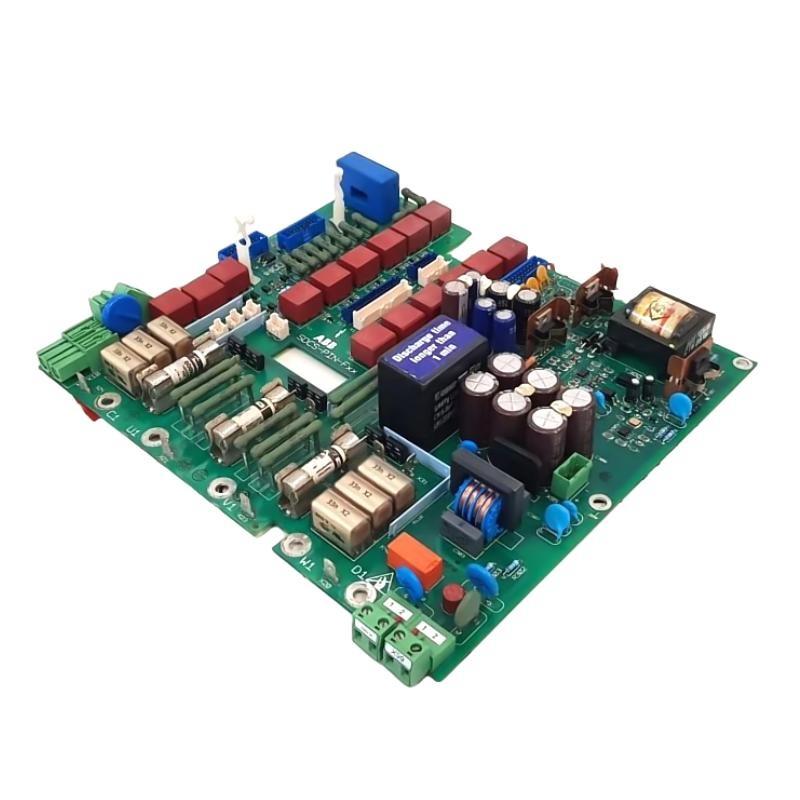

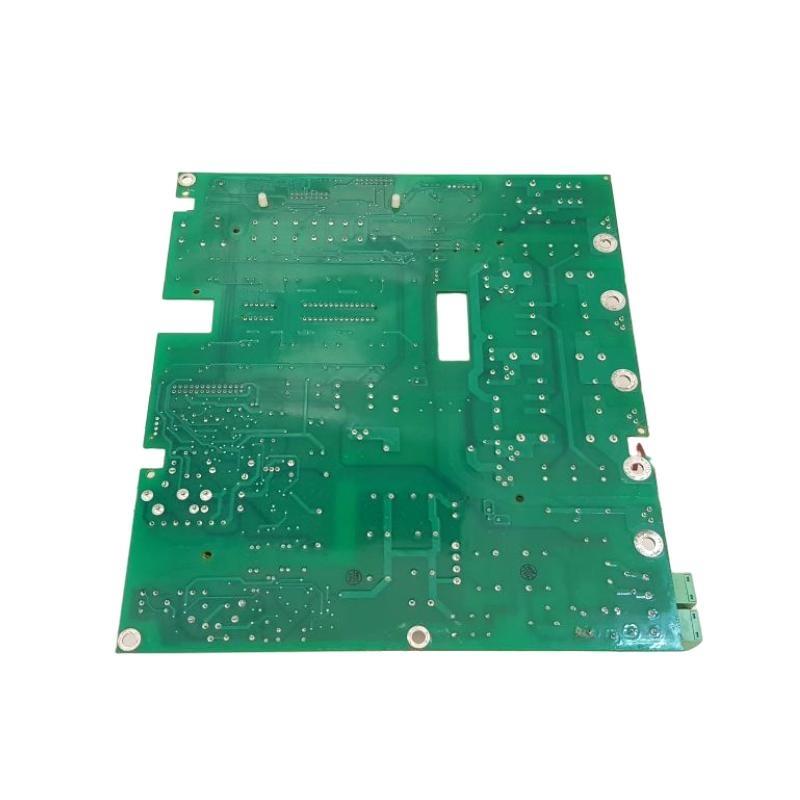

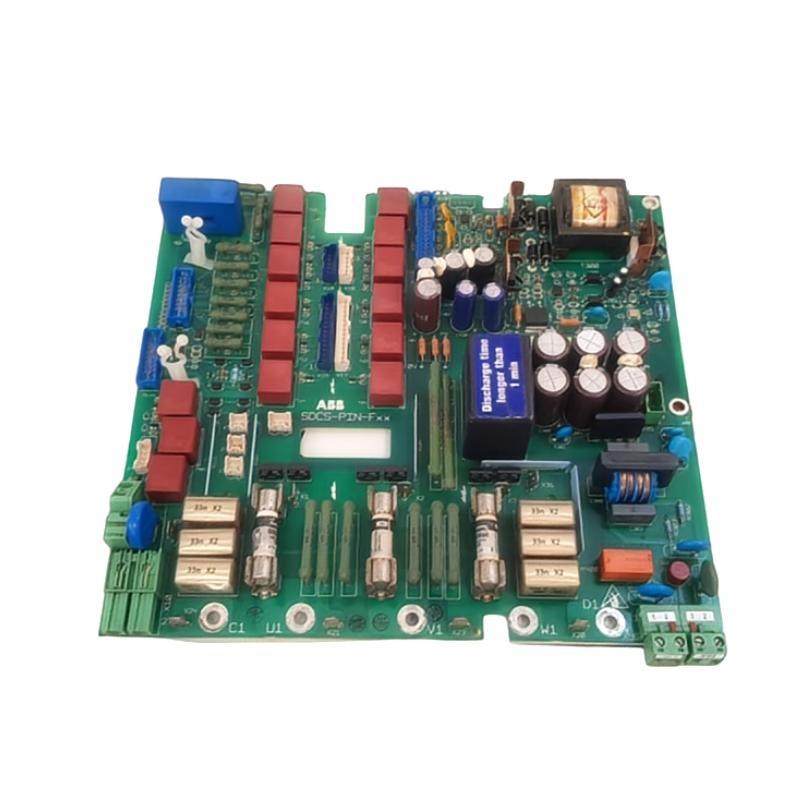

The ABB SDCS-PIN-F01 3ADT316300R1501 Power Interface Board is a critical component designed for use within ABB’s distributed control and safety systems. It serves as a power interface, ensuring seamless connectivity and power distribution to various modules within the system architecture. Engineered for robust performance, the board provides reliable electrical interfacing and supports stable operation in demanding industrial environments.
This power interface board integrates with ABB’s advanced safety instrumented systems (SIS) and distributed control systems (DCS), /fering high-quality power handling, signal isolation, and protection features that enhance overall system reliability and safety.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | SDCS-PIN-F01 (3ADT316300R1501) |
| Function | Power Interface Board |
| Operating Voltage | Typically 24 V DC (depending on system) |
| Input Current | Refer to system power requirements |
| Output Connections | Multiple power output terminals |
| Mounting Type | Rack-mounted |
| Dimensions (L x W x H) | 265 x 282 x 40 mm |
| 重量 | 0.48 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% non-condensing |
| Compliance Standards | IEC 61508, CE, UL certified (where applicable) |
Applications
The ABB SDCS-PIN-F01 Power Interface Board is widely used in:
-
Industrial Automation: Ensuring reliable power distribution within control cabinets in manufacturing plants.
-
Process Control Systems: Critical in chemical, oil & gas, and power generation sectors for safety and control systems.
-
Safety Instrumented Systems (SIS): Integral in safety loop power supply to maintain fault-tolerant system operation.
-
Distributed Control Systems (DCS): Power interface for modules in DCS platforms, enhancing system stability.
-
Infrastructure Projects: Railways, water treatment plants, and other infrastructure facilities requiring high system reliability.
Advantages
-
Robust Power Handling: Designed to provide stable and clean power to connected modules, minimizing downtime caused by power issues.
-
Compact Design: Space-saving form factor allows easy integration into existing racks and control panels.
-
High Reliability: Manufactured by ABB, a leader in industrial automation, ensuring rigorous quality standards.
-
Safety Compliance: Meets international standards for safety-critical systems, supporting safe operation in hazardous environments.
-
Easy Installation: 支持s plug-and-play mounting, reducing setup and maintenance time.
-
Durability: Resistant to industrial environmental factors including temperature extremes and humidity.
-
Signal Isolation: Provides electrical isolation to protect sensitive components from power disturbances.
-
Wide Operating Temperature Range: Suitable for use in varied climatic conditions.
常见问题 (FAQ)
-
What is the primary function / the SDCS-PIN-F01 board?
It serves as a power interface to distribute and regulate power to various modules within ABB’s safety and control systems. -
Can this board be used in hazardous environments?
Yes, it complies with safety standards applicable for hazardous areas when installed as part / a certified system. -
What are the typical operating voltage and current?
The board generally operates at 24 V DC; current specifications depend on the overall system design. -
Is the board compatible with all ABB control systems?
It is designed for specific ABB DCS and SIS platforms; always verify compatibility with system documentation. -
How do I install the SDCS-PIN-F01?
The board is rack-mounted with plug-in connectors, enabling straightforward installation without complex wiring. -
What are the environmental operating limits?
It operates safely from -20°C to +60°C with up to 95% non-condensing humidity. -
Does the board provide any diagnostic feedback?
Some variants may include status LEDs or signal lines to indicate operational status, depending on system integration. -
Can this board be replaced or upgraded easily?
Yes, it is designed for easy replacement within the rack system, minimizing downtime. -
What certifications does this board hold?
It complies with IEC 61508 and other international standards relevant to safety instrumented systems. -
Does the power interface board provide any operational status indicators?
Depending on the system, there may be LEDs or signal lines to help monitor its status.
Recommended Related 型号s (Same Series or Related)
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| SDCS-PIN-F02 | Advanced Power Interface Board | Higher power capacity |
| SDCS-CON-01 | Communication Interface Module | Enhanced signal communication |
| SDCS-PWR-01 | Power Supply Module | Integrated power regulation |
| SDCS-IO-01 | Input/Output Interface Board | Additional I/O ports |
| SDCS-SAF-01 | Safety Module | Certified for SIL3 safety |
| SDCS-EXP-01 | Expansion Interface Board | For system scalability |
Popular ABB 型号s (Same 品牌)
| 型号 Number | 描述 | Application |
|---|---|---|
| ACS880-01 | Industrial Variable Frequency Drive | Motor control and automation |
| CP600 | Control Panel Operator Interface | Human-machine interface |
| 800xA | Distributed Control System (DCS) | Process automation |
| RTU560 | Remote Terminal 单位 | Remote monitoring and control |
| Ekip Drive | Low Voltage Motor Starter | Motor protection and control |
| Freelance SCADA | Supervisory Control and Data Acquisition System | Plant-wide monitoring and control |
