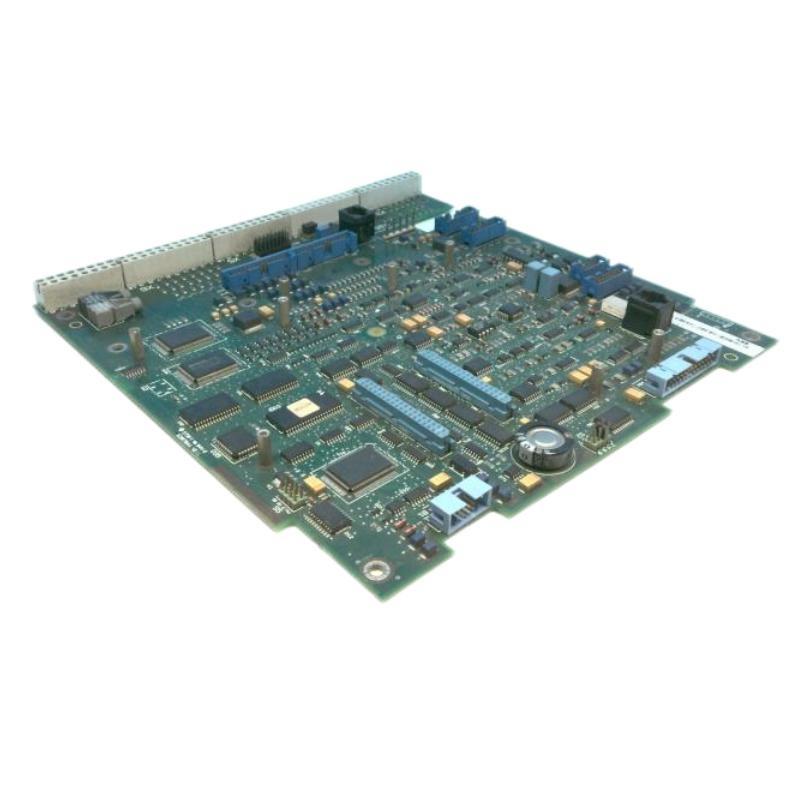

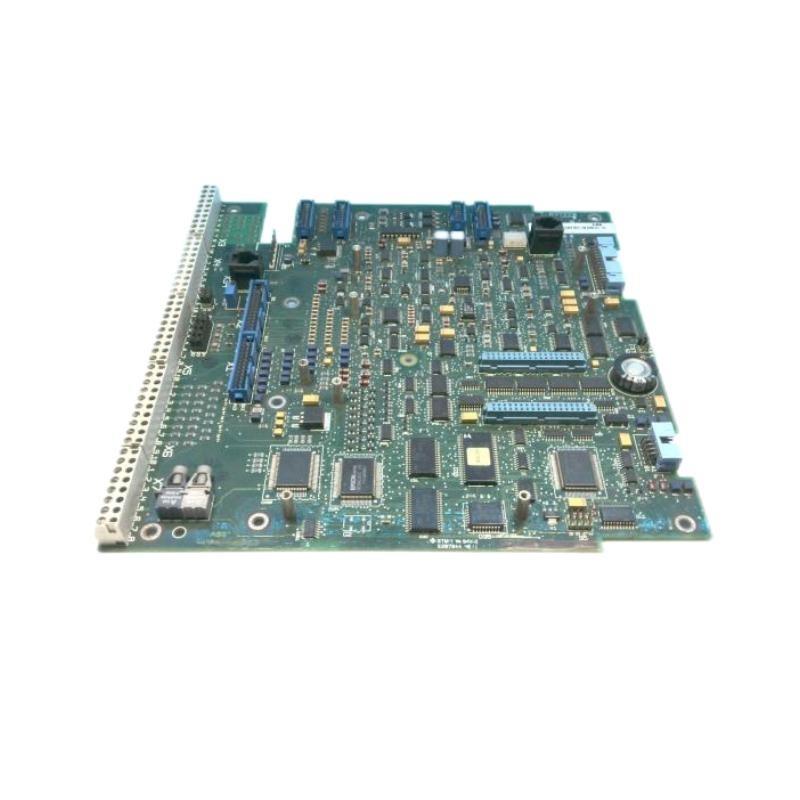

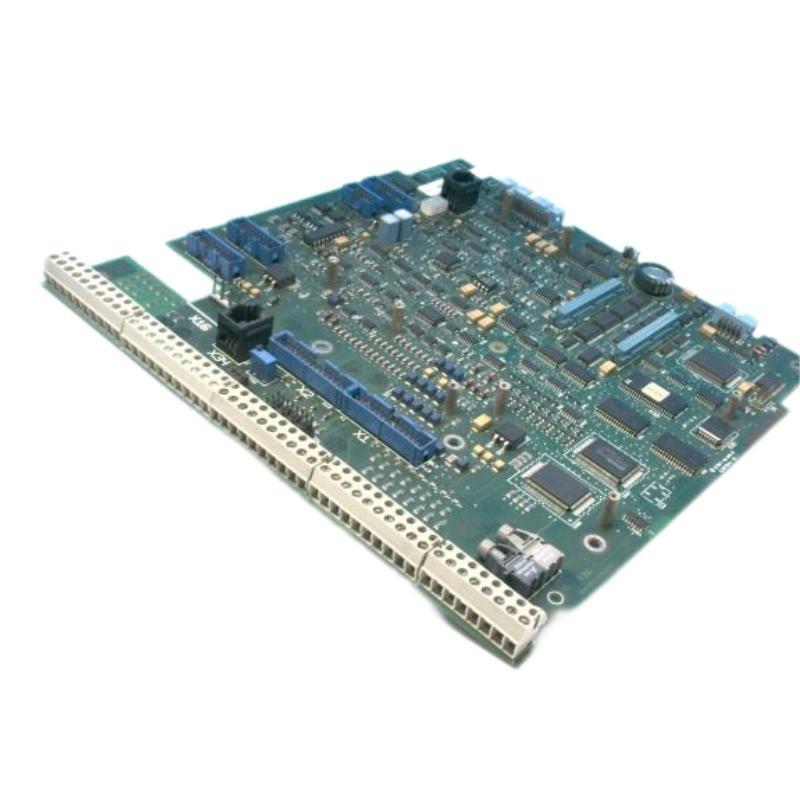

The ABB SDCS-CON-2B (3ADT309600R0012) is a control board used primarily in ABB’s DC drive systems, particularly for the DCS500 and DCS600 series. This module plays a critical role in controlling the power electronics and interfacing with other drive control components. It serves as a central processing and communication 件, ensuring smooth and precise performance / the drive system. Designed with high reliability, industrial-grade components, and robust construction, the SDCS-CON-2B /fers dependable operation even under demanding environmental and load conditions.
It is commonly used in applications where variable speed control / DC motors is essential, such as metal processing, paper mills, cranes, and other heavy-duty industrial systems.
Product Features and Advantages
-
High Compatibility: Specifically engineered for ABB’s DCS500/DCS600 series, ensuring seamless integration.
-
Robust Design: Built with industrial-grade materials for enhanced durability and operational life.
-
Efficient Communication: Facilitates effective control and data exchange between subsystems.
-
Compact Form Factor: 保存s space in control cabinets, making installation easier in tight environments.
-
Easy Replacement: Modular design allows fast maintenance and replacement with minimal system downtime.
-
Long Product Life Cycle: Proven in the field with high reliability, reducing total cost / ownership.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 Number | SDCS-CON-2B |
| ABB 零件号 | 3ADT309600R0012 |
| Product Type | Control Board for DC Drives |
| Compatible Drives | DCS500, DCS600 |
| Supply Voltage | 24 VDC (typical, from control circuit) |
| Communication Ports | Fiber optic, serial |
| Dimensions | 300 x 156 x 30mm |
| 重量 | 0.113kg |
| Mounting Method | Screw-mounted into the drive 件 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Tolerance | 5%–95%, non-condensing |
| Certifications | CE, RoHS compliant |
Applications
-
Steel and Rolling Mills: For variable DC motor control in rolling and forming lines.
-
Paper and Pulp Mills: Used in unwinders, rewinders, and pressing operations.
-
Marine and Offshore Equipment: Ensures reliable DC drive control under harsh conditions.
-
Mining and Material Handling: Used in hoists, conveyors, and crushers requiring controlled torque.
-
Cranes and Elevators: For precise speed regulation and motor protection.
-
Test Stands and Industrial Simulators: Where custom drive pr/iles are needed.
Installation Instructions
-
Power Down System: Ensure the main power to the drive is fully disconnected.
-
Access the Drive Cabinet: Open the access panel / the DCS500/DCS600 series drive.
-
Locate Control Slot: Find the dedicated slot for the SDCS-CON-2B.
-
Secure the Board: Align the connectors and mount the board using screws.
-
Check Connections: Ensure all communication and power terminals are connected firmly.
-
Power Up and Configure: Reconnect power and configure the board through the drive interface or commissioning s/tware.
-
Testing: Run system diagnostics to verify correct operation and communication.
10 常见问题 (FAQs)
Q1: What does the SDCS-CON-2B board control in a DCS drive system?
A1: It manages internal communication, control logic, and interfacing with peripheral I/O for the DCS500/DCS600 series drives.
Q2: Can this board be used in non-ABB drives?
A2: No, it is specifically designed for ABB’s DCS500 and DCS600 models and is not compatible with third-party systems.
Q3: How do I know if the SDCS-CON-2B board is faulty?
A3: Fault indications can include drive communication errors, drive not starting, or alarms in the diagnostic log.
Q4: Is the board hot-swappable?
A4: 序号 Power must be turned /f before installing or replacing this board.
Q5: What tools are needed for installation?
A5: Standard screwdrivers and an anti-static wrist strap are sufficient for safe handling and mounting.
Q6: How long is the typical service life / this board?
A6: Under normal conditions, it can function reliably for over 5+ years.
Q7: Can firmware on this board be updated?
A7: Yes, but it must be performed through authorized ABB service tools and personnel.
Q8: What environmental conditions must be met?
A8: Install in clean, dry, temperature-controlled enclosures within the 0°C to +55°C range.
Q9: Is there any LED status indicator on the board?
A9: Yes, status LEDs indicate communication activity and fault status.
Q10: Is the module certified for industrial compliance?
A10: Yes, it meets CE, UL, CSA, and RoHS standards.
Related 型号s (Same Series or Functionally Similar)
| 型号 | 描述 | Application |
|---|---|---|
| SDCS-CON-2C | Enhanced control board | DCS500 upgrade |
| SDCS-CON-3 | Higher performance variant | DCS600 advanced |
| SDCS-PIN-41 | Pulse encoder input module | Motor speed feedback |
| SDCS-PIN-51 | Additional digital I/O board | Signal expansion |
| SDCS-PIN-01 | General-purpose interface board | System integration |
| SDCS-IOB-21 | Input/output board | Custom I/O needs |
Popular ABB 型号s (Different 产品 but Same 品牌)
| 型号 | 描述 | Size (mm) | 重量 (kg) | Voltage |
|---|---|---|---|---|
| ABB PM866K01 | AC800M controller module | 240 x 110 x 40 | 0.6 | 24 VDC |
| ABB CI854AK01 | Pr/ibus interface module | 140 x 100 x 25 | 0.3 | 24 VDC |
| ABB TU830V1 | Compact termination 件 | 295 x 100 x 45 | 0.5 | – |
| ABB AI810 | Analog input module (8 ch) | 119 x 140 x 65 | 0.3 | 24 VDC |
| ABB AO810 | Analog output module (8 ch) | 119 x 140 x 65 | 0.3 | 24 VDC |
| ABB PM864AK01 | CPU controller with Ethernet | 240 x 110 x 40 | 0.6 | 24 VDC |
| ABB DO810 | Digital output module (16 ch) | 119 x 140 x 65 | 0.3 | 24 VDC |
| ABB DP820 | Pulse counter input module | 150 x 130 x 40 | 0.4 | 24 VDC |
