Product 描述

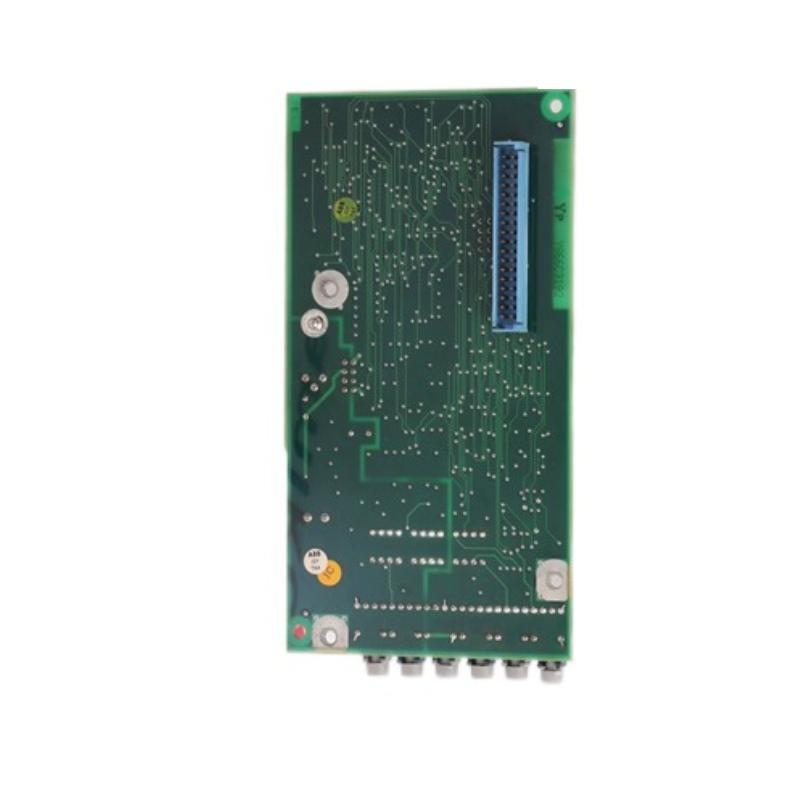

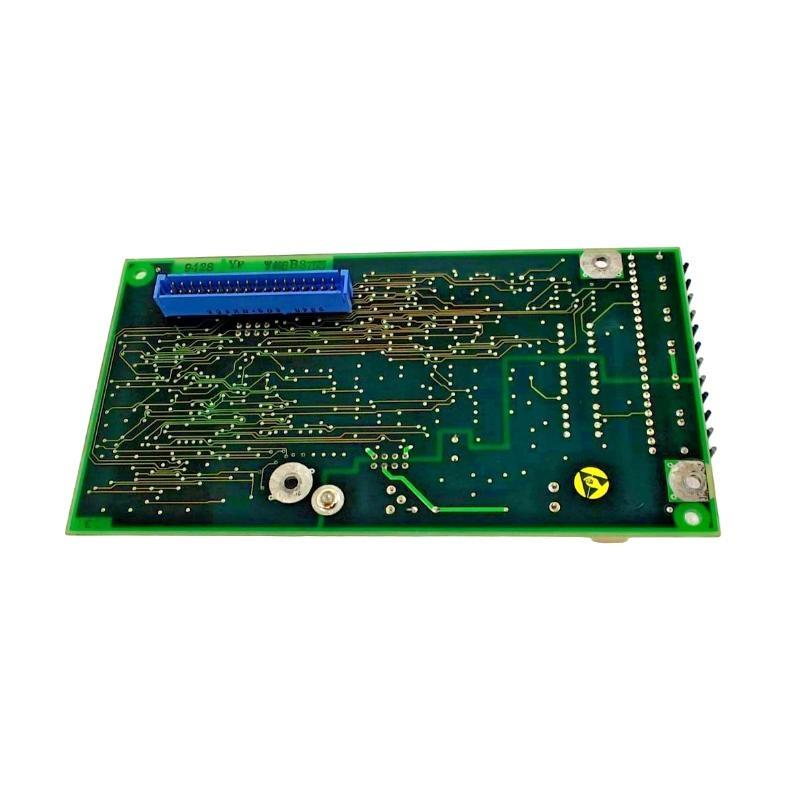

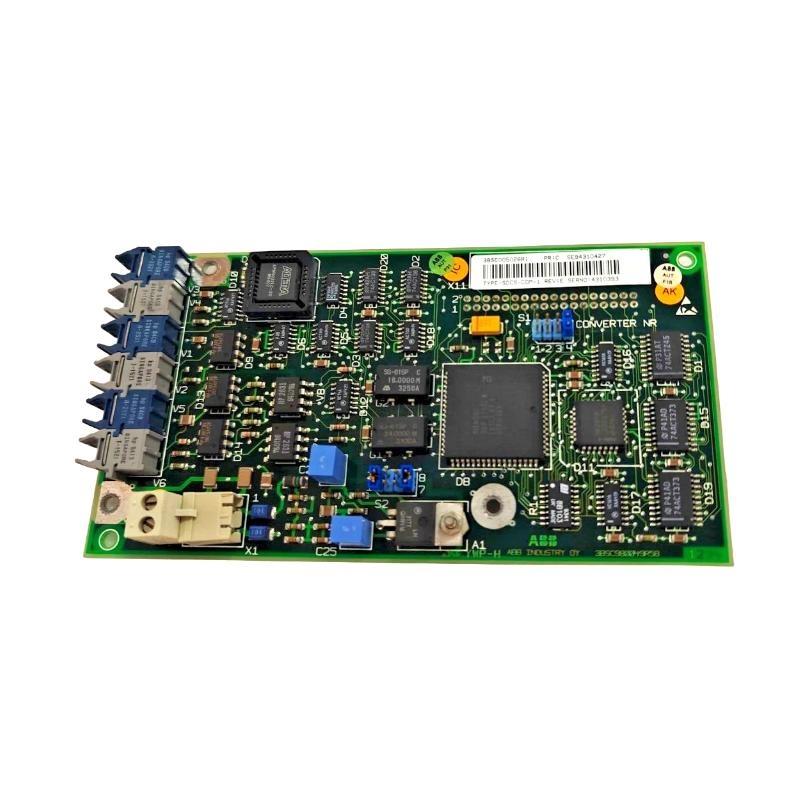

The ABB SDCS-COM-1 3BSE005028R1 is a communication board designed for ABB DCS thyristor power converters used in DC drive systems. It enables reliable data exchange between the converter control board and external devices such as PCs, PLCs, or control panels via serial or optical communication interfaces.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-COM-1 Communication Board |
| ABB 零件号 | 3BSE005028R1 |
| 支持ed Systems | DCS500, DCS500B, DCP500, DCP500B |
| Dimensions (L×W×H) | 153.6 × 83.5 × 20 mm |
| 重量 | 0.24 kg |
| Mounting | Plug-in module |
| Interfaces | Serial interface, Optical link |
| Operating Voltage | Supplied from the converter |
| Application | Communication interface module |
Applications
-
Used in ABB DCS/DC drive systems for industrial automation
-
Enables communication with PLCs, HMIs, or monitoring tools
-
Suitable for motor control and process control in manufacturing plants
Advantages
-
Compact and lightweight for easy integration
-
Reliable and proven communication solution for ABB drives
-
Compatible with a wide range / ABB DC drive systems
-
支持s both serial and optical links
-
Improves system diagnostics and monitoring capability
FAQ
Q1: What is the function / the SDCS-COM-1 board?
A1: It serves as a communication interface between ABB DC drives and external devices.
Q2: Which ABB systems support the SDCS-COM-1?
A2: It is compatible with DCS500, DCS500B, DCP500, and DCP500B systems.
Q3: Does it support optical communication?
A3: Yes, it supports optical fiber links as well as serial communication.
Q4: How is the SDCS-COM-1 powered?
A4: It is powered directly by the converter it is installed in.
Q5: What is the physical size / the board?
A5: The board measures 153.6 × 83.5 × 20 mm.
Q6: Can it be used with PLCs?
A6: Yes, it allows integration with programmable logic controllers.
Q7: Is the SDCS-COM-1 hot-swappable?
A7: No, the drive must be powered down before replacing the board.
Q8: What is the weight / the board?
A8: The weight is approximately 0.24 kg.
Q9: Does it improve system monitoring?
A9: Yes, it enables external monitoring and diagnostics / the drive.
Q10: Can it replace the SDCS-COM-5 board?
A10: It can be used where SDCS-COM-5 is not specifically required; however, SDCS-COM-5 is recommended for newer systems.
Recommended Related 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| SDCS-COM-5 | Enhanced communication board | 153.6×83.5×20 | 0.25 kg |
| SDCS-CON-1 | Control board | 160×100×20 | 0.30 kg |
| SDCS-CON-2 | Updated control board | 160×100×20 | 0.30 kg |
| SDCS-POW-1 | Power supply board | 180×120×30 | 0.35 kg |
| SDCS-IOB-1 | Digital/analog I/O board | 170×100×20 | 0.28 kg |
| SDCS-AMC-DC | Control and communication board combo | 160×100×25 | 0.32 kg |
Popular ABB 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| PM861K01 | System 800xA Processor 单位 Kit | 214×130×36 | 0.45 kg |
| PM866 | System 800xA Processor 单位 | 214×130×36 | 0.45 kg |
| PM810V2 | S800 Processor Module | 140×120×40 | 0.40 kg |
| CI854A | Fieldbus Communication Interface | 115×100×20 | 0.20 kg |
| AC800M PM864A | Controller Module | 186×124×50 | 0.50 kg |
| CI860 | PROFIBUS DP Interface Module | 115×100×20 | 0.20 kg |
