产品介绍

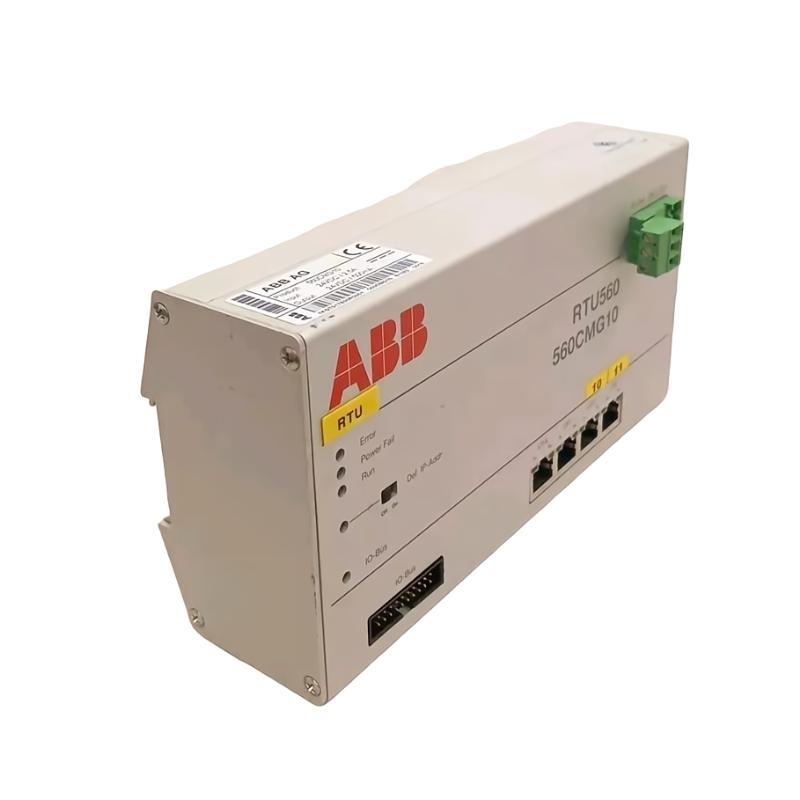

The ABB RTU560 560CMG10 1KGT017600R001 is a core component / ABB’s RTU560 series, which represents one / the most advanced and scalable remote terminal 件s for modern power system automation. This particular model is a CMG10 communication gateway module, designed to manage communication between substation automation devices and higher-level SCADA or control centers.
Operating within the RTU560 platform, the 560CMG10 ensures seamless protocol conversion, data concentration, and secure message forwarding. It serves as the central communication brain / a distributed or centralized RTU560 configuration, supporting real-time performance, fault-tolerant redundancy, and secure data exchange in demanding environments such as substations, industrial plants, and smart grid infrastructures.
产品规格
| Parameter | Value |
|---|---|
| 型号 | RTU560 560CMG10 1KGT017600R001 |
| Product Type | Communication Gateway Module (CMG10) |
| Series | RTU560 Remote Terminal 单位 Series |
| Main Function | Communication management & protocol conversion |
| Processor | Industrial-grade CPU with real-time OS |
| 支持ed Protocols | IEC 60870-5-101/103/104, DNP3, Modbus, IEC 61850, OPC |
| Memory | Flash memory and RAM, system-dependent |
| Serial Ports | 6 × RS-232 / RS-485 (individually configurable) |
| Ethernet Ports | 2 × 10/100 Mbps (RJ45), redundant support |
| USB Interface | 1 × USB (for firmware and configuration) |
| Redundancy | 支持ed (hot-standby or parallel operation) |
| Time Synchronization | SNTP, IRIG-B, PPS |
| Security Features | Role-based access, secure protocols, firewall |
| LED Indicators | Status, power, communication activity |
| Operating Voltage | 24 V DC / 48 V DC / 110–220 V DC (depends on PSU) |
| Power Consumption | Approx. 4–6 W (depending on load) |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Mounting Method | DIN rail or rack-mounted within RTU chassis |
| Dimensions (H × W × D) | 150 × 60 × 160 mm |
| 重量 | 0.95 kg |
| Standards Compliance | IEC 60255, IEC 61850, CE, RoHS, ISO 27001-ready |
| Configuration Tool | RTUtil560 (ABB proprietary s/tware) |
Product Applications
The RTU560 560CMG10 is purpose-built for communication-centric roles within critical infrastructure. It is used in:
-
High-voltage and medium-voltage substations
-
Distribution automation systems (DAS)
-
Renewable energy integration sites (e.g., solar farms, wind farms)
-
Industrial process automation networks
-
Control center to field device communication
-
Protocol bridging and gateway functionality in legacy systems
-
Smart grid data concentrators
-
Utility monitoring and telemetry systems
Product Advantages
-
Multi-Protocol Communication Engine
支持s concurrent operation / multiple industry-standard protocols, simplifying interfacing between modern and legacy equipment. -
Redundant Network Communication
Dual Ethernet ports and support for hot-standby ensure communication continuity, even under failure conditions. -
Cybersecurity-Ready
Integrated with access control, encrypted protocols (TLS), firewall functions, and audit trails to comply with modern cybersecurity standards. -
Flexible Topology Integration
Easily adaptable to star, ring, or mixed communication network topologies, whether in centralized or distributed architectures. -
Future-Pro/ Architecture
Firmware upgradable and compatible with IEC 61850, making it suitable for long-term deployment in evolving grid environments. -
Industrial Grade Reliability
Designed to operate in harsh environmental conditions, with high resistance to electromagnetic disturbances and wide temperature ranges. -
Simplified Engineering
Commissioning, parameterization, and diagnostics are streamlined via ABB’s RTUtil560 s/tware suite, ensuring quick deployment. -
Power Supply Versatility
Compatible with a wide range / DC voltages, it can adapt to varied substation and industrial supply scenarios.
常见问题
-
Can the RTU560 560CMG10 handle simultaneous protocol conversions (e.g., IEC 104 to Modbus)?
Yes, it supports parallel handling / multiple protocols, acting as a multi-channel gateway. -
Is redundant communication supported between two CMG10 modules?
Yes, CMG10 modules can be configured in hot-standby redundancy mode for failover protection. -
How is configuration managed for the CMG10 module?
Configuration is done through RTUtil560 s/tware, which provides a graphical interface for parameterization. -
Does the module support secure communication protocols?
Yes, CMG10 supports secure protocols including TLS, HTTPS, and SSH for secure remote access and communication. -
Can I update firmware without disconnecting the module from the network?
Yes, firmware updates can be performed via USB or remotely, with minimal service interruption. -
How many serial connections can operate simultaneously?
Up to six serial interfaces (RS-232/RS-485) can operate concurrently, with individual port protocol assignment. -
Does the module support IEC 61850 GOOSE messaging?
While it supports IEC 61850 communication, GOOSE messaging support depends on system-level configuration. -
How is time synchronization achieved in CMG10?
It supports SNTP, IRIG-B, and PPS-based time synchronization methods for system-wide coordination. -
Can the CMG10 be integrated into ring topology Ethernet networks?
Yes, it supports redundant Ethernet networks and can be deployed in ring configurations using RSTP. -
Is it possible to isolate communication channels for cybersecurity purposes?
Yes, channel separation and role-based access ensure secure, segregated communication paths.
Related 型号s from the Same Series
| 型号 | Function | Key Features | Application |
|---|---|---|---|
| 560CVD10 | Digital I/O Module | 16 binary inputs/outputs | Interfacing field signals |
| 560SEL01 | Serial Communication Module | 8× RS-232/RS-485 ports | SCADA/IED interfacing |
| 560PSM02 | Power Supply Module | 24/48/110/220 VDC support | Powers RTU560 racks |
| 560RVD20 | Analog Input Module | 8-channel analog voltage inputs | Voltage measurement from sensors |
| 560TCC10 | Time/Clock Synchronization Module | IRIG-B and PPS interface | Substation time alignment |
| 560SRV02 | CPU/Controller Module | RTU CPU for standalone operation | Core processing / RTU560 system |
Popular ABB 型号s (Same 品牌)
| 型号 | Product Type | Core Features | Primary Use |
|---|---|---|---|
| REF615 | Feeder Protection Relay | Directional OC, SCADA integration | Medium-voltage feeders |
| RET615 | Transformer Protection Relay | REF + differential, IEC 61850 | HV/MV transformers |
| REX640 | Modular Protection & Control | Scalable, multifunction platform | Large substations |
| RTU540 | Compact Remote Terminal 单位 | Space-saving design, modular I/O | Compact substations, industrial plants |
| RTU520 | Entry-Level RTU | Low-power, DIN-mountable, cost-efficient | Decentralized automation |
| RTU211 | Outdoor pole-mount RTU | IP68 rated, SCADA-ready | Distribution automation, pole-tops |
