产品介绍

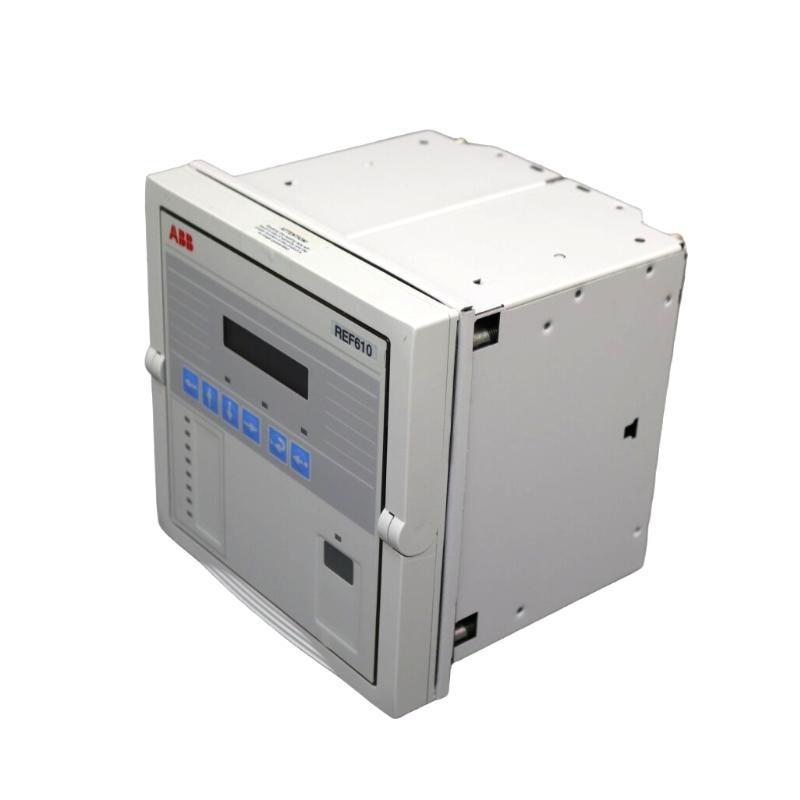

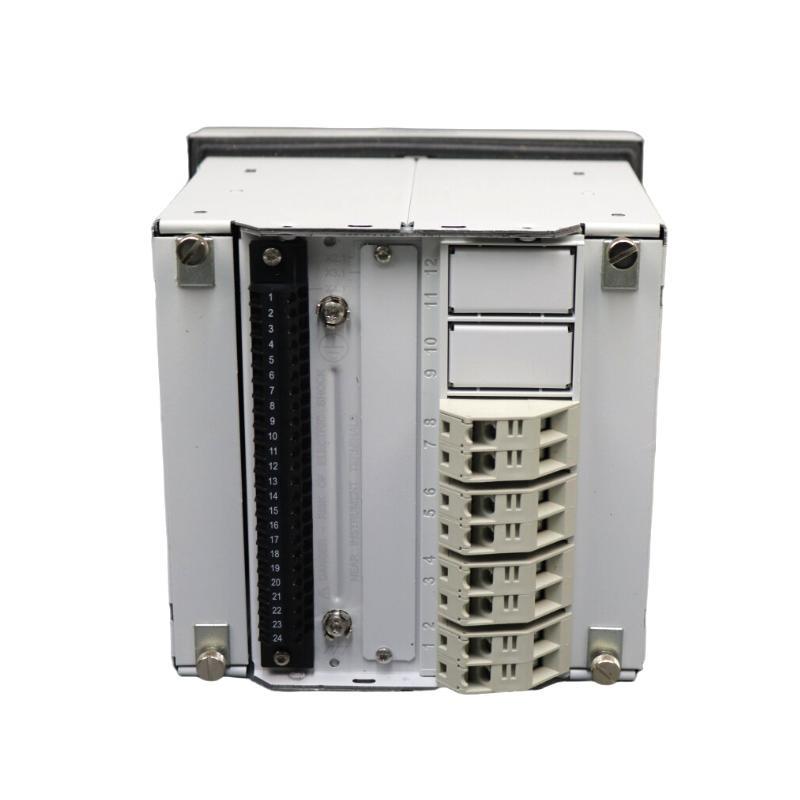

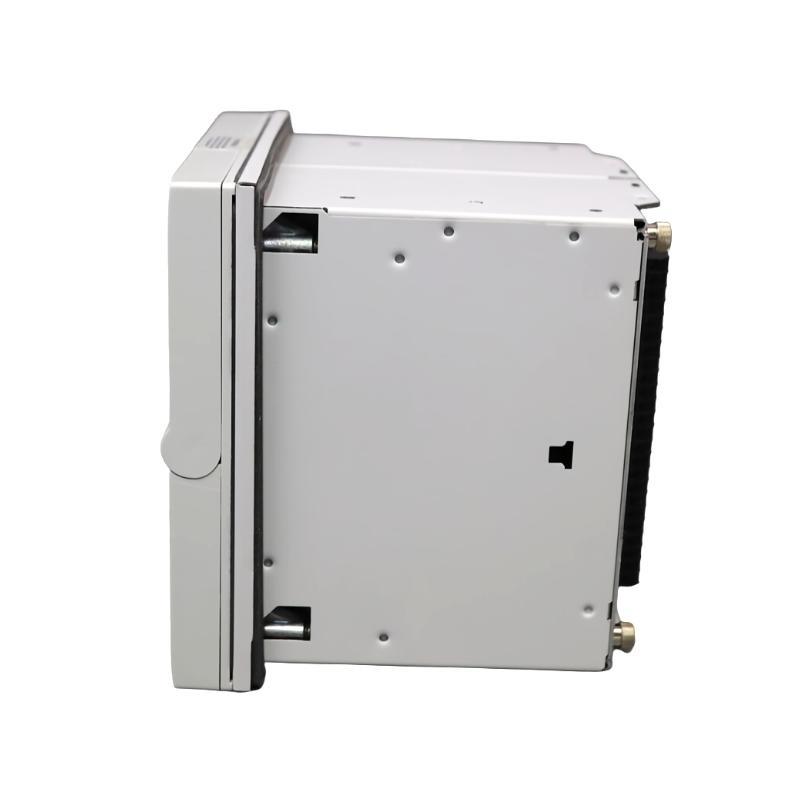

The ABB REF610 Feeder Protection Relay is a reliable and compact device designed to provide comprehensive protection for medium and low-voltage feeder lines. It is part / ABB’s well-known REF series and delivers critical functions such as overcurrent, earth fault, and phase unbalance protection. Engineered for both industrial and utility power distribution networks, the REF610 is compatible with a wide range / protection schemes and supports standard communication protocols for seamless integration into existing automation systems. Its user-friendly design, robust performance, and proven reliability make it an essential component in modern power distribution.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | REF610 |
| Product Type | Feeder Protection Relay |
| Operating Voltage | 24–250 V DC / 48–240 V AC |
| Frequency Range | 50 / 60 Hz |
| Protection Functions | Overcurrent, earth fault, phase unbalance, breaker failure |
| CT Inputs | 1 A / 5 A |
| VT Inputs | Standard voltage transformer inputs |
| Communication Protocols | IEC 60870-5-103, Modbus, DNP3 |
| I/O Configuration | Multiple configurable digital inputs and outputs |
| Dimensions (L×W×H) | 177 x 177 x 149.3 mm |
| 重量 | 3.5 kg |
| Operating Temperature | -25°C to +70°C |
| Mounting | Panel or rack mounting |
| Certifications | CE, UL, IEC 60255 compliant |
Product Applications
-
Feeder Line Protection: Provides essential protection for medium and low-voltage distribution feeders in utilities and industrial networks.
-
Backup Protection: Acts as a secondary protection device for transformers, motors, and busbars.
-
Industrial Power Systems: Suitable for critical power distribution in industrial plants and process facilities.
-
Utility Distribution Networks: Ensures stable operation and reliable fault isolation in public power grids.
-
Renewable Integration: Used in renewable energy systems to protect feeder circuits connected to solar or wind farms.
-
Substation Automation: Integrates with SCADA and digital substation systems for centralized control and monitoring.
Product Advantages
-
Comprehensive Protection: 支持s multiple protection functions including overcurrent, earth fault, and phase unbalance.
-
Compact Design: Space-saving 件 ideal for both retr/itting and new installations.
-
Flexible CT and VT Inputs: 支持s both 1 A and 5 A CTs, enabling easy integration into various systems.
-
Advanced Communication: 支持s multiple protocols, allowing smooth integration with SCADA and automation systems.
-
User-Friendly Interface: Provides easy configuration, real-time monitoring, and event diagnostics.
-
Robust and Reliable: Built to withstand harsh environmental conditions and ensure long-term operational stability.
-
Versatile Application: Suitable for both utility and industrial power networks.
FAQ
-
What primary protection functions does the REF610 provide?
The REF610 /fers overcurrent, earth fault, phase unbalance, and breaker failure protection, ensuring full feeder coverage. -
Can the REF610 handle both 1 A and 5 A current transformer inputs?
Yes, the relay supports both 1 A and 5 A CT inputs, making it adaptable for different protection schemes. -
Does the REF610 support digital communication protocols?
Absolutely. It is compatible with IEC 60870-5-103, Modbus, and DNP3 for seamless integration with automation systems. -
Is the REF610 suitable for backup transformer protection?
Yes, it can be configured as a backup protection device for transformers, motors, or other critical assets. -
How does the REF610 handle event and disturbance recording?
It includes event logging and disturbance recording features to assist with fault analysis and system diagnostics. -
Can the REF610 be used in both industrial and utility applications?
Yes, it is designed for flexible use in industrial facilities as well as utility distribution networks. -
Does the relay include breaker failure protection?
Yes, the REF610 incorporates breaker failure logic to ensure proper isolation / faulty feeders and maintain system stability. -
What is the operating temperature range / the REF610?
The device operates reliably within a wide temperature range / -25°C to +70°C. -
Is the REF610 compatible with modern substation automation systems?
Yes, its communication capabilities and design make it fully compatible with digital substations and SCADA systems. -
What type / mounting options does the REF610 /fer?
The relay can be mounted in both panel and rack configurations, providing flexibility for different installations.
Related 型号s (Same Series)
| 型号 Number | 描述 |
|---|---|
| REF542PLUS | Advanced Feeder Terminal Protection and Control |
| REF541 | Feeder Protection and Control 单位 |
| REF543 | Feeder Protection with Extended I/O Options |
| REF545 | Comprehensive Feeder Terminal with HMI |
| REF615 | Modern Feeder Protection and Control Relay |
| REF620 | Advanced Feeder Protection for Substations |
Popular ABB 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| RET615 | Transformer Protection and Control Relay |
| REM615 | Motor Protection and Control Relay |
| REL670 | Line Differential Protection Relay |
| REB670 | Busbar Protection Relay |
| REX640 | Modular Protection and Control Relay |
| REC615 | Bay Control and Protection 单位 |
