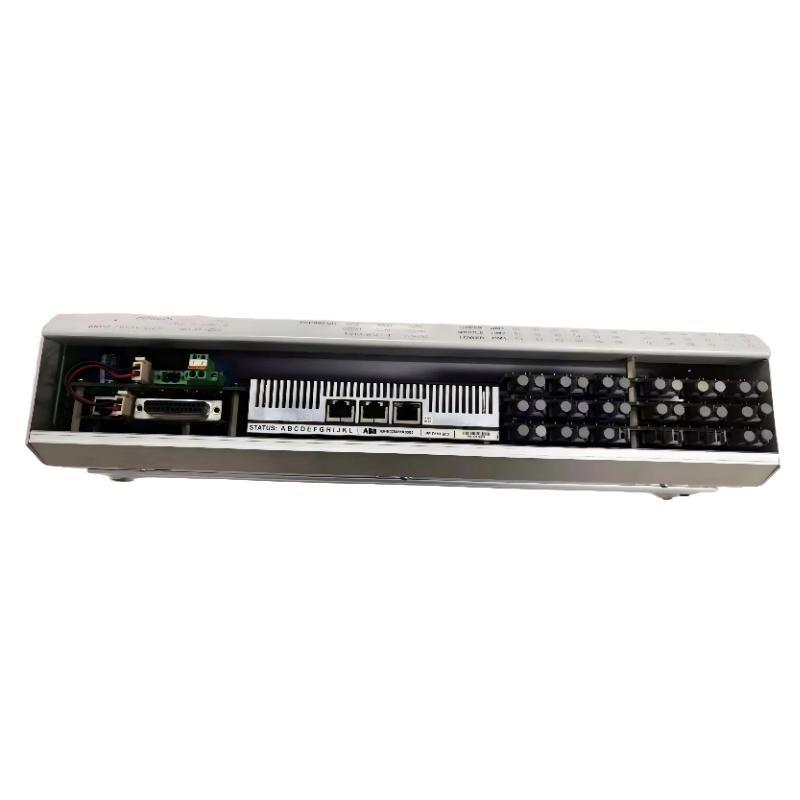

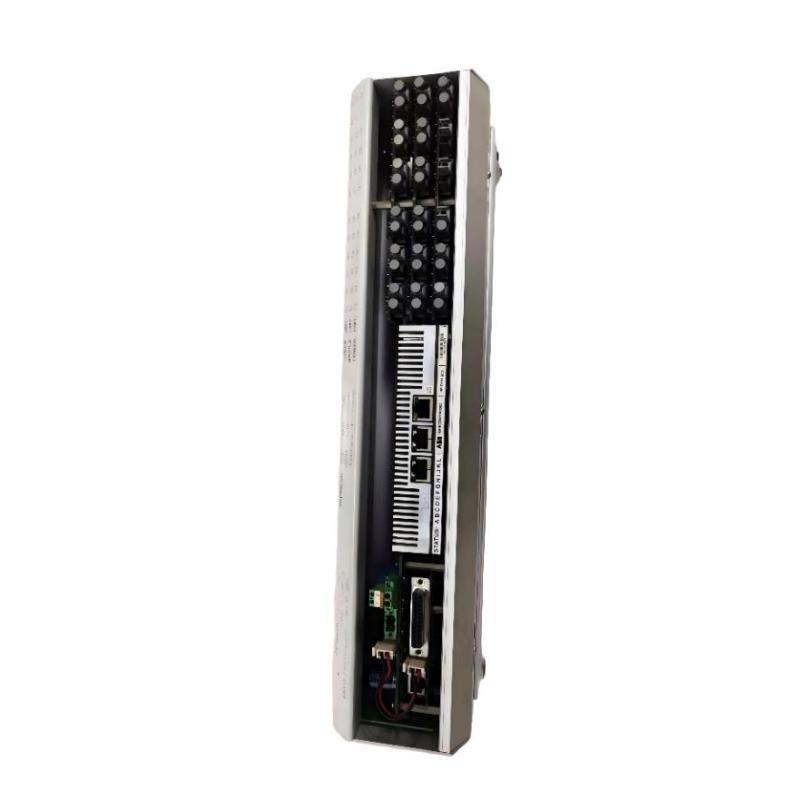

The ABB PP D103 B03 3BHE020455R0003 Controller Module is a high-performance industrial control module developed by ABB for use in advanced automation and drive systems. Designed for precise process regulation, signal communication, and real-time control, this controller module plays a central role in ABB’s process control architecture, particularly within power generation, metal processing, chemical automation, and motor drive control systems.
Built on ABB’s field-proven technology, the PP D103 B03 incorporates a high-speed digital processor, multi-channel I/O support, and redundant communication pathways to ensure continuous operation even in demanding industrial conditions. Its architecture supports modular scalability, enabling seamless integration into existing ABB control systems without extensive reconfiguration.
The module features a conformal-coated PCB, which provides environmental resistance against dust, moisture, and chemical contaminants. It adheres to industrial-grade safety, EMC, and reliability standards, making it suitable for mission-critical applications requiring both precision and long-term stability.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 制造商 | ABB |
| 型号 Number | PP D103 B03 3BHE020455R0003 |
| Product Type | Controller Module |
| System Compatibility | ABB process automation and drive control systems |
| Primary Function | Centralized control, signal processing, and communication management |
| Processor Type | 32-bit industrial microprocessor |
| Clock Frequency | 66 MHz |
| Memory Capacity | 2 MB Flash, 256 KB RAM |
| Input Channels | 16 configurable analog/digital inputs |
| Output Channels | 16 configurable outputs |
| Power Supply Voltage | +5 VDC ±5% |
| Power Consumption | Approx. 10 W |
| Communication Interfaces | RS-485, CAN bus, ABB proprietary fieldbus |
| Bus Speed | Up to 1 Mbps |
| Isolation Voltage | 1500 VDC (I/O to logic isolation) |
| Protection Features | ESD protection, overvoltage, short-circuit, reverse polarity |
| PCB Coating Type | Acrylic conformal coating (MIL-I-46058C compliant) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Shock Resistance | 15 g (11 ms half-sine) |
| Vibration Resistance | 2 g (10–500 Hz) |
| Mounting Type | Rack-mounted plug-in card |
| Indicators | Status LEDs for power, communication, and faults |
| Material | FR4 epoxy glass multilayer PCB |
| Compliance Standards | CE, UL, RoHS, ISO 9001 certified |
| Dimensions | 450 × 100 × 145 mm |
| 重量 | 2.59 kg |
Product Applications
The ABB PP D103 B03 Controller Module is designed to deliver high-speed and stable control performance across a wide range / industrial and automation environments. Its versatility allows it to be used in complex control loops and mission-critical automation systems, where precision, reliability, and communication efficiency are paramount.
Typical application areas include:
-
Power Generation Systems: Provides generator excitation control, synchronization, and voltage regulation.
-
Drive Control Systems: Regulates motor speed, torque, and position in variable-speed drives and converters.
-
Industrial Process Automation: Manages feedback loops and control algorithms in process control environments.
-
Oil & Gas Operations: Used for process sequencing and equipment coordination in harsh field conditions.
-
Steel and Pulp Industries: Offers precise process synchronization and monitoring under heavy load operation.
-
Marine & Offshore Automation: Provides stable control under vibration, temperature, and moisture variations.
By integrating the PP D103 B03 into ABB’s distributed control systems, users benefit from consistent real-time data acquisition, fast control response, and robust fault tolerance in continuous operation environments.
Product Advantages
-
High-Performance Processing: Equipped with a 32-bit CPU for real-time control operations.
-
Reliable Communication: 支持s multiple industrial communication protocols for flexible integration.
-
Superior Signal Integrity: Multilayer PCB design ensures low noise and high signal accuracy.
-
Environmental Protection: Conformal coating enhances durability in dusty, humid, or corrosive environments.
-
Comprehensive Protection: Built-in protection against surge, ESD, and polarity errors.
-
Seamless Integration: Fully compatible with ABB’s existing PP D-series control architecture.
-
Wide Operating Range: Suitable for diverse environmental and industrial conditions.
-
Modular Design: Plug-and-play configuration simplifies installation and system upgrades.
-
Self-Diagnostics: Status LEDs and internal monitoring functions enable quick troubleshooting.
-
Long-Term Stability: Designed for 24/7 industrial operation with minimal maintenance.
FAQ
-
What is the main function / the ABB PP D103 B03 module?
It serves as a central control and communication 件 within ABB automation and drive systems. -
Which ABB systems is the PP D103 B03 compatible with?
It integrates with ABB’s DCS and drive system architectures, including excitation and process control platforms. -
What communication protocols does the module support?
The PP D103 B03 supports RS-485, CAN bus, and ABB’s proprietary fieldbus communication. -
Can this module handle both analog and digital I/O signals?
Yes, it supports configurable analog and digital input/output channels for mixed-signal environments. -
How does the module ensure signal reliability?
Through its multilayer PCB design and isolation barriers, minimizing crosstalk and noise. -
What protection features are integrated into the PP D103 B03?
It includes ESD, surge, short-circuit, and reverse polarity protection mechanisms. -
Does it provide real-time diagnostics?
Yes, LED indicators and internal firmware provide power, communication, and fault diagnostics. -
Can it be used in redundant control configurations?
Yes, the module supports redundancy for high availability in critical systems. -
What is the typical communication speed?
The fieldbus communication operates at speeds up to 1 Mbps. -
Is the module s/tware-configurable for different applications?
Yes, its control parameters can be adjusted using ABB’s system configuration s/tware tools.
Related or Equivalent 型号s (Same Series)
| 型号 Number | 描述 | Key Feature |
|---|---|---|
| PP D103 B01 3BHE020455R0001 | Controller Module | Standard version with base-level control logic |
| PP D103 B02 3BHE020455R0002 | Controller Module | Enhanced processing and I/O capacity |
| PP D104 A01 3BHE020460R0101 | Logic Controller | Optimized for drive synchronization applications |
| PP D105 A01 3BHE020465R0101 | Process Controller | Designed for multi-loop industrial control |
| PP D106 A01 3BHE020470R0101 | Communication Interface | 支持s dual-channel data communication |
| PP D107 A01 3BHE020475R0101 | Control Logic Board | Features advanced error handling and system diagnostics |
Popular ABB 型号s (Same 品牌)
| 型号 Number | Product Type | Main Function |
|---|---|---|
| PM864AK01 3BSE018161R1 | CPU Controller | Central processor for ABB AC800M series |
| DO810 3BSE008510R1 | Digital Output Module | Controls output signals for field devices |
| DI810 3BSE008508R1 | Digital Input Module | Collects digital signals from sensors |
| AI810 3BSE008516R1 | Analog Input Module | Measures analog process variables |
| CI854AK01 3BSE030220R1 | Communication Interface | PROFIBUS DP adapter for ABB DCS |
| SDCS-CON-2 3BSE004939R1 | Converter Control Board | Provides converter control and feedback integration |
