产品介绍

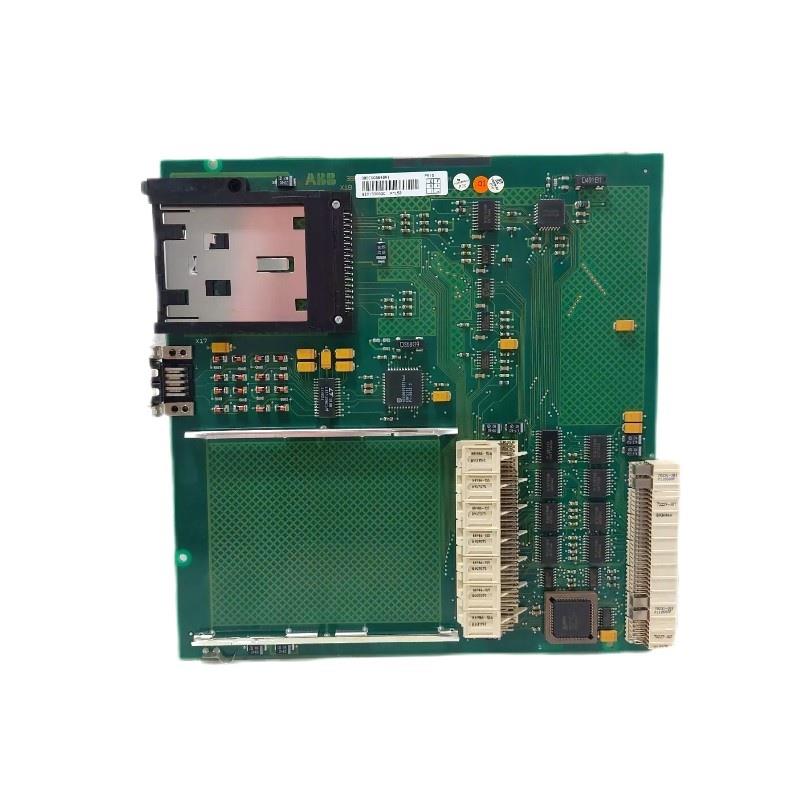

The ABB PM152 3BSE003643R1 is a robust and versatile CPU board designed for the Advant Controller 31 platform. Positioned as a mid-tier controller in ABB’s distributed control system (DCS) portfolio, the PM152 delivers enhanced computing power, expanded memory, and reliable communication interfaces. It serves as the control core / industrial automation setups, executing control logic, managing I/O signals, and facilitating system communication.
The PM152 is ideal for medium- to large-scale automation tasks requiring real-time responsiveness, diagnostics, and communication with supervisory systems or HMI devices. It integrates seamlessly into both existing and new Advant installations, ensuring long-term support and system expansion capabilities.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Name | PM152 |
| 零件号 | 3BSE003643R1 |
| Product Type | CPU Board Card / Controller Module |
| System Compatibility | Advant Controller 31 |
| Processor Type | Embedded 32-bit Processor |
| RAM Memory | 1 MB RAM |
| Flash Memory | 512 KB |
| 支持ed Protocols | MODBUS, Advant Fieldbus 100, RS232/485 |
| Operating Modes | Cyclic, Interrupt-Driven |
| Communication Ports | RS232, RS485, Advant Fieldbus 100 |
| Mounting Method | Base 件 / Rack Mounting |
| Power Supply | 5 VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5%–95%, Non-condensing |
| Dimensions (L×W×H) | 24 × 125 × 120 mm |
| 重量 | 0.35 kg |
Applications
The ABB PM152 is widely used in the following industrial automation scenarios:
-
Chemical and Petrochemical Plants – For precision control in reaction, blending, and safety subsystems
-
Power Generation – Turbine control, switchgear management, and auxiliary process regulation
-
Water Treatment Facilities – Valve and pump automation with continuous monitoring
-
Manufacturing Lines – Process logic control for batch and continuous production
-
Metals and Mining – Drives and process interlocking in steel and aluminum production
-
Pharmaceutical Industry – Batch process automation and quality control
Product Advantages
-
Upgraded Processing Power – Compared to the PM151, the PM152 /fers a faster processor and greater memory, ideal for complex control strategies.
-
Integrated Fieldbus Interfaces – 支持s communication via Advant Fieldbus and RS232/RS485, allowing seamless integration with I/O and SCADA systems.
-
Modular Expandability – Fully compatible with other Advant Controller 31 modules for system scalability.
-
Enhanced Diagnostics – On-board LEDs and status feedback simplify troubleshooting and system analysis.
-
Reliable Real-Time Execution – Ensures deterministic response in time-critical control applications.
-
Long Lifecycle – Industrial-grade build quality ensures long service life in demanding environments.
-
Compact Footprint – Space-saving design enables installation in dense control cabinets.
-
Easy Configuration – 支持ed by ABB’s engineering tools such as Advant Control Builder and Composer.
-
Backward Compatibility – Can be used as a functional upgrade or replacement for earlier CPU versions.
-
Global Availability – 支持ed by ABB’s global network / service, support, and spare parts.
常见问题 (FAQ)
-
What is the primary difference between PM151 and PM152?
The PM152 /fers higher memory and processing power, making it suitable for more complex applications. -
Can PM152 be installed in existing Advant Controller 31 systems without modification?
Yes, it is fully backward-compatible with Advant hardware. However, firmware alignment is recommended. -
Does the PM152 support redundant CPU configurations?
Redundancy is not built-in, but it can be implemented at a system level using additional ABB modules. -
What tools are required to configure the PM152?
ABB’s Composer and Advant Control Builder s/tware packages are typically used for programming and diagnostics. -
Can I upgrade firmware on the PM152 in the field?
Yes, firmware upgrades can be applied using serial communication and ABB’s s/tware tools. -
Is the PM152 affected by electromagnetic interference?
It is protected by industrial-grade shielding, but proper grounding and cabinet design are essential. -
How long can the PM152 operate continuously without maintenance?
With normal industrial conditions, it can operate over 10 years with only routine preventive maintenance. -
Can I use third-party I/O modules with PM152?
ABB recommends only certified Advant-compatible modules for system integrity and safety. -
What happens if the PM152 fails during operation?
The system enters fail-safe mode. Diagnostics via LED and ABB tools help identify root causes quickly. -
Is the PM152 suitable for remote I/O configurations?
Yes, it supports remote I/O through Advant Fieldbus 100 and standard communication ports.
Related or Same Series 型号s
| 型号 | 描述 | Platform | 重量 | Dimensions (mm) |
|---|---|---|---|---|
| PM151 3BSE003642R1 | Base CPU with standard memory | Advant Controller 31 | 0.42 kg | 160 × 100 × 35 |
| PM153 3BSE003644R1 | Advanced CPU with diagnostics and flash | Advant Controller 31 | 0.48 kg | 160 × 100 × 35 |
| DI810 | Digital Input Module, 16 channels | S800 I/O | 0.33 kg | 115 × 81 × 32 |
| DO810 | Digital Output Module, 16 channels | S800 I/O | 0.34 kg | 115 × 81 × 32 |
| TU810V1 | Terminal 单位 for S800 modules | S800 I/O | 0.30 kg | 130 × 100 × 40 |
| TB840A | Bus terminator with system integration | S800 I/O | 0.20 kg | 80 × 60 × 25 |
Popular ABB Automation 型号s (Same 品牌)
| 型号 | 描述 | Series | 重量 | Dimensions (mm) |
|---|---|---|---|---|
| PM864AK01 | High-performance CPU Module | AC 800M | 0.50 kg | 140 × 100 × 40 |
| CI854AK01 | Pr/ibus Communication Interface | AC 800M | 0.45 kg | 120 × 80 × 30 |
| AI810 | 8-channel Analog Input Module | S800 I/O | 0.30 kg | 115 × 81 × 32 |
| AO845A | 4-channel Analog Output Module | S800 I/O | 0.32 kg | 115 × 81 × 32 |
| DO820 | 8-channel Digital Output Module | S800 I/O | 0.34 kg | 115 × 81 × 32 |
| CI840A | Communication Interface Module | S800 I/O | 0.38 kg | 115 × 81 × 32 |
