产品介绍

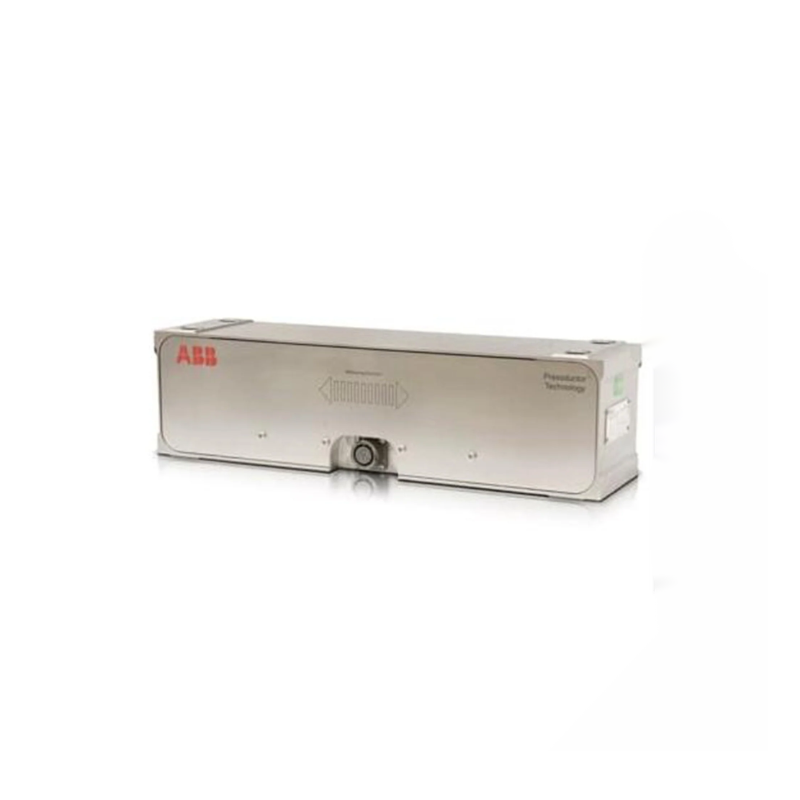

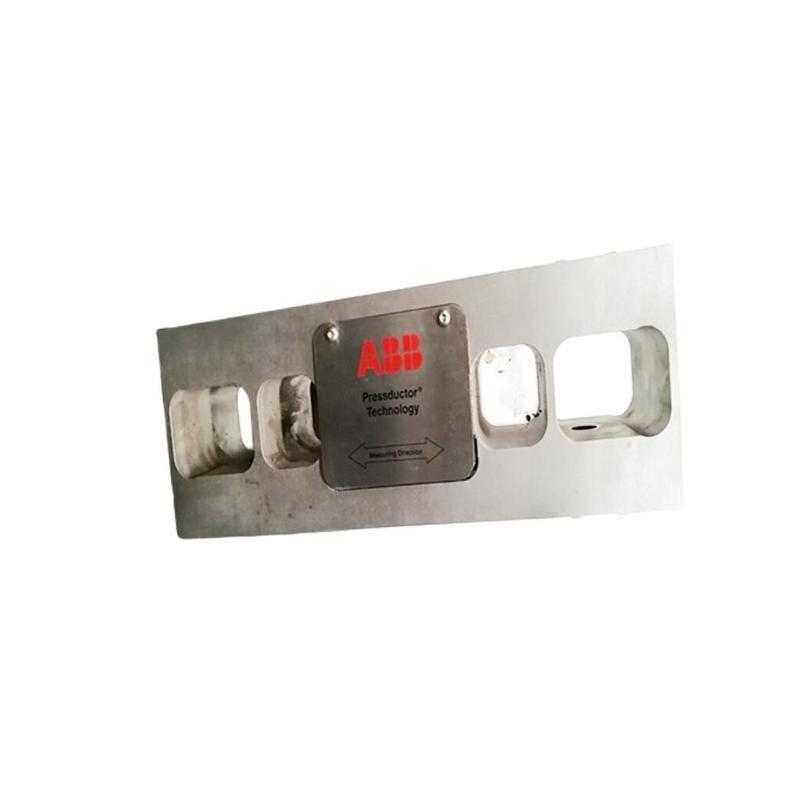

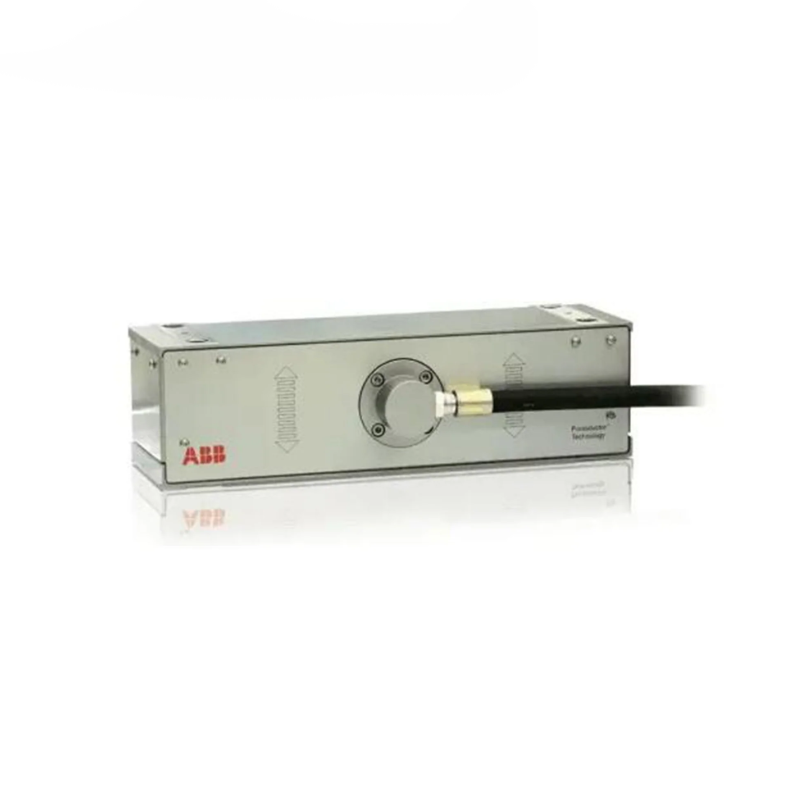

The ABB PFTL101B-5.0KN 3BSE004191R1 is a high-precision force measurement load cell designed for industrial applications. It is part / ABB’s extensive range / sensors and measurement devices, known for reliability and accuracy in demanding environments. This load cell is commonly used in process automation, material testing, and weight measurement systems.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 | PFTL101B-5.0KN 3BSE004191R1 |
| Capacity | 5.0 kN (Kilonewtons) |
| Accuracy | ±0.1% / full scale |
| Output Signal | mV/V (Millivolt per Volt excitation) |
| Excitation Voltage | 10-15 V DC |
| Operating Temperature | -20°C to +70°C |
| Protection Class | IP67 (Dustpro/ and waterpro/) |
| Material | Stainless steel (AISI 304 or equivalent) |
| Dimensions | 220 x 125 x 50 mm |
| 重量 | 21 kg |
| Cable Length | Standard 3 meters (customizable) |
Product Applications
The ABB PFTL101B-5.0KN 3BSE004191R1 is widely used in industries requiring precise force measurement, including:
-
Industrial Automation: Monitoring tension and compression forces in machinery.
-
Material Testing: Ensuring structural integrity in lab and production environments.
-
Weighing Systems: Integrated into scales and load-bearing equipment.
-
Aerospace & Automotive: Testing component durability under stress.
-
Construction: Measuring load distribution in structural applications.
Product Advantages
-
High Accuracy: Provides precise measurements with minimal deviation (±0.1%).
-
Robust Construction: Made / stainless steel for durability in harsh conditions.
-
IP67 Protection: Resistant to dust, moisture, and mechanical impacts.
-
Wide Temperature Range: Operates efficiently in extreme temperatures (-20°C to +70°C).
-
Easy Integration: Compatible with standard industrial signal conditioning systems.
-
Long Lifespan: Designed for continuous operation with minimal maintenance.
常见问题 (FAQ)
-
What is the maximum load capacity / this load cell?
The maximum capacity is 5.0 kN (Kilonewtons). -
What is the accuracy / the PFTL101B-5.0KN?
It has an accuracy / ±0.1% / full scale. -
What is the operating temperature range?
It functions reliably between -20°C to +70°C. -
Is this load cell waterpro/?
Yes, it has an IP67 protection rating, making it dustpro/ and waterpro/. -
What type / output signal does it provide?
It outputs a mV/V (millivolt per volt) signal, requiring external excitation. -
How long is the warranty period?
The standard warranty is 1 years, subject to proper usage and conditions. -
What material is the load cell made /?
It is constructed from stainless steel (AISI 304 or equivalent). -
Is calibration required before use?
Yes, calibration is recommended for optimal accuracy. -
Can this load cell be used in hazardous environments?
No, it is not certified for explosive atmospheres (ATEX/IECEx). -
What is the expected lifespan / this load cell?
With proper use, it can last 5+ years in industrial applications.
Recommended Related & Popular 型号s
6 Similar/Related 型号s
| 型号 | Capacity | Key Feature |
|---|---|---|
| PFTL101A-2.5KN | 2.5 kN | Lower capacity, compact design |
| PFTL101C-10KN | 10 kN | Higher capacity, rugged construction |
| PFTL102B-5.0KN | 5.0 kN | Enhanced overload protection |
| PFTL103A-1.0KN | 1.0 kN | Ultra-precise, lab-grade accuracy |
| PFTL104B-20KN | 20 kN | Heavy-duty industrial use |
| PFTL105C-7.5KN | 7.5 kN | Mid-range capacity, high stability |
6 Popular ABB 型号s (Same 品牌)
| 型号 | 分类 | Key Feature |
|---|---|---|
| 3BSE008516R1 | Pressure Transmitter | High-accuracy process measurement |
| 3BSE018877R1 | Temperature Sensor | Wide-range industrial use |
| 3BSE030369R1 | Flow Meter | Reliable fluid flow monitoring |
| 3BSE050091R1 | Vibration Sensor | Machine condition monitoring |
| 3BSE038415R1 | Position Sensor | Precision linear/rotary detection |
| 3BSE027592R1 | Level Transmitter | Liquid/solid level measurement |
