Product Overview

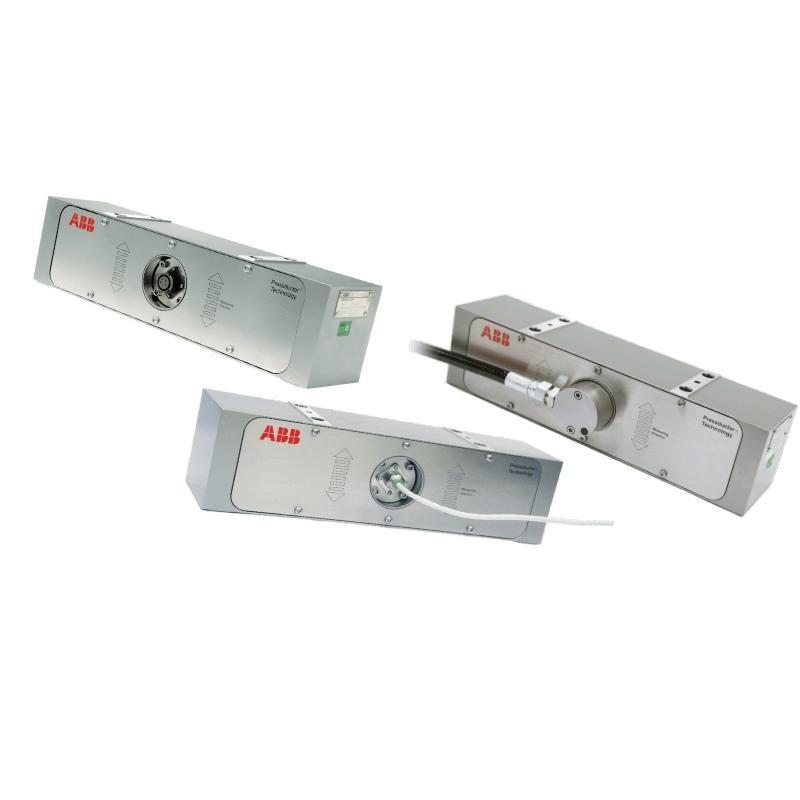

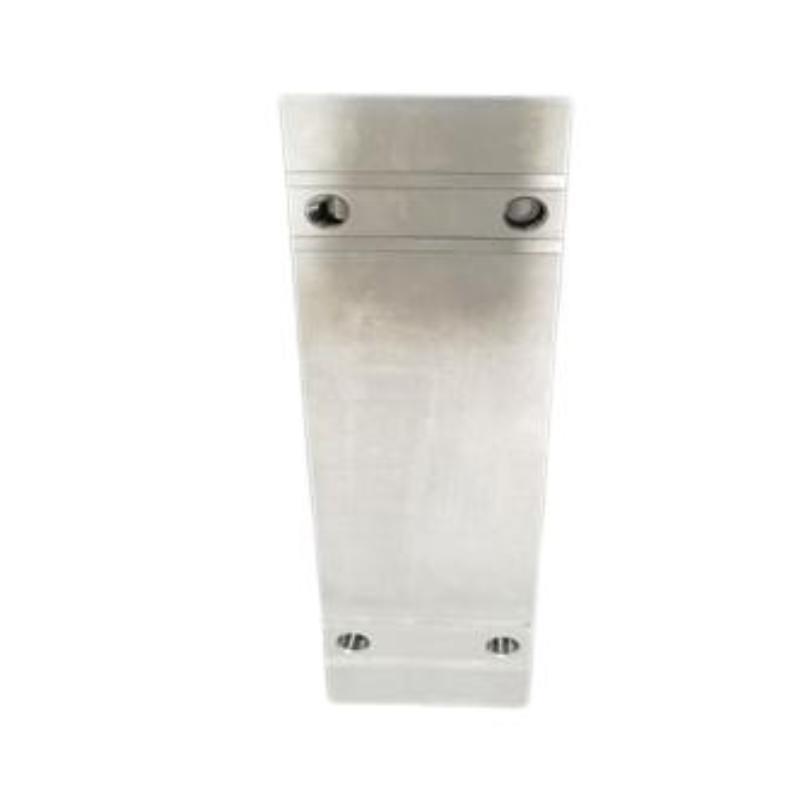

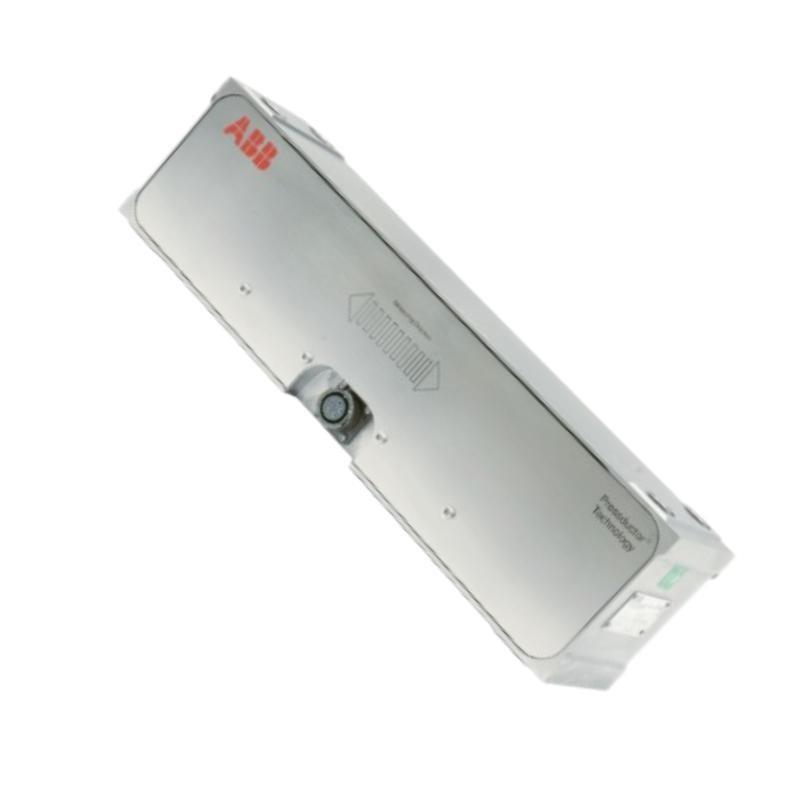

The ABB PFCL241SEE load cell is a high-precision measurement device designed to provide reliable force and weight measurements in various industrial applications. These load cells are engineered for both static and dynamic load measurement, making them ideal for use in material handling, quality control, and process automation systems. With a robust and corrosion-resistant construction, the PFCL241SEE load cells deliver excellent performance in harsh environments where accuracy and durability are paramount.
Designed by ABB, a leader in industrial automation, the PFCL241SEE /fers an advanced solution for weighing and force measurement in industries such as manufacturing, logistics, automotive, and energy. These load cells integrate seamlessly into ABB’s control and automation systems, ensuring precise monitoring and reliable feedback in real-time applications.
Key Features
-
High-Accuracy Measurement: Ensures precise weight and force measurement across a wide range / applications.
-
Corrosion-Resistant Construction: Manufactured with stainless steel and other corrosion-resistant materials for use in harsh, corrosive environments.
-
Wide Measurement Range: Capable / handling a broad spectrum / load capacities, from small to heavy-duty applications.
-
High Stability: Offers consistent performance with minimal drift, ensuring reliability in long-term applications.
-
Temperature Stability: Performs accurately across a broad temperature range, suitable for both indoor and outdoor environments.
-
Easy Integration: Compatible with ABB’s automation platforms and can be integrated into custom control systems for real-time monitoring.
-
Low Maintenance: Durable and designed to last, minimizing the need for frequent maintenance or replacement.
-
Compact and Space-Efficient: Designed to be installed in a variety / applications where space is limited.
-
Global Compliance: Meets international certifications, including CE, RoHS, and other relevant industry standards.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | PFCL241SEE |
| Type | Load Cell (Force Measurement) |
| Measurement Range | Up to 50 tons or custom ranges available |
| Sensitivity | High precision with a wide dynamic range |
| Material | Stainless Steel or Corrosion-Resistant Alloy |
| Accuracy | ±0.03% / full scale |
| Excitation Voltage | 10 VDC (nominal) |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 150 x 80 x 60 mm |
| 重量 | 1.0 kg |
| Certifications | CE, RoHS compliant |
| Mounting | Standard mounting thread or flange mounting |
| Protection Class | IP68 (dust-tight and waterpro/) |
Industry Applications
-
Industrial Weighing: Used for accurate weight measurement in hoppers, silos, tanks, and other storage systems.
-
Material Handling: Ideal for force measurement in hoists, cranes, conveyors, and other heavy machinery.
-
Automotive Manufacturing: Provides accurate load measurement in production lines, assembly robots, and testing rigs.
-
Load Testing: Suitable for static and dynamic load testing in research, development, and testing labs.
-
Food and Beverage: Ensures accurate weighing in packaging, bottling, and quality control in the food industry.
-
Pharmaceutical: Used for precise weighing during packaging and formulation processes in pharmaceutical plants.
-
Mining and Metals: Monitors load forces in heavy-duty equipment for material extraction and processing.
Product Advantages
-
Precision and Reliability: Offers accurate load measurements, ensuring operational safety and efficiency in demanding applications.
-
Durable Construction: Designed with high-quality materials to withstand corrosion, moisture, and mechanical stresses.
-
Versatile Applications: Ideal for a wide range / industries, including manufacturing, automotive, energy, and logistics.
-
Long-最后一页ing: The robust design minimizes the need for maintenance, providing consistent performance over time.
-
Global Standards Compliance: Meets international safety and environmental standards for use across industries worldwide.
-
Temperature and Humidity Resistant: Functions reliably across a wide range / temperatures and humidity levels.
-
Compact and Flexible: Can be installed in tight spaces, making it perfect for applications with limited installation space.
-
Seamless Integration: Easily integrates into ABB’s automation systems for real-time monitoring and control.
-
Low Power Consumption: Designed for minimal power consumption, optimizing energy efficiency in systems.
常见问题 (FAQ)
-
What is the primary function / the ABB PFCL241SEE load cell?
The PFCL241SEE load cell is used for high-precision force and weight measurement in various industrial applications such as material handling, quality control, and process automation. -
What is the measurement range / the PFCL241SEE?
The load cell can measure loads up to 50 tons, with custom ranges available depending on the application. -
What material is the PFCL241SEE made /?
The load cell is constructed from stainless steel and corrosion-resistant alloys, ensuring it can withstand harsh environments. -
What is the accuracy / the PFCL241SEE load cell?
The load cell /fers an accuracy / ±0.03% / full scale, ensuring precise measurements. -
What is the operating temperature range / the PFCL241SEE?
The load cell operates within a temperature range / -20°C to +60°C, making it suitable for both indoor and outdoor use. -
Can the PFCL241SEE load cell be used in outdoor applications?
Yes, it has an IP68 rating, meaning it is dust-tight and waterpro/, allowing for use in outdoor environments. -
What are the power requirements for the PFCL241SEE?
The load cell requires a nominal excitation voltage / 10 VDC. -
What is the mounting method for the PFCL241SEE load cell?
The load cell can be mounted using standard threads or flange mounting, depending on the application. -
How long is the standard cable for the PFCL241SEE load cell?
The standard cable length is 5 meters, though this can be customized based on installation needs. -
Is the PFCL241SEE compatible with ABB automation systems?
Yes, it is designed to integrate seamlessly with ABB’s automation and control systems, ensuring smooth data transmission and real-time monitoring.
Related 型号s
| 型号 | 描述 |
|---|---|
| PFCL240SEE | A compact load cell with a lower capacity, ideal for smaller applications. |
| PFCL241SEE-A | A higher-capacity version / the PFCL241SEE for heavy-duty applications. |
| PFCL243SEE | Load cell with enhanced accuracy for precision weighing in sensitive applications. |
| PFCL242SEE | Designed for extreme environmental conditions with additional sealing. |
| PFCL244SEE | Extended cable version for remote installations or larger applications. |
| PFCL245SEE | A specialized load cell with high temperature resistance for specific industries. |
