产品介绍

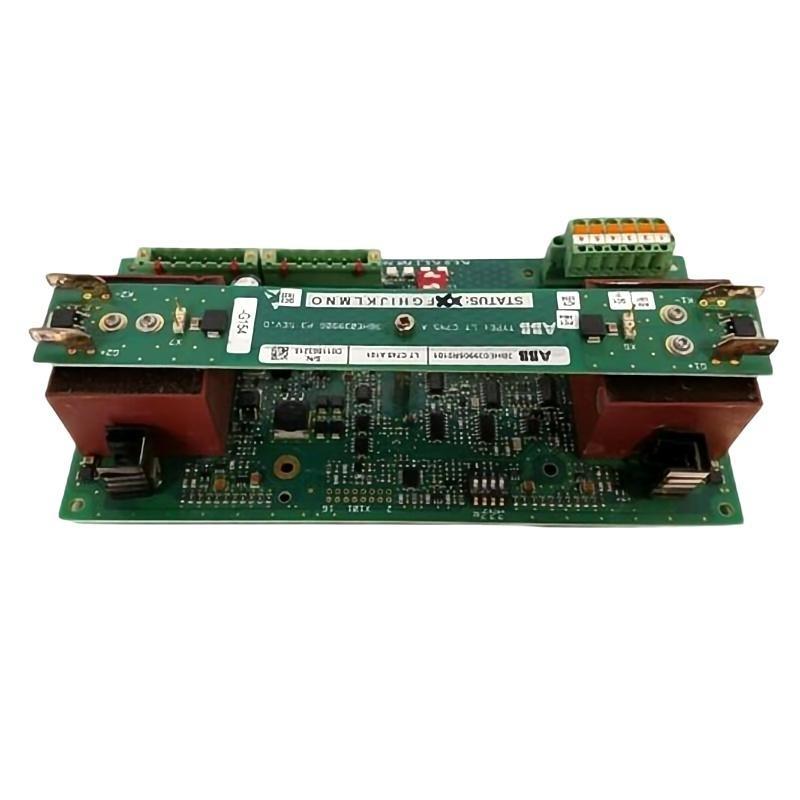

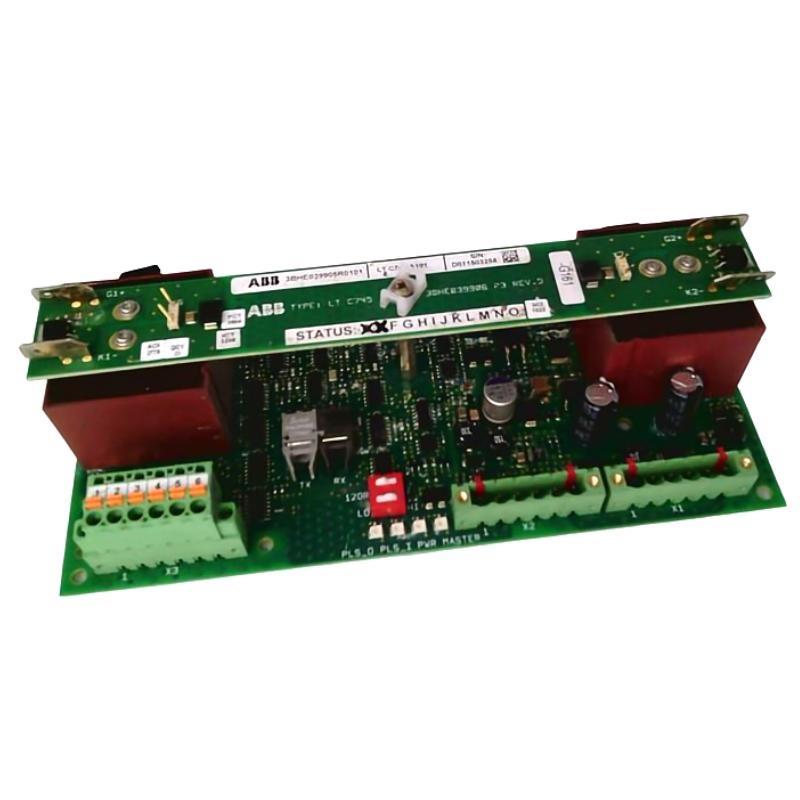

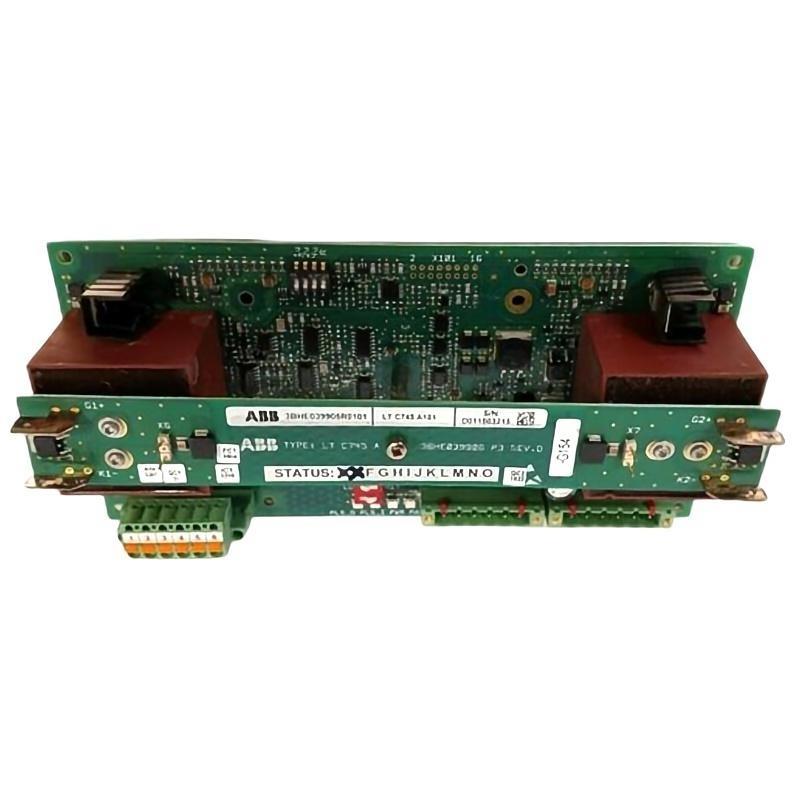

The ABB LT C745 A101 3BHE039905R0101 Voltage Drive Crowbar Board is a highly specialized protection and control module designed specifically for ABB drive systems. Its primary function is to protect power electronics and motor drives from transient overvoltages by rapidly diverting excess energy away from sensitive components. This ensures the long-term stability and reliability / industrial drive systems under dynamic load conditions.
The LT C745 A101 features advanced short-circuit circuitry with ultra-fast response time to voltage spikes, effectively preventing damage to insulated gate bipolar transistors (IGBTs), capacitors, and other drive components. It is a key component / ABB’s high-performance ACS and DCS series inverters and is crucial for applications subject to frequent power fluctuations.
With a modular plug-in design and robust protection features, the LT C745 A101 /fers seamless integration into ABB control architectures, delivering superior safety and operational continuity in demanding industrial environments such as manufacturing, mining, marine propulsion, and heavy-duty motor control.
产品规格
| Parameter | Value |
|---|---|
| 型号 | Voltage Drive Crowbar Circuit Board |
| 零件号 | LT C745 A101/3BHE039905R0101 |
| 品牌 | ABB |
| Function | Overvoltage protection and energy diversion for ABB drives |
| System Compatibility | ABB ACS/DCS industrial drive platforms |
| Input Voltage | Low-voltage control power via system backplane |
| Response Time | Ultra-fast (microseconds) |
| Protection Features | Overvoltage suppression, short-circuit prevention, thermal safeguard |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Mounting Type | Plug-in modular board |
| Dimensions | 220 x 160 x 30 mm |
| 重量 | 0.1 kg |
| Compliance | CE, UL, RoHS, IEC industrial safety standards |
Applications
-
Industrial Drive Systems: Provides overvoltage protection for ABB ACS/DCS drive platforms.
-
Heavy-Duty Motor Control: Protects motors and IGBTs in demanding industrial applications.
-
Energy and Power Generation: Ensures safe operation in fluctuating power environments.
-
Marine and Offshore Drives: Safeguards marine propulsion and auxiliary systems against voltage spikes.
-
Mining and Metals: Maintains equipment integrity under heavy load changes and harsh conditions.
-
Process Industries: Enhances the reliability / continuous process control systems requiring stable voltage.
Product Advantages
-
Rapid Overvoltage Protection: Crowbar circuit provides microsecond-level response to voltage spikes.
-
Enhanced Drive Safety: Prevents costly damage to IGBTs and power electronics.
-
Seamless ABB Integration: Designed for direct compatibility with ABB ACS/DCS drives.
-
Robust Design: Engineered for industrial-grade durability in harsh environments.
-
Plug-and-Play Installation: Modular design simplifies maintenance and replacement.
-
Comprehensive Safeguards: Integrated thermal, overcurrent, and short-circuit protection.
-
Long-Term Stability: Ensures consistent operation and reduced downtime for critical processes.
FAQ
-
What is the primary function / the ABB LT C745 A101 3BHE039905R0101 board?
It provides overvoltage protection by diverting excess energy to safeguard ABB drive components. -
Is this crowbar board compatible with all ABB drive platforms?
It is specifically designed for ABB ACS and DCS industrial drive systems. -
How fast is the LT C745 A101’s response to voltage spikes?
The crowbar circuit responds within microseconds to protect sensitive electronics. -
Can this board be used in marine applications?
Yes, it is suitable for marine and /fshore drive systems where high reliability is a requirement. -
Does the LT C745 A101 provide thermal protection?
Yes, it has integrated thermal protection to prevent overheating during operation. -
What type / mounting is required for this board?
It is a modular plug-in board designed for easy installation and maintenance. -
Can the LT C745 A101 operate in high electrical noise environments?
Yes, it has strong noise imm件y and is suitable for harsh industrial environments. -
Does it require external crowbar circuitry?
No, the board integrates all the necessary crowbar and overvoltage suppression circuitry. -
Does the LT C745 A101 support hot swapping?
Normally, the drive system must be shut down for safe installation or replacement. -
What standards does this motherboard comply with?
It complies with CE, UL, RoHS, and IEC industrial safety standards.
Related models from the same series
| 型号 | Function | Main Features |
|---|---|---|
| LT C745 A102 3BHE039905R0102 | Crowbar circuit board | Enhanced energy dissipation capabilities |
| LT C744 A101 3BHE039904R0101 | Voltage protection board | Optimized for medium power drive systems |
| LT C743 CE02 3BHE013299R0002 | Control Panel | Real-time signal processing and control |
| LT C746 A101 3BHE039906R0101 | Crowbar circuit board | Ruggedized version for harsh environments |
| LT8978BV1 HIEE320639R0001 | circuit board | Universal ABB signal processing board |
| LT C742 A101 3BHE039903R0101 | Driver protection board | Compact overvoltage suppression module |
Popular ABB models
| 型号 | Function | Main Features | Application Focus |
|---|---|---|---|
| LDSTA-01 3BHB007441P0001 | Inverter control CPU driver board | High-performance motor control | ABB ACS and DCS drive platform |
| LT C743 CE02 3BHE013299R0002 | Control Panel | Reliable control / ABB drive systems | Industrial Automation and Drives |
| LT8978BV1 HIEE320639R0001 | circuit boards | High-speed signal processing | ABB automation and control systems |
| IPS21-24V-35AD 3BHE032593R0001 | Isolated power supply | Provides stable power supply for ABB control panels | Drive and automation systems |
| KU C755 AE117 3BHB005243R0117 | Door 件 power supply module | IGBT gate driver power supply | ABB motor and inverter controls |
| SDCS-PIN-48 3BSE004939R1 | Control interface board | Flexible I/O and communications | ACS and DCS drive control systems |
