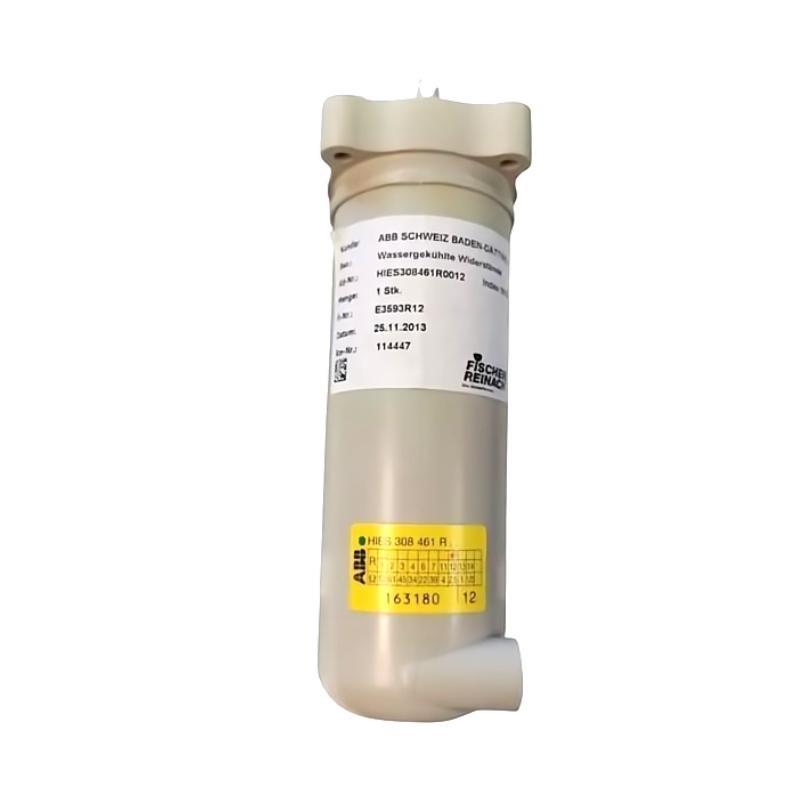

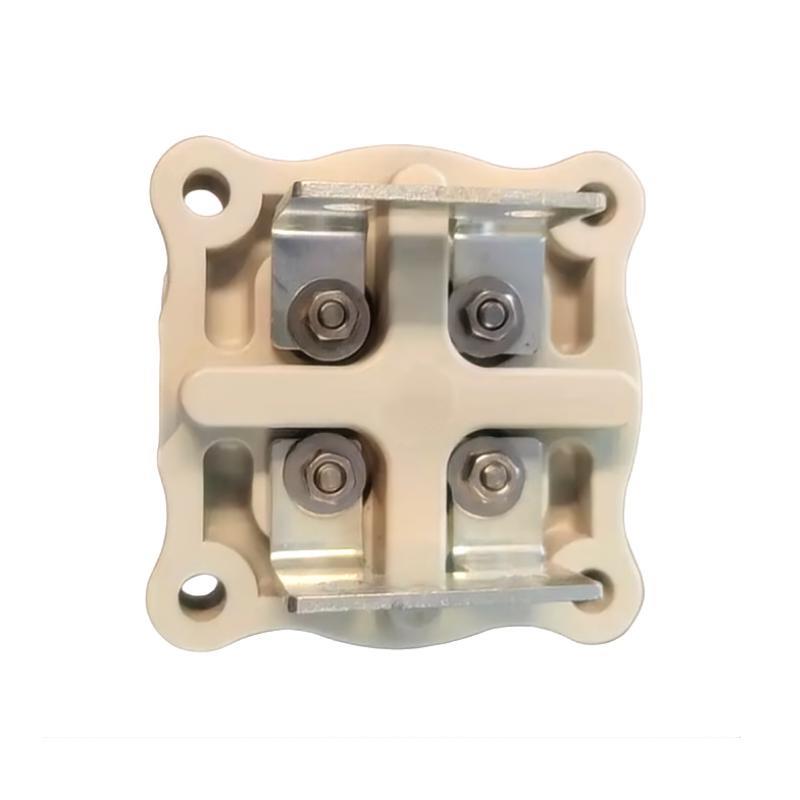

The ABB HIES308461R0012 is a high-performance Water Cooled Resistor designed for industrial applications that demand efficient heat dissipation under high power loads. Engineered with a robust stainless-steel structure and advanced thermal management, this resistor is ideal for continuous or intermittent high-energy absorption applications.
Unlike air-cooled alternatives, water-cooled resistors like the HIES308461R0012 /fer compactness, enhanced thermal efficiency, and minimal acoustic emission, making them suitable for integration in enclosed or noise-sensitive environments. The resistor operates as a braking resistor, load bank, or neutral grounding resistor (NGR) in a variety / sectors, from renewable energy systems to marine propulsion and heavy-duty drives.
This model is part / ABB’s durable industrial resistor line, known for reliable performance in harsh environmental conditions, continuous duty cycles, and tight installation constraints.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Water Cooled Resistor |
| 型号 Number | HIES308461R0012 |
| 制造商 | ABB |
| Cooling Method | Water-cooled (closed-loop or open-loop compatible) |
| Function | Braking / Load / Neutral grounding resistor |
| Rated Power | Typically between 50 kW – 200 kW (depends on configuration) |
| Resistance Value | Factory specified (e.g., 1–10 ohms or custom per application) |
| Voltage Rating | Up to 1,000V AC or higher (dependent on insulation and design) |
| Continuous Current | Application-specific; designed for high power density |
| Material Composition | Stainless steel housing; resistive wire alloy (NiCr or similar) |
| Inlet/Outlet Fittings | Stainless steel BSP/NPT threads or flanged ports |
| Operating Temperature | Up to 350°C (core) with water jacket cooling |
| Cooling Water Flow Rate | Typically 5–15 L/min (depending on power) |
| Max Pressure | Up to 6 bar (water jacket) |
| Insulation Resistance | >1,000 MΩ @ 500V DC |
| Ingress Protection | IP54–IP65 depending on mounting and sealing |
| Installation Method | Horizontal or vertical mount with brackets |
| Approvals/Standards | IEC 60034, IEC 60076, CE, RoHS compliant |
| Dimensions (L x W x H) | 46 x 110 x 180 mm |
| 重量 | 0.51 kg |
Product Applications
The ABB HIES308461R0012 Water Cooled Resistor is engineered for diverse power conversion and control environments. Its unique capability to dissipate large amounts / energy makes it essential in applications that involve dynamic braking, power regulation, or grounding safety.
Typical Applications:
-
Motor Braking Systems
Used with VFDs (variable frequency drives) to absorb regenerative energy and prevent overvoltage. -
Renewable Energy Systems
Wind turbines and solar power systems use braking/load resistors for grid compliance and energy dumping. -
Marine Propulsion Drives
Used in shipboard electric propulsion to manage braking and load balancing with minimal heat radiation. -
Elevators and Cranes
Absorbs deceleration energy to stabilize high-inertia lifting equipment. -
Neutral Grounding Systems
Helps manage fault currents in medium-voltage transformers and generators. -
Industrial Test Benches
Employed in dynamic load banks for motor and generator testing under load.
Product Advantages
-
Superior Heat Dissipation
Water cooling enables continuous operation under high loads without overheating. -
Compact and Space-Efficient
Smaller footprint than air-cooled resistors with equivalent power ratings. -
Noise-Free Operation
No fans or blowers are required, minimizing noise and mechanical wear. -
Environmentally Robust
Designed for dusty, humid, or corrosive environments with IP-rated enclosures. -
Customizable Design
Resistance values, voltage, connectors, and mounting options can be tailored. -
Extended Service Life
Reduced thermal cycling enhances long-term performance and reliability. -
High Efficiency
Maintains consistent performance with minimal temperature fluctuation. -
Safety-Oriented
Isolated construction minimizes the risk / electrical shock or fire hazard.
常见问题 (FAQ)
1. What is the primary function / the ABB HIES308461R0012 water cooled resistor?
It is designed to safely dissipate excess electrical energy in high-power industrial systems, particularly in braking, load testing, and power conversion applications where thermal efficiency and compact design are required.
2. How does water cooling benefit resistor performance?
Water cooling enables higher continuous power dissipation compared to air-cooled models, reduces overall size, and allows the resistor to operate at stable temperatures over long durations.
3. Can this resistor be used with variable frequency drives (VFDs)?
Yes, it is commonly integrated into braking circuits / VFDs to manage regenerated energy during deceleration, preventing overvoltage conditions in the DC bus.
4. What materials are used in the internal resistive elements?
The resistor uses high-grade nickel-chromium (NiCr) alloy, selected for its durability, temperature stability, and resistance to oxidation under high thermal loads.
5. What kind / maintenance does the 件 require?
Routine inspection / water connections for leaks, periodic flushing / the cooling system, and checks on water flow rate and temperature are recommended to maintain efficiency and longevity.
6. Is it safe to operate this 件 in humid or dusty environments?
Yes, the sealed design / the water jacket and the corrosion-resistant construction make it suitable for operation in challenging industrial environments, though enclosure or additional sealing may be recommended in extreme conditions.
7. Does the resistor include built-in temperature monitoring?
Temperature monitoring is available as an optional feature. Many installations integrate PT100 sensors or thermocouples to monitor core temperature and enable protective shutdown if thresholds are exceeded.
8. What type / cooling water is recommended?
Clean, non-conductive water is preferred. Deionized or filtered water helps prevent scaling and corrosion. Coolant additives can also be used depending on the application’s chemical compatibility.
9. Is this product suitable for outdoor use?
Yes, when installed in weather-resistant enclosures or systems with IP65 protection, it can be used outdoors.
10. What certifications or standards does the product comply with?
The HIES308461R0012 typically complies with relevant IEC and CE standards for industrial electrical components. Additional certifications may be available upon request depending on the region and industry.
Related or Same-Series ABB 型号s
| 型号 Number | 描述 | Cooling Type | Rated Power | Application |
|---|---|---|---|---|
| HIES308461R0013 | Water Cooled Resistor – Extended Ohmic Range | Water-cooled | Up to 250 kW | High-energy braking |
| HIES308461R0009 | Compact Water Cooled Braking Resistor | Water-cooled | 60–100 kW | Marine, cranes |
| HIES308461R0010 | Medium-voltage Water Cooled Load Resistor | Water-cooled | 150 kW | Wind turbine applications |
| HIES308461R0007 | High-capacity Dynamic Braking Resistor | Water-cooled | 300 kW | Generator testing |
| HIES308461R0011 | Industrial Water Cooled NGR | Water-cooled | 200 kW | Transformer grounding |
| HIES308461R0014 | Dual-loop Water Cooled Load Bank | Water-cooled | 180 kW | Motor testing systems |
Popular ABB 型号s Across Product Lines
| 型号 Number | 描述 | Product Type | Application |
|---|---|---|---|
| ACS880-07-1800A-7 | Cabinet-built Industrial Drive | Variable Frequency Drive | High-power motor control |
| PM862AK01 | Programmable Logic Controller | Control Module | PLC systems (AC 800M) |
| REF615 | Feeder Protection Relay | Protection Device | Power distribution systems |
| CP600-Pro-10 | Industrial Touchscreen HMI | Operator Interface Panel | SCADA and PLC interaction |
| TU830V1 | S800 I/O Module Terminal 单位 | Remote I/O | Distributed control systems |
| 3BSE008518R1 | AI810 Analog Input Module | Analog I/O Module | Signal acquisition in PLCs |
