产品介绍

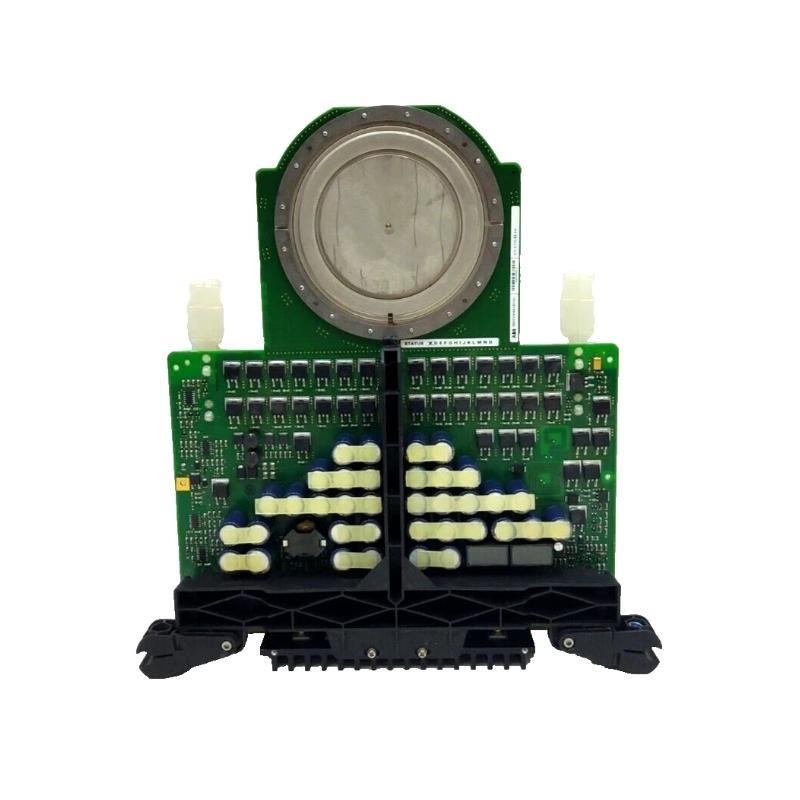

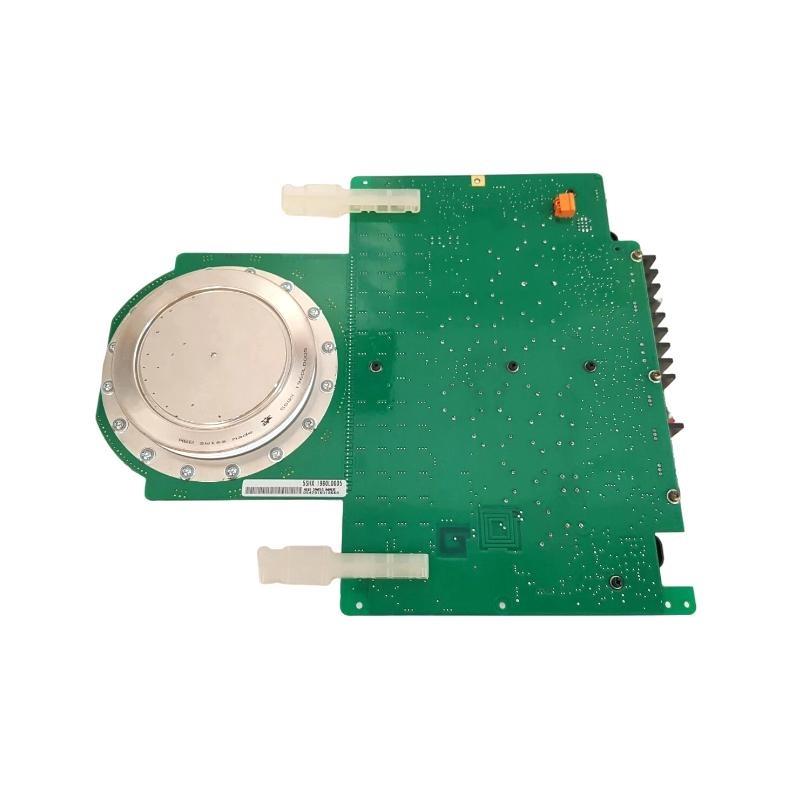

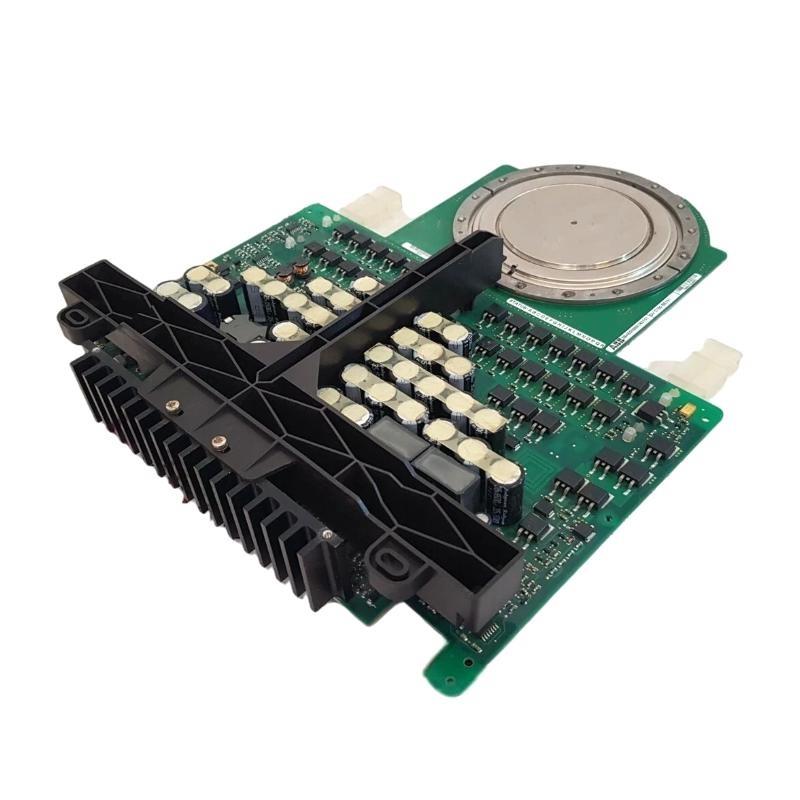

The ABB GV C750 BE101 3BHE009681R0101 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) power module, specifically designed for medium voltage industrial applications. Developed under ABB’s stringent quality standards, this module is engineered for durability, thermal efficiency, and operational reliability in environments requiring fast switching and high power throughput.
The module features advanced integration / the gate 件 and the semiconductor device, providing superior switching characteristics, reduced losses, and extended lifetime compared to conventional GTOs or IGBTs in high-power systems.
产品规格
| Parameter | Details |
|---|---|
| Product Name | ABB GV C750 BE101 |
| 零件号 | 3BHE009681R0101 |
| Technology Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Voltage Rating | 4500 V |
| Current Rating | 3000 A |
| Turn-Off Time (tq) | < 20 µs |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +125°C |
| Thermal Resistance (RthJC) | < 0.02 K/W |
| Power Dissipation | Low due to efficient commutation |
| Cooling Method | Forced air or liquid-cooled heatsink (depending on system) |
| Insulation Voltage | 10.2 kV RMS |
| Control Interface | Fiber optic gate 件 integrated |
| Dimensions | 250 x 200 x 80 mm |
| 重量 | 0.45 kg |
| Mounting Type | Panel/Heatsink Mounting |
| Compliance Standards | IEC 60747-9, RoHS, CE, UL |
Applications
The ABB GV C750 BE101 IGCT module is widely used in industrial and utility-scale systems that demand efficient and robust power switching. Key application areas include:
-
Medium voltage drives (MV Drives)
-
Static VAR compensators (SVCs)
-
Frequency converters
-
Renewable energy grid converters
-
Marine propulsion systems
-
HVDC light transmission systems
-
Railway traction systems
-
Industrial power inverters for high-speed trains and rolling mills
Product Advantages
-
High Power Density: Capable / handling very high currents with minimal conduction losses.
-
Fast Switching Speeds: Extremely low turn-/f time (<20 µs) compared to traditional thyristors.
-
Compact Design: Integrated gate 件 reduces wiring complexity and installation space.
-
Low Thermal Resistance: Enables effective heat dissipation, increasing thermal efficiency.
-
High Reliability: Long service life with consistent performance under harsh operating conditions.
-
Modular Architecture: Simplifies maintenance and system integration.
-
Electromagnetic Compatibility: 优秀 noise imm件y in electrically noisy environments.
-
Integrated Protection: Built-in fault detection and control interface for safe operation.
常见问题 (FAQ)
1. What is the ABB GV C750 BE101 mainly used for?
It’s typically used in high-power industrial systems, such as large motor drives, HVDC converters, and grid-support equipment where fast and reliable switching is critical.
2. Is it compatible with third-party gate drivers?
While it’s optimized for ABB driver 件s, it can be adapted for third-party systems if the drive signals meet the IGCT’s requirements. However, using ABB’s native driver modules ensures best performance.
3. How should the module be cooled during operation?
Cooling can be achieved through forced air or liquid systems, depending on the power level and ambient temperature. Proper heat dissipation is essential for safe operation.
4. What is the difference between an IGCT and an IGBT?
IGCTs handle higher current and voltage levels and /fer lower conduction losses, while IGBTs typically allow for simpler drive circuitry but may not match IGCTs in power density or ruggedness.
5. What kind / protection circuitry should I use with this IGCT module?
Implement overvoltage, overcurrent, and overtemperature protections. ABB provides recommended guidelines for protective coordination with their modules.
6. Does the GV C750 BE101 support regenerative applications?
Yes, it can be used in bidirectional converters and regenerative braking systems where energy is fed back into the grid or power source.
7. Is special training required to install or handle the module?
Due to the high voltage and press-pack mounting design, handling should be done by trained pr/essionals familiar with power electronics and IGCT installation standards.
8. Can this module operate in harsh industrial environments?
Yes. It is rated for operation in a wide temperature range and built to withstand high vibration, making it suitable for heavy-duty industrial and transportation applications.
9. How do I ensure reliable mounting / the press-pack IGCT?
Uniform clamping force is crucial. Follow ABB’s mechanical mounting instructions to avoid hot spots or mechanical stress that may damage the device.
10. Can it operate under harsh environmental conditions?
Yes, it is built to withstand a wide temperature range and high mechanical stress.
Related 型号s (Same Series or Similar 产品)
| 型号 | 零件号 | Voltage | Current | Technology |
|---|---|---|---|---|
| ABB GV C750 BE102 | 3BHE009681R0102 | 4500 V | 3000 A | IGCT |
| ABB 5SHY 3545L0010 | 5SHY3545L0010 | 4500 V | 2800 A | IGCT |
| ABB 5SHY 3545L0001 | 5SHY3545L0001 | 4500 V | 2400 A | IGCT |
| ABB 5SHY 3545L0020 | 5SHY3545L0020 | 4500 V | 3200 A | IGCT |
| ABB 5SHX 1060L0001 | 5SHX1060L0001 | 4500 V | 5000 A | IGCT |
| ABB 5SHX 1060L0003 | 5SHX1060L0003 | 4500 V | 4500 A | IGCT |
Popular ABB Modules in the Power Electronics Field
| 型号 | 零件号 | Voltage | Current | Application |
|---|---|---|---|---|
| ABB 5SHX 1060L0001 | 5SHX1060L0001 | 4500 V | 5000 A | HVDC, MV Drives |
| ABB 5SHY 3545L0010 | 5SHY3545L0010 | 4500 V | 2800 A | Marine Propulsion |
| ABB 5SHY 3545L0004 | 5SHY3545L0004 | 4500 V | 3200 A | Railway Traction |
| ABB 5SHX 0560H0001 | 5SHX0560H0001 | 3300 V | 3600 A | SVC, Wind Power |
| ABB 5SNA 1200E330300 | 5SNA1200E330300 | 3300 V | 1200 A | General Industrial Inverters |
| ABB 5SDF 10H4520 | 5SDF10H4520 | 4500 V | 4500 A | Power Transmission Converters |
