产品介绍

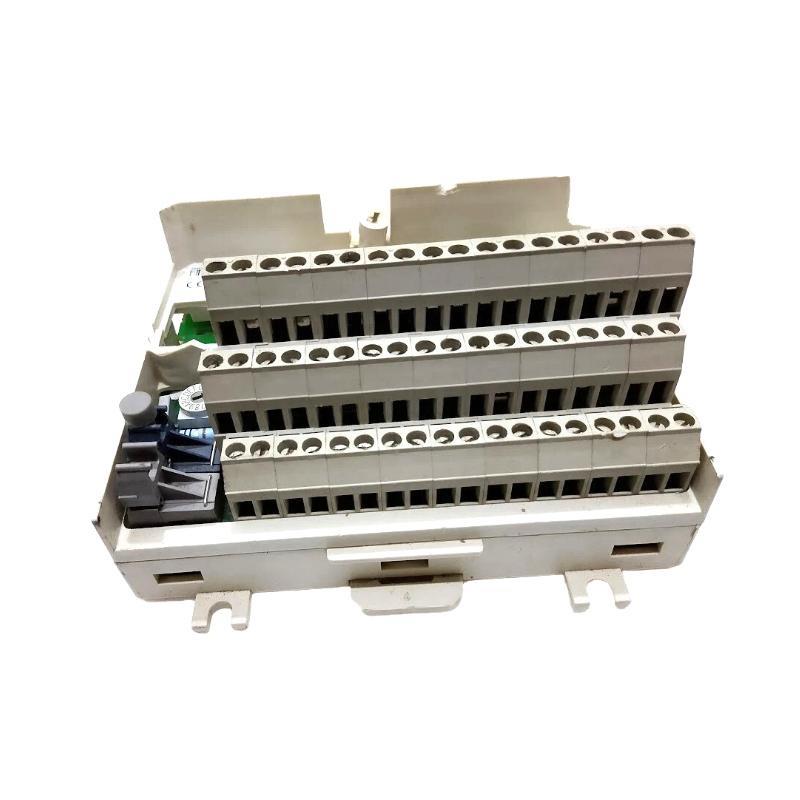

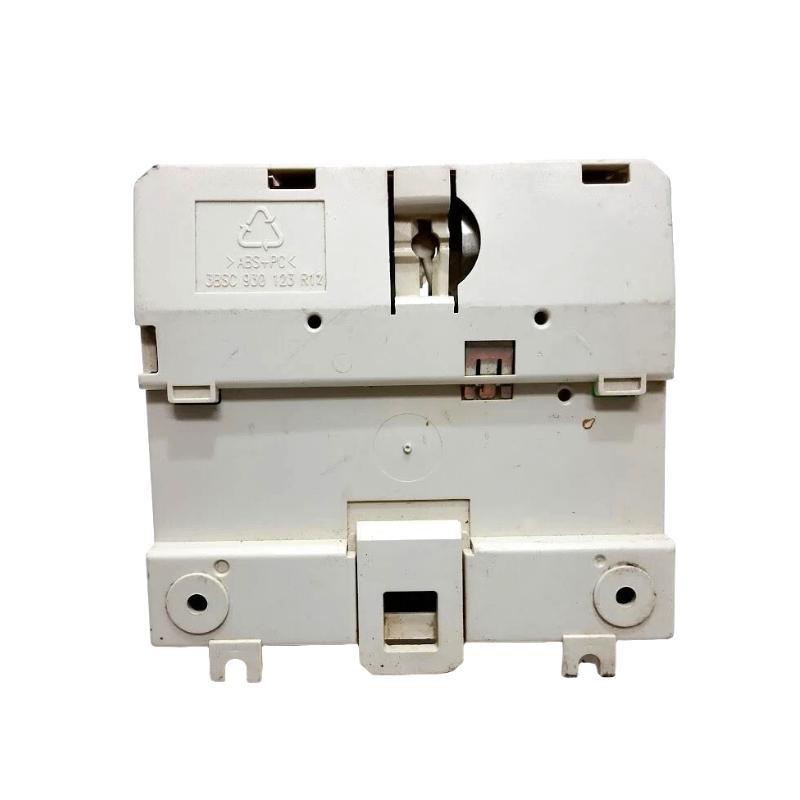

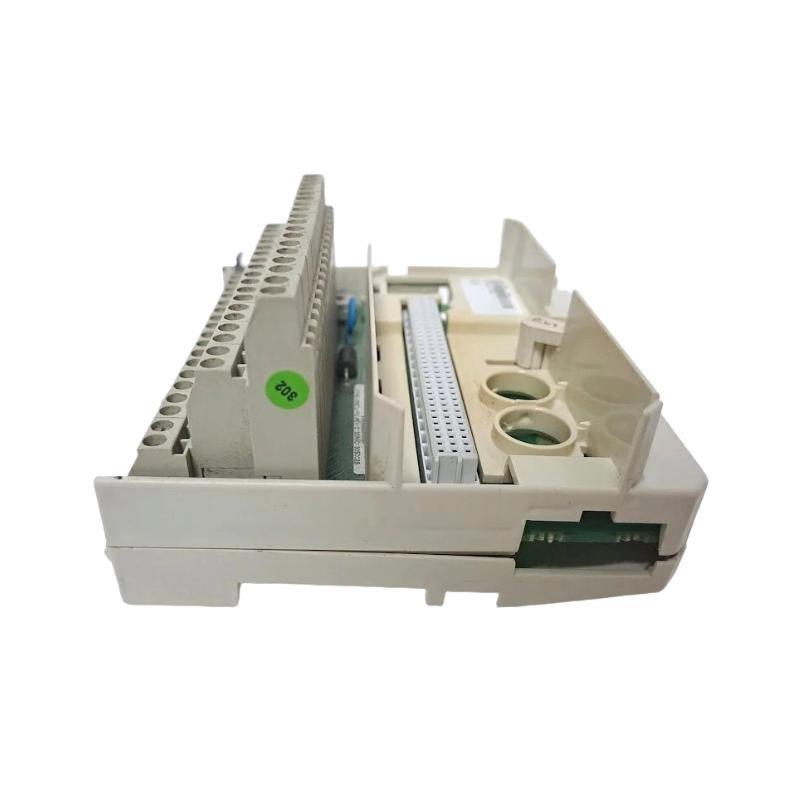

The ABB GRBTU-01, part number 3BSE013175R1, is a high-quality Module Terminal 单位 (MTU) designed for use within ABB’s 800xA and Symphony Plus automation platforms. This component plays a critical role in connecting field wiring to I/O modules safely and efficiently. As a base 件 for mounting I/O modules, it provides mechanical support, electrical interfacing, and structured terminal connectivity between process instrumentation and the automation system.
The GRBTU-01 ensures secure signal transmission and simplifies system integration by /fering standardized terminal layouts, pre-defined labeling, and robust contact interfaces. It is optimized for compatibility with ABB’s redundant I/O systems, ensuring high availability and reliability in mission-critical industrial environments.
产品规格
| Parameter | Details |
|---|---|
| Product Name | ABB GRBTU-01 Module Terminal 单位 |
| 零件号 | 3BSE013175R1 |
| Product Type | Module Terminal 单位 (MTU) |
| System Compatibility | ABB 800xA, Symphony Plus |
| I/O Type | Redundant Analog/Digital I/O Modules |
| Connection Interface | Screw-type terminal connections |
| Terminal Capacity | Up to 2.5 mm² wire cross-section |
| Mounting Type | DIN Rail Mountable (EN 50022 standard) |
| Number / Terminals | 32-channel terminal base |
| Electrical Isolation | Galvanic isolation between system and field signals |
| Operating Voltage | Up to 30V DC (as per I/O module specs) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Flame Class (Housing) | UL94 V-0 |
| Certifications | CE, RoHS, UL, cUL, IEC/EN 61131-2 |
| Dimensions (H × W × D) | 120 × 90 × 65 mm |
| 重量 | 0.18 kg |
| Enclosure Protection | IP20 (when installed in cabinet) |
Applications
The ABB GRBTU-01 is purpose-built for complex industrial automation systems, particularly where redundancy and high reliability are critical. Common application sectors include:
-
Power Generation Plants
Used in turbine control systems and balance-/-plant operations. -
Oil & Gas Facilities
支持s wellhead, compressor, and process station I/O integration with redundancy. -
Chemical & Petrochemical Plants
Facilitates safe analog/digital signal interfacing for instrumentation in hazardous areas. -
Water and Wastewater Treatment
Provides I/O expansion capability for flow, pressure, and pump station automation. -
Pulp & Paper Industry
Interfaces with I/O modules for process control in digesters, paper machines, and stock prep. -
Mining and Metals Processing
Enhances monitoring and control / conveyor systems, crushers, and smelters.
Key Advantages
-
Redundancy-Ready Design
支持s dual-channel I/O modules and fault-tolerant architectures for critical operations. -
Simplified Field Wiring
Clearly labeled terminals and structured layout improve installation speed and minimize errors. -
DIN-Rail Mountable
Quick installation in standardized control cabinets with secure mechanical stability. -
Galvanic Isolation
Protects the controller and I/O circuits from electrical disturbances in the field wiring. -
Maintenance-Friendly
Terminal marking, wiring space, and access points are optimized for fast troubleshooting. -
Durable Construction
Designed to withstand harsh industrial environments, with robust materials and protective housing. -
Wide System Compatibility
Seamlessly integrates with ABB’s 800xA and Symphony Plus control environments. -
Scalable Architecture
支持s modular expansion / I/O capabilities across distributed systems.
常见问题 (FAQ)
-
Q: What is the primary function / the GRBTU-01?
A: It serves as a terminal 件 to connect field wiring to I/O modules in ABB control systems. -
Q: Which automation systems is the GRBTU-01 compatible with?
A: It is compatible with ABB’s 800xA and Symphony Plus systems. -
Q: Is this terminal 件 designed for redundant I/O?
A: Yes, it supports redundant analog or digital I/O module configurations. -
Q: What is the maximum wire size it supports?
A: It supports up to 2.5 mm² wire cross-sections. -
Q: Can this 件 be mounted horizontally and vertically?
A: It is typically DIN rail mounted horizontally but can adapt to cabinet space as needed. -
Q: Does the GRBTU-01 /fer electrical isolation?
A: Yes, it provides galvanic isolation between field and system-side circuits. -
Q: What is the enclosure protection rating?
A: It /fers IP20 protection when installed inside an enclosure. -
Q: Is special s/tware required for configuring this terminal 件?
A: No, the terminal 件 itself does not require configuration—it’s a passive hardware interface. -
Q: What temperature range can it operate in?
A: It operates between -20°C and +70°C. -
Q: How is it labeled for maintenance or wiring purposes?
A: Terminal positions are clearly labeled to simplify wiring and service.
Related or Similar 型号s (Same Series/Functionality)
| 型号 | 描述 | System Compatibility | Application |
|---|---|---|---|
| GRBTU-02 | Extended MTU with additional terminal capacity | Symphony Plus / 800xA | Redundant I/O Termination |
| TU830V1 | Extended MTU with 16 Channels | S800 I/O | Analog/Digital MTU |
| TU810V1 | Basic MTU for Single/Dual I/O | S800 I/O | General-purpose I/O |
| TU840 | MTU with Extended Field Power Supply 支持 | S800 I/O | Analog I/O with extra power |
| TU850 | Redundant I/O MTU, High Density | S800 I/O | High-channel count systems |
| TU890 | Compact MTU for DIN Mounting | S800 I/O | Compact I/O Integration |
Popular ABB Automation Modules
| 型号 | 描述 | Application | Interface |
|---|---|---|---|
| PM864AK01 | AC800M High-Performance CPU | Process Automation Controller | Ethernet / PROFIBUS |
| CI862-PN | PROFINET Interface Module | 800xA System I/O Communication | PROFINET |
| AI820 | Analog Input Module (8-channel) | S800 I/O | 4–20 mA Analog Input |
| DI820 | Digital Input Module (16 channels) | S800 I/O | Digital Input |
| CP600-Pro | Industrial HMI Panel with High-Resolution Display | Operator Interface | Ethernet / USB |
| DO880 | Digital Output Module with Diagnostic Functionality | S800 I/O | Digital Output |
