产品介绍

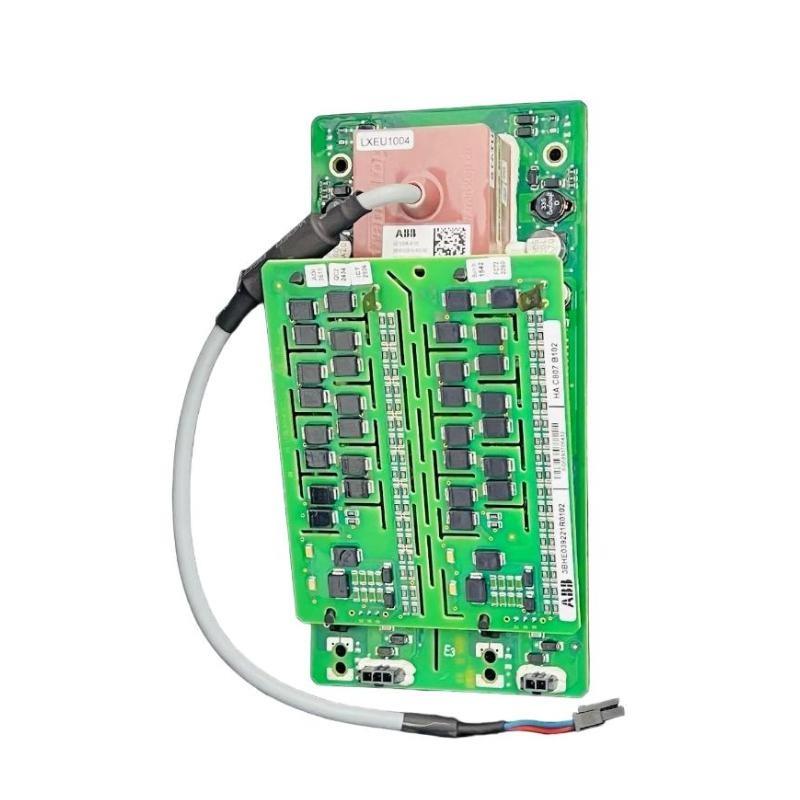

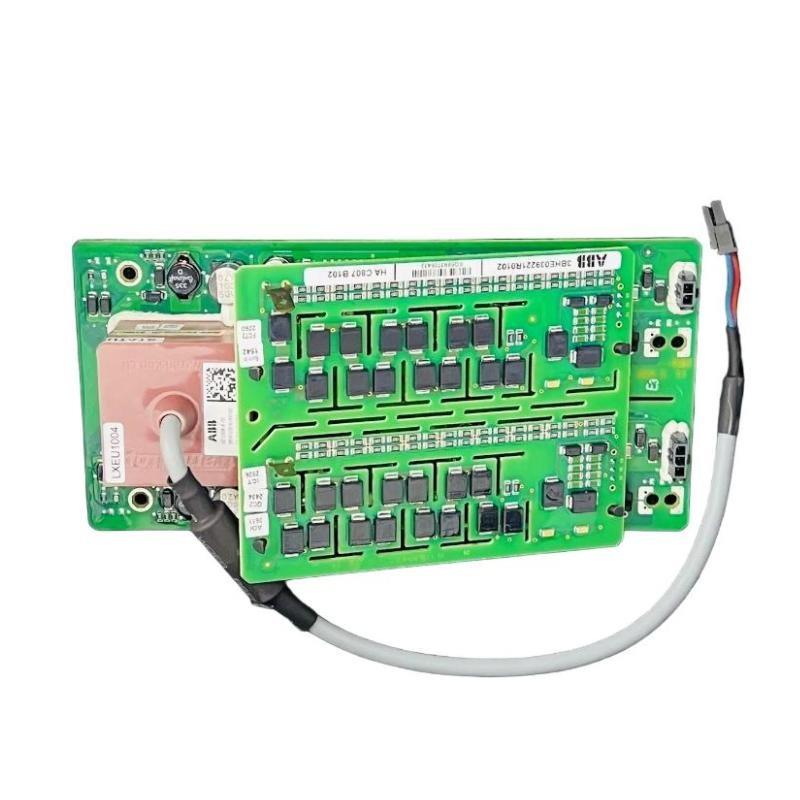

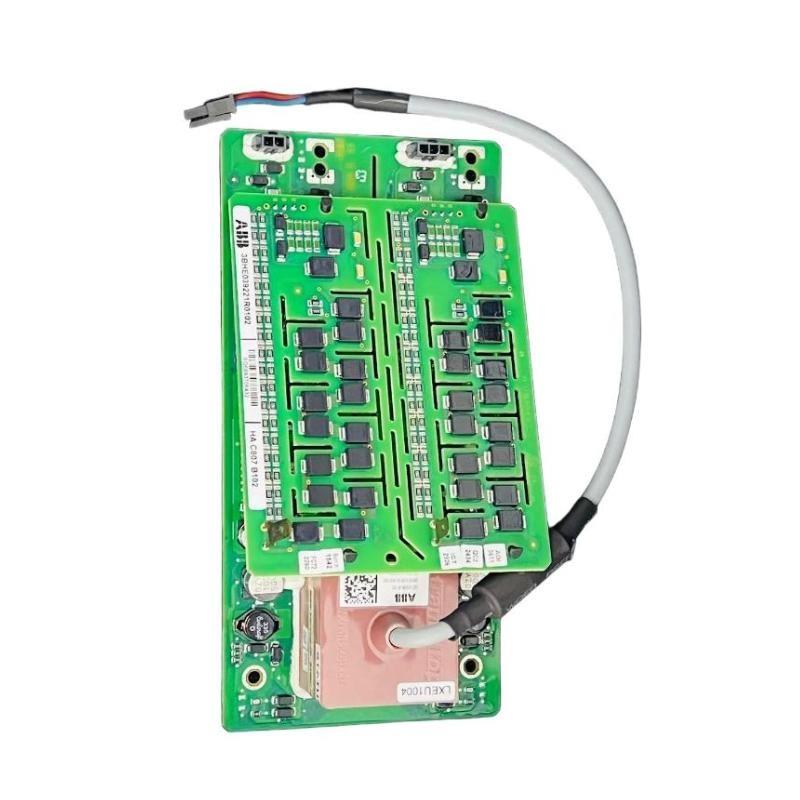

The ABB GD C806 A2004 3BHE028761R2004 Control Board Module is a high-performance control electronics module designed for ABB medium- and high-voltage drive systems. This board provides precision control / power semiconductor devices such as IGCTs and IGBTs, ensuring stable operation and protection / the drive system under demanding industrial conditions.
Engineered with advanced PCB design, the C806 A2004 integrates signal conditioning circuits, control logic, diagnostic feedback loops, and interface connectors, allowing seamless communication with ABB drive controllers. Its robust architecture supports fast digital processing, enabling rapid response to transient events in the power system.
The module plays a critical role in enhancing operational reliability, providing accurate triggering signals, monitoring voltage and current levels, and coordinating with protection modules to safeguard high-value components. Its modular design ensures easy installation and maintenance in ABB control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product 型号 | GD C806 A2004 |
| 制造商 | ABB |
| 零件号 | 3BHE028761R2004 |
| Product Type | Control Board Module |
| Function | Drive system control and protection |
| 支持ed Devices | IGCTs, IGBTs |
| Control Interface | Logic level / TTL inputs |
| Diagnostic Feedback | Voltage, current, and fault status outputs |
| Response Time | <10 µs |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 24 VDC / 12 VDC logic compatible |
| PCB Layers | 6-layer high-performance PCB |
| Component Count | >250 components |
| Mounting Type | Rack-mounted or slot-mounted |
| Connector Type | High-speed logic connectors, power terminals |
| Dimensions | 200 × 150 × 45 mm |
| 重量 | 0.45 kg |
| Compliance | CE, RoHS, IEC 60204 |
Product Applications
The ABB GD C806 A2004 Control Board Module is applied in a wide range / ABB high-power systems, particularly where precision drive control and protection are critical:
-
Medium and High-Voltage Drives: Controls and protects power semiconductor devices in ABB MV/HV drives.
-
Industrial Automation: Interfaces with control systems for motor control and process automation.
-
Energy Conversion Systems: Provides reliable control for rectifiers and inverters in industrial power setups.
-
Renewable Energy Systems: Ensures accurate control / drives in wind turbines and hydroelectric plants.
-
Power Electronics Testing: Utilized in testing setups for validating IGCT and IGBT performance.
-
Heavy Machinery and Robotics: Controls drives and protects high-power motors from transient faults.
-
Custom ABB Modules: Can be integrated into bespoke ABB high-power electronic systems.
Product Advantages
-
High-Speed Control: Sub-10 microsecond response time for critical operations.
-
Precision Signal Processing: Ensures accurate triggering / semiconductor devices.
-
Integrated Diagnostics: Provides real-time monitoring / voltage, current, and fault conditions.
-
Modular and Compact: Easily installed within ABB drive cabinets, supporting rack- or slot-mounted setups.
-
High Reliability: Designed with high-quality components and multilayer PCB for industrial robustness.
-
Flexible Interface: Compatible with standard TTL and logic-level control signals.
-
Enhanced Protection: Coordinates with overvoltage, overcurrent, and crowbar modules for maximum safety.
-
Industrial Compliance: Meets CE, RoHS, and IEC standards.
-
Maintenance-Friendly Design: Clear connector labeling and component layout for easy servicing.
-
Thermal Stability: Optimized for effective heat dissipation under high-current operations.
常见问题 (FAQ)
-
What is the main purpose / the GD C806 A2004 Control Board Module?
It controls and protects IGCTs and IGBTs in ABB medium- and high-voltage drive systems. -
Which devices are supported by this control module?
It is compatible with IGCT and IGBT power semiconductor devices in industrial drives. -
What is the response time / the module?
The module provides a response time / less than 10 microseconds for critical control signals. -
How is the module powered?
It accepts 24 VDC or 12 VDC logic-level input for control operation. -
Does the module provide diagnostic feedback?
Yes, it outputs voltage, current, and fault status for system monitoring. -
Can this board be integrated into ABB racks?
Yes, it supports rack-mounted and slot-mounted installation in ABB drive cabinets. -
What kind / control interface does the board use?
The board uses TTL or logic-level inputs for signal interfacing. -
Is the module compliant with industrial standards?
Yes, it meets CE, RoHS, and IEC 60204 requirements. -
What is the operating temperature range?
The board operates between -20°C and +65°C for industrial environments. -
How does this module enhance system safety?
By providing accurate triggering, monitoring, and coordination with protection modules, it ensures safe operation / high-power drives.
Related 型号s (Same Series)
| 型号 Number | 描述 | 分类 |
|---|---|---|
| ABB GD C806 A2001 | Control board module with enhanced interface | Control Module |
| ABB GD C806 A2002 | Advanced IGCT control board | Control Module |
| ABB GD C806 A2003 | IGBT/IGCT control with diagnostics | Control Module |
| ABB GD C806 A2005 | High-speed drive control board | Control Module |
| ABB GD C806 A2006 | Modular control and monitoring board | Control Module |
| ABB GD C806 A2007 | Integrated drive protection control module | Control Module |
Popular ABB 型号s (Same 品牌)
| 型号 Number | 描述 | 分类 |
|---|---|---|
| ABB GD C801 A101 | Crowbar board module | Protection Module |
| ABB GD C804 A102 | Drive control interface board | Control Module |
| ABB XV C517 AE10 | Gate driver 件 | Power Electronics |
| ABB XV C723 AE08 | Current measuring instrument | Measurement Module |
| ABB AI810 | Analog input module | I/O Module |
| ABB AO810 | Analog output module | I/O Module |
