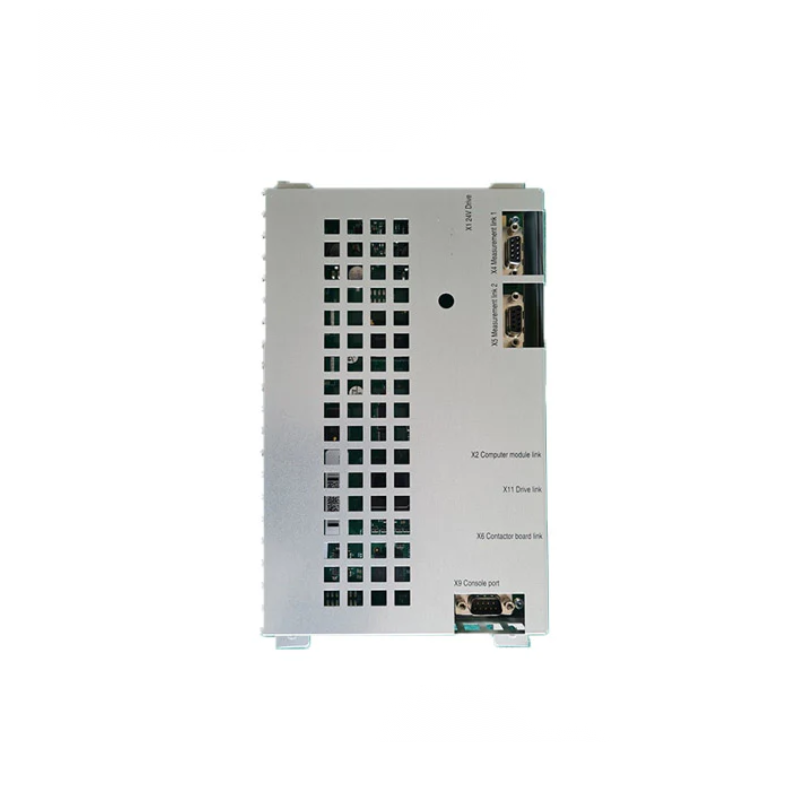

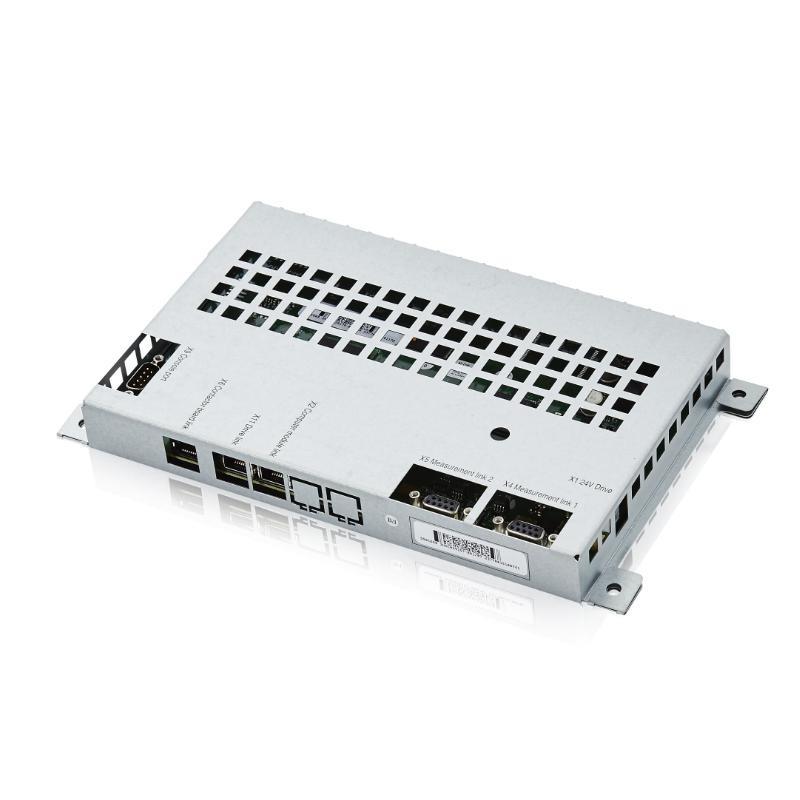

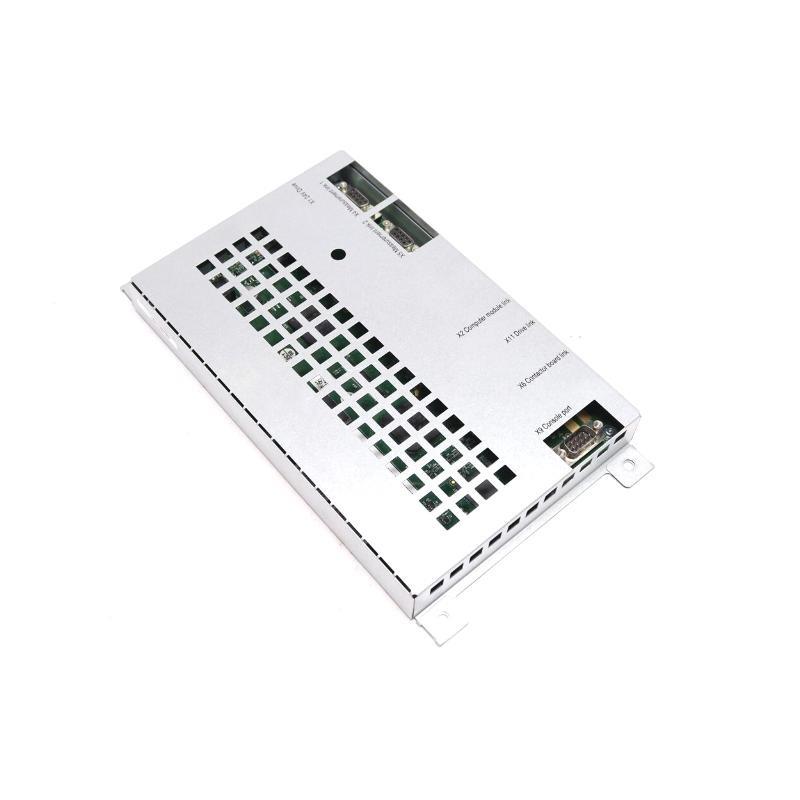

The ABB DSQC 668 3HAC029157-001 is a high-performance robot communication interface board designed specifically for ABB’s IRC5 robot controller platform. This 件 plays a critical role in enabling seamless communication between robot systems and various fieldbuses, particularly PROFINET IO, which is widely used in industrial automation environments.
As part / ABB’s advanced robotic controller accessory line, the DSQC 668 provides reliable and flexible data transmission capabilities. It integrates into the controller system architecture via dedicated slots and functions as a PROFINET interface module, ensuring optimized control performance, low latency, and compatibility with various industrial protocols.
The DSQC 668 is a critical module in environments where high-speed, real-time communication between PLCs and robotic control systems is essential. Its robust design, s/tware compatibility, and seamless integration with other ABB hardware make it a vital component in demanding automation applications.
Product Advantages
-
Reliable Industrial Communication: Offers robust and consistent data exchange between IRC5 robot controllers and external PROFINET IO devices.
-
Plug-and-Play Integration: Easily installable into the controller backplane without the need for extensive configuration.
-
Wide Compatibility: 支持s multiple ABB robot systems and seamlessly communicates with third-party industrial control systems.
-
Real-Time Processing: Ensures high-speed response and real-time data throughput, critical for synchronization in automated systems.
-
ABB Proven Quality: Designed under ABB’s rigorous standards, guaranteeing long-term stability and low failure rates.
-
Enhanced Diagnostic Features: Provides advanced communication monitoring and error diagnostics for maintenance efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | DSQC 668 (3HAC029157-001) |
| Function | PROFINET IO Communication Interface Module |
| 支持ed Protocol | PROFINET IO, RT communication |
| Voltage Supply | 24 VDC (from controller backplane) |
| Power Consumption | 2.5 W |
| Installation | Inside IRC5 controller slot |
| Mounting Type | Backplane mounting |
| Interface Type | RJ45 Ethernet ports (typically 2) |
| Operating Temp | 0°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 (as installed in controller enclosure) |
| Dimensions | 269x 147x 27mm |
| 重量 | 0.58 kg |
| Certifications | CE, RoHS, UL (where applicable) |
Product Applications
-
Industrial Robotics: Facilitates communication between ABB robots and control systems in assembly lines, automotive plants, and packaging facilities.
-
Manufacturing Automation: Used in factories requiring seamless PLC-to-robot data exchange via PROFINET networks.
-
Material Handling Systems: Ensures synchronized operation between conveyors, sensors, and robotic arms.
-
Welding and Painting Robots: Ideal for communication-critical applications with high cycle rates and real-time processing needs.
-
OEM Machine Integration: Integrates ABB robot controllers with OEM machinery via industrial communication standards.
Installation Instructions
-
Power Down the Controller: Always turn /f the IRC5 controller and disconnect it from the main power source before installation.
-
Open the Controller Housing: Access the internal controller slots where the DSQC modules are inserted.
-
Insert the DSQC 668 Module: Slide the module into the designated PROFINET-compatible slot until it clicks into place on the backplane.
-
Secure and Connect: Ensure the module is firmly seated and connect the Ethernet cables to the RJ45 ports as required.
-
Power On and Configure: Restart the IRC5 controller. The DSQC 668 will be automatically recognized by the system. Use the RobotWare s/tware interface to assign IP addresses and configure PROFINET settings.
-
Test Communication: Validate the communication link between the robot controller and the external system via network diagnostics.
Compatible / Related 型号s (Same Series or Function)
-
DSQC 663 – EtherNet/IP Communication Board
-
DSQC 652 – Communication Module for IRC5
-
DSQC 679 – Fieldbus Interface Board (PROFIBUS)
-
DSQC 627 – DeviceNet Interface Module
-
DSQC 661 – Safety Communication Module
-
DSQC 643 – I/O Expansion Board for IRC5
Popular ABB 型号s (with Key Specifications)
| 型号 Number | Function | Dimensions (mm) | 重量 | Voltage |
|---|---|---|---|---|
| DSQC 663 | EtherNet/IP Comm Interface | 160×100×25 | 220 g | 24 VDC |
| DSQC 652 | I/O Interface Module | 150×90×30 | 240 g | 24 VDC |
| DSQC 679 | PROFIBUS Communication Module | 160×100×25 | 230 g | 24 VDC |
| DSQC 223 | Digital I/O Board | 140×85×30 | 200 g | 24 VDC |
| DSQC 352A | Resolver Interface Card | 160×100×25 | 210 g | 24 VDC |
| DSQC 655 | Axis Computer Board | 160×100×30 | 300 g | 24 VDC |
| DSQC 643 | I/O Expansion Board | 170×90×25 | 250 g | 24 VDC |
| DSQC 239 | Relay Output Board | 150×90×20 | 220 g | 24 VDC |
常见问题 (FAQ)
Q1: What is the main function / the DSQC 668 module?
A1: The DSQC 668 is a communication interface board for PROFINET IO, enabling high-speed data exchange between ABB robot controllers and external control systems.
Q2: Can I use DSQC 668 in systems not based on IRC5?
A2: 序号 It is specifically designed for use in ABB’s IRC5 robotic controller architecture.
Q3: Does the DSQC 668 support real-time communication?
A3: Yes, it supports PROFINET IO with RT (Real-Time) capabilities for precise and synchronized control.
Q4: Is the DSQC 668 hot-swappable?
A4: 序号 Power must be turned /f before installing or removing the module to avoid damage.
Q5: What s/tware is required to configure the DSQC 668?
A5: ABB’s RobotWare s/tware is used for configuration, including network settings and diagnostics.
Q6: How many PROFINET ports does the DSQC 668 provide?
A6: It typically provides two RJ45 Ethernet ports to support PROFINET communication and daisy-chaining.
Q7: Is any firmware update required before using the DSQC 668?
A7: The module may require matching firmware versions with the RobotWare release used. Always refer to ABB compatibility notes.
Q8: Can I replace DSQC 668 with DSQC 663?
A8: 序号 DSQC 668 is for PROFINET IO, while DSQC 663 is for EtherNet/IP. They’re protocol-specific.
Q9: How long is the warranty period?
A9: The standard warranty is 1 years, subject to proper usage and conditions.
Q10: Where can I buy original DSQC 668 modules?
A10: Only purchase from authorized ABB distributors or certified industrial automation resellers to ensure authenticity.
