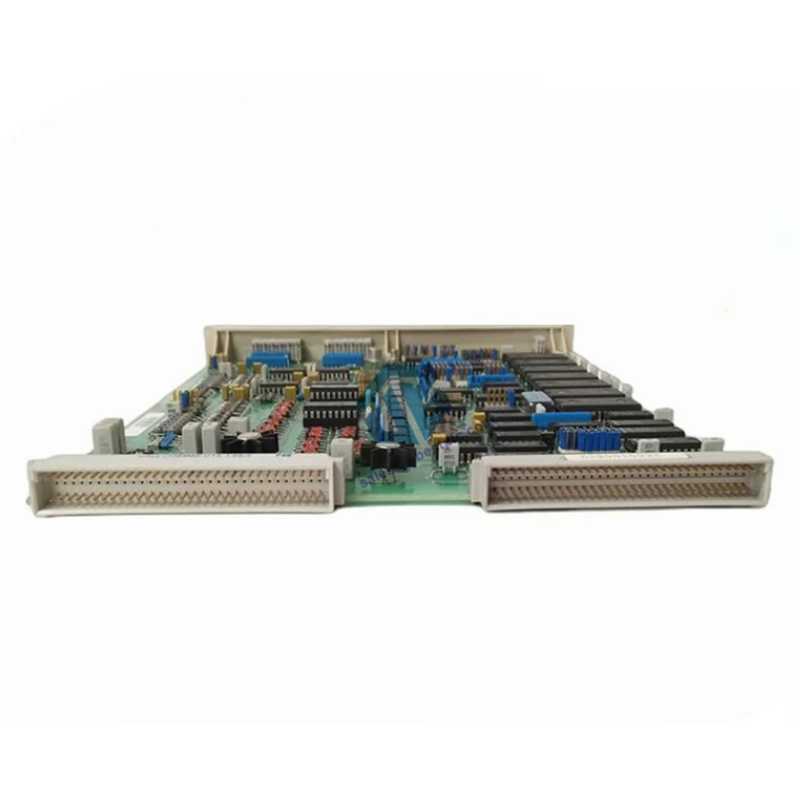

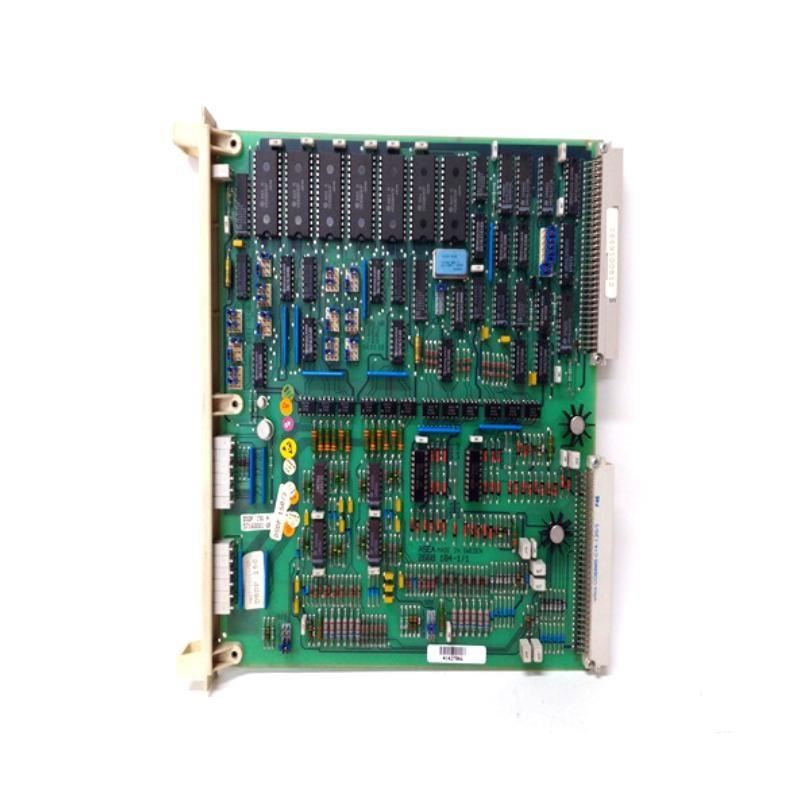

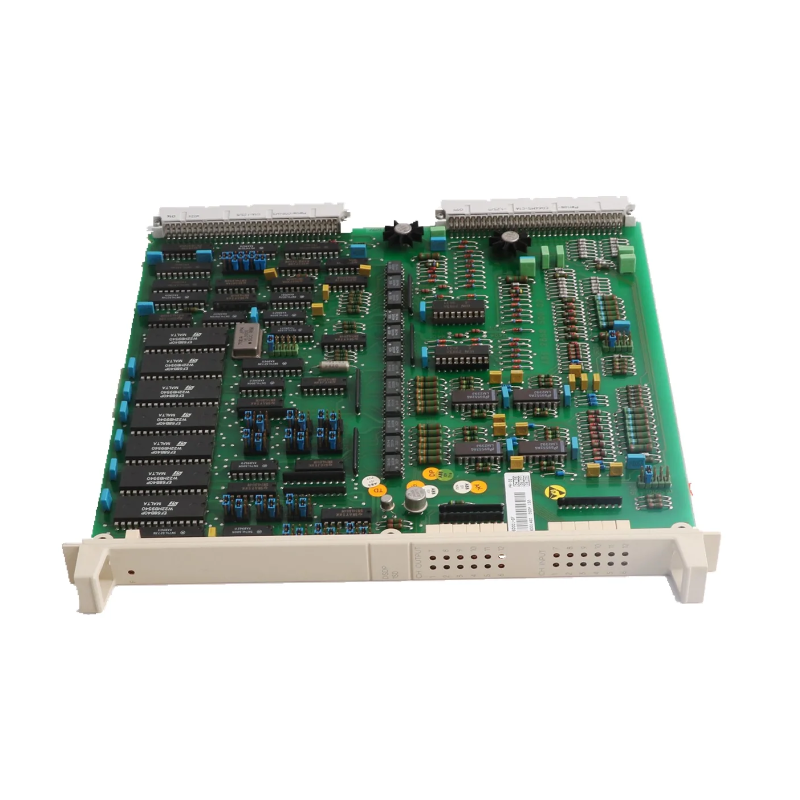

ABB DSDP 150 57160001-GF Pulse Encoder Input 单位

Product Overview

The ABB DSDP 150 57160001-GF Pulse Encoder Input 单位 is an advanced industrial module designed to interface with pulse encoders in automation systems. This 件 is primarily used for receiving, processing, and transmitting data from pulse encoders, which are crucial in applications requiring precise positioning, speed, and rotational measurement. The DSDP 150 module converts the pulse signals from encoders into digital data, which can be processed by control systems such as ABB’s AC 800M, 800xA, and Advant platforms.

This 件 is suitable for applications in sectors like manufacturing automation, robotics, material handling, and other industries where accurate control / motor positions, speed, and motion is critical. The DSDP 150 is highly reliable and capable / processing a wide variety / encoder signal types, making it versatile and adaptable for many industrial environments.

With its robust design, the DSDP 150 is well-suited for use in harsh industrial settings, /fering excellent performance even under demanding conditions. The module provides high-speed data acquisition and has advanced diagnostic features, ensuring operational efficiency and ease / maintenance.

Technical Specifications

Applications

The ABB DSDP 150 57160001-GF Pulse Encoder Input 单位 is used in numerous industrial applications where accurate rotational measurements are essential. Common applications include:

• Robotics: The module interfaces with encoders in robotic systems to monitor and control motor positions and movement speed, ensuring precise control / robotic arms and automated processes.

• Manufacturing Automation: In manufacturing, the DSDP 150 is used to process encoder signals from conveyor belts, assembly lines, and other automated equipment, providing feedback for motion control and system optimization.

• Material Handling: The module is commonly used in material handling systems such as cranes, hoists, and automated guided vehicles (AGVs) to measure and control the speed and positioning / moving parts.

• CNC Machines: In CNC machining and milling operations, the DSDP 150 processes signals from encoders to ensure accurate and repeatable control / machine tools for precision fabrication.

• Packaging Systems: The 件 is used in packaging lines to control the speed and position / packaging equipment, improving overall line efficiency and product consistency.

• Textile and Printing Machines: The DSDP 150 is utilized to control the speed and positioning / motors in textile and printing machinery, ensuring high-speed, accurate, and consistent operations.

Key Advantages

• Versatile Input 支持: The DSDP 150 can process a wide range / pulse encoder signals, including incremental and absolute encoders, making it suitable for various applications across multiple industries.

• High-Speed Data Acquisition: The module supports signal frequencies up to 500 kHz, ensuring that even high-speed applications can be accurately controlled.

• Galvanic Isolation: The DSDP 150 features galvanic isolation between inputs and the control system, protecting against electrical noise, ground loops, and voltage surges, which are common in industrial environments.

• Compact and Easy Integration: The module has a compact design and uses DIN rail mounting, allowing for easy installation in control panels and quick integration into existing automation systems.

• Low Power Consumption: At just 5 W / power consumption, the DSDP 150 is energy-efficient, contributing to lower operational costs in large-scale automation systems.

• Advanced Diagnostics: The module includes built-in diagnostic functions that allow for easy troubleshooting and maintenance, helping to minimize downtime and maximize operational efficiency.

• Reliable in Harsh Environments: The DSDP 150 is designed to withstand challenging industrial conditions, with an operating temperature range / -20°C to +60°C, making it suitable for a wide range / environments.

• High Accuracy: The DSDP 150 provides accurate signal processing, ensuring precise control / motors, actuators, and other components in motion control systems.

• Long Operational Life: The module is built for long-term use, /fering durability and minimal maintenance requirements, which helps reduce costs over the life / the system.

• Seamless System Integration: The DSDP 150 is fully compatible with ABB’s automation systems, including 800xA, AC 800M, and Advant, ensuring smooth integration with other ABB components and control platforms.

常见问题 (FAQ)

1. What types / encoders can the DSDP 150 process?
   The DSDP 150 can process signals from both incremental and absolute pulse encoders, providing flexibility for different motion control applications.

2. What is the maximum signal frequency that the DSDP 150 can handle?
   The DSDP 150 supports signal frequencies up to 500 kHz, making it suitable for high-speed applications.

3. How many channels does the DSDP 150 support?
   The DSDP 150 has 4 input channels, allowing for simultaneous processing / multiple encoder signals.

4. Can the DSDP 150 be used in hazardous environments?
   The DSDP 150 is designed for industrial environments but is not specifically certified for hazardous locations. For hazardous applications, please consult ABB’s explosion-pro/ modules.

5. How is the DSDP 150 mounted?
   The module uses DIN rail mounting, making it easy to install in control panels or cabinets without taking up much space.

6. What is the power consumption / the DSDP 150?
   The DSDP 150 typically consumes 5 W / power, contributing to lower operational costs in large-scale systems.

7. What isolation features does the DSDP 150 /fer?
   The module provides galvanic isolation between the encoder inputs and the control system, protecting both from electrical disturbances and faults.

8. What types / signals can the DSDP 150 measure?
   The module can measure quadrature, pulse width, and frequency signals, making it suitable for a wide range / pulse encoder types.

9. What is the operating temperature range for the DSDP 150?
   The module operates within a temperature range / -20°C to +60°C, making it suitable for most industrial environments.

10. What certifications does the DSDP 150 have?
    The module is certified with CE, UL, RoHS, and ISO 9001, ensuring compliance with international standards for quality and safety.
