Product Overview

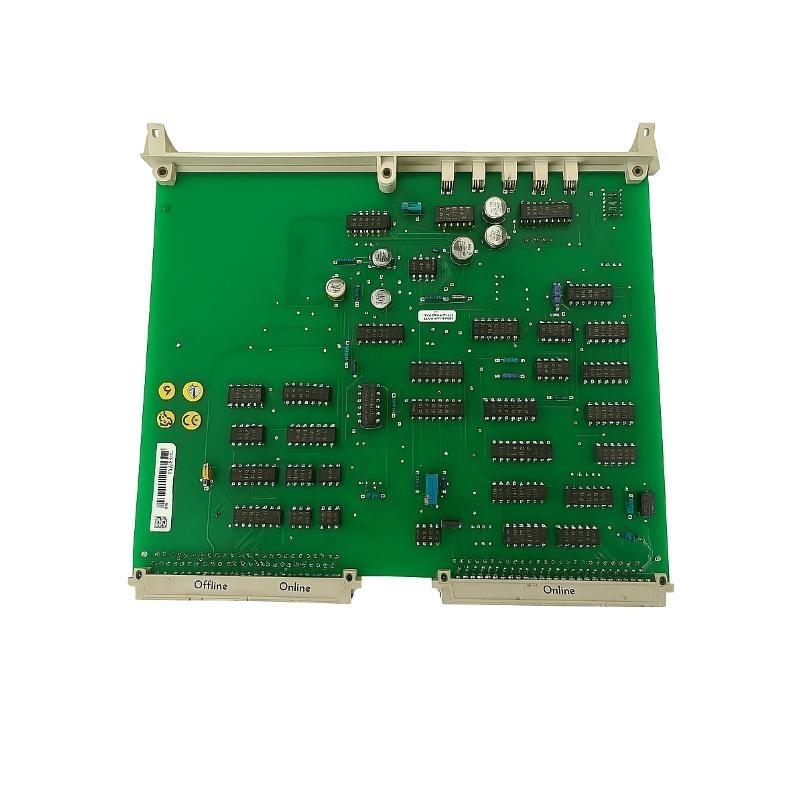

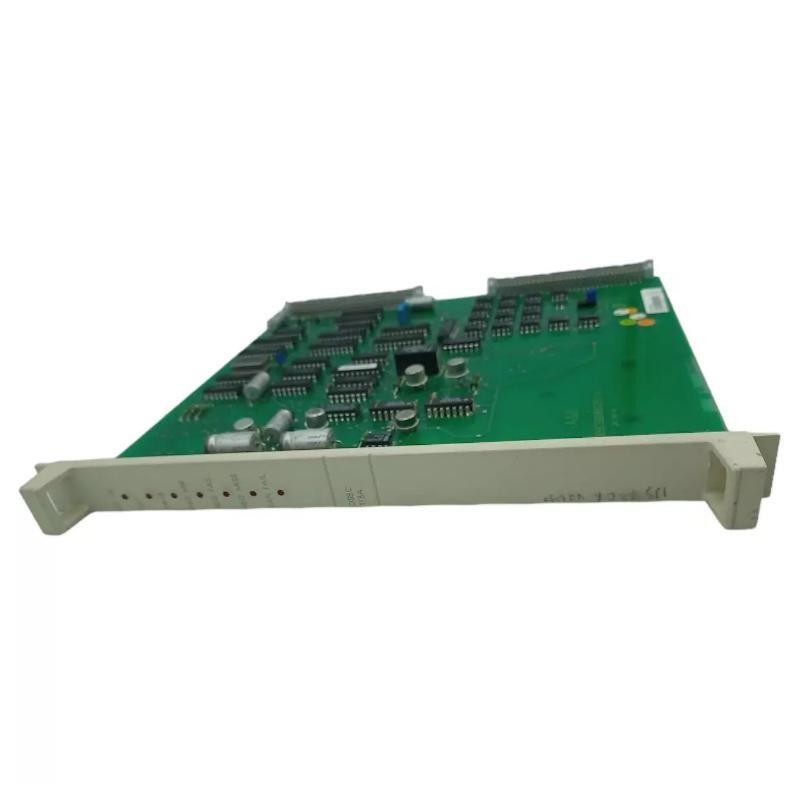

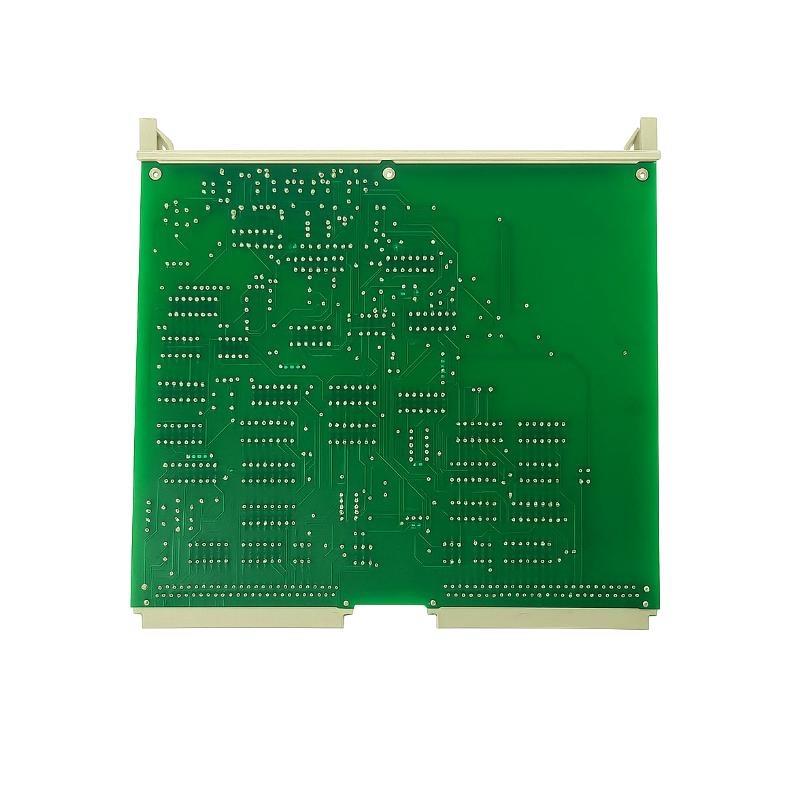

The ABB DSBC 173A (零件号: 3BSE005883R1) is a bus extender module designed for use within ABB’s Advant Master and Symphony DCS systems. Its primary role is to extend the communication bus between controller 件s and remote I/O modules across different racks or system cabinets. This module ensures signal integrity and proper bus synchronization across distances, maintaining performance in distributed control environments.
By extending the bus line, the DSBC 173A allows engineers to design flexible and scalable system layouts, without compromising on timing, signal fidelity, or system reliability. It serves as a critical backbone component in modular and decentralized system architectures.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | DSBC 173A |
| 零件号 | 3BSE005883R1 |
| Product Type | Bus Extender |
| System Compatibility | Advant Master, Symphony DCS, and AC 800M |
| Function | Extension / bus communication between control modules |
| Communication Protocol | Proprietary ABB High-Speed Bus |
| Bus Type | Backplane/system bus extender |
| Transmission Distance | 支持s rack-to-rack extension up to several meters |
| Power Supply | 5 VDC from backplane |
| Bus Termination | Via configuration (integrated jumper) |
| LED Indicators | Yes (status indicators) |
| Diagnostics | Communication status and failure detection |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted or card-frame mounted |
| Dimensions (H × W × D) | 324 x 22.5 x 234 mm |
| 重量 | 0.32 kg |
| Certifications | CE, RoHS, UL/cUL |
| 制造商 | ABB Ltd. |
Applications
The DSBC 173A is utilized in distributed control system (DCS) architectures where multiple controllers, I/O racks, or system components are located at different physical points. It ensures seamless communication over the backplane or extended bus lines.
-
Power Plants: Linking turbine controllers and I/O across distributed enclosures
-
Chemical Plants: Connecting local and remote control stations within process areas
-
Oil & Gas Platforms: Bridging system modules across explosion-pro/ zones
-
Water and Wastewater Facilities: Extending control signals to pump stations and treatment areas
-
Large Industrial Campuses: 支持ing long-distance layout / system control panels
-
Steel and Metallurgy: Connecting high-temperature and low-voltage control zones
Product Advantages
-
Reliable Signal Extension: Maintains communication integrity between distributed racks or cabinets.
-
Flexible System Architecture: Enables modular designs without sacrificing performance or reliability.
-
Compact Form Factor: Slim and lightweight, fits within standard control system chassis.
-
Diagnostic LEDs: Provides immediate visual feedback on communication status.
-
Low Power Consumption: Draws power directly from the system backplane, minimizing wiring.
-
High Compatibility: Integrates easily with ABB’s Advant, Symphony, and 800xA platforms.
-
Field-Proven Durability: Engineered for long-term use in industrial environments with wide temperature ranges.
-
Simple Installation: Plug-in rack module form allows quick integration and replacement.
常见问题 (FAQ)
1. What is the primary function / the DSBC 173A?
It extends the system communication bus across different racks or cabinets in a control system.
2. Which ABB systems support this module?
It is compatible with ABB’s Advant Master, Symphony, and AC 800M platforms.
3. Does it require a separate power supply?
No, it receives power directly from the system backplane (typically 5 VDC).
4. How far can the bus extension reach?
It supports several meters / distance between system modules, depending on installation and wiring standards.
5. Can the DSBC 173A be hot-swapped?
No, bus extender modules should be handled with the system powered down to prevent communication faults.
6. What indicators does it have?
It includes onboard LEDs for communication status and error detection.
7. Is this module programmable?
No, it operates as a passive communication extender and does not require programming.
8. What are the mechanical mounting requirements?
It is mounted into a standard control rack or chassis via its card edge connector.
9. Can it be used in redundant systems?
Yes, it supports use in redundant architectures for high availability systems.
10. What is the typical weight and size?
The DSBC 173A weighs 0.32 kg and measures 324 x 22.5 x 234 mm.
Related 型号s from the Same Series or Function Group
| 型号 Number | 描述 | Function | System | 重量 (kg) |
|---|---|---|---|---|
| DSBC 110 | Bus Extender Module | Basic bus communication | Advant/Symphony | 0.30 |
| DSBC 176 | Bus Repeater Module | Signal regeneration | Advant | 0.32 |
| DSDO 120 | Digital Output Module | Output control | Symphony | 0.47 |
| DSDI 130 | Digital Input Module | Input acquisition | Symphony | 0.48 |
| DSAI 130 | Analog Input Module | Analog signal processing | Advant | 0.50 |
| DSCA 125 | Communication Adapter | Communication interface | Symphony | 0.36 |
Popular ABB Modules Across Industrial Systems
| 型号 Number | 描述 | Function | System | 重量 (kg) |
|---|---|---|---|---|
| PM864A | AC 800M CPU Module | Main controller | 800xA | 1.5 |
| CI854A | Pr/ibus-DP Communication Module | Fieldbus connectivity | AC 800M | 0.35 |
| DO810 | Digital Output Module (16-ch) | Output switching | S800 I/O | 0.27 |
| AI810 | Analog Input Module (8-ch) | Input signal conversion | S800 I/O | 0.65 |
| TB840A | System Bus Termination 单位 | I/O bus termination | S800 I/O | 0.05 |
| CP6415 | 15” HMI Control Panel | Human-Machine Interface | CP600 Series | 3.2 |
