产品介绍

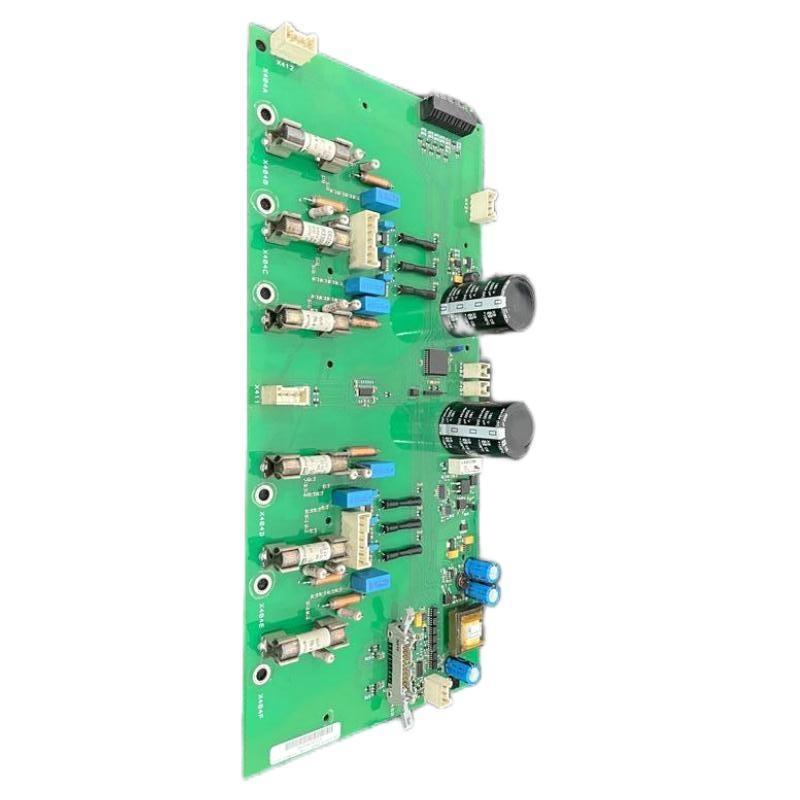

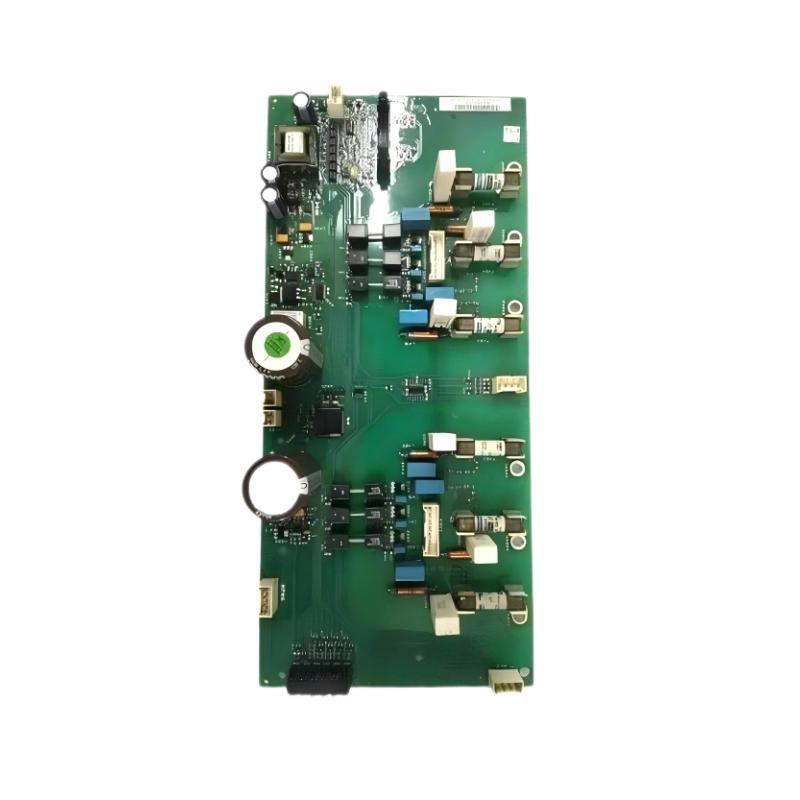

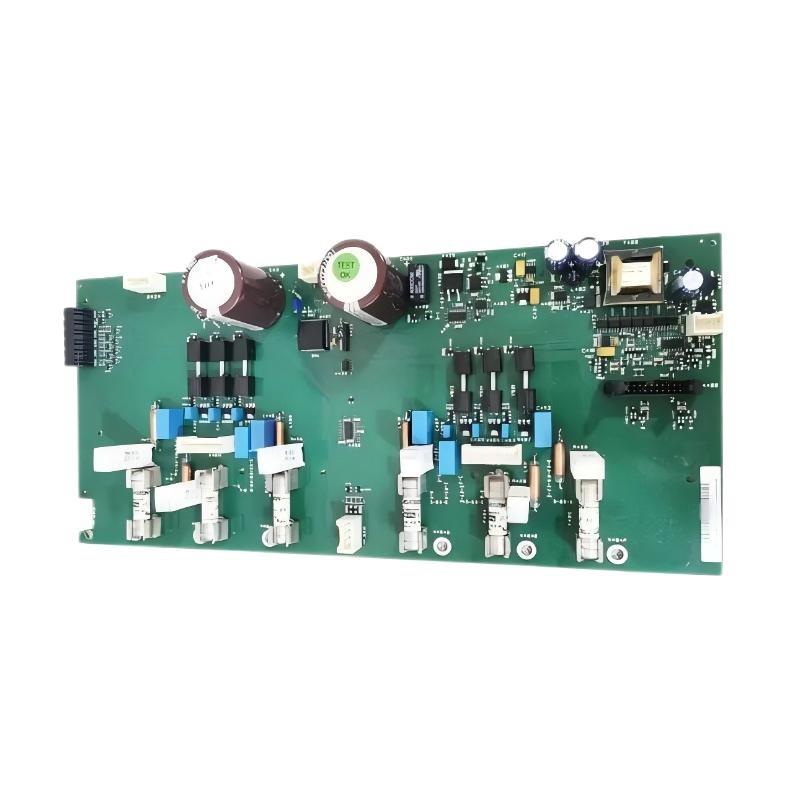

The ABB DSAB-02C is an advanced inverter conversion board designed to optimize and control the performance / power electronics in industrial applications. This board is a key component in transforming DC power into AC power efficiently and is used extensively in inverter-driven systems. It ensures high performance, reduced energy loss, and extended lifespan for various industrial applications such as motor drives, renewable energy systems, and other power conversion processes.
The DSAB-02C is engineered for flexibility, reliability, and durability. It provides precise control over the inverter process, ensuring that the output power matches the required specifications with high efficiency. This is crucial in applications where energy efficiency and reliability are paramount, such as in manufacturing, renewable energy, and automation systems.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 | DSAB-02C |
| 零件号 | N/A |
| Dimensions | 130 × 60 × 35 mm |
| 重量 | 0.5 kg |
| Input Voltage | 24-48 VDC |
| Output Voltage | 230-480 VAC |
| Output Current | Up to 10 A |
| Frequency | 50/60 Hz |
| Efficiency | > 90% |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN Rail Mount |
| Protection Features | Overcurrent, Overvoltage, Short Circuit |
| Cooling Method | Natural Convection |
Product Applications
The ABB DSAB-02C Inverter Conversion Board is used in a wide variety / applications that require efficient and reliable power conversion:
-
Industrial Motor Drives
Used in systems that require the conversion / DC to AC power for motor operation, providing smooth, reliable performance for industrial motors. -
Renewable Energy Systems
A critical component in photovoltaic (solar) inverters, wind turbine systems, and other renewable energy sources, where efficient power conversion from DC to AC is required. -
Power Distribution Systems
In applications that need high-voltage conversion for energy distribution, the DSAB-02C ensures reliable and efficient operation. -
Automation Systems
Used in automation and robotics, providing reliable power conversion for various control systems. -
UPS Systems (Uninterruptible Power Supply)
In backup power systems, where DC battery power is converted to AC to maintain the operation / critical equipment during power outages. -
Electric Vehicles (EV)
In EV chargers, the board is used to efficiently convert DC power to AC for charging and power management.
Product Advantages
-
High Efficiency
The DSAB-02C operates with an efficiency rate / over 90%, ensuring minimal energy loss during the power conversion process. -
Compact and Lightweight Design
With a compact size / 130 × 60 × 35 mm and weighing only 0.5 kg, the board is easy to integrate into various systems without taking up valuable space. -
Wide Input Voltage Range
It supports a wide input voltage range / 24-48 VDC, making it adaptable to a variety / power sources. -
Reliable Protection Features
The board includes overcurrent, overvoltage, and short-circuit protection, ensuring safety and longevity / the system in which it is integrated. -
Flexible Output Voltage
Capable / delivering output voltages between 230 and 480 VAC, the DSAB-02C can be used in a wide range / inverter applications. -
High Output Current Capacity
The 件 can handle up to 10 A / output current, making it suitable for medium to large-scale applications. -
Wide Operating Temperature Range
Designed to operate in environments ranging from -20°C to +60°C, it is ideal for use in diverse industrial environments. -
Natural Convection Cooling
The DSAB-02C uses natural convection for cooling, which reduces the need for additional cooling systems and minimizes maintenance requirements. -
DIN Rail Mountable
The board can be easily mounted on a DIN rail, simplifying installation and ensuring secure integration into control panels. -
Versatile Application
Whether for industrial motor drives, renewable energy systems, or automation applications, the DSAB-02C is a versatile and reliable choice for power conversion needs.
常见问题 (FAQ)
-
Q: What is the main function / the DSAB-02C Inverter Conversion Board?
A: The DSAB-02C is designed to convert DC power to AC power efficiently, providing reliable operation for industrial systems, renewable energy systems, and motor drives. -
Q: What is the maximum output current / the DSAB-02C?
A: The DSAB-02C can provide an output current / up to 10 A. -
Q: What is the input voltage range for this inverter conversion board?
A: The DSAB-02C supports an input voltage range from 24 VDC to 48 VDC. -
Q: How efficient is the DSAB-02C in its power conversion?
A: The DSAB-02C operates at an efficiency greater than 90%, minimizing energy loss. -
Q: What is the operating temperature range / the DSAB-02C?
A: The board operates reliably in temperatures ranging from -20°C to +60°C. -
Q: Can the DSAB-02C be used in outdoor applications?
A: The board is suitable for industrial environments and can be used outdoors if properly housed in an enclosure that provides protection from the elements. -
Q: How does the DSAB-02C handle overcurrent or short-circuit conditions?
A: The DSAB-02C features built-in overcurrent, overvoltage, and short-circuit protection to ensure system safety. -
Q: Is the DSAB-02C suitable for use in solar inverter systems?
A: Yes, the DSAB-02C is ideal for use in photovoltaic inverters, where it efficiently converts DC to AC power. -
Q: What mounting options are available for the DSAB-02C?
A: The DSAB-02C is designed to be mounted on a standard DIN rail, which simplifies installation in control cabinets. -
Q: What is the weight / the DSAB-02C?
A: The DSAB-02C weighs 0.5 kg, making it lightweight and easy to handle.
Recommended 型号s (Same Series or Related)
| 型号 | 零件号 | Dimensions (mm) | 重量 | Key Features |
|---|---|---|---|---|
| DSAB-01C | 64690701 | 130 × 60 × 35 | 0.5 kg | Diode Conversion Board |
| DSAB-03C | 64690703 | 135 × 65 × 38 | 0.55 kg | High Output Power Conversion |
| DSAB-04C | 64690704 | 140 × 70 × 40 | 0.6 kg | Multi-output Inverter Board |
| DSAB-05C | 64690705 | 138 × 68 × 42 | 0.58 kg | Dual Voltage Conversion |
| DSAB-06C | 64690706 | 142 × 72 × 45 | 0.62 kg | Low Power Inverter Board |
| DSAB-07C | 64690707 | 145 × 75 × 47 | 0.65 kg | Integrated Power Conversion |
Popular 型号s (Same 品牌)
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) | Features |
|---|---|---|---|---|
| DSAI 110 | Analog input module, 8 channels, standard type | 150 × 100 × 50 | 0.38 | 0–10 V / 4–20 mA, basic diagnostics, modular design |
| DSAI 130 | Enhanced analog input module, 8 channels | 150 × 100 × 50 | 0.40 | Channel isolation, LED status, noise filtering |
| DSAI 130A | Analog input module, current type | 150 × 100 × 50 | 0.40 | 4–20 mA, high accuracy, fault detection per channel |
| DSAI 130B | Analog input module, voltage type | 150 × 100 × 50 | 0.39 | 0–10 V inputs, compact form factor, temperature monitoring |
| DSAI 130C | Mixed signal input module | 150 × 100 × 50 | 0.41 | 支持s voltage and current inputs, configurable per channel |
| DSAI 130D | Analog + Digital mixed input module | 150 × 100 × 50 | 0.42 | 4 analog + 4 digital inputs, flexible field wiring |
