Product Overview

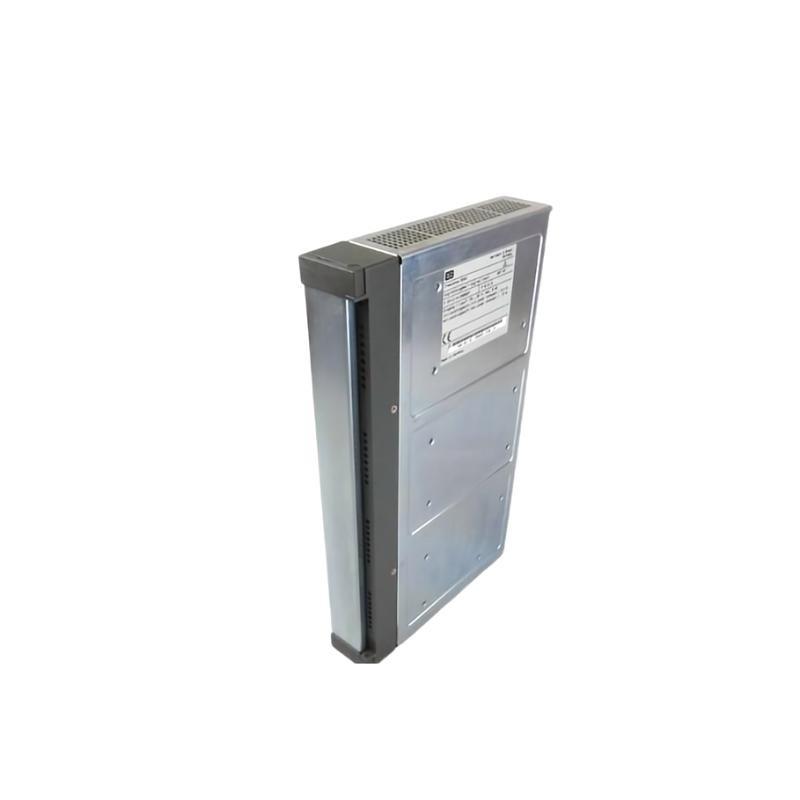

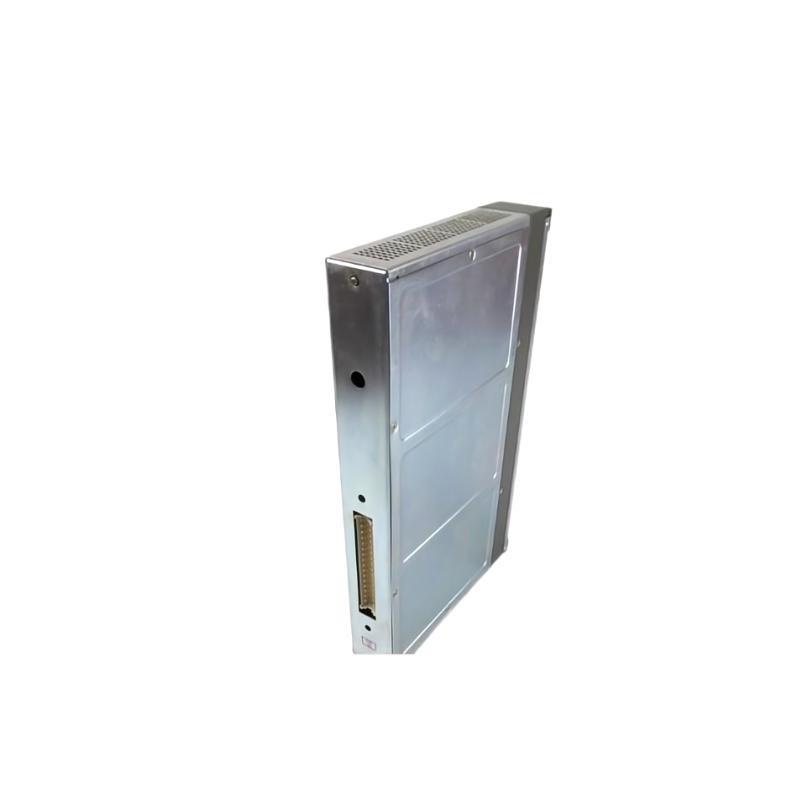

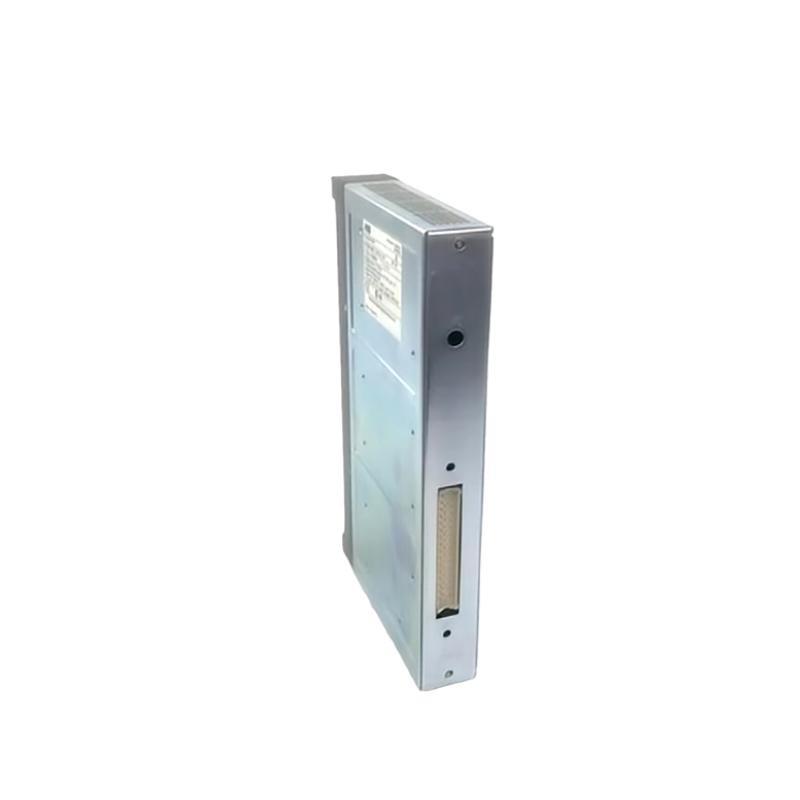

The ABB DAI03 0369631MR is a robust and high-performance Analog Input Module designed to serve critical data acquisition and control needs in industrial automation environments. As a part / ABB’s proven Advant or Symphony series, the DAI03 provides seamless analog signal acquisition from field instruments and transmits these signals reliably to the control system for further processing and decision-making.
This module is engineered with high precision, making it ideal for interfacing with sensors such as pressure transmitters, temperature probes, and flow meters. It supports various analog input types, including 0-20 mA and 4-20 mA current signals, allowing for flexible application in a broad range / industrial sectors.
Built to deliver consistent performance in demanding environments, the DAI03 integrates effortlessly with ABB’s Distributed Control Systems (DCS), ensuring long-term operational stability, minimal downtime, and ease / maintenance.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 | DAI03 0369631MR |
| Type | Analog Input Module |
| Input Channels | 8 isolated analog input channels |
| Input Signal Range | 0–20 mA or 4–20 mA (configurable) |
| Resolution | 12-bit |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Sampling Rate | Up to 10 samples/second per channel |
| Voltage Supply | 24 VDC nominal |
| Power Consumption | Approx. 5 W |
| Signal Type | Current (mA) |
| Input Impedance | Typically 250 Ohms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H×W×D) | 100 × 160 × 50 mm |
| 重量 | 0.45 kg |
| Mounting | DIN Rail Mountable |
| System Compatibility | Advant OCS / Symphony DCI |
Applications
The ABB DAI03 0369631MR finds widespread use in various industrial domains, including:
-
Oil & Gas: For monitoring wellhead pressures, temperatures, and flows.
-
Chemical & Petrochemical: Analog process monitoring in batch and continuous plants.
-
Power Generation: Turbine temperature and boiler pressure measurements.
-
Pulp & Paper: Level and flow control in pulp bleaching and drying sections.
-
Water & Wastewater Treatment: Continuous flow and level sensing.
-
Pharmaceutical: Cleanroom temperature/humidity sensor interfacing.
Its ability to accurately process and transmit analog signals in real time makes it indispensable for processes where precise data acquisition is crucial for control and safety.
Key Advantages
-
High Accuracy & Resolution: Ensures reliable data capture for high-precision process control.
-
Multi-Signal 支持: Accepts both 0-20 mA and 4-20 mA current signals, /fering versatility.
-
Channel Isolation: Prevents signal interference, improving reliability and safety.
-
Robust Design: Built for industrial environments with temperature and EMC protection.
-
Seamless System Integration: Compatible with ABB’s DCS and automation systems.
-
Compact Footprint: Space-saving DIN rail mountable design.
-
Ease / Maintenance: Diagnostic features and modularity support quick replacement and troubleshooting.
常见问题 (FAQ)
-
What types / signals does the DAI03 0369631MR support?
It supports 0-20 mA and 4-20 mA analog current inputs. -
How many channels does the module have?
It features 8 isolated analog input channels. -
Is the module compatible with non-ABB systems?
While optimized for ABB systems, it may be integrated with third-party systems depending on interface support. -
Can this module be used in hazardous environments?
It can be used in environments meeting the operational conditions; for explosion-pro/ zones, external protection may be required. -
Does the module /fer signal isolation?
Yes, it provides channel-to-channel and channel-to-bus isolation. -
What is the resolution / the analog input?
The module provides a 12-bit resolution for accurate signal processing. -
How is the module mounted?
It is DIN rail mountable, allowing for easy installation. -
What is the power requirement for the module?
It operates at a nominal 24 VDC and consumes about 5 watts. -
Is there s/tware configuration required?
Yes, configuration through ABB’s system tools is needed to assign ranges and parameters. -
What happens if one input fails?
The system can detect the failure through diagnostics, isolating the issue without affecting other channels.
Related 型号s from the Same Series
| 型号 Number | 描述 | Input Type | Channels | Compatibility |
|---|---|---|---|---|
| DAI01 0369601MR | Analog Input Module | 4–20 mA | 4 | Advant/Symphony |
| DAI04 0369641MR | High-density Analog Input Module | 16 × 4–20 mA | 16 | Symphony Plus |
| DAO01 0369610MR | Analog Output Module | 0–20 mA | 4 | Advant DCS |
| DDI01 0369531MR | Digital Input Module | 24 VDC | 8 | Symphony OCS |
| DDO01 0369541MR | Digital Output Module | 24 VDC | 8 | Advant OCS |
| DPI01 0369501MR | Pulse Input Module | Pulse/Counter | 2 | ABB Master Systems |
Popular ABB Modules (Cross-Series Recommendations)
| 型号 Number | 描述 | Module Type | Channels | Application Area |
|---|---|---|---|---|
| AI810 | Analog Input Module (S800 I/O) | Analog Input | 8 | ABB AC 800M |
| AO810 | Analog Output Module (S800 I/O) | Analog Output | 8 | ABB AC 800M |
| DI810 | Digital Input Module (S800 I/O) | Digital Input | 16 | General Automation |
| DO810 | Digital Output Module (S800 I/O) | Digital Output | 16 | Process Control |
| CI854AK01 | PROFIBUS DP Module | Communication | – | Fieldbus Integration |
| PM861AK01 | CPU Module | Controller | – | ABB AC 800M |
