Product Overview

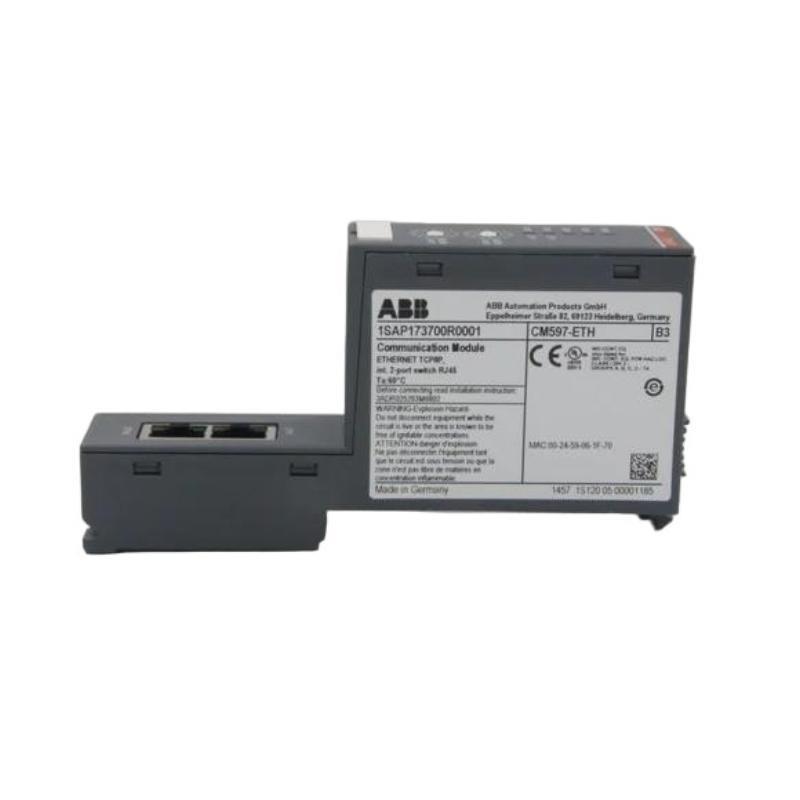

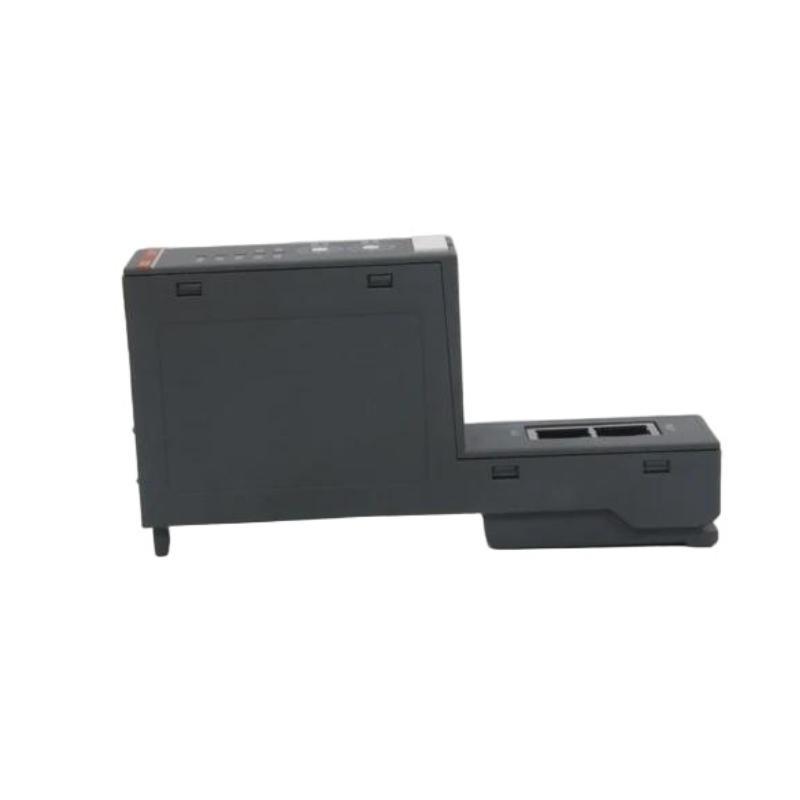

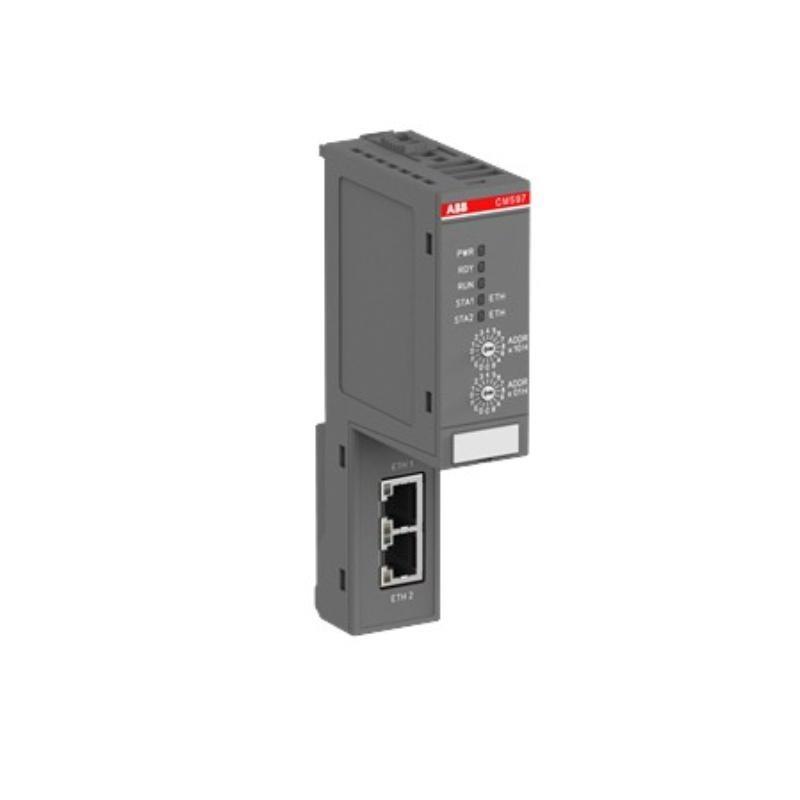

The ABB CM597-ETH 1SAP373700R0001 Communication Module is a high-performance Ethernet communication interface designed for use within ABB’s AC500 PLC platform. This module enables reliable and secure data exchange between PLC controllers, SCADA systems, and other industrial network devices over Ethernet-based architectures.
支持ing advanced protocols, robust cybersecurity features, and flexible network integration, the CM597-ETH is ideal for modern industrial applications requiring real-time communication, system-wide data visibility, and seamless integration with third-party devices. Its compact design and high data throughput make it a preferred solution for factories, energy sectors, utilities, and process automation.
Key Features
-
Ethernet-Based Communication: Provides reliable, high-speed data exchange over standard Ethernet networks.
-
Industrial Protocol 支持: 支持s TCP/IP, UDP, FTP, Modbus TCP, HTTP, SNMP, and other industry-standard protocols.
-
Enhanced Security: Incorporates security mechanisms such as password protection and encrypted communication.
-
Flexible Network Integration: Suitable for both isolated control networks and plant-wide integrated systems.
-
High Data Throughput: Ensures fast and efficient data transmission for demanding applications.
-
Seamless PLC Integration: Designed for optimal compatibility with ABB’s AC500 PLC controllers.
-
Compact and Robust: Space-saving DIN-rail mountable design with industrial-grade durability.
Technical Specifications
| Specification | 描述 |
|---|---|
| Product 型号 | CM597-ETH |
| Order Code | 1SAP373700R0001 |
| Product Type | Ethernet Communication Module |
| Compatible Systems | ABB AC500 PLC Series |
| Ethernet Port Type | 2 x RJ45, 10/100 Mbps |
| 支持ed Protocols | TCP/IP, UDP, Modbus TCP, FTP, HTTP, SNMP, and more |
| Max Data Throughput | Up to 100 Mbps per port |
| Operating Temperature | -25°C to +60°C (-13°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Housing Material | Industrial-grade plastic enclosure |
| Dimensions | 62 × 135 × 28 mm |
| 重量 | 0.101kg |
| Mounting | DIN Rail |
| Certifications | CE, RoHS, UL, Industrial EMC compliant |
Typical Applications
The ABB CM597-ETH 1SAP373700R0001 is designed for a wide range / industrial communication needs, including:
-
Factory Automation: Integrates PLCs with SCADA, MES, and ERP systems for real-time monitoring and control.
-
Power & Utilities: Facilitates reliable communication in power plants, substations, and energy management systems.
-
Process Automation: 支持s data exchange for distributed control systems in chemical, pharmaceutical, and food industries.
-
Water Treatment Facilities: Ensures seamless network integration for pumps, valves, and monitoring systems.
-
Infrastructure Projects: Used in transportation systems, tunnels, and intelligent building management.
-
Renewable Energy: Provides communication interfaces in wind farms, solar plants, and energy storage applications.
Product Advantages
-
Reliable Communication: Ensures consistent, high-speed Ethernet data transfer critical for modern control systems.
-
Scalable Integration: Allows easy expansion / networked control architectures with minimal configuration.
-
Enhanced Security: Protects system integrity with password controls and encryption options.
-
Plug-and-Play Setup: Simplifies installation and commissioning for system integrators and maintenance teams.
-
Robust Design: Built to withstand harsh industrial environments and extended temperature ranges.
-
Future-Pro/ Networking: 支持s widely adopted industrial protocols for long-term system compatibility.
-
Cost-Effective: Reduces system downtime and network disruptions, lowering maintenance and operational costs.
常见问题 (FAQ)
-
What PLC systems is the CM597-ETH compatible with?
It is designed for ABB’s AC500 PLC series. -
What network speeds does the module support?
It /fers Ethernet communication at 10/100 Mbps per port. -
Which protocols are supported by this communication module?
支持ed protocols include TCP/IP, UDP, FTP, Modbus TCP, HTTP, SNMP, and more. -
Can the CM597-ETH operate in harsh environments?
Yes, with an operating temperature range / -25°C to +60°C and robust construction. -
Is the module suitable for both isolated and plant-wide networks?
Yes, it is flexible for both small-scale control networks and large integrated systems. -
Does the module have built-in security features?
Yes, including password protection and encrypted communication options. -
What is the approximate size / the CM597-ETH?
关于我们 62 × 135 × 28 mm. -
How heavy is the module?
Approximately 101 grams. -
What certifications does the CM597-ETH hold?
It complies with CE, RoHS, UL standards, and industrial EMC requirements. -
Can this module be DIN rail mounted?
Yes, it is designed for convenient DIN rail installation.
