产品介绍

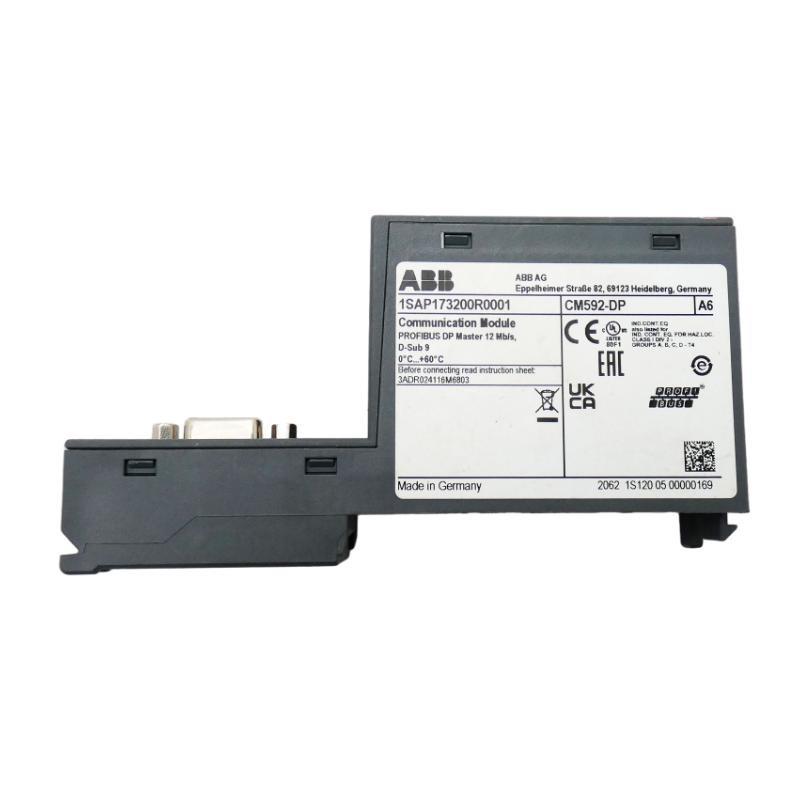

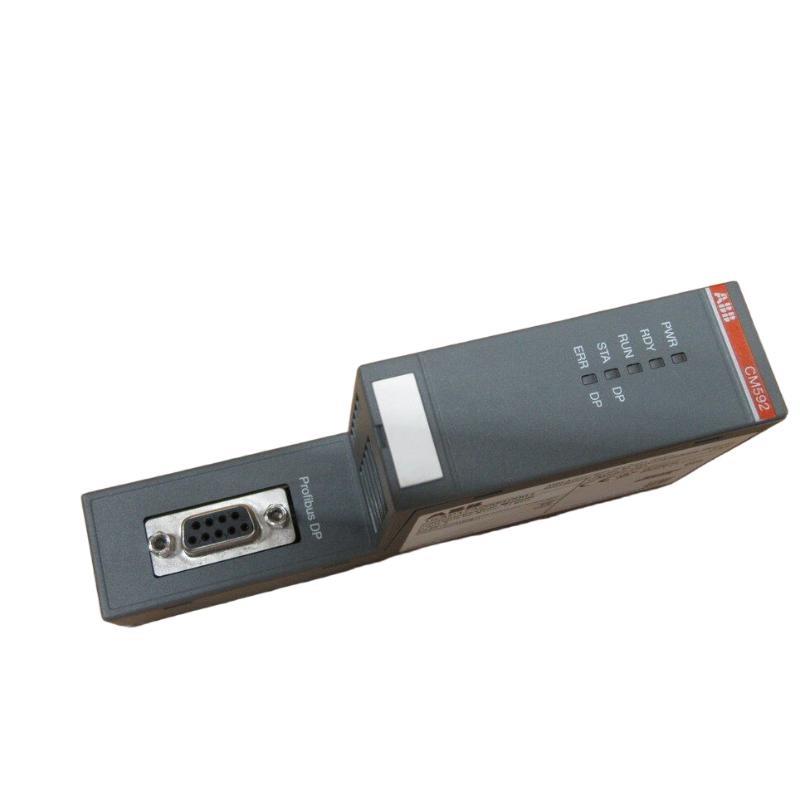

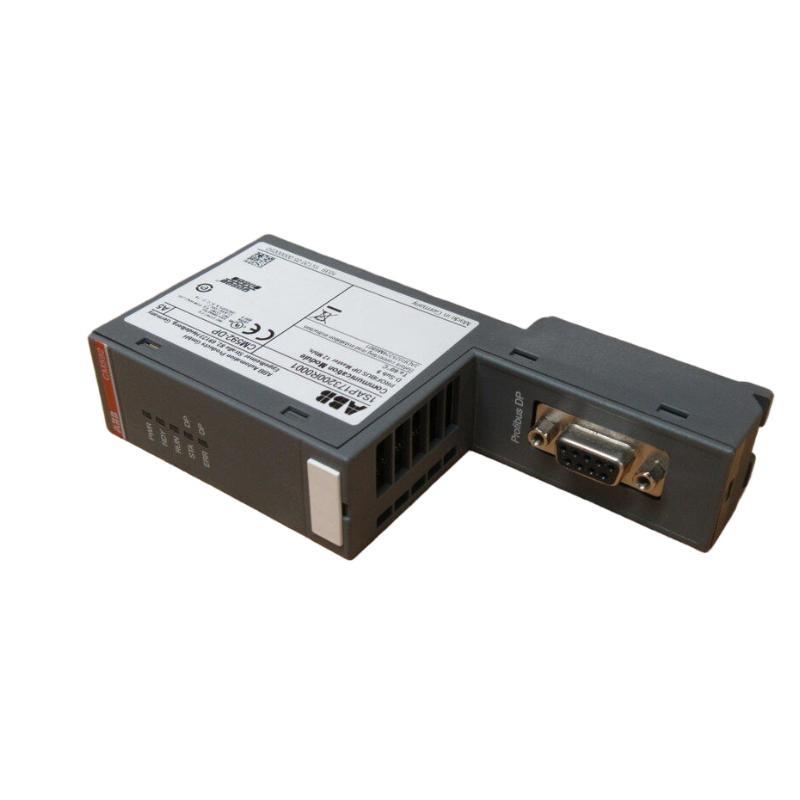

The ABB CM592-DP (1SAP173200R0001) is a PROFIBUS DP communication module developed for the AC500 series / PLC systems. It is specifically designed to enable master-slave communication between ABB’s central processing 件s (CPUs) and PROFIBUS-compatible field devices. Acting as a gateway between ABB controllers and third-party automation devices, the CM592-DP /fers robust integration in industrial networks requiring high-speed, deterministic data exchange. Its compact form factor, DIN rail mounting capability, and flexible configuration options make it ideal for space-saving and scalable control cabinet applications.
The module supports PROFIBUS DP-V0 and DP-V1 protocols, allowing cyclic and acyclic communication with slave devices. As part / ABB’s automation ecosystem, the CM592-DP ensures consistent interoperability, efficient diagnostics, and straightforward commissioning using tools like PS501 Control Builder and Automation Builder.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | PROFIBUS DP Communication Module |
| Product Code | 1SAP173200R0001 |
| Communication Standard | PROFIBUS DP-V0, DP-V1 |
| Baud Rate | 9.6 kbps to 12 Mbps |
| PROFIBUS Connector | 9-pin Sub-D connector |
| Power Supply Voltage | 24 VDC (via system bus) |
| Max Power Consumption | 1.5 W |
| Installation | DIN rail mounting (35 mm standard rail) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 62 × 135 × 28 mm |
| 重量 | 0.092 kg |
| Protection Class | IP20 |
| Configuration Tool | PS501 / Automation Builder |
Product Advantages
-
Reliable PROFIBUS Integration: Enables seamless data exchange with a wide array / third-party field devices.
-
AC500 Platform Compatibility: Fully integrates into ABB’s modular AC500 PLC ecosystem, enhancing expandability and control flexibility.
-
High-Speed Communication: 支持s up to 12 Mbps, making it suitable for real-time industrial automation applications.
-
Diagnostics and Monitoring: Built-in diagnostic LEDs and s/tware status indicators allow fast troubleshooting.
-
Flexible Mounting: Compact DIN rail design allows for easy installation in constrained control cabinets.
-
Long-Term 支持: Backed by ABB’s global support and lifecycle service network.
Applications
The CM592-DP is well-suited for applications across various industries that require robust communication between PLCs and field devices using the PROFIBUS protocol:
-
Factory Automation: Control and monitoring / drives, sensors, actuators, and remote I/O modules.
-
Process Industries: Seamless integration with PROFIBUS-compatible field instruments in oil & gas, chemical, and power sectors.
-
Material Handling: Communication with motor controllers and conveyor system modules.
-
Water and Wastewater Management: Remote device communication in treatment plants.
-
Food & Beverage: Real-time control / production lines through PROFIBUS field devices.
Compatible and 支持ing 型号s
The CM592-DP is designed to be used with the following supporting modules in the ABB AC500 platform:
-
CPU Modules: PM573-ETH, PM582-ETH, PM595
-
I/O Modules: S500/S500-eCo series
-
S/tware: PS501 Control Builder, Automation Builder
-
Power Modules: CP600 HMI series for visualization
-
其他 Comm Modules: CM579-COM, CM590-ETH, CM591-ETHCAT
Installation Instructions
-
Power Off the System: Ensure the power to the PLC system is turned /f.
-
DIN Rail Mounting: Mount the CM592-DP securely on a 35 mm DIN rail.
-
Connect PROFIBUS Cable: Attach the PROFIBUS cable to the 9-pin Sub-D connector.
-
Integrate with AC500 CPU: Slide the module into the expansion slot and ensure the system bus connector is engaged.
-
Power On and Configure: Power the system, then use ABB’s PS501 or Automation Builder s/tware to configure PROFIBUS settings.
-
Test Communication: Run diagnostic tools to verify connectivity and proper communication with slave devices.
常见问题 (FAQ)
Q1: What is the function / the CM592-DP module?
A1: It acts as a PROFIBUS DP communication interface, allowing ABB PLCs to communicate with other PROFIBUS-compatible devices.
Q2: Is it possible to use CM592-DP as a PROFIBUS slave?
A2: 序号 The CM592-DP functions as a PROFIBUS master module only.
Q3: Which s/tware is needed to configure the CM592-DP?
A3: PS501 Control Builder or Automation Builder can be used for configuration and diagnostics.
Q4: What’s the maximum number / PROFIBUS devices supported?
A4: The module supports up to 125 devices per segment, depending on cable length and network configuration.
Q5: Can this module be hot-swapped during operation?
A5: No, it is recommended to power down the system before removing or installing the module.
Q6: What protocols does it support?
A6: It supports PROFIBUS DP-V0 and DP-V1 protocols.
Q7: Is there any built-in diagnostic feature?
A7: Yes, status LEDs and s/tware diagnostic tools provide insights into communication health.
Q8: Can it be used with non-ABB devices?
A8: Yes, as long as the devices follow PROFIBUS DP standards.
Q9: What protection rating does the module /fer?
A9: It has an IP20 protection rating, suitable for cabinet installations.
Q10: What is the main difference between CM592-DP and CM579-COM?
A10: CM592-DP specifically provides PROFIBUS communication, while CM579-COM supports other serial protocols such as Modbus.
Recommended Related 型号s (Same Series / Similar Function)
| 型号 | 描述 | Communication Type | Size (mm) | 重量 (g) |
|---|---|---|---|---|
| CM579-COM | Serial communication module for RS-232/RS-485 | Serial (Modbus) | 45 x 100 x 74.5 | 190 |
| CM590-ETH | Ethernet communication module | Ethernet | 45 x 100 x 74.5 | 200 |
| CM591-ETHCAT | EtherCAT communication interface module | EtherCAT | 45 x 100 x 74.5 | 200 |
| CM580-NAMUR | Digital input module for NAMUR sensors | Digital Input | 45 x 100 x 74.5 | 210 |
| PM573-ETH | Compact CPU with built-in Ethernet | CPU | 90 x 100 x 70 | 380 |
| S500 I/O Module | Digital/Analog I/O expansion module | I/O | Various | Varies |
Popular ABB 型号s (Same 品牌)
| 型号 | 描述 | Function | Voltage | Size (mm) | 重量 (g) |
|---|---|---|---|---|---|
| PM591-ETH | High-performance CPU with Ethernet | PLC CPU | 24 VDC | 90 x 100 x 70 | 400 |
| PM582-ETH | Mid-range PLC CPU | PLC CPU | 24 VDC | 90 x 100 x 70 | 360 |
| CP600 HMI Panel | Human-machine interface | Operator Interface | 24 VDC | Various | Varies |
| CM579-COM | Serial communication module | Serial Communication | 24 VDC | 45 x 100 x 74.5 | 190 |
| CM591-ETHCAT | EtherCAT communication module | Real-time fieldbus | 24 VDC | 45 x 100 x 74.5 | 200 |
| AI523 | Analog input module (4-channel) | Analog Input Module | 24 VDC | 45 x 100 x 74.5 | 180 |
| DO524 | Digital output module (16-channel) | Digital Output Module | 24 VDC | 45 x 100 x 74.5 | 185 |
| CI501-PNIO | PROFINET communication interface | PROFINET | 24 VDC | 45 x 100 x 74.5 | 195 |
