产品介绍

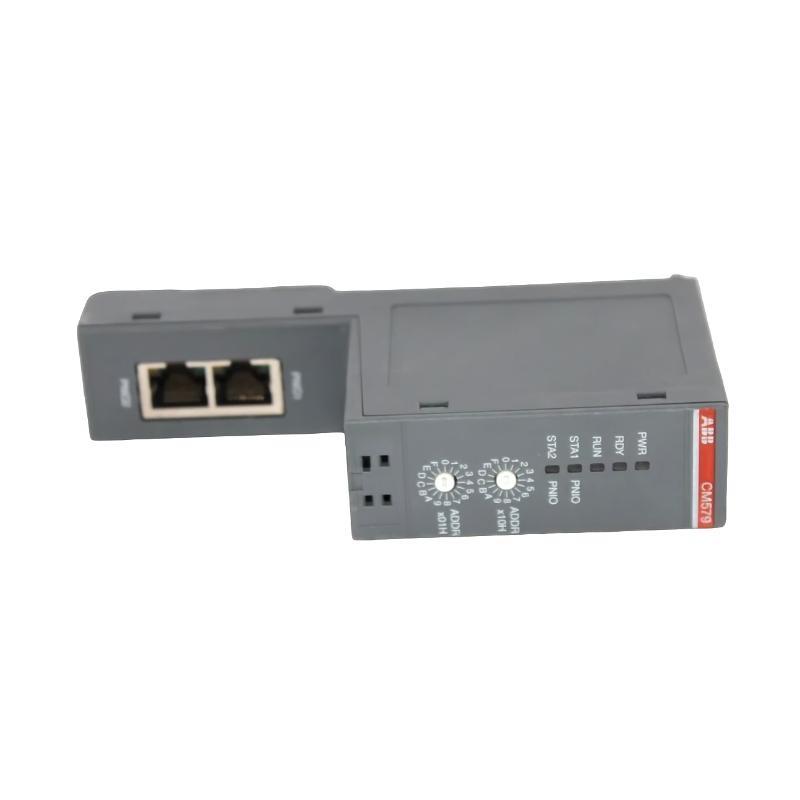

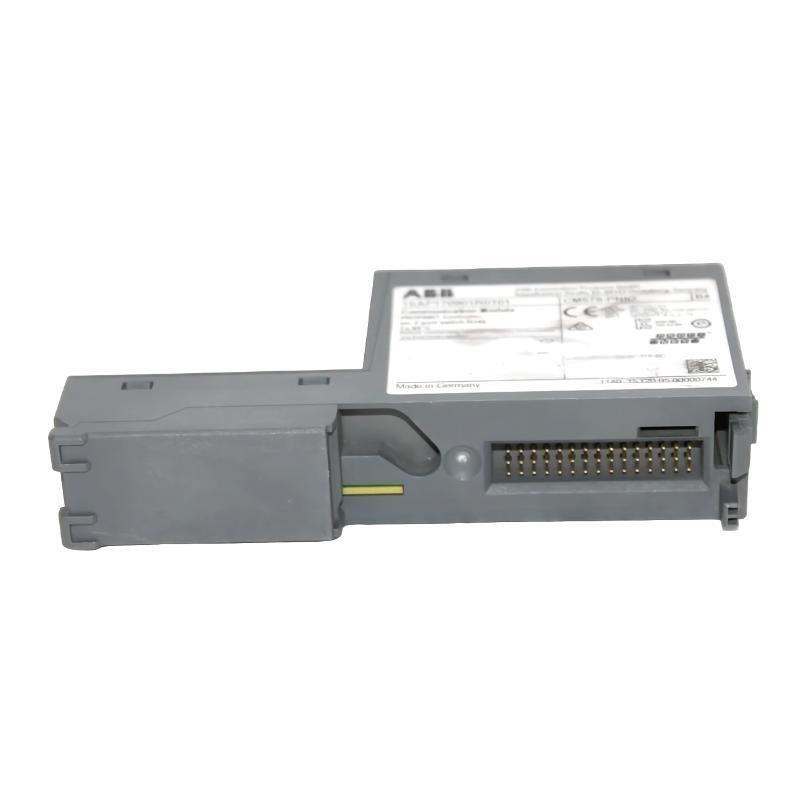

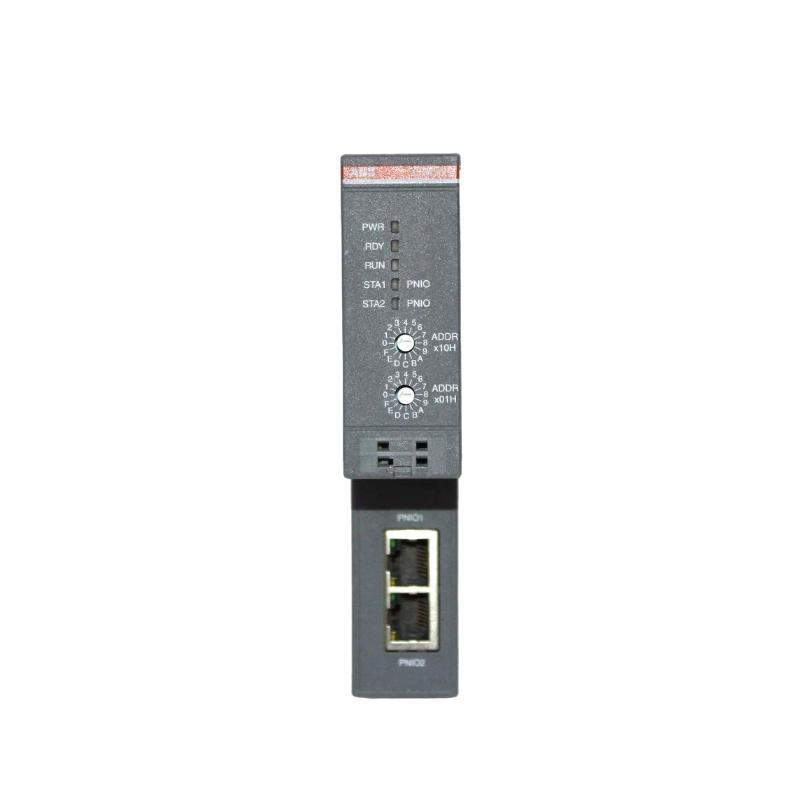

The ABB CM579-PNIO (1SAP170901R0001) is a high-performance PROFINET IO communication module designed for the ABB AC500 programmable logic controller (PLC) series. Its primary function is to facilitate seamless, real-time communication between the AC500 central processing 件 and distributed field devices over the PROFINET IO network.
This module is engineered for use in industrial automation systems where fast, deterministic, and reliable communication is critical. With support for PROFINET IO Controller functionality, the CM579-PNIO is an essential component in scalable and modular control architectures. It is especially suited for demanding applications in manufacturing, energy, transportation, and process industries.
The CM579-PNIO version 1SAP170901R0001 delivers robust communication features, dual Ethernet ports, and integrated diagnostics, making it a reliable and adaptable solution for automation pr/essionals who require precision and uptime.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Communication Module CM579-PNIO |
| Product Code | 1SAP170901R0001 |
| 制造商 | ABB |
| Series | AC500 PLC Series |
| Communication Protocol | PROFINET IO Controller |
| Ports | 2x RJ45 Ethernet Ports (100 Mbps Full Duplex) |
| 支持ed Devices | Up to 64 PROFINET IO Devices |
| Device Role | IO Controller (Master) |
| MRP (Redundancy 支持) | Yes, Media Redundancy Protocol |
| Diagnostic Capabilities | Network/device diagnostics via engineering tools |
| Firmware Update | Via SD card or Automation Builder s/tware |
| Supply Voltage | Supplied by the CPU base module (typically 24 VDC) |
| Current Consumption | Max. 150 mA @ 24 VDC |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Protection Class | IP20 (Indoor Industrial Use) |
| Mounting Method | DIN rail (35 mm) |
| Dimensions (W x H x D) | 62 × 135 × 28 mm |
| 重量 | 0.133 kg |
| Certifications | CE, RoHS, cULus, EAC |
Product Applications
The CM579-PNIO is widely deployed in various industrial settings that require efficient PROFINET IO communication between controllers and field-level devices:
-
Industrial Automation
Used to control and monitor distributed I/O modules, variable frequency drives, and other devices in factory environments. -
Process Control Systems
Suitable for real-time control in chemical, food & beverage, and pharmaceutical industries. -
Machine Building
Ideal for modular machine designs requiring high-speed communication between decentralized components. -
Energy Sector
Enables secure and stable communication in renewable energy systems, including wind turbines and solar plants. -
Transportation Infrastructure
Applied in intelligent traffic systems, metro automation, and tunnel ventilation control. -
Building Automation
Interfaces with HVAC controllers and lighting systems via PROFINET IO for smart building management.
Product Advantages
-
High-Speed Communication
Dual Ethernet ports allow real-time data exchange with up to 64 PROFINET IO devices at 100 Mbps. -
Effortless Integration
Seamlessly connects with ABB’s AC500 PLC system, reducing installation and commissioning time. -
Built-in Diagnostics
Provides instant fault detection and system health checks via ABB’s Automation Builder or Web Tools. -
Flexible Networking
支持s line, star, and ring topologies, along with Media Redundancy Protocol for fault-tolerant networks. -
Compact and Robust Design
Small footprint and industrial-grade durability make it suitable for space-constrained control panels. -
Standards Compliance
Meets international standards (CE, RoHS, cULus), ensuring quality, safety, and global compatibility.
常见问题 (FAQ)
-
Q: What is the difference between the CM579-PNIO 1SAP170901R0001 and R0101 versions?
A: The R0001 is an earlier hardware revision. Both versions function as PROFINET IO controllers, but the R0101 may include newer firmware compatibility or slight hardware optimizations. -
Q: Can the CM579-PNIO be used in redundant PLC setups?
A: Yes, it supports Media Redundancy Protocol (MRP) for network-level redundancy, although CPU redundancy must be handled separately. -
Q: How many Ethernet ports are available on the module?
A: Two RJ45 ports are available, allowing flexible PROFINET IO topology designs. -
Q: Does this module support firmware upgrades?
A: Yes, upgrades can be done via SD card or through ABB Automation Builder s/tware. -
Q: Can the module be hot-swapped?
A: 序号 The module must be powered down before it can be removed or replaced. -
Q: Is configuration done via DIP switches or s/tware?
A: All configuration is performed using ABB’s Automation Builder s/tware—there are no DIP switches. -
Q: Does it support diagnostics over PROFINET?
A: Yes, diagnostics and device health information can be accessed through PROFINET protocols. -
Q: What is the communication distance limitation?
A: Standard Ethernet limitations apply—typically 100 meters per segment using CAT5e or better cable. -
Q: What tools are required for configuration?
A: ABB Automation Builder is the primary engineering tool used for setup and diagnostics. -
Q: What industrial standards does this module comply with?
A: It is compliant with CE, RoHS, EAC, and cULus standards.
Related or Compatible 型号s
| 型号 Number | 描述 | Protocol | Compatibility |
|---|---|---|---|
| CM579-COM | Serial communication module for AC500 | RS232/RS485 | AC500 Series |
| CM589-PNIO | Enhanced PROFINET IO module | PROFINET IO | AC500 High-End Systems |
| CM577-ETH | Ethernet communication interface for AC500-eCo | Ethernet | AC500-eCo Series |
| CI502-PNIO | PROFINET adapter for ABB drives | PROFINET | ABB ACS Drives |
| CM590-RS485 | MODBUS RTU/ASCII serial communication module | RS485 | AC500 Series |
| CM588-DP | PROFIBUS DP communication module | PROFIBUS | AC500 Series |
Popular ABB 型号s in Industrial Automation
| 型号 Number | 描述 | 分类 | Application |
|---|---|---|---|
| AC500 PM595-4ETH | High-end CPU with 4 Ethernet ports | PLC Controller | Complex Automation Systems |
| CP600-Pro | High-performance touchscreen HMI | HMI | User Interface/Control Rooms |
| ACS880-07-0760A-5 | Industrial drive with advanced control features | Drive System | Heavy Machinery |
| S804PV-M63 | Circuit breaker for photovoltaic applications | Circuit Protection | Solar Energy Systems |
| REF620 | Feeder Protection Relay for medium-voltage systems | Protection Relay | Electrical Substations |
| TU842V1 | Compact I/O terminal 件 for S800 I/O | I/O System | Distributed I/O Control |
