Product 描述

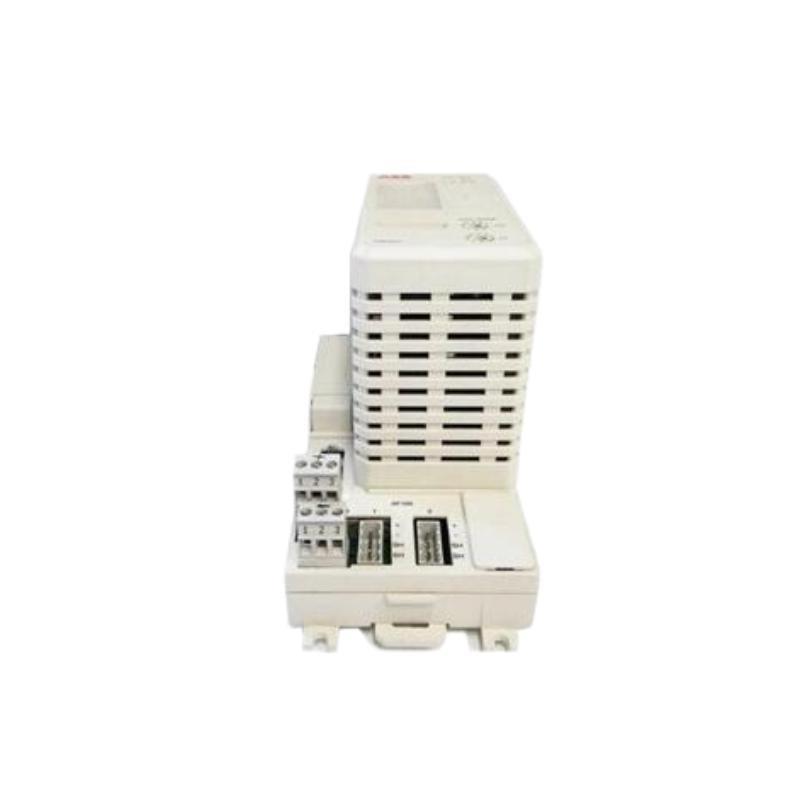

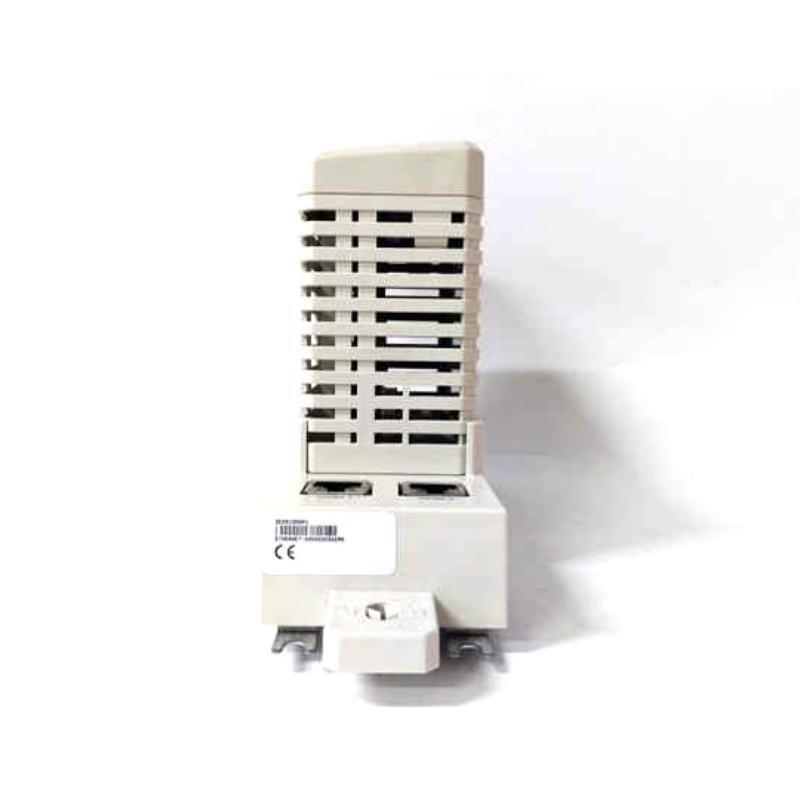

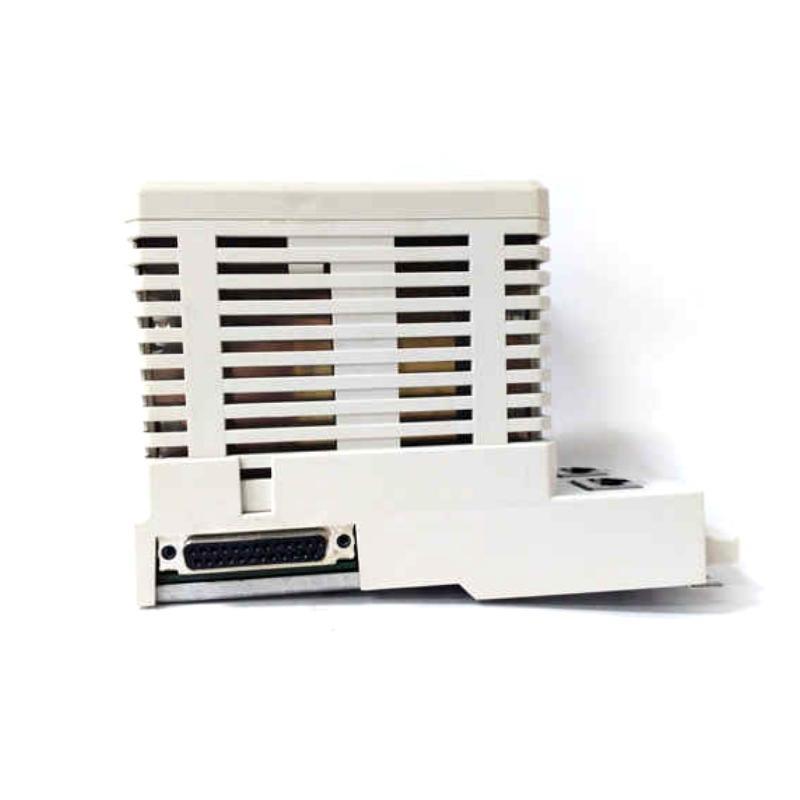

The ABB CI857K01 / CI857 3BSE018144R1 is a communication interface module used within the AC 800M control system to enable integration with ABB’s INSUM system. This module allows the AC 800M controller to communicate with intelligent switchgear devices using ABB’s proprietary INSUM protocol over Ethernet. Designed for robust industrial environments, it supports multidrop configurations, extended communication distances, and time synchronization functionalities.
It communicates via standard 10 Mbit/s Ethernet, uses an RJ-45 interface, and integrates seamlessly with INSUM Communication Libraries through function blocks. Power is supplied directly from the processor 件 over the CEX-Bus, eliminating the need for an external power source.
Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE018144R1 |
| Communication Protocol | ABB’s INSUM |
| Master/Slave | Master |
| Transmission Speed | 10 Mbit/s |
| Connector | RJ-45 (8-pin, female) |
| Max. 单位s per CI857 | 128 INSUM devices |
| Max. CI857 Modules per AC 800M | 6 |
| Max. INSUM Devices per AC 800M | 256 (PM864/PM866), 128 (PM861) |
| Max. INSUM Gateways per CI857 | 2 |
| Max. Devices per LonWorks Subnet | 32 |
| Max. LonWorks Subnets per Gateway | 4 |
| Hot Swap | Yes |
| Operating Temperature | +5 to +55 °C (+41 to +131 °F) |
| Storage Temperature | -40 to +70 °C (-40 to +158 °F) |
| Corrosion Protection | G3 (ISA 71.04 compliant) |
| Protection Class | IP20 (EN 60529 / IEC 529) |
| CE Marking | Yes |
| RoHS Compliance | Yes (Directive 2011/65/EU) |
| WEEE Compliance | Yes (Directive 2012/19/EU) |
| Typical 24 V Consumption | 150 mA |
| Dimensions (W x H x D) | 59 x 186 x 127.5 mm |
| 重量 | 0.7 kg |
Applications
-
Integration / intelligent motor control 件s (MCUs) in substations
-
Industrial switchgear communication using INSUM
-
Power distribution automation
-
Process industries requiring Ethernet-based monitoring / electrical assets
-
Centralized control systems using AC 800M series controllers
Advantages
-
Seamless integration with ABB’s INSUM system
-
No external power source required (powered via CEX-Bus)
-
High scalability: up to 256 devices per controller
-
支持s hot swapping for minimal downtime
-
Ethernet communication enables extended cabling distance and reliability
-
Compliant with industrial standards (CE, RoHS, IP20)
-
G3-rated corrosion protection for harsh environments
FAQ
Q1: What is the primary function / the CI857 module?
A1: It enables communication between the AC 800M controller and ABB’s INSUM intelligent switchgear devices.
Q2: Does the CI857 support hot swapping?
A2: Yes, it supports hot swap for ease / maintenance and minimal downtime.
Q3: What is the maximum number / CI857 modules allowed per AC 800M controller?
A3: Up to 6 CI857 modules can be used per AC 800M.
Q4: What is the maximum number / devices a single CI857 can manage?
A4: Each CI857 can handle up to 128 INSUM devices.
Q5: Is an external power supply required for CI857 operation?
A5: No, it is powered via the CEX-Bus from the controller 件.
Q6: What type / connector does CI857 use?
A6: It uses a standard RJ-45 female 8-pin Ethernet connector.
Q7: What environmental conditions is CI857 designed for?
A7: Operating temperature from +5 to +55 °C, storage from -40 to +70 °C, and G3 corrosion resistance.
Q8: Is CI857 compliant with industrial safety and environmental directives?
A8: Yes, it is CE-marked, RoHS, and WEEE compliant.
Q9: What communication speed does CI857 support?
A9: It supports a communication speed / 10 Mbit/s.
Q10: What is the protection class / CI857?
A10: It is IP20 rated according to EN60529 and IEC 529 standards.
Related or Compatible ABB 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| CI853K01 | Communication interface, PROFIBUS DP-V1 | 59 x 186 x 127.5 | 0.7 kg |
| CI854AK01 | Communication interface, FOUNDATION Fieldbus | 59 x 186 x 127.5 | 0.7 kg |
| CI860K01 | PROFIBUS interface module | 59 x 186 x 127.5 | 0.7 kg |
| PM861K01 | AC 800M CPU module (128 INSUM devices supported) | 59 x 186 x 127.5 | 0.6 kg |
| PM864AK01 | AC 800M CPU module (256 INSUM devices supported) | 59 x 186 x 127.5 | 0.65 kg |
| PM866K01 | High-capacity AC 800M CPU module | 59 x 186 x 127.5 | 0.65 kg |
Popular ABB 型号s
| 型号 Number | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| AC 800M PM861 | Programmable Automation Controller | 59 x 186 x 127.5 | 0.6 kg |
| AC 800M PM864 | High-performance Controller | 59 x 186 x 127.5 | 0.65 kg |
| CI853K01 | PROFIBUS Communication Module | 59 x 186 x 127.5 | 0.7 kg |
| CI860K01 | PROFIBUS Redundant Interface Module | 59 x 186 x 127.5 | 0.7 kg |
| DO818 | Digital Output Module for S800 I/O | 59 x 186 x 127.5 | 0.7 kg |
| AI810 | Analog Input Module for S800 I/O | 59 x 186 x 127.5 | 0.7 kg |
