产品介绍

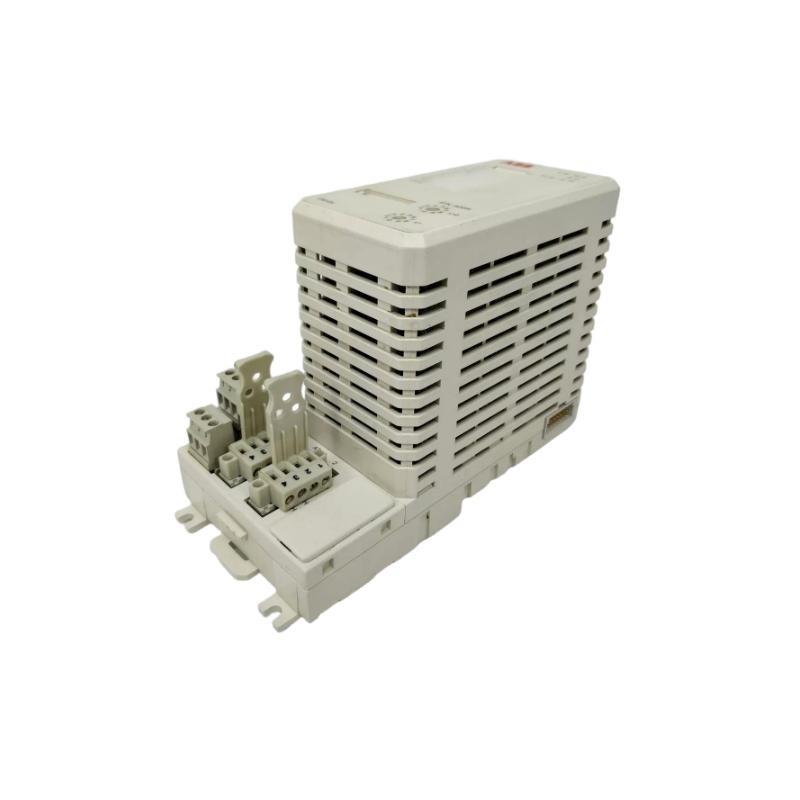

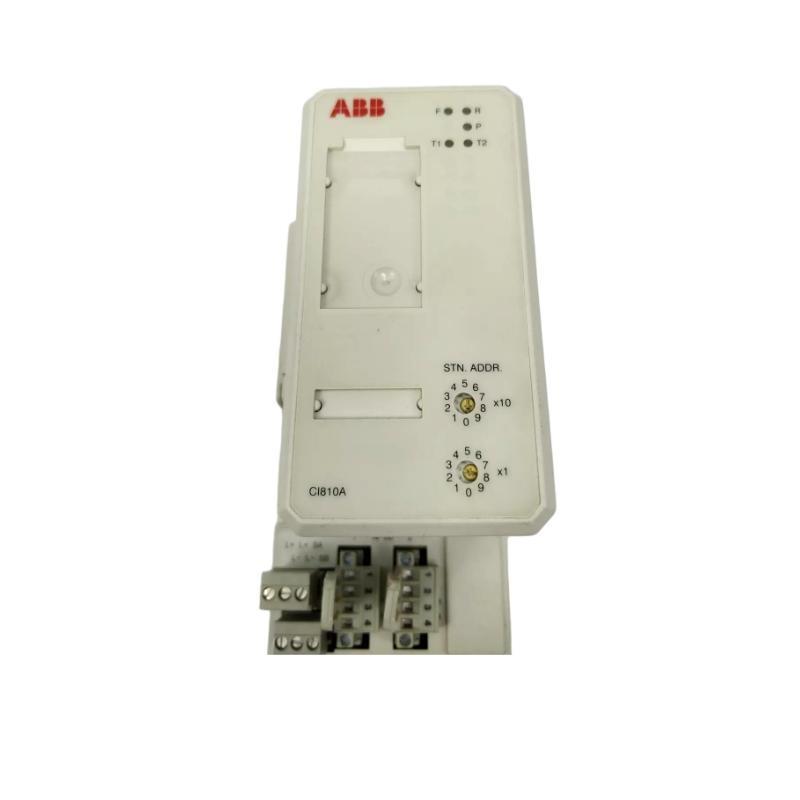

The ABB CI810A (3BSE013262R1) is a powerful communication interface module designed for integration with the S800 I/O system in ABB’s AC 800M control architecture. It serves as a bridge between the I/O modules and the controller via the PROFIBUS-DP fieldbus, enabling fast, deterministic communication and high system availability.
This module ensures data accuracy and integrity, making it an ideal component for critical industrial automation tasks. Its compact design, rugged build quality, and flexible configuration options contribute to minimizing system downtime while simplifying integration with both legacy and modern systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | CI810A Power Module |
| 零件号 | 3BSE013262R1 |
| System Compatibility | ABB AC 800M, S800 I/O System |
| Communication Protocol | PROFIBUS-DP |
| Baud Rate 支持 | Up to 12 Mbps |
| Bus Interface | S800 I/O Bus |
| Power Supply | 24 V DC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Type | DIN rail |
| Dimensions (W x H x D) | 87 x 250 x 158 mm |
| 重量 | 0.56 kg |
| Certifications | CE, UL, RoHS Compliant |
| IP Protection Class | IP20 |
Product Applications
The ABB CI810A module is deployed across a variety / critical automation industries, including:
-
Power Generation: Ensures stable control in fossil fuel, hydro, nuclear, and renewable energy plants.
-
Oil & Gas: Integrates with remote I/O for pipeline control and refinery process automation.
-
Chemical and Petrochemical: 支持s scalable I/O in hazardous and demanding conditions.
-
Water Treatment: Offers efficient control / filtration, distribution, and wastewater processing.
-
Manufacturing and Packaging: Enables real-time machine-to-machine communication and error handling.
-
Pharmaceutical and Food Processing: 支持s cleanroom-compliant control logic with precision timing.
Product Advantages
-
High-Speed Communication: Fully supports PROFIBUS-DP up to 12 Mbps for real-time system performance.
-
Stable and Reliable: Designed for uninterrupted operation in industrial environments with wide temperature and humidity tolerance.
-
Hot-Swappable Design: Replace or upgrade without shutting down the system, minimizing downtime.
-
Compact and Modular: 保存s cabinet space and allows easy system expansion with additional I/O.
-
Industrial Durability: Withstands vibrations, temperature shifts, and electrical noise typical in process environments.
-
Wide Compatibility: Integrates smoothly with various ABB controllers and I/O configurations.
常见问题 (FAQ)
Q1: What is the role / the CI810A module?
A1: It acts as a PROFIBUS-DP interface for connecting ABB S800 I/O modules to the control system.
Q2: Does the CI810A support redundancy?
A2: Redundancy is not built into CI810A itself, but it can be part / a redundant system when paired with appropriate hardware.
Q3: Can I replace the module during operation?
A3: Yes, the CI810A supports hot-swap capabilities without interrupting the system.
Q4: Is it suitable for high-temperature industrial settings?
A4: Yes, it operates effectively within a range / -25°C to +70°C.
Q5: What kind / certification does this module have?
A5: It is CE, UL, and RoHS compliant, making it globally deployable.
Q6: What tools are needed to configure the CI810A?
A6: ABB’s Control Builder or other 800xA-compatible tools are typically used for configuration.
Q7: Is there any diagnostic support available through the CI810A?
A7: Yes, it supports standard PROFIBUS diagnostics and system status feedback.
Q8: How is the module physically mounted?
A8: It is mounted on a DIN rail in the control cabinet.
Q9: What happens if the communication fails?
A9: The system can be configured to go to a safe state or issue alarms upon loss / communication.
Q10: What type / I/O modules can be connected?
A10: All S800 I/O modules are compatible with the CI810A, including digital, analog, and specialty modules.
Related 型号s in the Same Series or Interface-Compatible
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| CI801 | PROFIBUS-DP Interface Module | 87 x 250 x 158 | 0.52 kg |
| CI840A | Redundant PROFIBUS-DP Module | 87 x 250 x 158 | 0.56 kg |
| CI845 | Modbus RTU Interface Module | 87 x 250 x 158 | 0.55 kg |
| CI853 | DeviceNet Communication Interface Module | 87 x 250 x 158 | 0.53 kg |
| CI854AK01 | PROFIBUS Interface Module with Fiber 支持 | 87 x 250 x 158 | 0.57 kg |
| CI860A | Foundation Fieldbus Interface Module | 87 x 250 x 158 | 0.58 kg |
Popular ABB Modules (Same 品牌)
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| PM864AK01 | AC 800M CPU with dual Ethernet ports | 185 x 127 x 127 | 0.65 kg |
| DO820 | 16-Channel Digital Output Module | 87 x 250 x 158 | 0.60 kg |
| AI810 | 8-Channel Analog Input Module | 87 x 250 x 158 | 0.58 kg |
| TU810V1 | Base Terminal 单位 for S800 I/O | 115 x 150 x 50 | 0.45 kg |
| PM851K01 | Compact Controller Module for AC 800M | 185 x 127 x 127 | 0.67 kg |
| SD822 | Redundant Power Supply Module | 135 x 114 x 150 | 1.3 kg |
