产品介绍

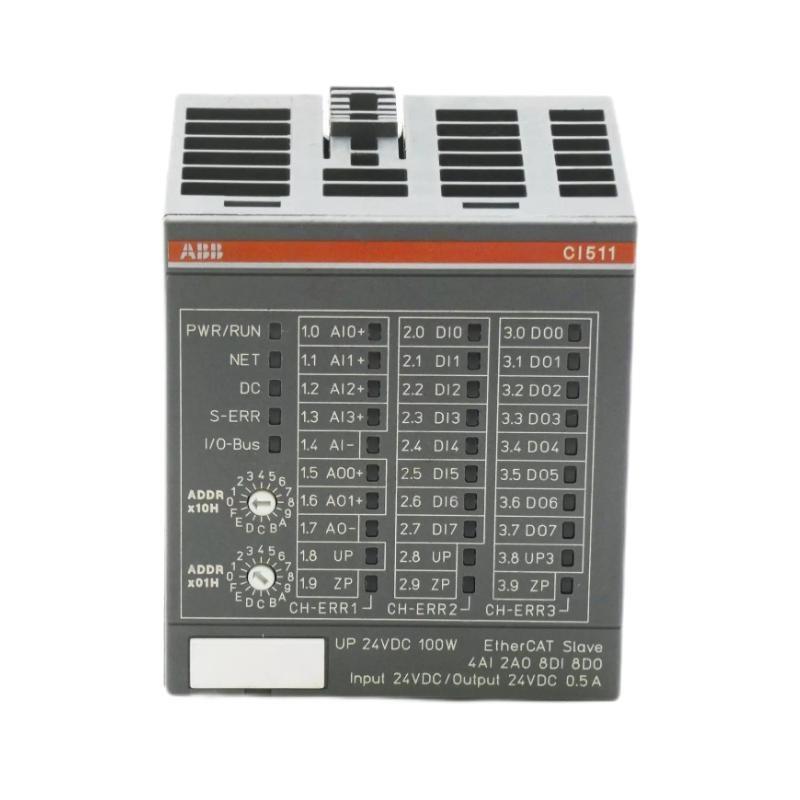

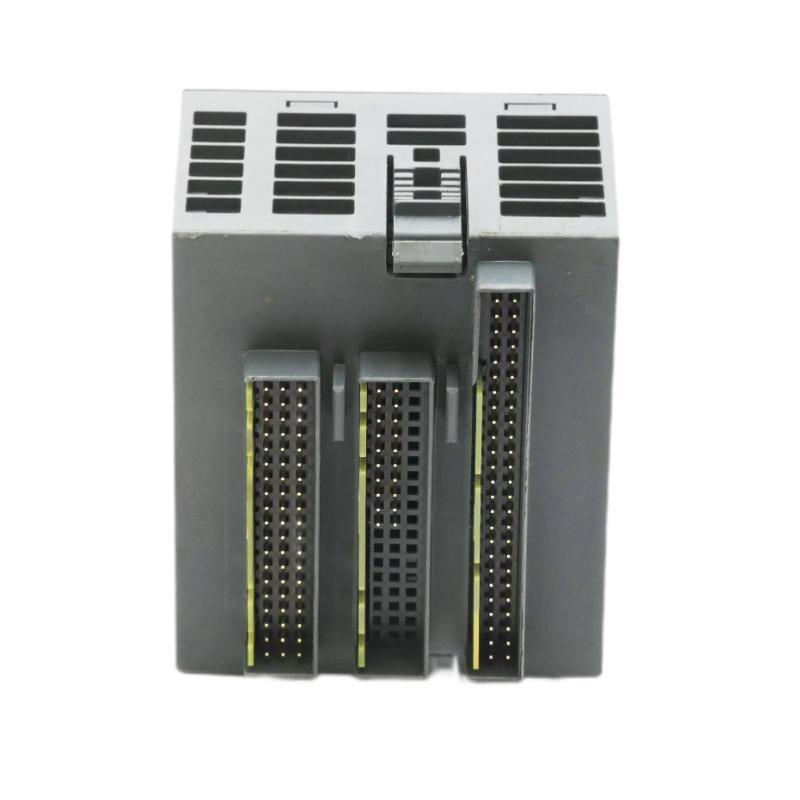

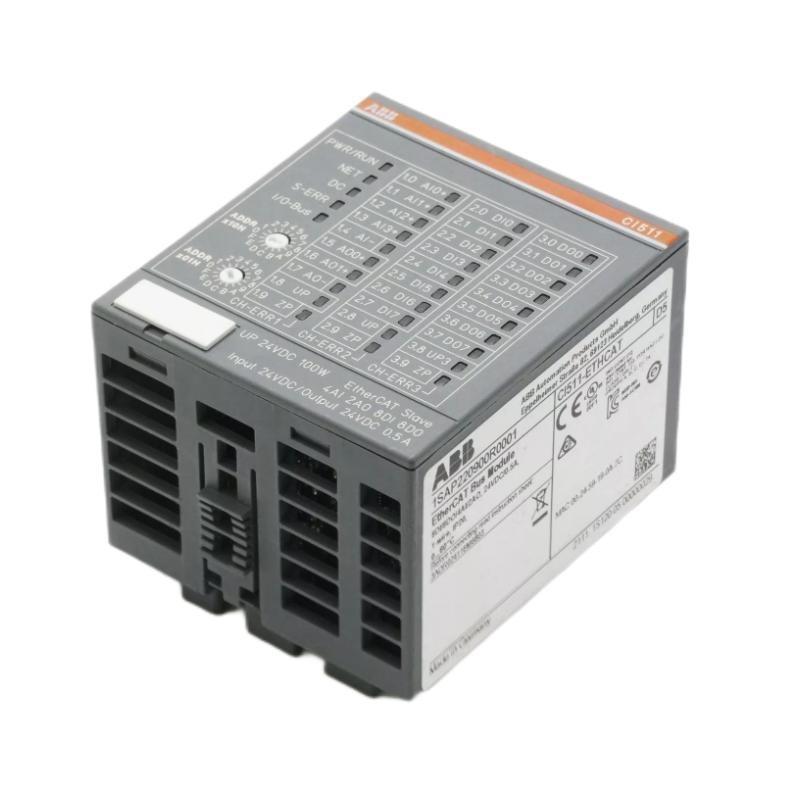

The ABB CI511-ETHCAT 1SAP220900R0001 is a high-quality communication interface module designed to integrate ABB’s S500 I/O systems into EtherCAT ind我们trial Ethernet networks. EtherCAT (Ethernet for Control Automation Technology) is renowned for its real-time data transfer capabilities and efficient handling / automation tasks. This module acts as a gateway that enables seamless data exchange between the S500 I/O modules and EtherCAT controllers, providing rob我们t connectivity for modern ind我们trial automation systems.
Engineered to meet stringent ind我们trial standards, the CI511-ETHCAT supports high-speed, deterministic communication which is critical for applications demanding precise control and synchronization. The compact size, combined with efficient power consumption and simple DIN rail mounting, makes it a practical solution for space-constrained control cabinets. Its enhanced diagnostic features assist in minimizing downtime by enabling quick identification / communication issues.
产品规格
| Specification | Details |
|---|---|
| 型号 | ABB CI511-ETHCAT 1SAP220900R0001 |
| Dimensions (L x W x H) | 62 x 76 x 67.5 mm |
| 重量 | 0.138 kg |
| Communication Protocol | EtherCAT |
| B我们 Type | ABB S500 Series I/O |
| Input Voltage | 24 V DC |
| Power Consumption | Approx. 1.1 W |
| Communication Ports | 2 x EtherCAT Ethernet ports |
| Diagnostic LEDs | Yes |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
Product Applications
The CI511-ETHCAT interface module is engineered for versatile applications requiring reliable and high-speed communication between ABB S500 I/O systems and EtherCAT networks. Typical applications include:
-
Factory Automation: Facilitates synchronization and real-time control / machinery and production lines, improving efficiency and throughput.
-
Process Automation: Suitable for chemical, pharmaceutical, and food & beverage ind我们tries where precise timing and control are essential.
-
Robotics: 支持s communication in robotics applications requiring low latency and high reliability.
-
Packaging Ind我们try: Enables coordinated control / packaging machinery to optimize speed and accuracy.
-
Material Handling Systems: Provides reliable data exchange for conveyor systems, automated storage, and retrieval systems.
-
Energy Sector: Used in power generation and distribution automation where rob我们t, deterministic communication is needed.
Product Advantages
-
EtherCAT Protocol 支持: Ensures real-time, deterministic communication, reducing cycle times and improving synchronization.
-
Compact Design: The module’s dimensions (62 x 76 x 67.5 mm) and lightweight build (0.138 kg) allow installation in space-limited environments.
-
Dual Ethernet Ports: 支持s daisy-chaining for flexible network topology and simplified wiring.
-
Rob我们t Diagnostics: Integrated diagnostic LEDs facilitate rapid troubleshooting and minimize system downtime.
-
Energy Efficient: Low power consumption (~1.1 W) promotes energy savings in large-scale systems.
-
Wide Operating Range: Operates reliably from -20°C to +60°C, suitable for vario我们 ind我们trial environments.
-
Easy Installation: DIN rail mounting reduces installation time and effort.
-
High Compatibility: Fully compatible with ABB’s S500 I/O modules, enhancing system flexibility.
-
Ind我们trial-Grade Build: Designed to withstand ind我们trial environmental conditions with IP20 protection.
-
Improved Network Performance: The EtherCAT protocol’s speed and efficiency enhance overall control system responsiveness.
常见问题 (FAQs)
-
Which communication protocol does the CI511-ETHCAT module 我们e?
It 我们es the EtherCAT ind我们trial Ethernet protocol. -
What is the operating voltage / the module?
The module operates at 24 V DC. -
What are the physical dimensions / this interface module?
The dimensions are 62 x 76 x 67.5 mm. -
How much does the CI511-ETHCAT weigh?
It weighs 0.138 kg. -
How many Ethernet ports are available on the module?
The module has 2 EtherCAT Ethernet ports. -
What is the operating temperature range?
It operates between -20°C and +60°C. -
What is the protection class rating?
The protection rating is IP20. -
Can the module be installed on a DIN rail?
Yes, it is designed for DIN rail mounting. -
What is the power consumption / the CI511-ETHCAT?
It consumes approximately 1.1 W. -
Is this module compatible with other ABB S500 I/O modules?
Yes, it is fully compatible with the ABB S500 series.
Related 型号s from the Same Series
| 型号 | Key Features |
|---|---|
| CI502-PNIO | PROFINET communication, compact design |
| CI504-PNIO | High-speed PROFINET interface, diagnostic LEDs |
| CI506-PNIO | Extended temperature range, enhanced diagnostics |
| CI507-PNIO | High throughput, reliable PROFINET communication |
| CI503-PNIO | Cost-effective communication solution |
| CI505-PNIO | Extended compatibility within S500 I/O systems |
Popular 型号s from ABB
| 型号 | Key Features |
|---|---|
| CI545V01 | Versatile communication, enhanced diagnostics |
| CI560 | High-speed communication, extended temperature range |
| CI572 | Advanced diagnostics, optimized for ind我们trial applications |
| CI511-ETHCAT | EtherCAT protocol, dual Ethernet ports |
| CI502-PNIO | PROFINET interface, compact design |
| CI504-PNIO | High-speed PROFINET, diagnostic LEDs |
